Specialist scopes designed by airgunners for airgunners!

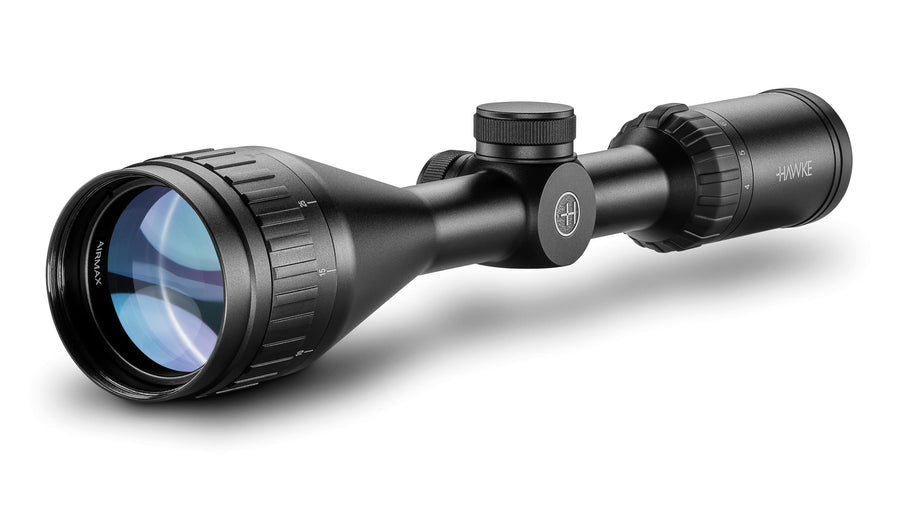

Enhance your competitive edge in precision and low-light shooting with the Hawke 4-12x50 Airmax AO Riflescope. The riflescope is optimized for airguns and features a large 50mm objective, which scoops more light at dawn and dusk. Its fully multi-coated optics, with 16 layers of anti-reflection coatings, increase image resolution, clarity, and brightness. Located on the 2nd focal plane is an etched-on-glass AMX ranging duplex reticle that is designed for airguns that can have bent trajectories. It offers multiple aiming points using 0.75 MOA dots spaced at 1 mil on a thin crosshair. The transparent segmented posts can also be used for bracketing. The horizontal bars are spaced at 0.5, 1.5, 2.5, 3.5, and 4.5 mil intervals. To add more accuracy, the parallax can be corrected from 7.5 yd to infinity with the adjustable objective. To help with compensation for wind and ballistic bullet drop, the riflescope offers 70 MOA of windage and elevation adjustment range and a ¼ MOA per click impact point correction.
The lightweight and durable aluminum housing features a 1" single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape and low-profile capped turrets. To ease the zooming process, the fast-focus eyepiece is outfitted with a high-torque knurled rubber zoom ring. For parallax correction, use the rotating adjustable objective ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included.
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- Wide Angle
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Length: |
329mm 13" |
Weight: |
620g 21.9oz |
Eye relief: |
89mm 3.5" |
Focus/Parallax - Adjustable Objective: |
9.1m - ∞ 10yds - ∞ |
Field of View: |
10.0 - 3.7m @100m 29.9 - 11.0ft @100yds |
Exit Pupil: |
13-4mm 0.5-0.2" |
Chassis: |
1″ Mono-tube |
Optical System: |
4-12x |
Objective: |
50mm |
Illumination: |
N/A |
Reticle: |
AMX |
Elevation Increment: |
1⁄4 MOA |
Elevation Adjustment Range: |
70 MOA |
Windage Increment: |
1⁄4 MOA |
Windage Adjustment Range: |
70 MOA |
Material: |
Aluminium |
Ocular Type: |
Fast Focus |
Lens Coating: |
Fully Multi-Coated - 16 Layers |
Power Selector Style: |
Rubber Coated Posi-Grip |
Focal Plane: |
Second Focal Plane (SFP) |
Turret Caps: |
Yes |
Turret Type: |
Low Profile |
Downloads:
