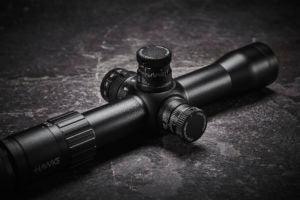

Product Overview;

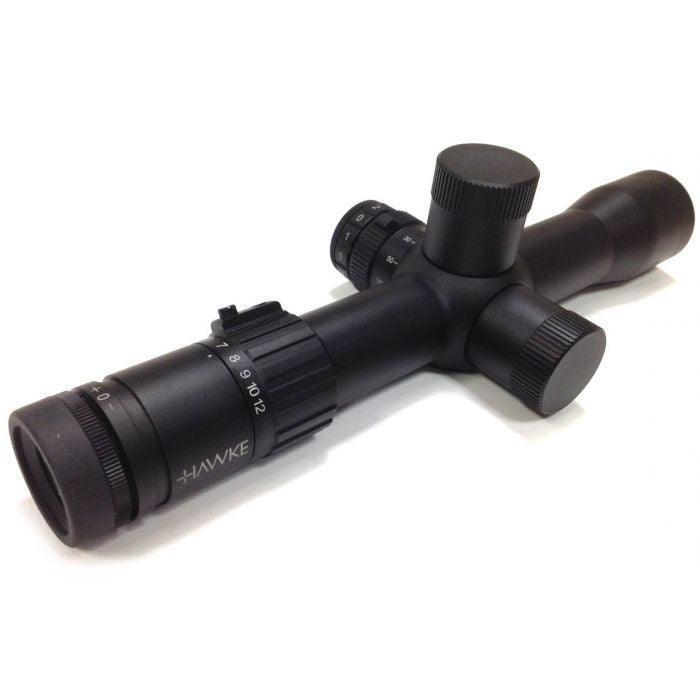

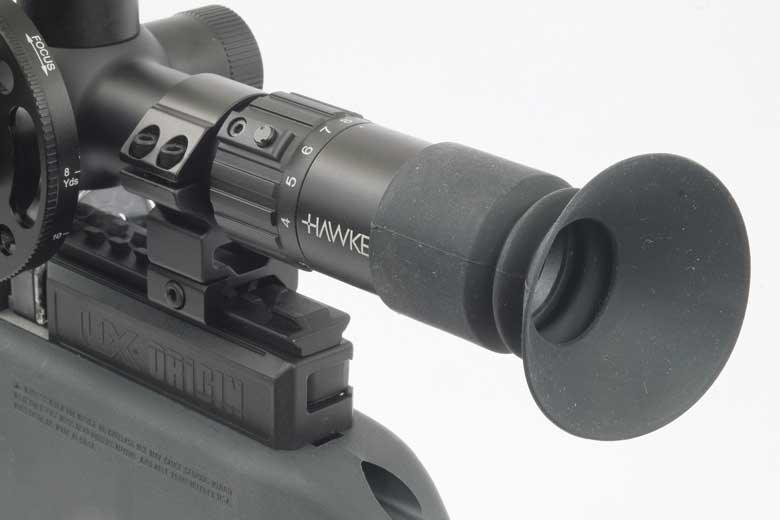

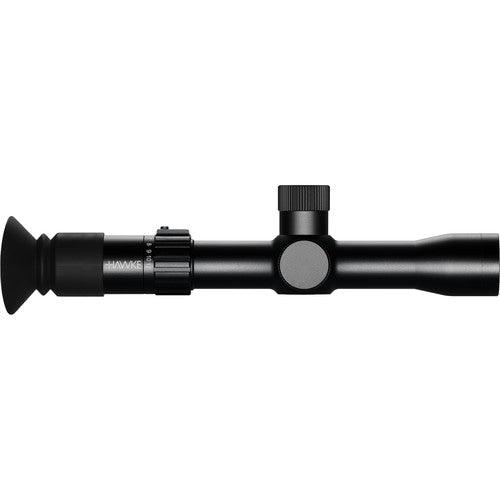

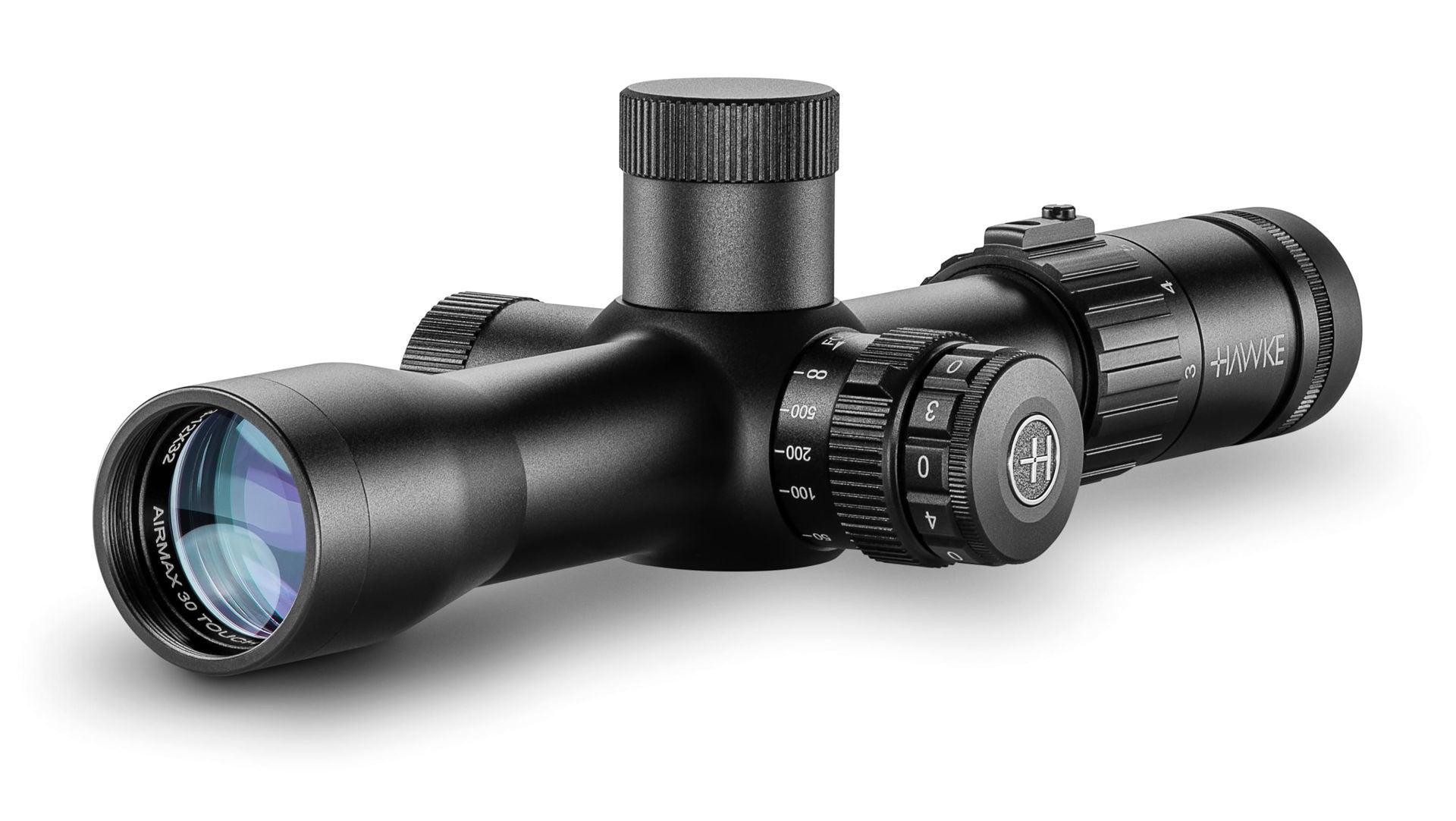

Designed to take advantage of the low recoil of PCP airguns and rimfire rifles, the Hawke 3-12x32 Airmax 30 Touch Side Focus Riflescope allows eye relief as short as 1.2", which in turn enables a remarkably wide field of view—64' at 100 yards on 3x magnification. The eye relief is so short that the scope comes with a rubber eyepiece. The Airmax 30 Touch features 16-layer fully multi-coated optics and the glass-etched AMX IR reticle, which provides multiple aiming points on all axes and offers six red brightness levels, with off positions in between.

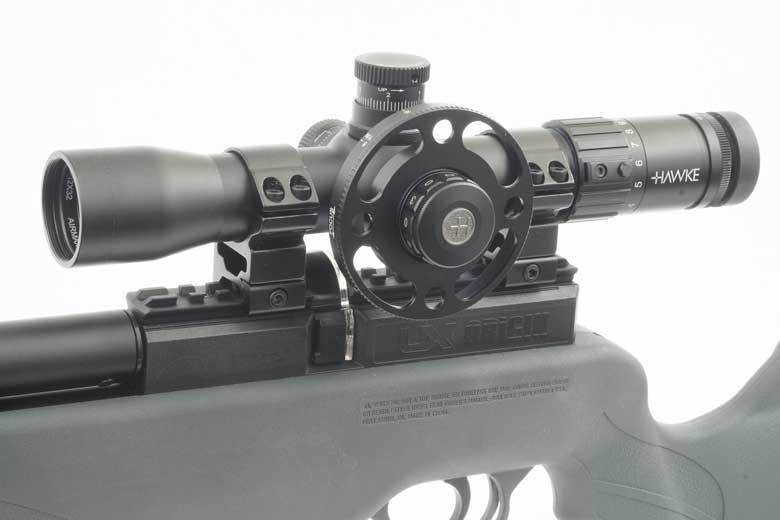

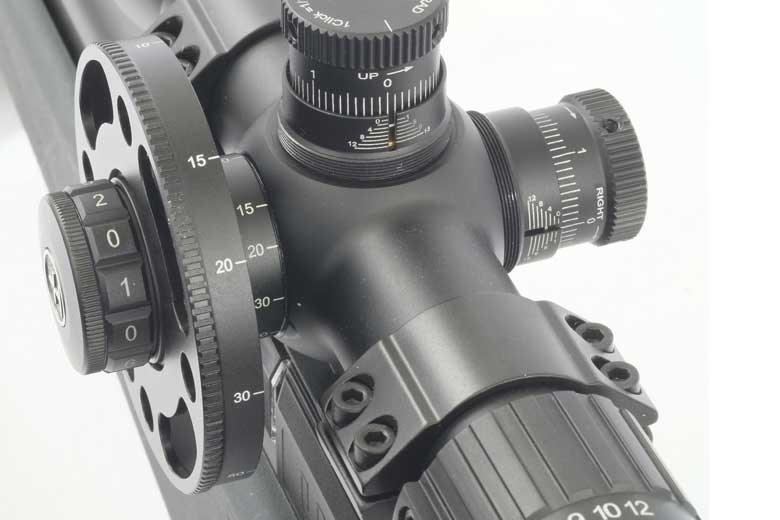

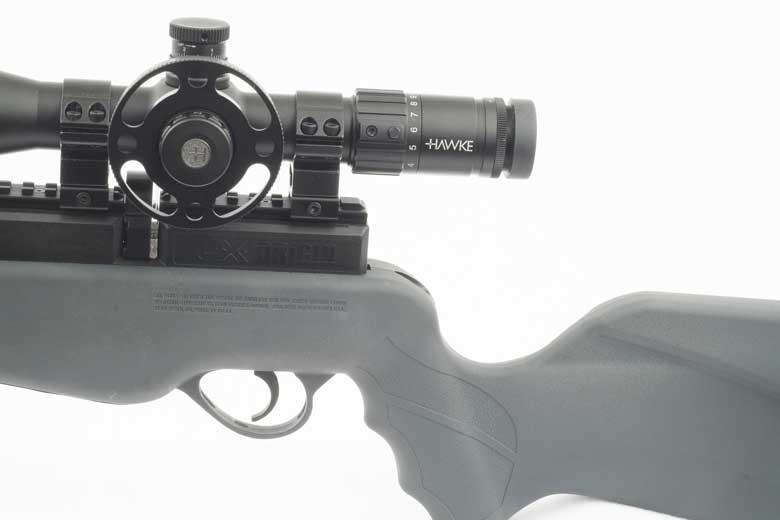

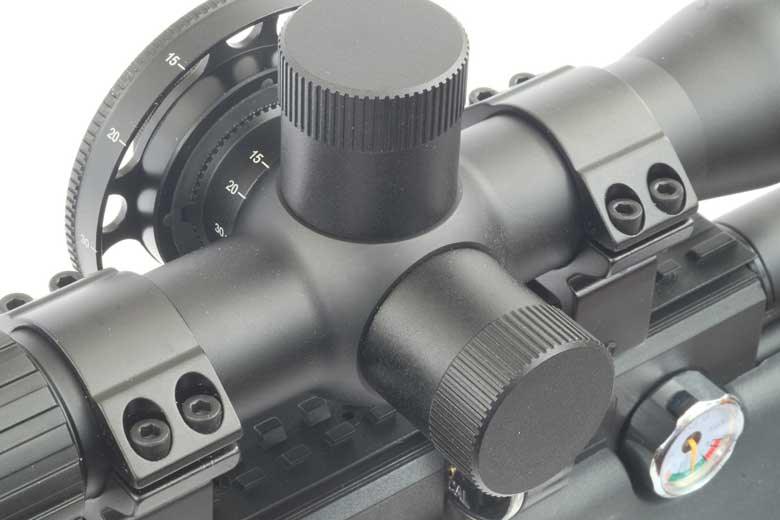

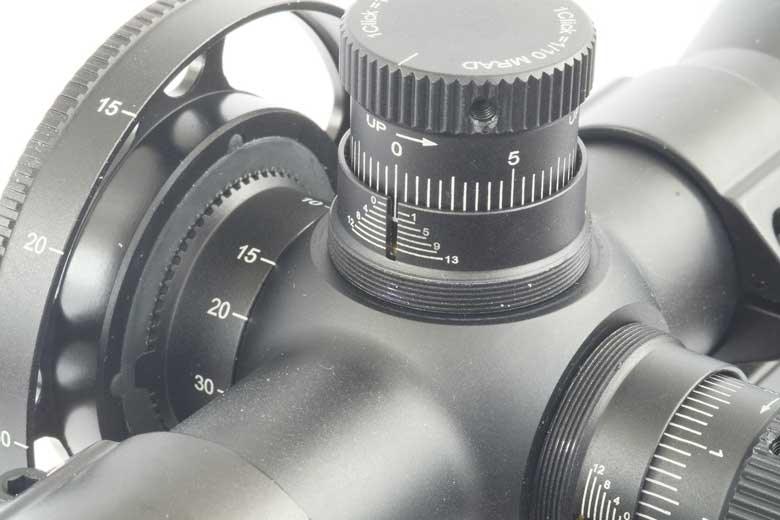

Capped, resettable target turrets adjust at 1/10 MRAD per click, with a total elevation and windage adjustment range of 75 MRAD for precise impact point correction. A side parallax adjustment with removable wheel allows correction of parallax errors from 10 yards to infinity. The zoom ring clicks at 10x, the power on which the reticle's spacing is based, for quick reference, and the fast-focus eyebell can be locked. The scope has a lightweight and durable anodized aluminum housing with a 30mm one-piece maintube and is nitrogen filled and O-ring sealed to be waterproof and fogproof.
Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Target Turrets
- Zero Eye Relief
- 30mm Mono-Tube Chassis
- Super Wide Angle
- Side Focus
- Illumination

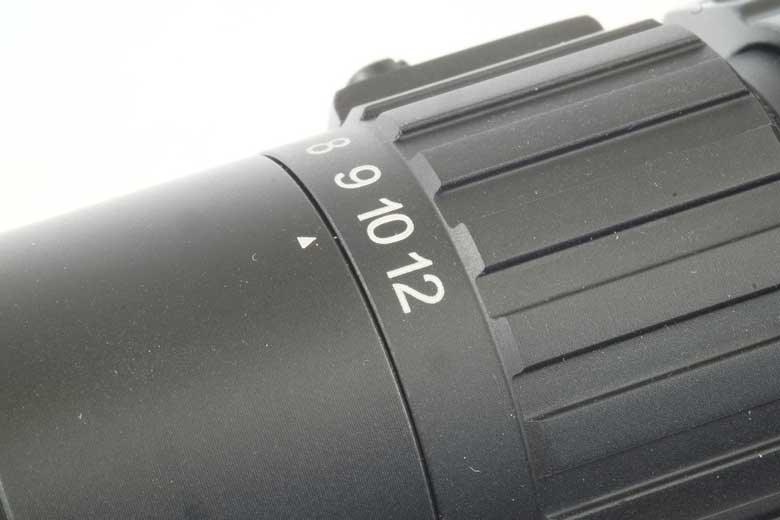

- Zoom Ring With Index Magnification Click At 10x
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring

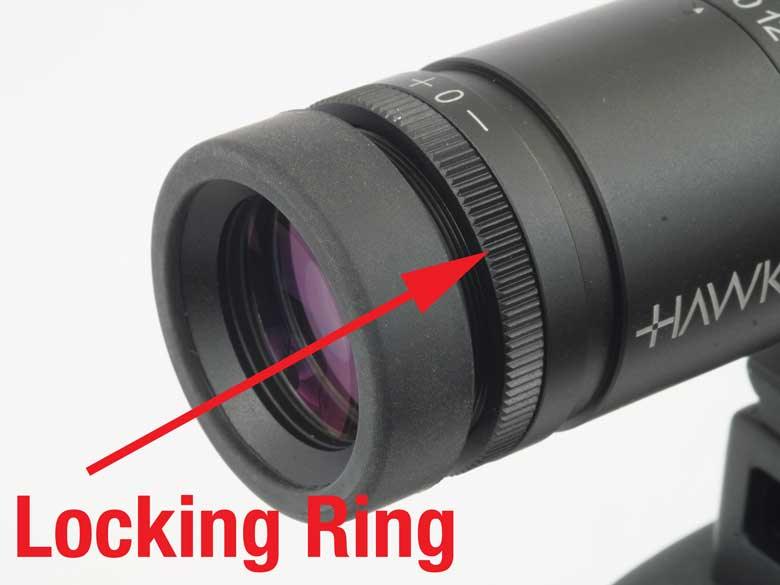

- Fast Focus Eyebell With Lock Ring
- AMX Reticle Designed For Airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

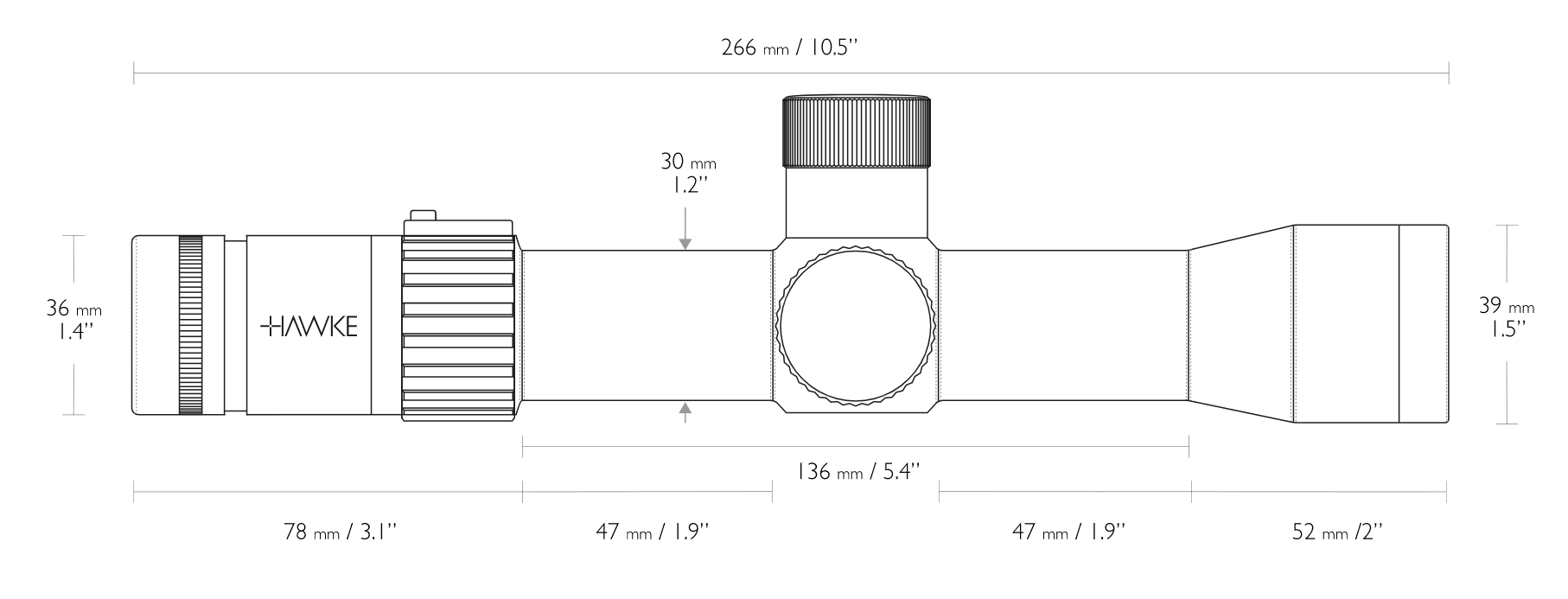

Technical Specifications;
Length: |
266mm |
Weight: |
572g |
Eye relief: |
30mm |
Focus/Parallax - Side Focus |
9m - ∞ |
Field of View: |
21.3 - 6.1m @100m |
Exit Pupil: |
10.7-2.7mm |
Chassis |
30mm Mono-tube |
Optical System |
3-12x |
Objective |
32mm |
Illumination |
Red |
Reticle |
AMX IR |
Elevation Increment |
1⁄10 MRAD |
Elevation Adjustment Range: |
75 MRAD |
Windage Increment |
1⁄10 MRAD |
Windage Adjustment Range |
75 MRAD |
Material |
Aluminium |
Ocular Type |
Fast Focus |
Lens Coating |
Fully Multi-Coated - 16 Layers |
Power Selector Style |
Zoom Ring With Index Magnification Click At 10x |
Focal Plane |
Second Focal Plane (SFP) |
Turret Caps |
Yes |
Turret Type |
Capped Target Turrets |
Downloads;
External media;

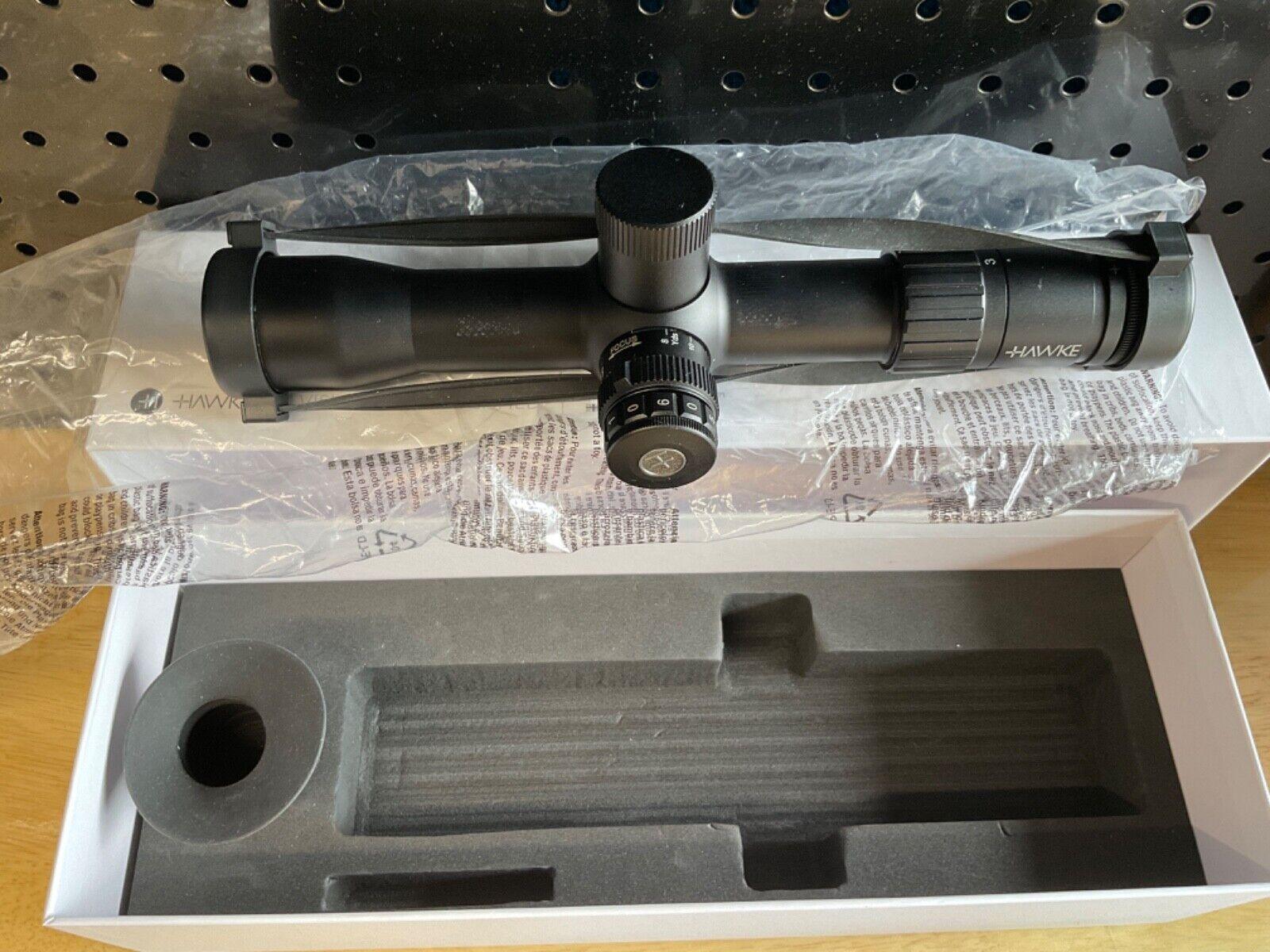

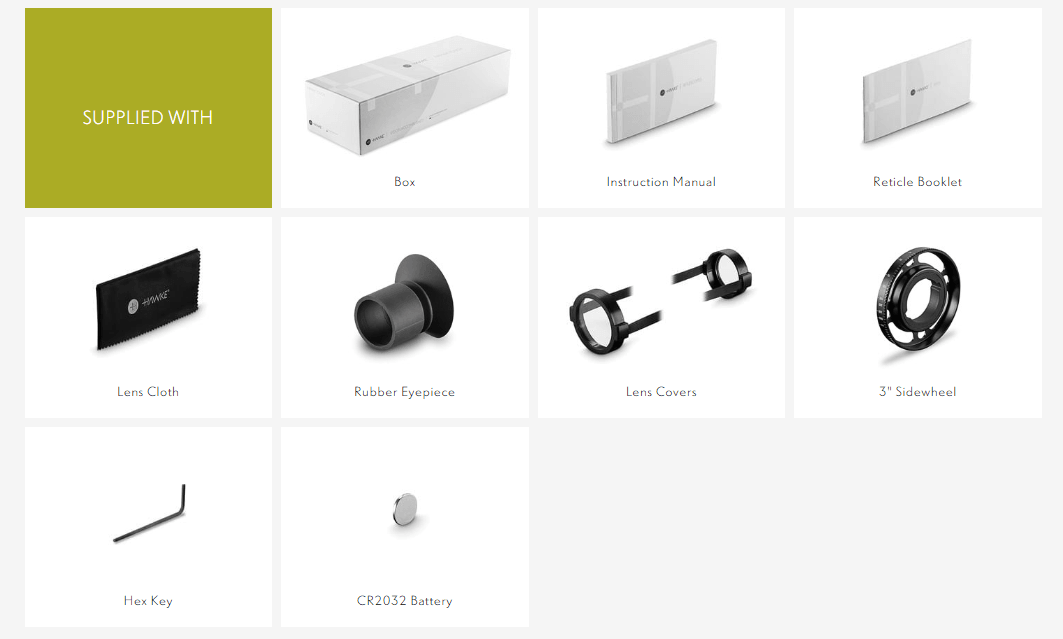

Included in the Box;
- Hawke Sport Optics 3-12x32 Airmax 30 Touch Side Focus Riflescope (AMX Illuminated Reticle)
- Rubber Eyepiece
- 2 x Bikini-Style Lens Caps
- 3" Sidewheel
- Lens Cloth
- Hex Key
- CR2032 Battery
- Limited Lifetime Warranty
