AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.


Technical Specifications;

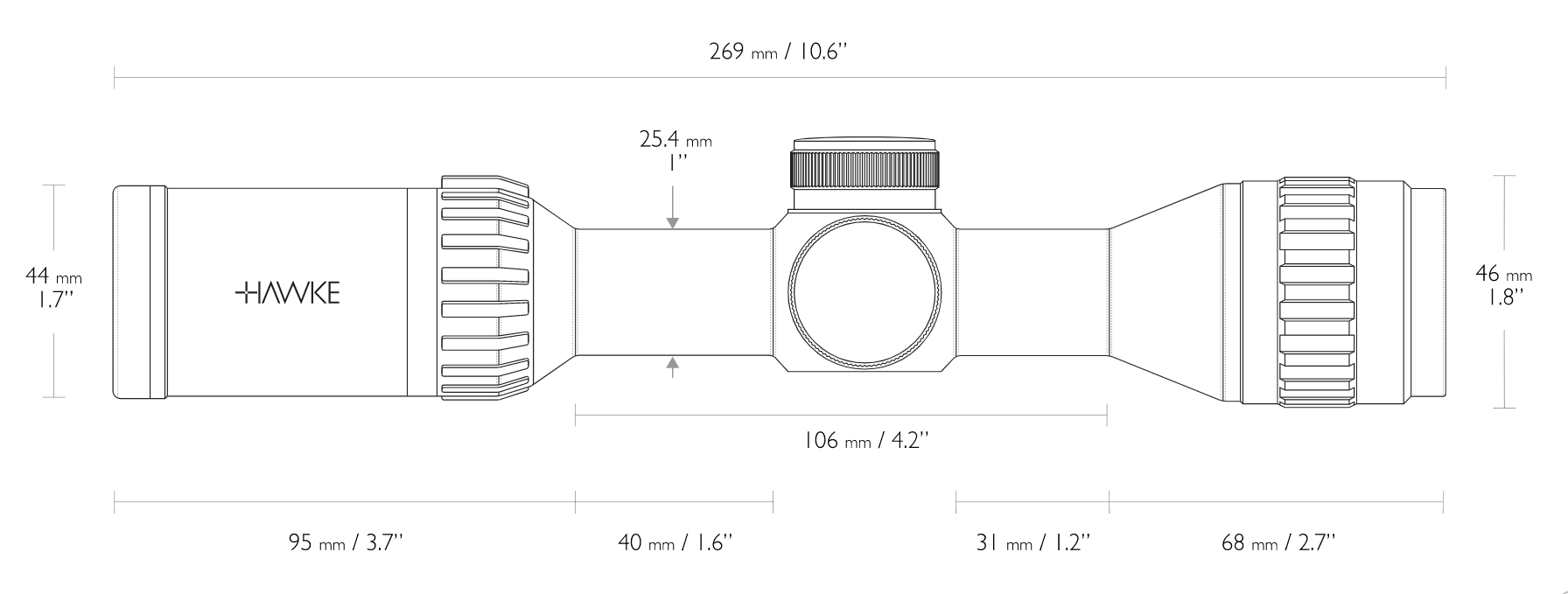

Length:
|
269mm 10.6"
|
Weight:
|
472g 16.6oz
|
Eye relief:
|
89mm 3.5"
|

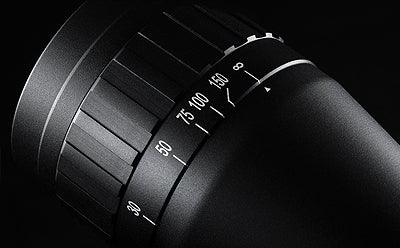

Focus/Parallax - Adjustable Objective
|
7m - ∞ 7.5yds - ∞
|
Field of View:
|
17.5 - 6.3m @100m 52.5 - 18.9ft @100yds
|
Exit Pupil:
|
16-5mm 0.6-0.2"
|
Chassis
|
1″ Mono-tube
|
Optical System
|
2-7x
|
Objective
|
32mm
|
Illumination
|
N/A
|
Reticle
|
AMX
|

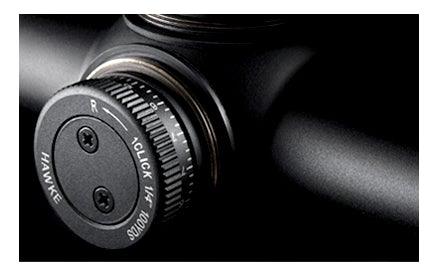

Elevation Increment
|
1⁄4 MOA
|
Elevation Adjustment Range:
|
120 MOA
|
Windage Increment
|
1⁄4 MOA
|
Windage Adjustment Range
|
120 MOA
|
Material
|
Aluminium
|

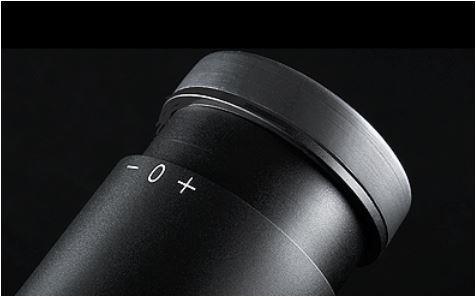

Ocular Type
|
Fast Focus
|
Lens Coating
|
Fully Multi-Coated - 16 Layers
|
Power Selector Style
|
Rubber Coated Posi-Grip
|
Focal Plane
|
Second Focal Plane (SFP)
|
Turret Caps
|
Yes
|
Turret Type
|
Low Profile
|
