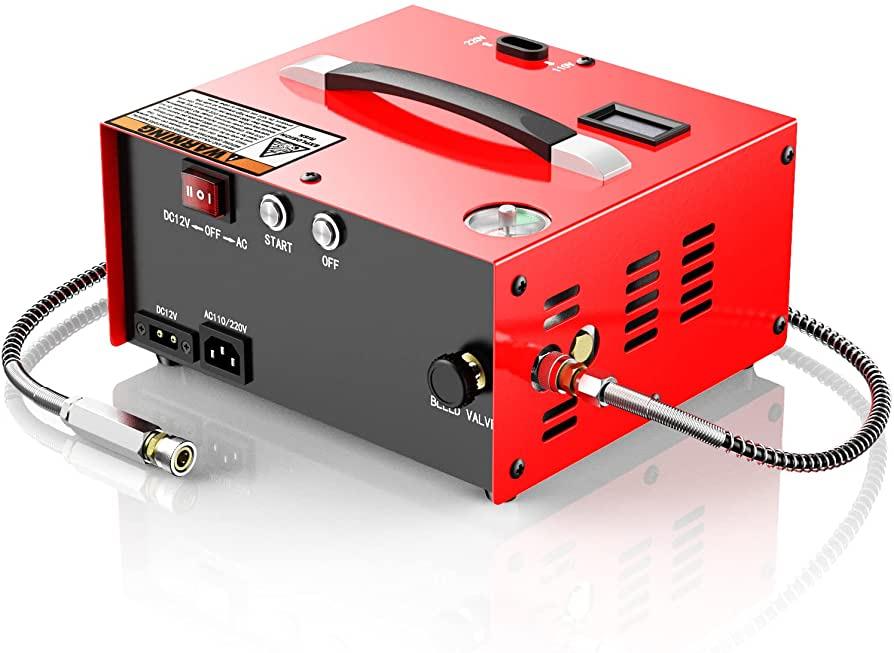

Titanium Mini PCP Air Compressor – 250 BAR (12 V / 110–220 V)
Please Note : The GX-Red Compressor has now changed the name to Titanium
It is important to read the User Manual before proceeding with setting up and proceeding with operation of the compressor

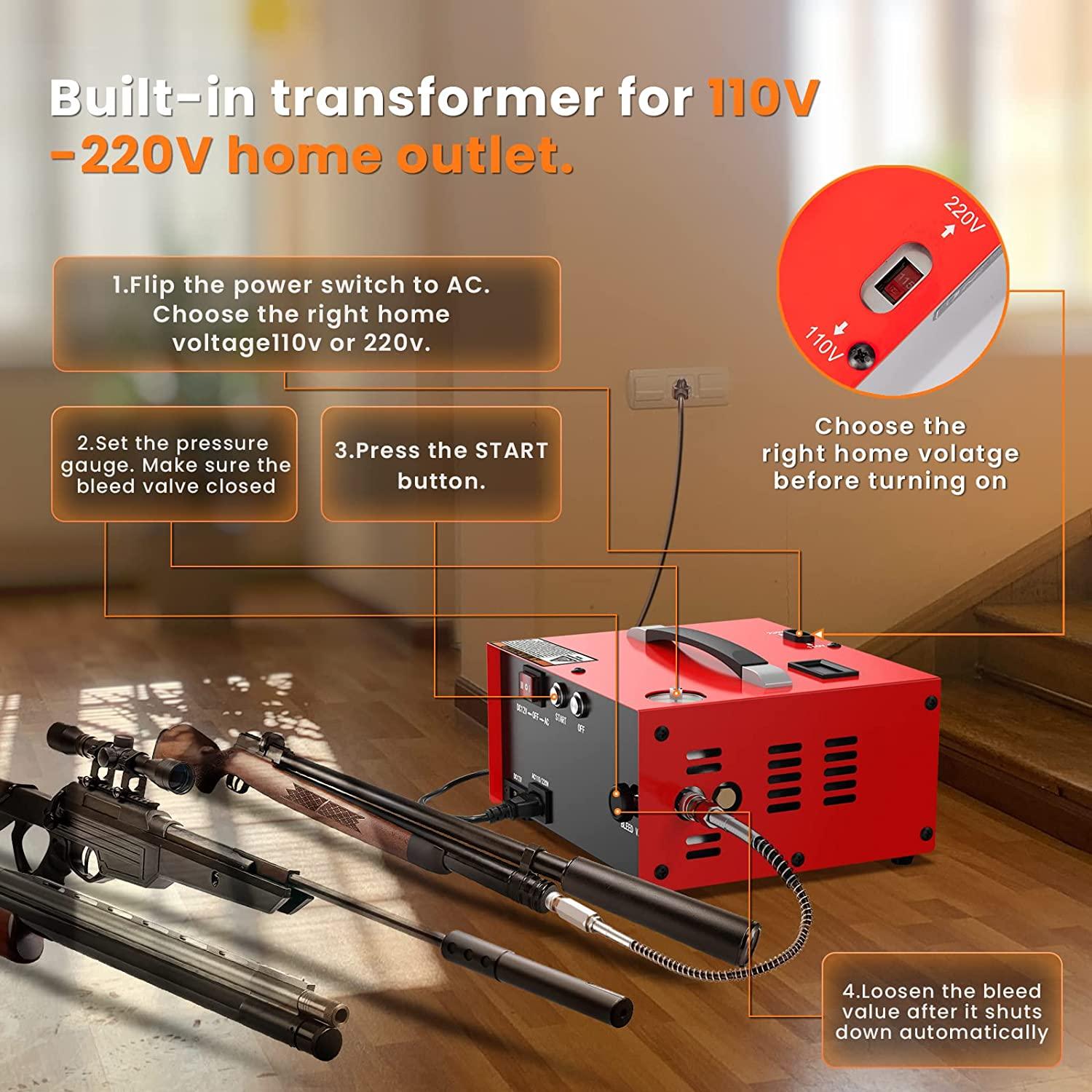

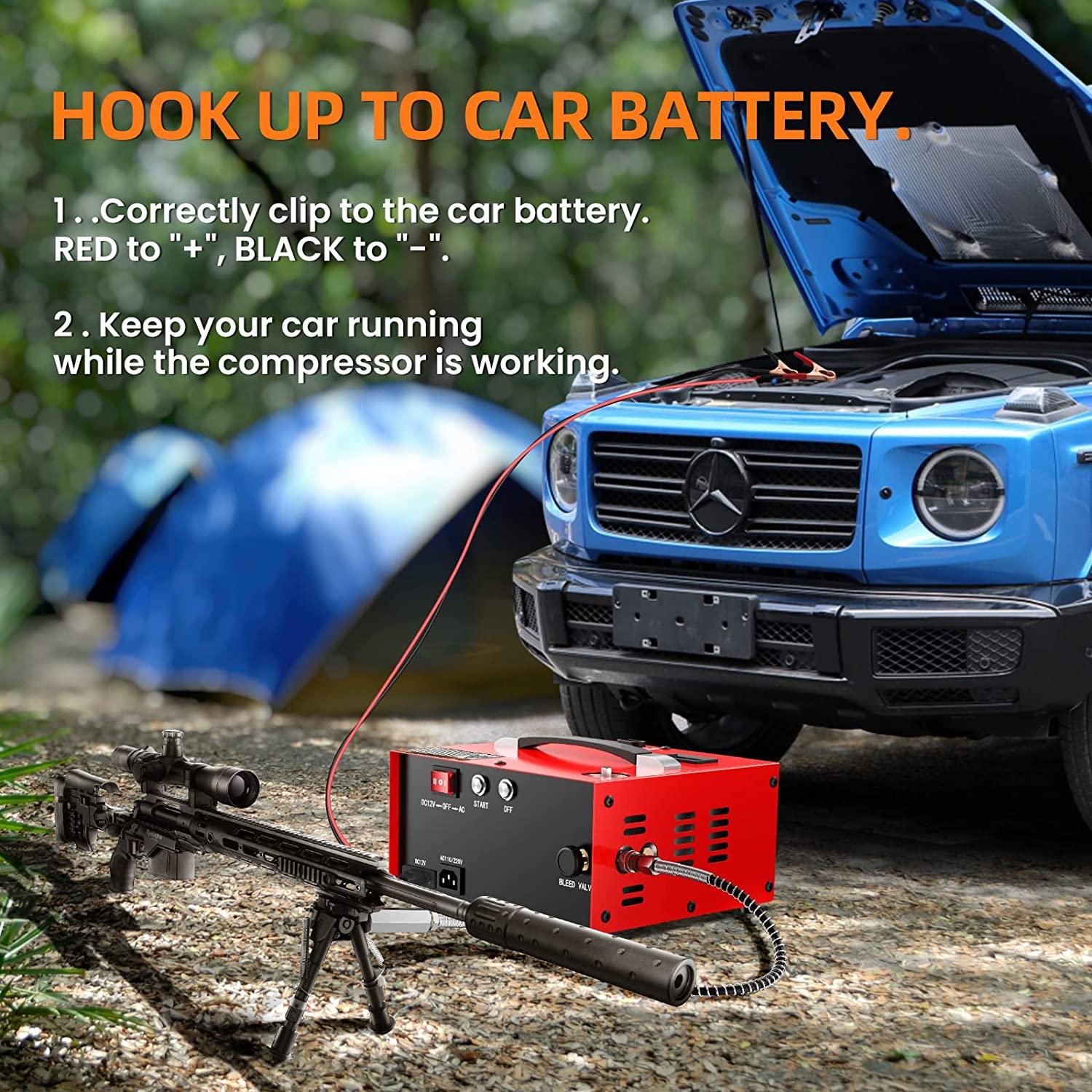

【Built-in Power Transformer】The Titanium PCP air compressor can be powered by 12V car battery, easy to carry when you go out and you can also use 110v and 220v wall sockets to power the compressor at home. The power adapter is built into the air compressor for easy portability and usage, so there is no need to carry an extra power adapter with you when you go out. NOTE: The temperature should not exceed 75°,and turn off in time to cool down.

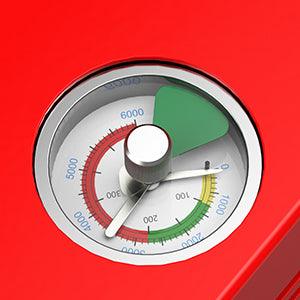

【Auto-stop at Set Pressure Level】The electric PCP air pump will turn off automatically when it reaches the pressure that you preset. After 30 minutes of continuous operation, the automatic shutdown function will also be triggered, which is a good safety feature that you will like. No distraction when inflating, totally free your hand.

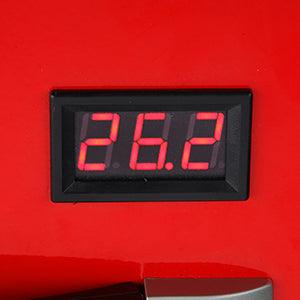

【Fan Cooling & Real-time temperature Display】Oil-free operation and no need cooling water circulation. This PCP air compressor built-in 12500rpm cooling fan start running when power on the paintball air compressor, no need to turn it on manually. Real-time temperature display makes your air pumping safer and easier. No water hassles and no oil hassles! No more bottle fill charges and driving to dive shop!

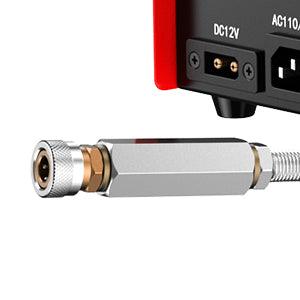

【Quick Connector & Replaceable Filter Element】Comes with an 8mm quick female connector, just hook up and start pumping. This pcp air rifle compressor also packed with extras like spare o-rings and some moisture filter elements. The activated carbon moisture filter on the hose not only can be used multiple times, but also replaceable to keep the compressed air clean and dry all the time.
Technical Specifications;
|
Brand
|
GX pump
|
|
Voltage
|

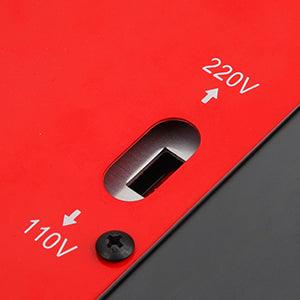

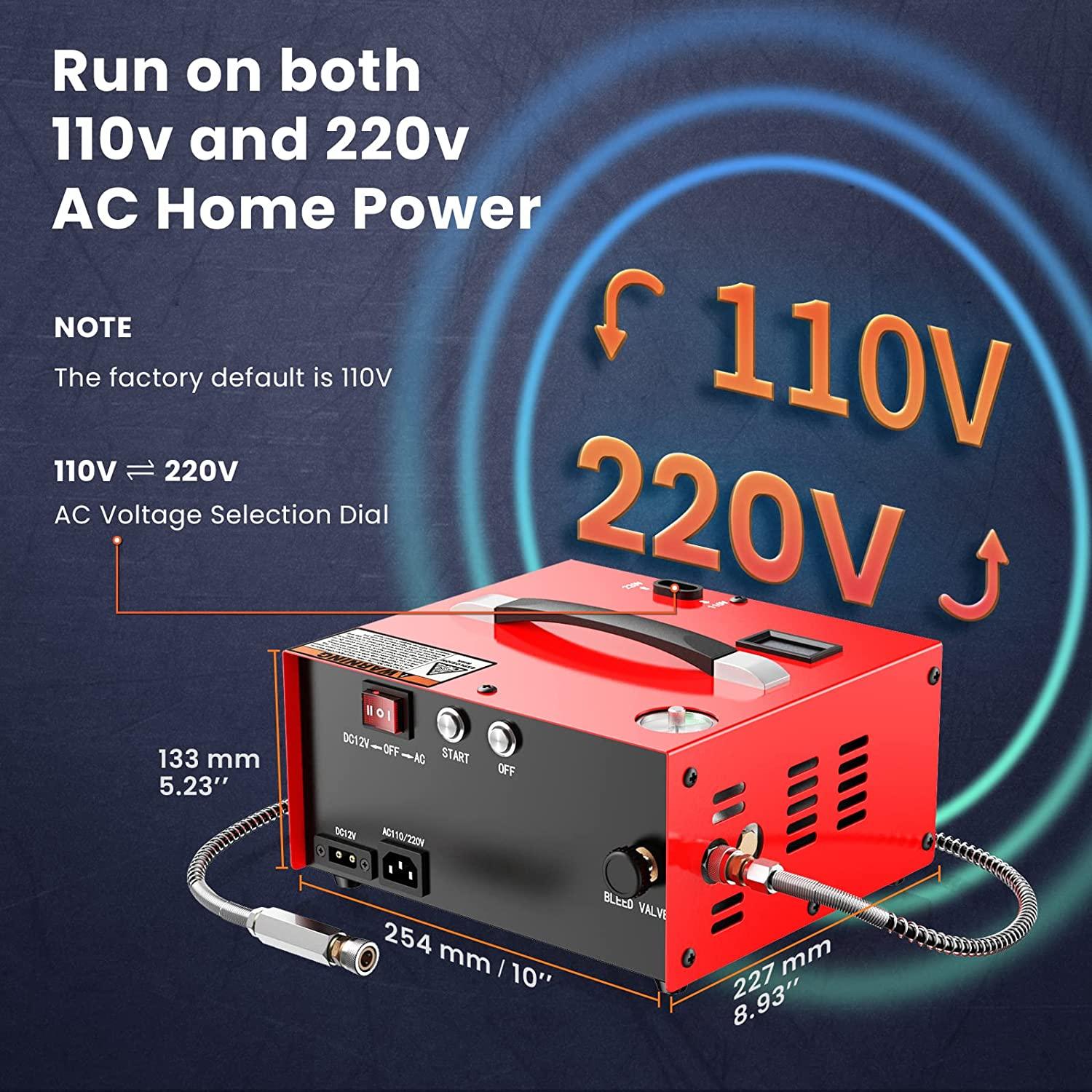

12 DC / 220 AC - There is a red rocker switch, that has three toggle positions - 12V DC (left), Null (middle), AC / mains (right)
|
|
Inverter:
|
Enclosed w/in chassis - results in smaller overall operation footprint.
|
|
Portability:
|
8/10 in our opinion, the height is low, resulting in a flat cube profile. If you tilt it onto its side, you can slip this in between two tightly-packed rifle bags in the back of your double cab. Also features a retractable carry handle, that has a hard rubber sleeve.
|
|
Power switch:
|
Press-switch type, respectively for starting the compressor, and killing power to the compressor
|
|
Recommended Uses For Product
|
PCP air reservoir / bottle refill. Can refill 48ci paintball receptacles as well. Scuba tanks will need a 220V high power compressor
|
|
Power Source 220 AC:
|

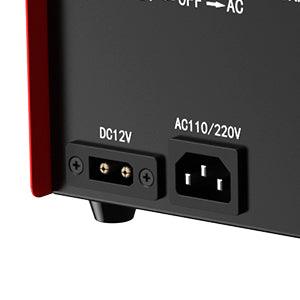

Supplied w/ kettle cord / two pronged SA type. 12 DC: Set of jumper cables w/ XT90 connector to the compressor
|
|
Sound Level
|
75 dB
|
|
Special Feature
|
Auto-shutoff, digital thermometer, integrated desiccant bay for filtering out moisture, externally fused
|
|
Burst disc
|
Yes, externally replaceable
|
|
Cooling:
|
Brushless Fan cooled, no oil / water supply necessary
|
|
Working position:
|
Stands flat, on a four set of ferrules, allowing for 11mm clearance off the operating surface
|
|
Included Components
|
High pressure hose w/ steel shielding coiled around the length of its tubular body. All Quick Couple / Foster fittings supplied and fitted, along w/ in-line filter housing. Wheel tube filling adapter included, as are 4x burst discs and 3x inline filter cotton buds. A Pair of NBR O-rings are likewise included, presumably for the in-line filter housing. The aforementioned power cables are included too.
|
|
Item Weight
|
8 Kilograms
|
|
Maximum Power
|
250 Watts
|
|
|
|
Item Dimensions
|
LxWxH 10.5 x 8.9 x 6.1 inches
|
|
Model Name
|
Titanium
|
|
Manufacturer
|
Titanium
|
|
Item Weight
|
17.6 pounds
|
|
Product Dimensions
|
10.5 x 8.9 x 6.1 inches
|
|
Item model number
|
Titanium
|
|
Batteries Required?
|
No, but using the 12V power source, will require you to have a supply of said power on hand. Minimum rated, would be a 18 Ah battery.
|
