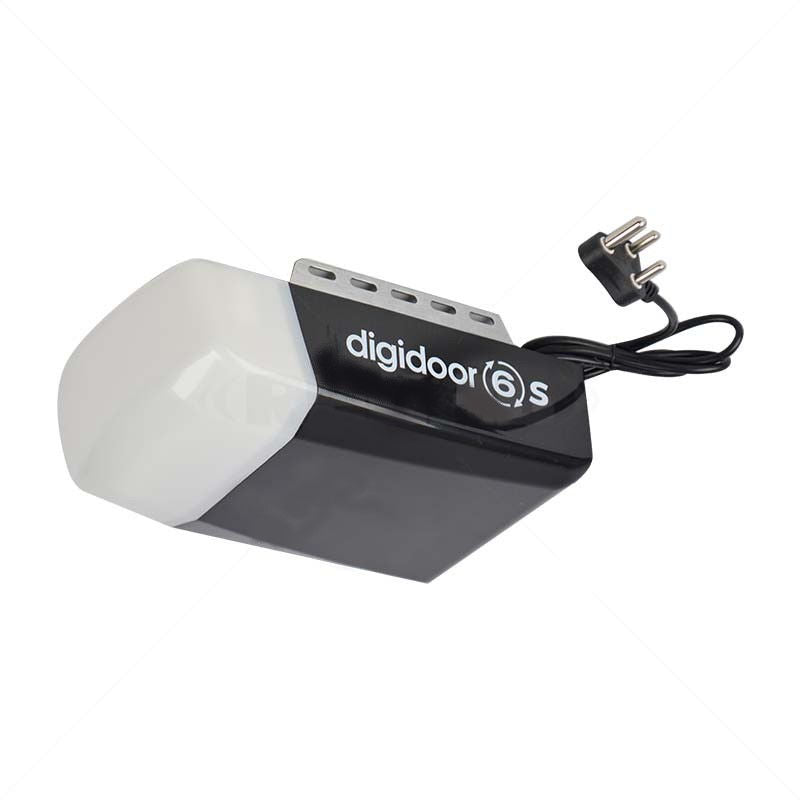

The DigiDoor SIX GA96-1 is a 24 V DC sectional garage-door operator designed for residential sectional doors up to approximately 12 m². It combines a 600 N pulling force with code-hopping remote control, adjustable obstacle sensing and battery-backup capability for practical everyday garage automation.
Key Features
- 24 V DC garage-door motor
- Suitable for sectional garage doors
- Maximum pull force: 600 N
- Suitable for doors up to approximately 12 m²
- 220-240 V AC mains input
- 433 MHz remote-control system
- Advanced adjustable obstacle sensing
- Manual override for emergency operation
- Integrated LED courtesy light
- Battery-backup support
Specifications
- Model / item code: GA96-1
- Motor voltage: 24 V DC
- Input voltage: 220-240 V AC
- Maximum pull force: 600 N
- Maximum recommended door area: approximately 12 m²
- Radio frequency: 433 MHz
What's in the Box

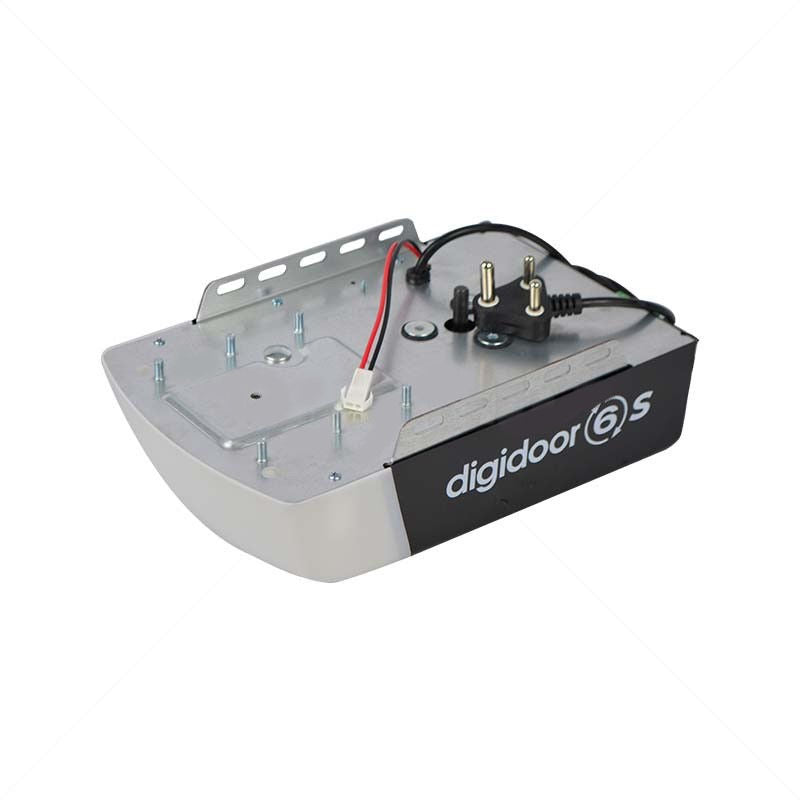

- 1 x DigiDoor SIX garage-door operator power head
- 1 x Compatible extrusion / rail assembly
- Remote controls as supplied with the GA96-1 kit
- 1 x Backup battery
Installation note: Confirm the garage-door balance, rail length, door travel and mounting requirements before installation.
