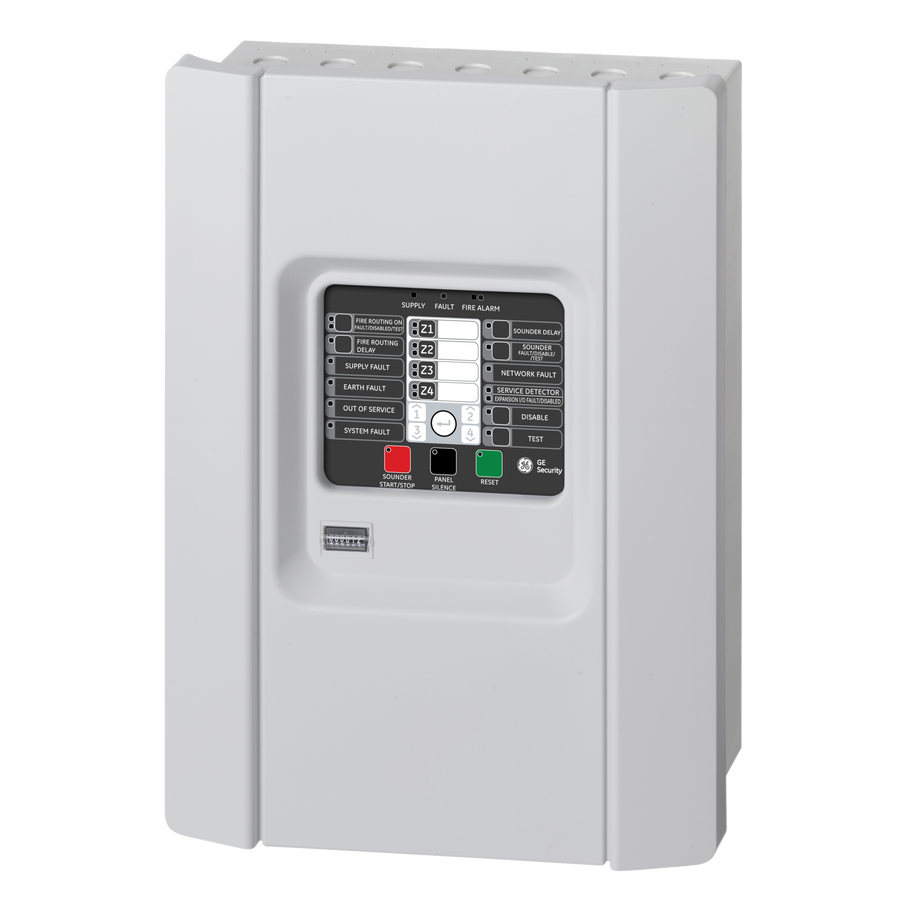

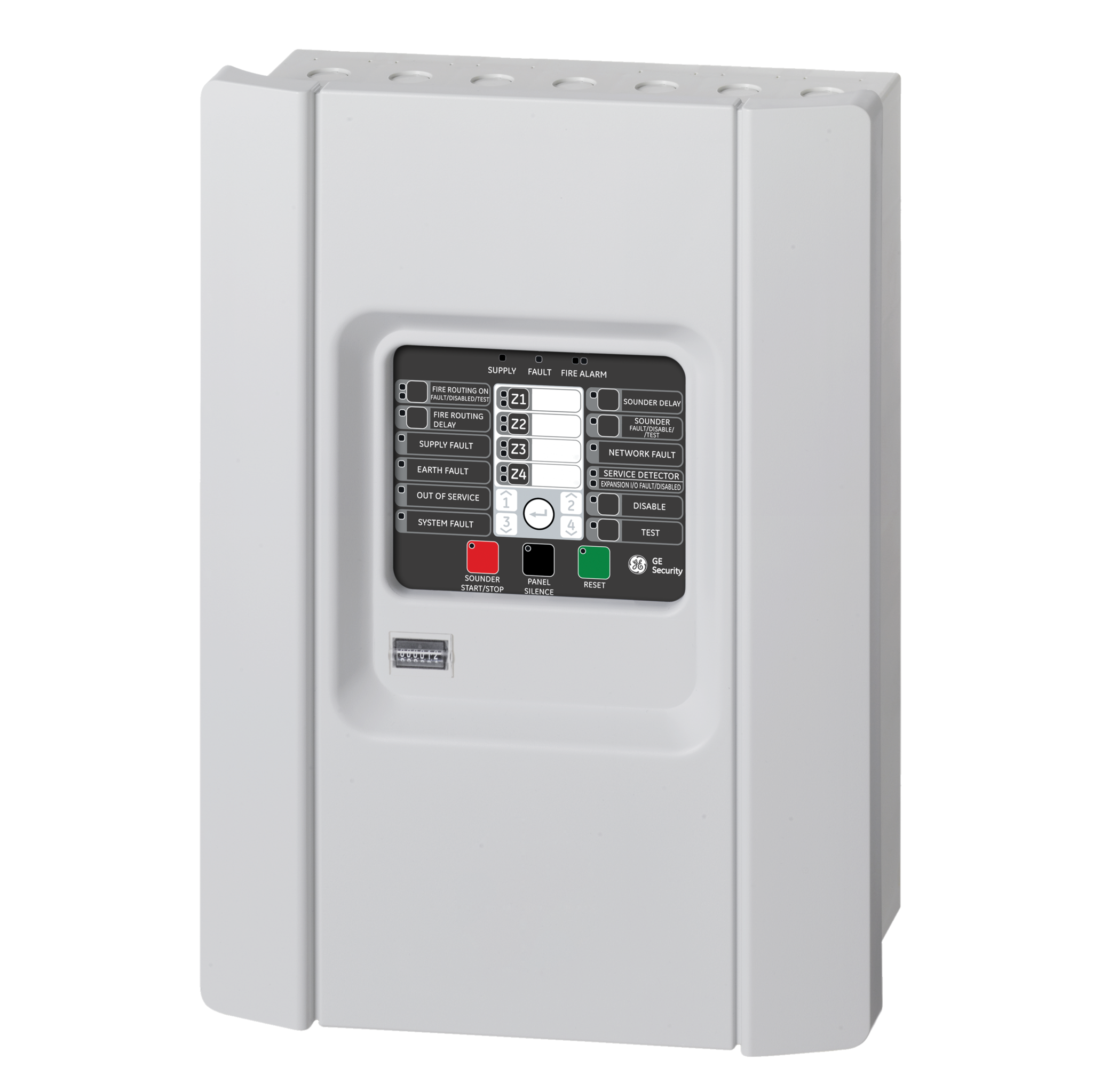

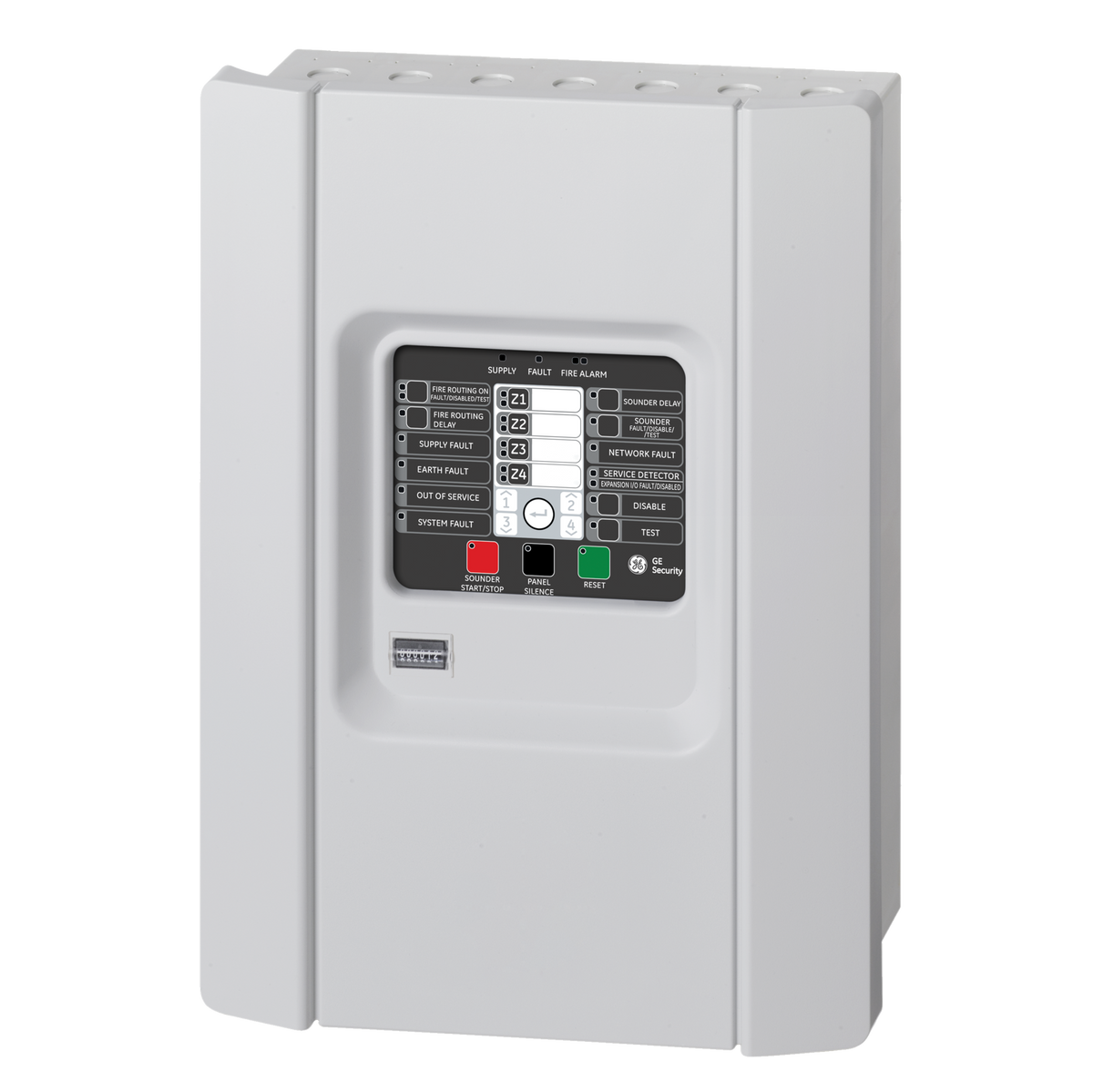

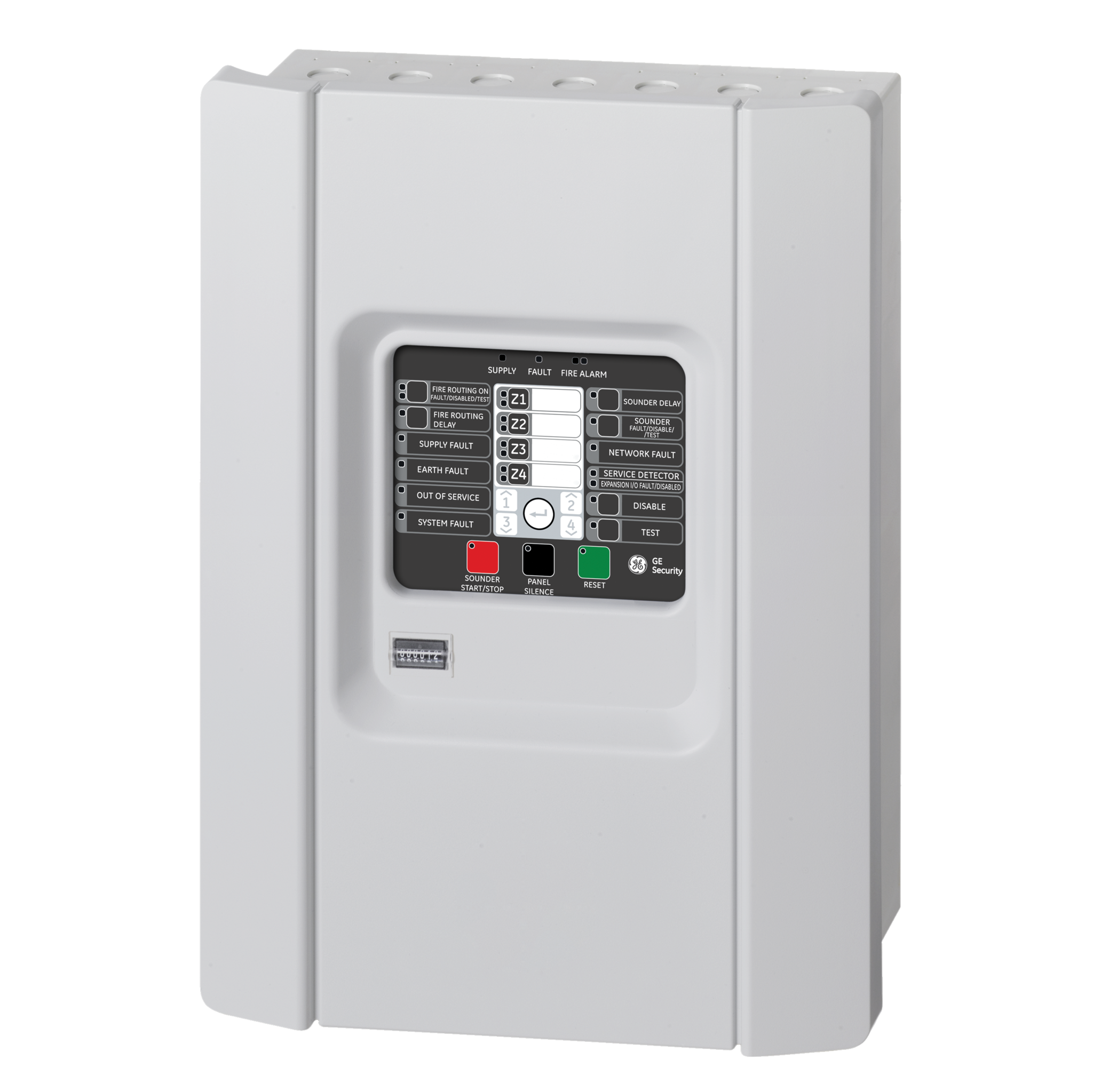

The Aritech 1X-F4 is a four-zone conventional fire alarm control panel for professional indoor fire-detection installations. It supports conventional detectors and manual call points across four zones, with supervised sounder outputs and dedicated common fire/fault relays.
Key Features
- 4 conventional fire zones
- Supports up to 32 compatible devices per zone
- Up to 4 supervised sounder outputs
- 2 conventional relay outputs for common fire and fault conditions
- 2 user-configurable monitoring/control inputs
- Auxiliary 24 V DC supply output
- Day/night and remote-reset functions
- Front-panel diagnostics and one-man walk test
- Networkable system architecture up to 64 zones with suitable expansion/network equipment
- EN 54-2 / EN 54-4 compliant family
Specifications
- Model: 1X-F4
- Zones: 4
- Mains supply: 110 or 230 V AC, 50 Hz depending on regional configuration
- Ingress protection: IP30
- Operating temperature: approximately -5°C to +50°C
- Environment: Indoor
System note: Fire detectors, call points, sounders, standby batteries and site-specific expansion modules must be selected to suit the designed fire system and are not assumed to be included.
What's in the Box
- 1 x Aritech 1X-F4 four-zone conventional fire alarm control panel
