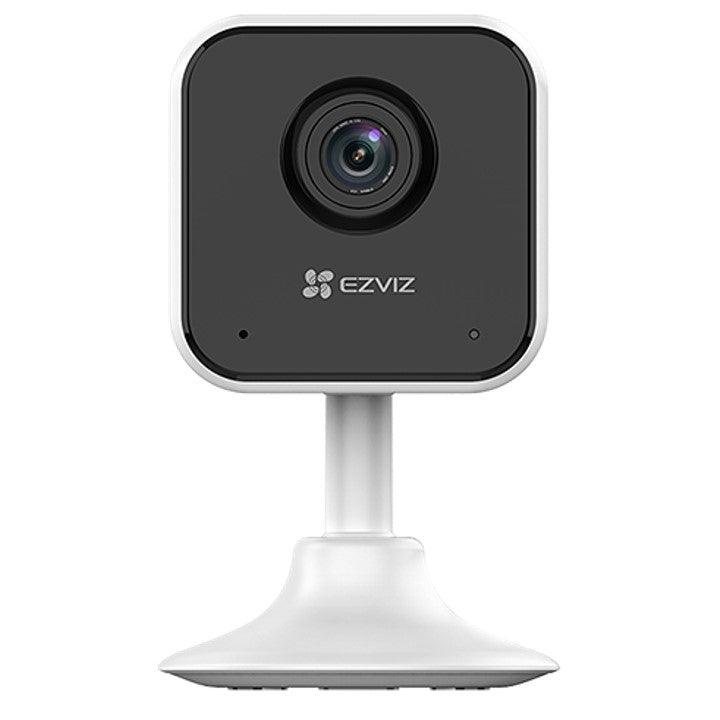

EZVIZ H1C 1080P SMART HOME CAMERA

Peace of mind delivered in a petite way

Simple but reliable, the H1c can be your essential indoor camera to keep an eye on your kids and pets, while offering protection to your home from day to night. As a petite, plug-in camera that fits any home space, the camera gets all the basics right. It offers great video quality, sharp night vision, motion detection and two-way audio, and provides extra convenience with its easy-to-install design, sleep mode, three sound-alert modes, and more.

Clear vision for wider protection

The camera renders vivid, clear details in 1080p video, and can watch over a large indoor space with its 108° wide-angle lens.

Peace of mind at night

The camera protects your sweet dreams even in dim lights. It captures activities with sharp night vision of up to 10 meters (32 feet).

Instant, insightful notifications

The camera captures motions and alerts you immediately. You can view alert details and replay captured videos all on your mobile phone.

Super easy installation

Setting up the H1c is a breeze. Place it on any flat surface, or snap it onto any metallic wall with the included magnetic base.

Adjustable audio alerts

You can now hear camera detections from afar. The H1c offers three audio alert modes – silent, short beep, and siren.

Real-time communication

The H1c’s full-duplex audio allows you to talk to your loved ones from wherever you are, by simply using the EZVIZ App.

Hands-free control

With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google”.

Dual video storage options

Capture and secure important moments or unforgettable memories on a large 512 GB microSD card, or by subscribing to the EZVIZ CloudPlay.

We do our best to protect data and privacy

We respect your home as your special space. That’s why EZVIZ builds complex security systems, safeguarding your device and data. You can also enable Sleep Mode on the H1c when needed, which stops all camera activities.

Specifications

Specifications
Model	CS-H1c
Camera
Image Sensor	1/3″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	2.4mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical)
Minimum Illumination	0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
IR Night Vision Distance	Up to 32 ft / 10 m
Video & Audio
Max. Resolution	1920 × 1080
Frame Rate	Max: 25 fps; Self-Adaptive during network transmission
Video Compression	H.264
H.264 Type	Main Profile
Video Bit Rate	HD; Standard. Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	1 Mbps
Function
Smart Alert	Motion detection
Two-way Talk	Supports
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Network
Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Storage
Local Storage	Supports microSD card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions	-10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5V / 1A
Power Consumption	MAX. 3.0 W
Dimensions	53.89 × 53.89 × 90.3 mm (2.12 × 2.12 × 3.56 inch)
Packaging Dimensions	91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch)
Net Weight	87 g (3.07 oz)
Weight (With Package)	305 g (10.76 oz)
In the box
In the box	H1c Camera ×1
	Power Adapter x1
	2-Meter Power Cable x1
	Foam Sticker x2
	Metal Plate x1
	Regulatory Information x2
	Quick Start Guide x1
