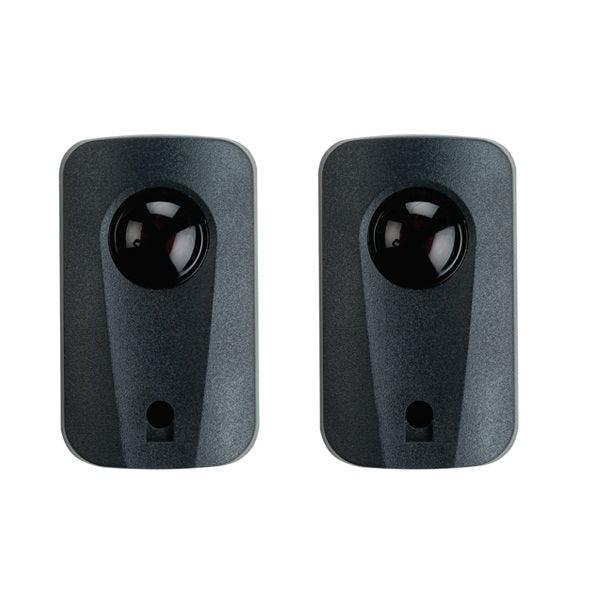

This product is ideally suited for monitoring gates, garage doors, detecting intruders, and notifying visitors. It is compatible with ET Nice Products as well as most other gate operators, garage door operators, and intruder alarm systems.
Features
- Operating voltage 12 to 24 AC or DC
- Sealed lens
- Selectable normally open/normally closed relay output
- Range: +/-10mInfra -red frequency: 1,92kHz
- Power supply: 12 to 24V ac or dc
- Wave length: 940nm
- Operating current: RX = 15mA / Tx = 30mA
- Operating temp. : -20c to 70c
- Relay load rating: 1A @ 30V max
Technical Specifications :
- Power supply : 12V - 24V AC/DC
- Max. range : 15M (range can reduced by 30% in bad weather or environment, fog and haze, rain, dust etc.
- Infrared frequency : 1.92KHz
- Input : RX 15mA, TX 30mA
- Relay output : 1A max 36V
- Wave length : 940nm
What's included :
1 X ET Infrared Safety Beam
Mounting screws
This product is ideally suited for monitoring gates, garage doors, detecting intruders, and notifying visitors. It is compatible with ET Nice Products as well as most other gate operators, garage door operators, and intruder alarm systems.
Features
- Operating voltage 12 to 24 AC or DC
- Sealed lens
- Selectable normally open/normally closed relay output
- Range: +/-10mInfra -red frequency: 1,92kHz
- Power supply: 12 to 24V ac or dc
- Wave length: 940nm
- Operating current: RX = 15mA / Tx = 30mA
- Operating temp. : -20c to 70c
- Relay load rating: 1A @ 30V max
Technical Specifications :
- Power supply : 12V - 24V AC/DC
- Max. range : 15M (range can reduced by 30% in bad weather or environment, fog and haze, rain, dust etc.
- Infrared frequency : 1.92KHz
- Input : RX 15mA, TX 30mA
- Relay output : 1A max 36V
- Wave length : 940nm
What's included :
1 X ET Infrared Safety Beam
Mounting screws
