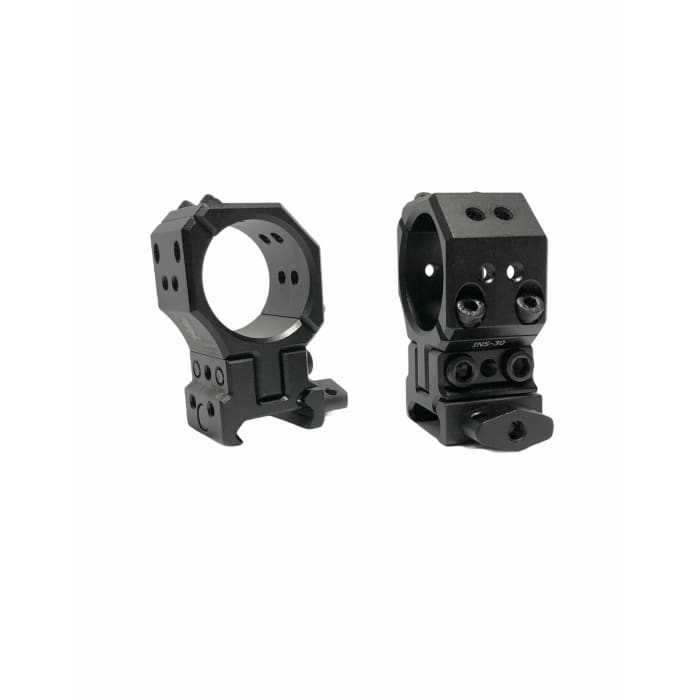

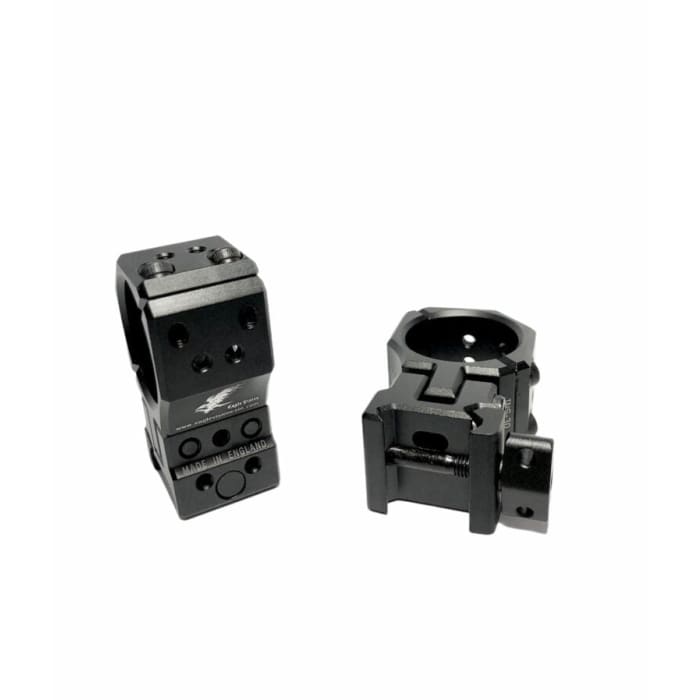

INFINITY Adjustable Scope Mount for 34mm Rings – P-ST-EV/INS34
Extend your long-range shooting capability with these innovative height-adjustable scope mounts. Designed for PCP and spring air rifles, these mounts allow vertical scope adjustment along a guided path, eliminating the need to max out turret clicks.
Important: Only remove elevation screws when mount is fully open to prevent damage.
Benefits
- Converts from low-profile to high-profile configuration
- Ideal when scope objective sits too close to barrel or shroud
- Reach extreme distances without exhausting turret adjustments
- Maintains optical centre of scope – optimal for long-range precision
- Accommodates scopes with awkward ring spacing or rail positioning

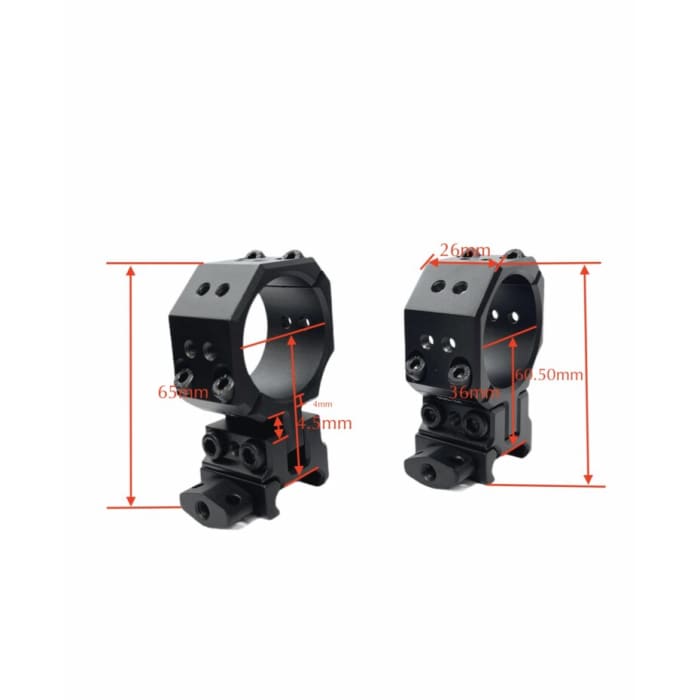

Technical Specifications
-
Total Height: 68.25mm to 77.75mm (adjustable)
-
Profile Height: 23mm
-
Adjustable Range: 9.5mm
-
Weight: 81g per mount
-
Ring centre to rail bottom: 41mm (closed) / 51.5mm (open)
-
Ring Size: 34mm
-
Rail Compatibility: 20mm Picatinny
Package Contents
- 2x INFINITY adjustable scope mounts
- 2x Allen keys (two sizes)
- 5x Spare screws
- Protective ring fabric

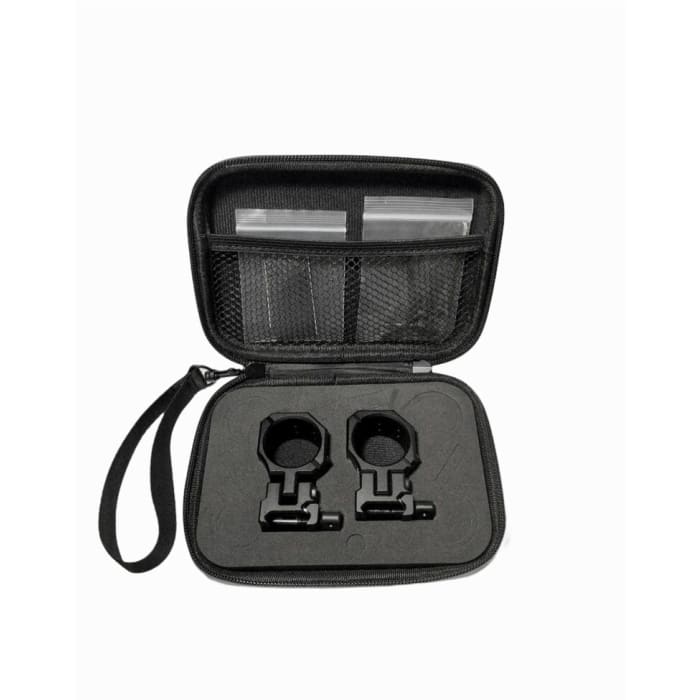

- Waterproof storage case
Torque Specifications
-
Ring screws: 15-20 in-lbs (1.68-2.25 Nm)
-
Adjustable side screws: 53-71 in-lbs (6-8 Nm)
-
Picatinny nuts: 53-71 in-lbs (6-8 Nm)
