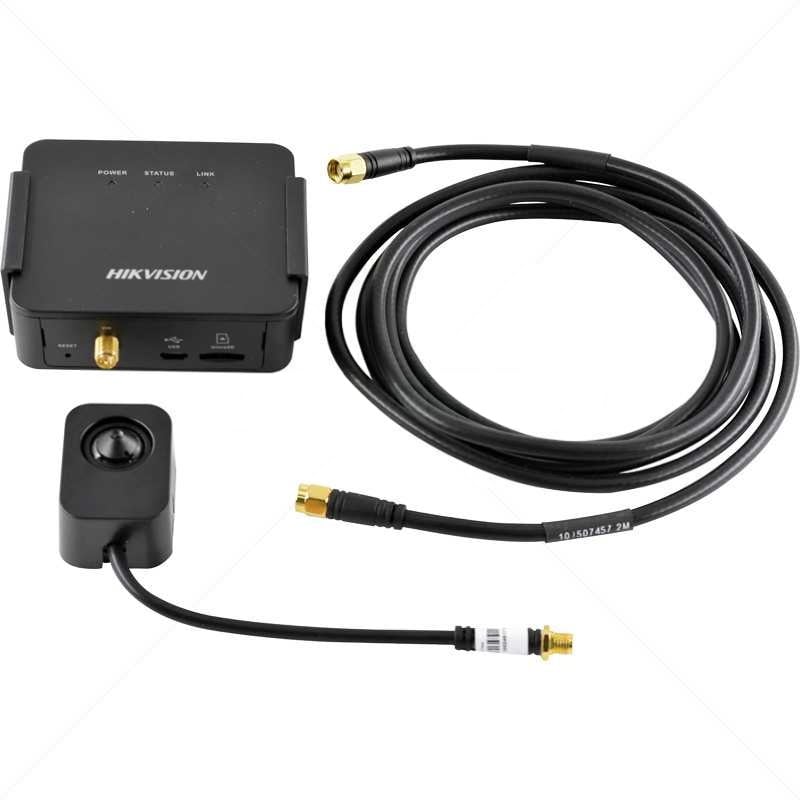

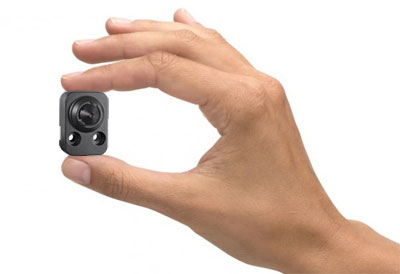

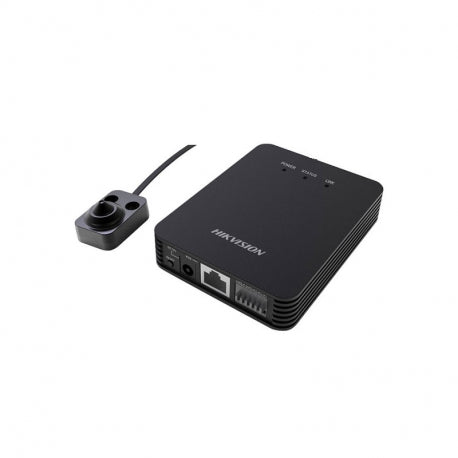

Compact 2MP Hikvision covert network camera with a 3.7mm pinhole sensor head and an 8m connection cable. The DS-2CD6425G1-20 separates the camera head from the main processing unit, making it suitable for discreet indoor surveillance installations where a low-profile camera head is required.
Key Features
- 2MP Full HD resolution up to 1920 × 1080
- 3.7mm fixed pinhole lens
- Approx. 75.5° horizontal field of view
- 8m sensor cable version
- Ultra-low-light imaging down to 0.002 Lux
- 120 dB true WDR
- H.265+ / H.265 / H.264+ / H.264 compression
- 3D DNR image enhancement
- Audio input / output
- Alarm input / output
- RS-485 interface
- microSD card support up to 256GB
- 12V DC or PoE (IEEE 802.3af)
- Designed for indoor covert-surveillance applications
Specifications
-
Model: DS-2CD6425G1-20 (3.7mm) 8m
-
Sensor: 1/2.8" Progressive Scan CMOS
-
Maximum Resolution: 1920 × 1080
-
Lens: 3.7mm fixed, F2.5
-
Horizontal FOV: Approx. 75.5°
-
Minimum Illumination: 0.002 Lux
-
WDR: 120 dB
-
Storage: microSD / microSDHC / microSDXC up to 256GB
-
Network: RJ45 10/100 Mbps Ethernet
-
Power: 12V DC or PoE
-
Cable: 8m between pinhole sensor and main unit
Smart Detection
- Line-crossing detection
- Intrusion detection
- Region entrance / exit detection
- Unattended baggage detection
- Object removal detection
- Scene-change detection
What's in the Box
- 1 x Hikvision DS-2CD6425G1-20 Main Camera Unit
- 1 x 3.7mm Pinhole Sensor Head with 8m Cable
- Installation accessories as supplied
- Quick-start documentation as supplied
