The 2022 edition of the popular VT-Z riflescope series. Classic half MIL thread cross. A good value for money scope for amateur and hobby shooters. Multiple metal vapour film-coated lenses ensure a sharp and clear image. The included shade allows glare-free aiming even in backlight conditions.

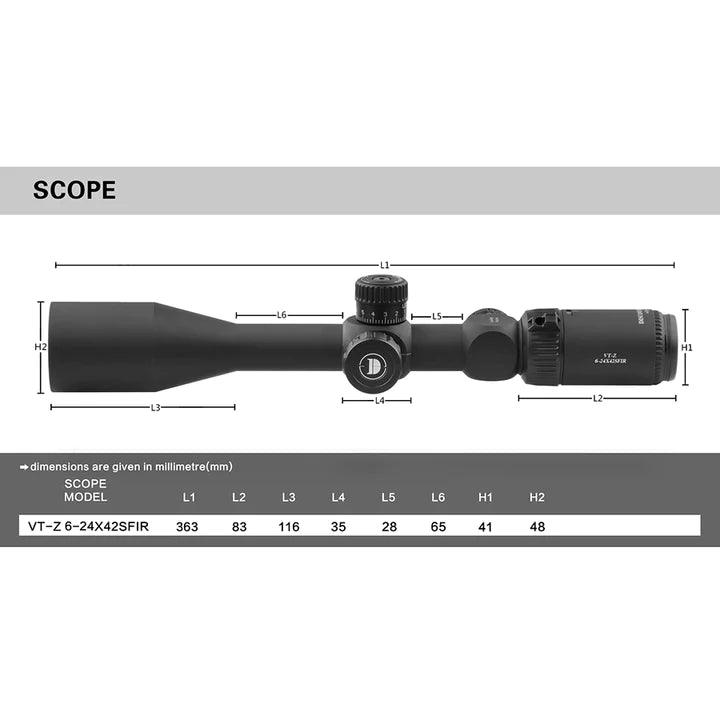

Dimensions are shown in the attached pictures.
Description

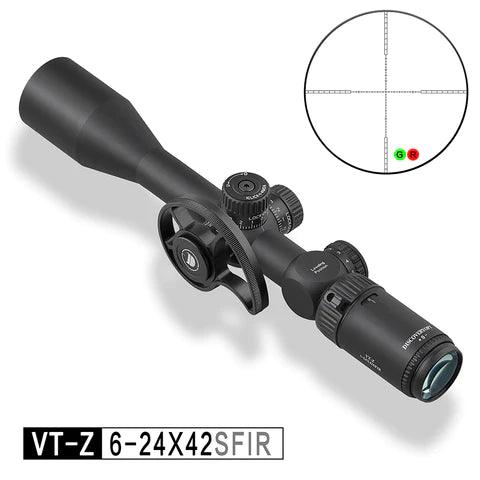

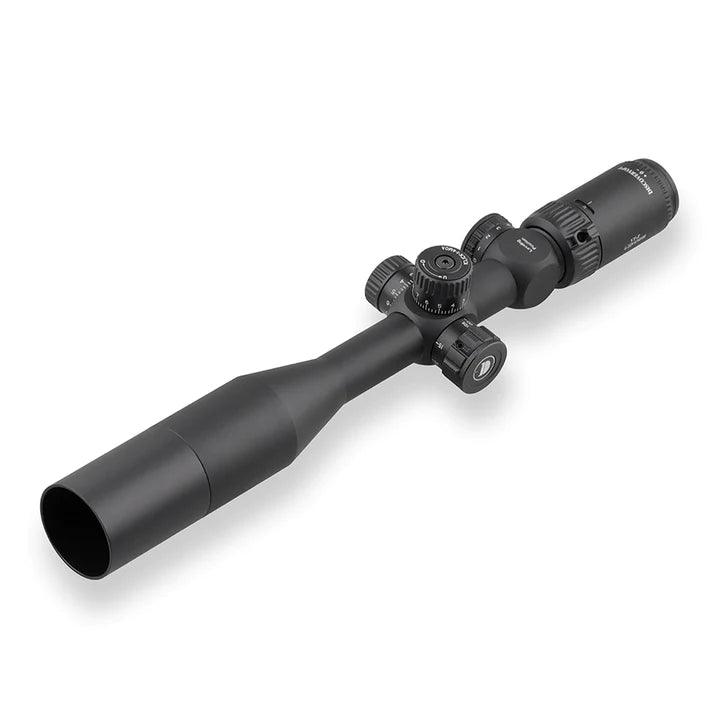

The optical sight VT-Z 6-24x42 SFIR from the budget range of Discovery Optics is designed for shooting small arms and various air rifles.
Suitable for small game hunting, educational, recreational and practical shooting. A large field of view, together with excellent clarity, makes the line of VT-Z scopes from Discovery Optics ideal for beginners.
— Discovery Tes technology (sight body - one-piece T-6061 aviation aluminum tube, processed on a CNC machine) makes the sight structure strong and reliable, which allows it to be used on Magnum class air rifles.

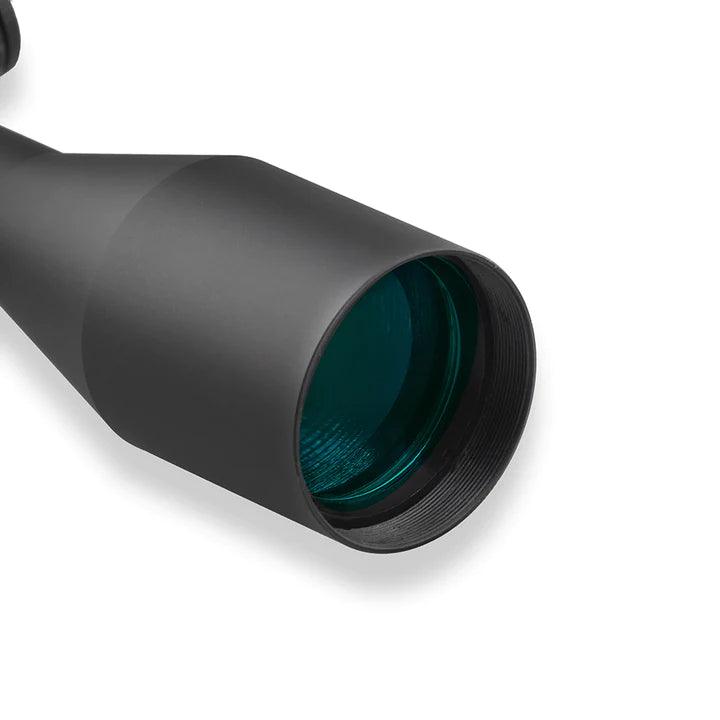

— An optical system with a branded multi-layer coating - Full Multi-green Coated (with a light transmission coefficient of about 95%) and a large field of view give a clear and juicy picture. A sun hood (included) can also be installed on the scope, which will protect against glare.

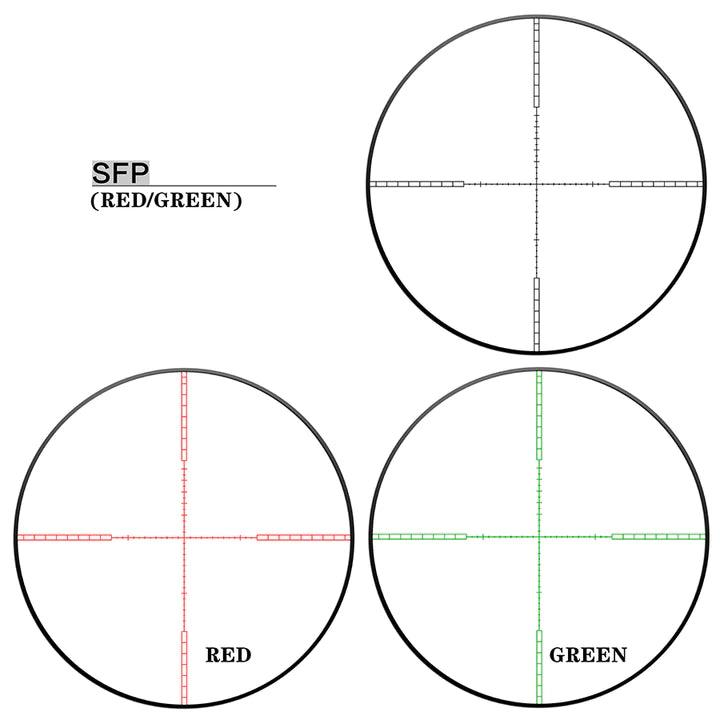

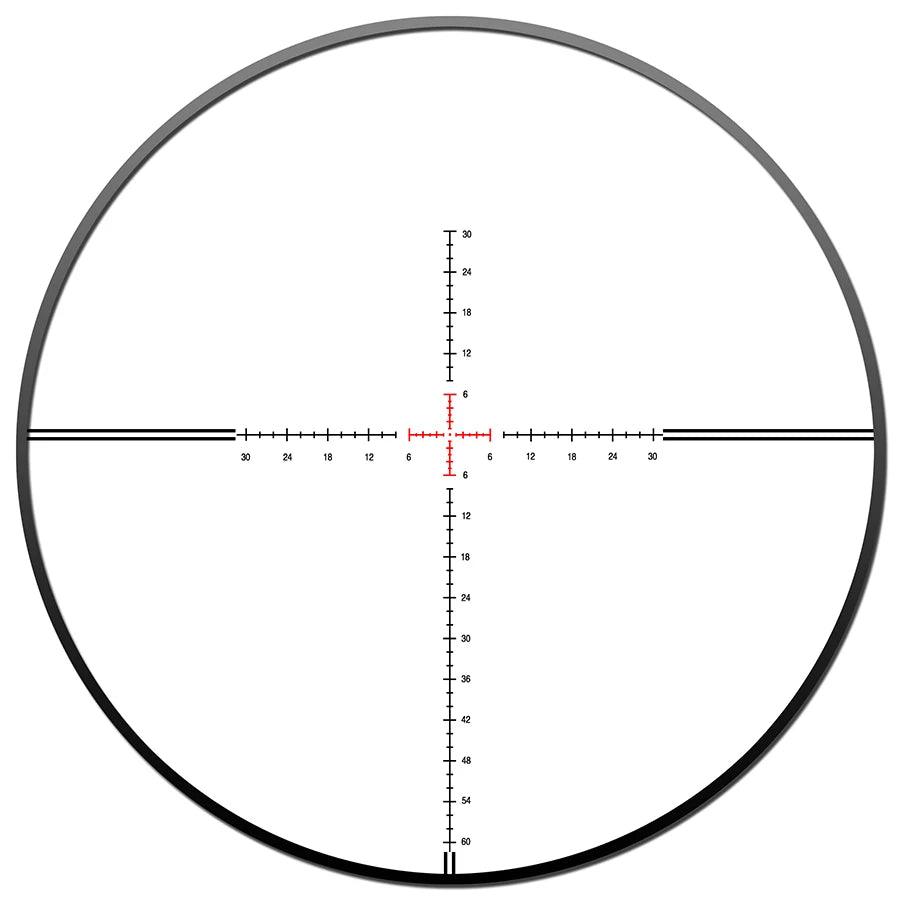

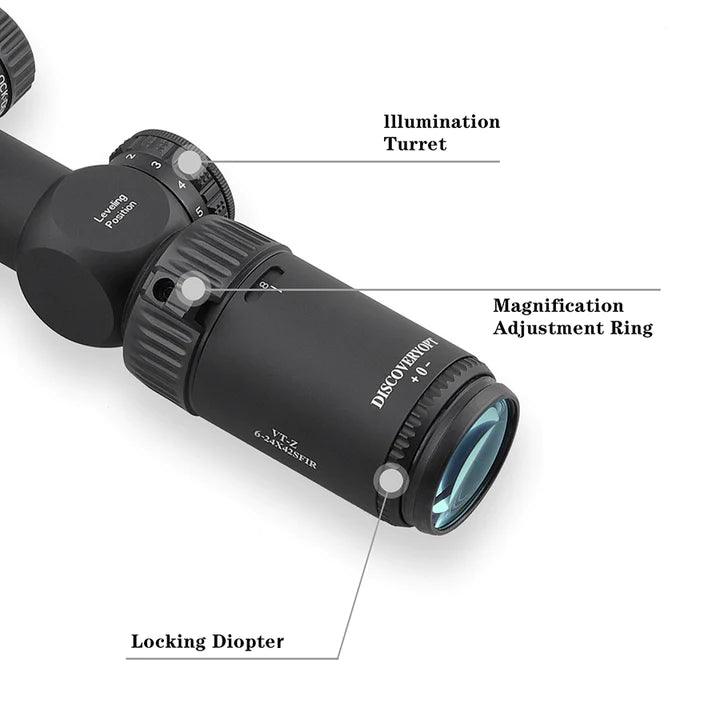

— The HMD SFP reticle is engraved on the eyepiece lens, located in the second focal plane, and remains consistently fine throughout the magnification range. Allows you to accurately fix the target and hold it in points. The illumination of the reticle has 5 levels of brightness in red and green colors.
For the correct installation of the sight on the weapon, there is a horizontal platform for the level near the drum for adjusting the brightness of the backlight.

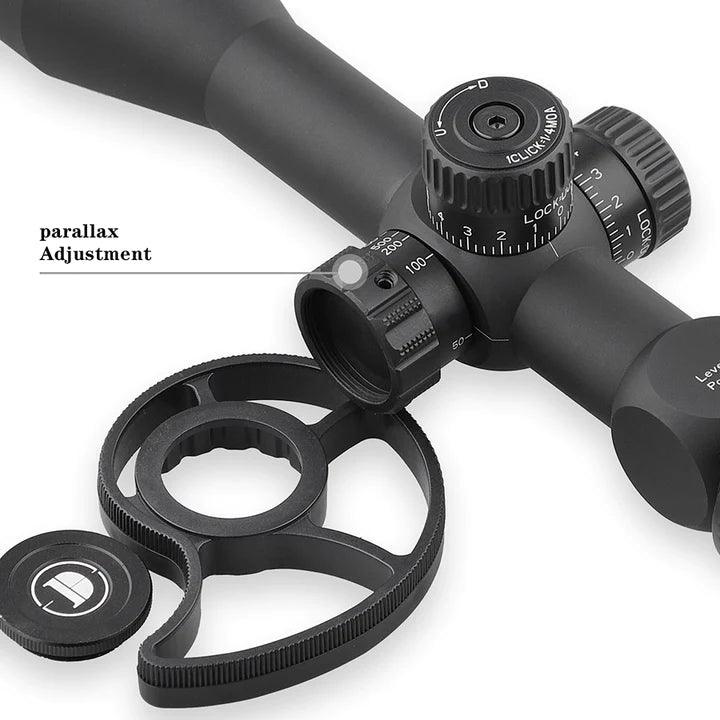

— Parallax correction is carried out by the side wheel (SF - Side Focus). Zooming from 10 yards (9.1 meters) to infinity allows you to clearly identify the target, no matter how close or far it is. An additional advantage is the ability to adjust diopters.
— The correction mechanism is represented by a pair of drums with a correction price of 1/4 MOA. The stock of elevation and horizon corrections is 25 MOA. To ensure that the set corrections do not get lost during transportation, the tambourines have a locking function (Zero Lock).

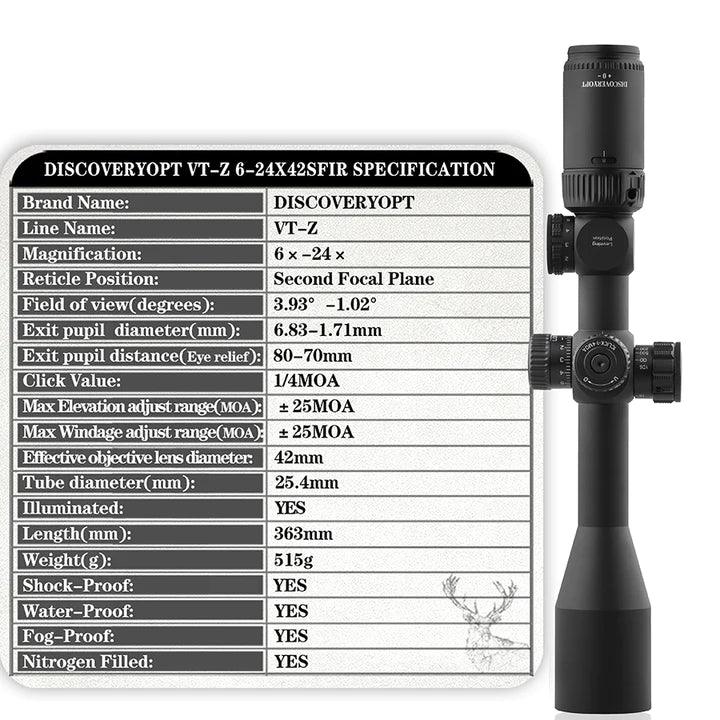

Characteristics:
Manufacturer: Discovery Optics
Country of manufacture: China
| Model: |
VT-Z |
| Weight |
460 g |
| Dimensions |
325 × 60 × 60 mm |
| Manufacturer |
Discoveryopt
|
| Rifle scope length (mm) |
363mm
|
| Shipping weight (g) |
833g
|
| Delivery size (mm) |
375x95x75
|
| Fitting delivery dimensions |
117g | 90x60x25
|
| Crosshair |
HMD SFP, Metal fibre
|
| Eye Relief |
75-90mm
|
| MIL/MOA |
MIL
|
| Resetting towers |
Yes
|
| Vertical MIL/MOA range |
25MOA
|
| Horizontal MIL / MOA range |
25MOA
|
| Lens coating |
Fully Multi-coated Lenses
|
| Filled with nitrogen |
Yes
|
| Shockproof |
Yes
|
| Defrosting |
Yes
|
| Adjust Focus |
Side Parallax
|
| Front lens diameter |
42mm
|
| Click value |
1/4MOA
|
| Magnification |
6x-24x
|
| Parallax statement |
10 Yards to Infinity
|
| SFP/FFP |
SFP
|
| Illumination |
Yes
|
| Scope mount |
High mount for 11mm divetail rail, High mounting for picatinny rail, Uni 11mm high, Universal high mount for picatinny rail, Without mounts
|
| Tube diameter |
25,4mm
|
Additional information:
Filled with nitrogen;
Waterproof case;
Impact resistant;

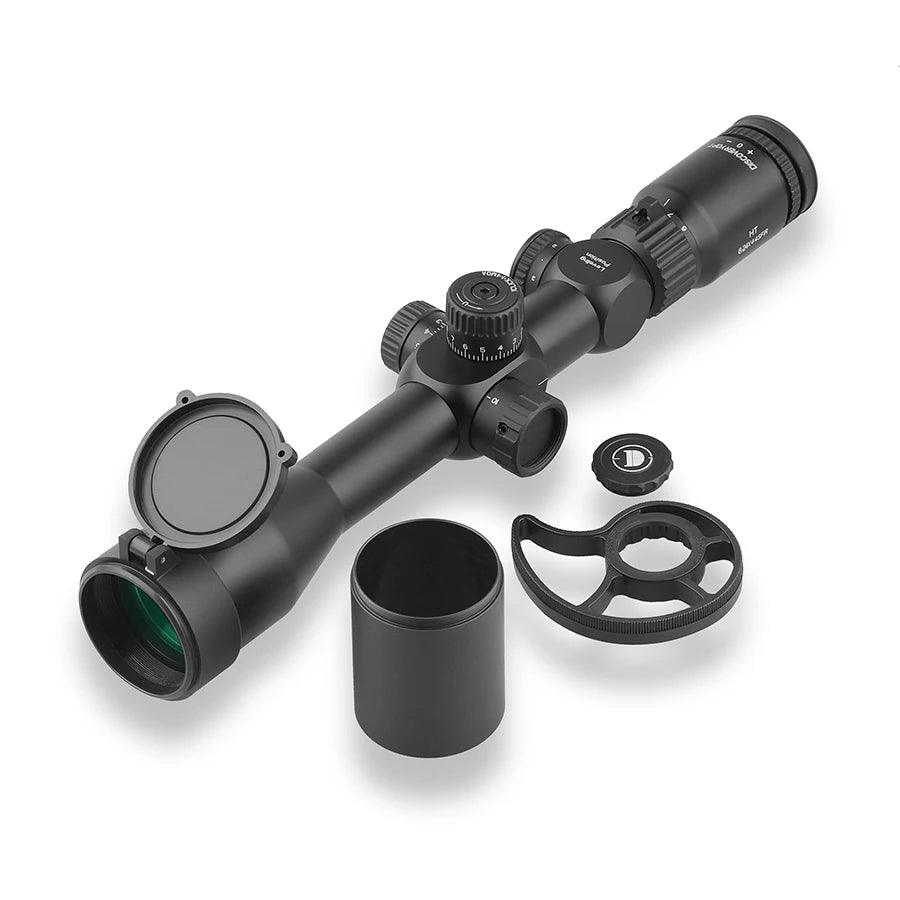

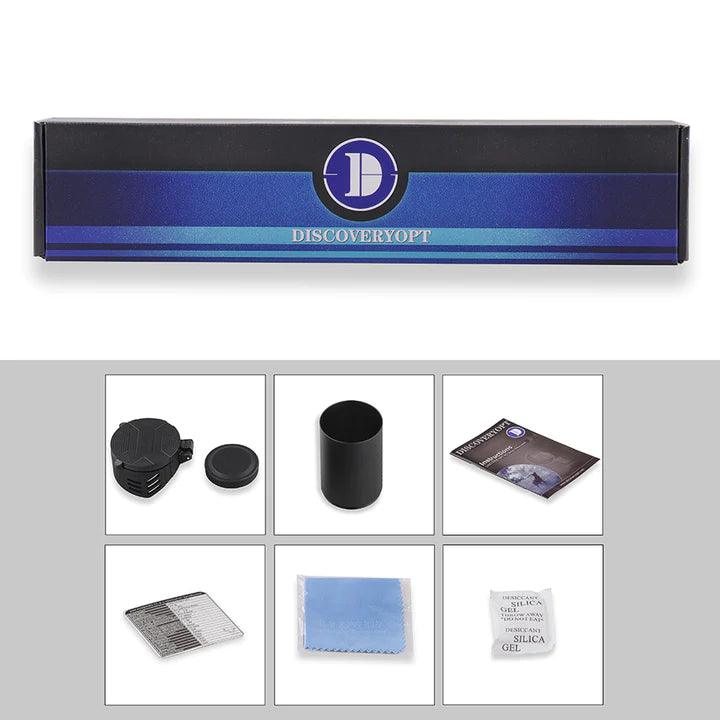

Complete set:
Sight;
Instruction;
Carton;
Side adjustment wheel;
Sun protection hood;
Characteristics card;
Protective covers;
Napkin; Джерело: https://shop-strelok.com.ua/p/1504723031-discovery-optics-vt-z-6-24x42-sfir-25-4-mm-podsvetka/
