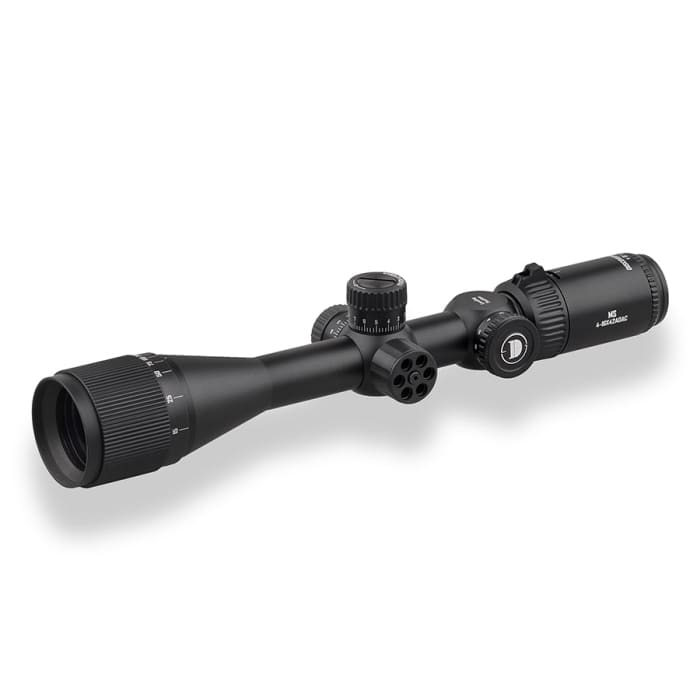

Discovery MS 4-16X42 Magnum Shockproof Rifle Scope
Built to withstand heavy recoil, the MS (Magnum Shockproof) Series scope features enhanced axial and horizontal shock-resistant construction. This second focal plane optic eliminates concerns when shooting high-powered air rifles and magnum calibers.

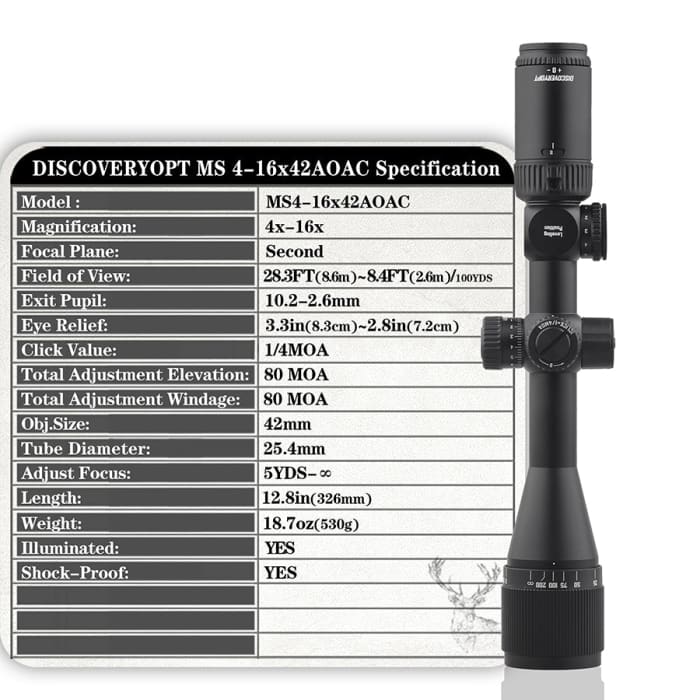

Optical Specifications
-
Magnification: 4-16x variable
-
Objective Diameter: 42mm
-
Tube Diameter: 25.4mm (1 inch)
-
Focal Plane: Second Focal Plane (SFP)
-

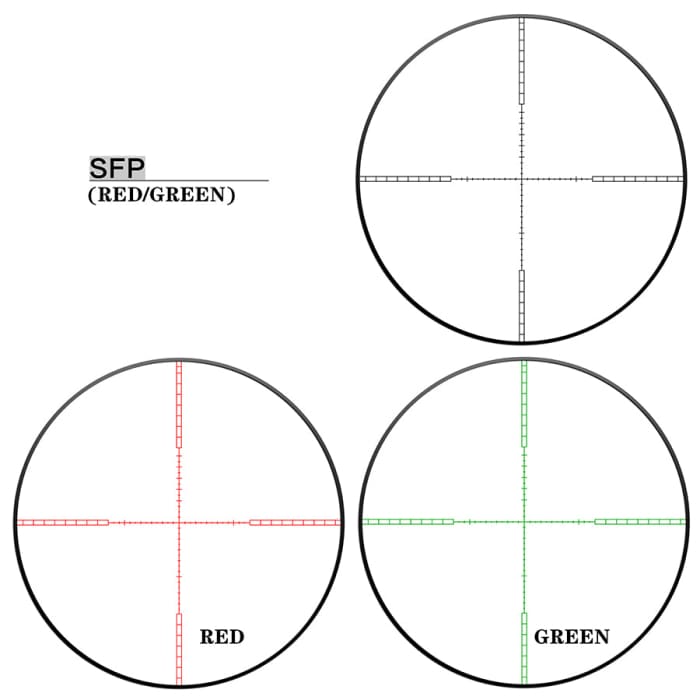

Reticle: HMD SFP IR-MIL
-
Illumination: Red & Green with 5 brightness positions
-
Field of View: 28.3ft – 8.4ft at 100 yards
-
Exit Pupil: 10.6mm – 2.6mm
-
Eye Relief: 8.3cm – 7.2cm (3.3" – 2.8")
Adjustment & Focus
-

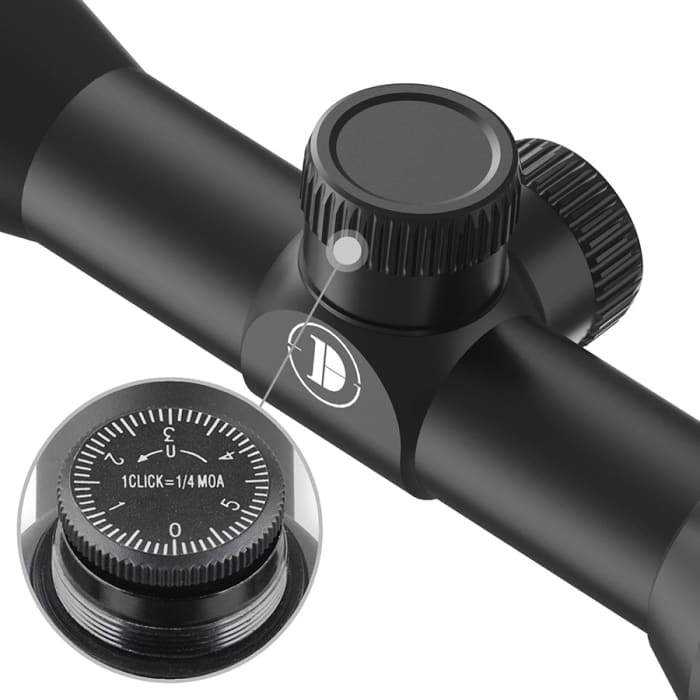

Click Value: 1/4 MOA
-
Elevation Range: 50 MOA
-
Windage Range: 50 MOA
-
Parallax: Adjustable objective, 5 yards to infinity
-
Zero Reset: Yes
-

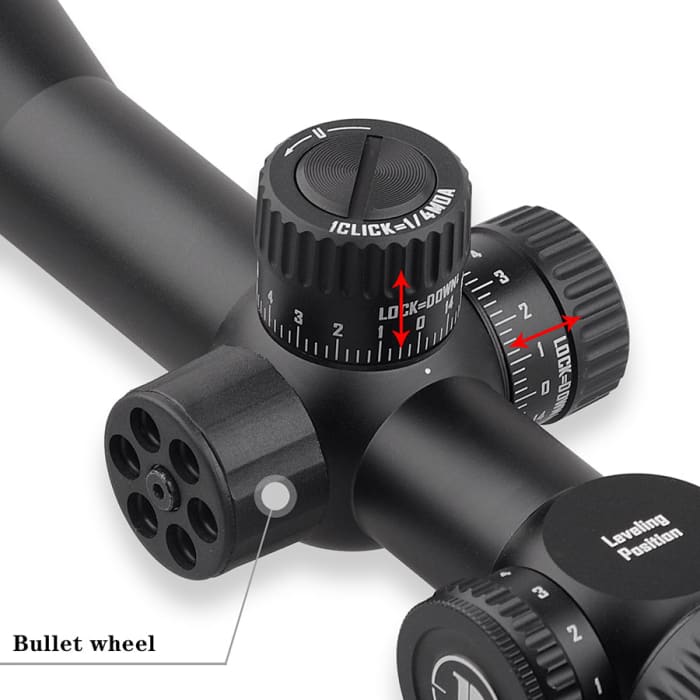

Zero Lock: Yes (Lock=Down)

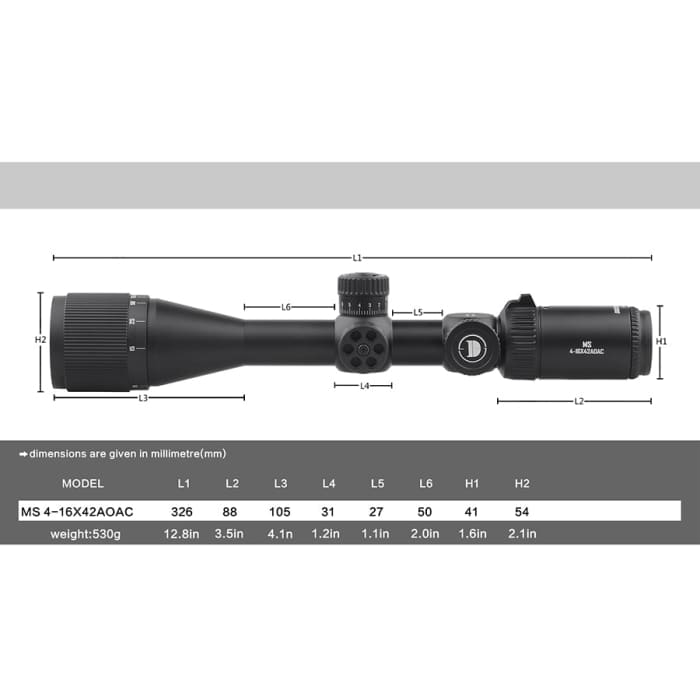

Physical Specifications
-
Length: 32.6cm (12.8 inches)
-
Weight: 530g (18.7oz)
Durability Features
- Fully multi-coated lenses
- Nitrogen filled – fogproof
- Shockproof construction
- Waterproof sealed
