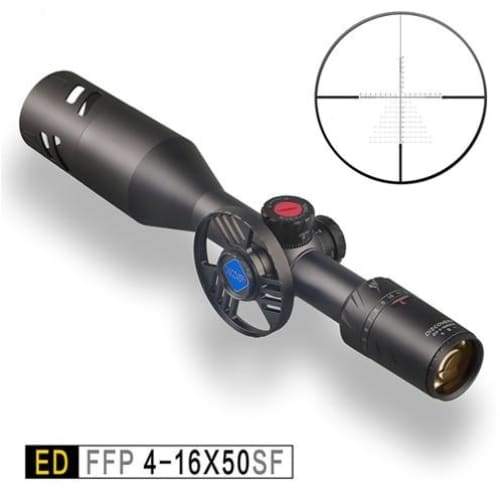

Discovery ED 4-16X50 SF First Focal Plane Scope
Premium optical performance meets rugged reliability in the Discovery ED 4-16X50 SF. Featuring HOYA FCD100 ED glass with extremely low chromatic dispersion, this FFP scope delivers exceptionally bright, sharp images for long-range shooting and hunting.
Premium Construction
-
One-piece T-6061 aircraft aluminium tube – full CNC machined with hard anodized finish
-
Objective Fixed technology – enhanced recoil resistance for big caliber rifles and lifetime durability
-
5x optical zoom ratio – extended range capability for precision shooting
Optical Specifications
-
Magnification: 4x – 16x
-
Objective Lens: 50mm
-
Tube Diameter: 30mm
-
Focal Plane: First Focal Plane (FFP)
-
Illumination: No
-
Field of View: 6° – 1.5°
Adjustment System
-
Click Value: 1/10 MIL precision
-
Elevation Range: 24 MIL
-
Windage Range: 24 MIL
-
Focus: Side parallax adjustment (10 yards minimum)
Physical Specifications
-
Length: 312mm
-
Weight: 625g
Environmental Protection
-
Positive pressure nitrogen filling – 10 meters waterproof rated
-
Shockproof: 1500G impact tested
-
Waterproof: 1 meter depth / 30 minutes
-
Fogproof: Yes
