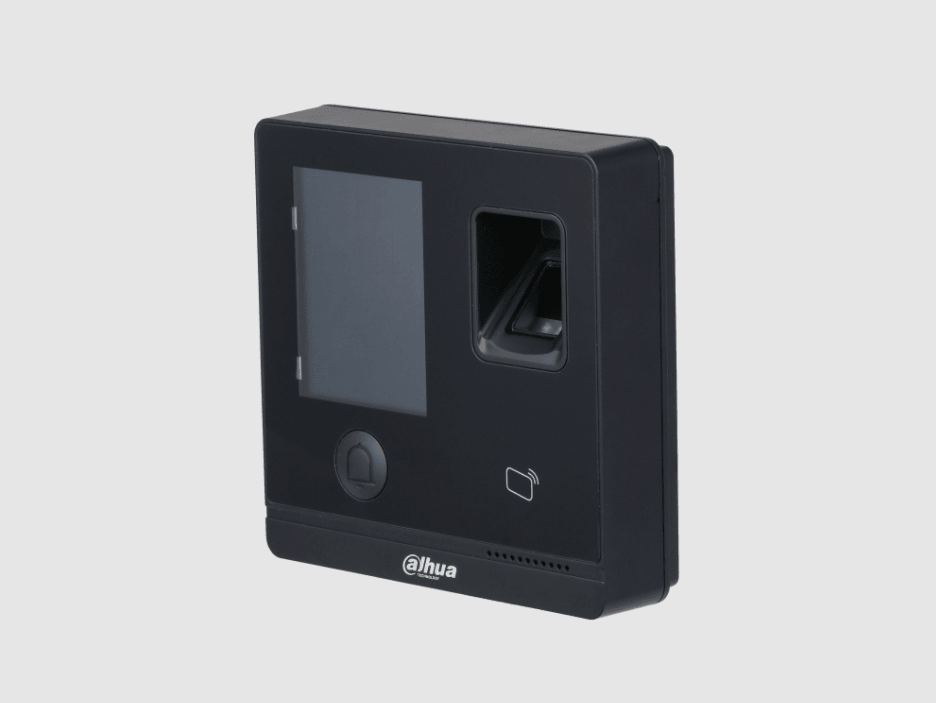

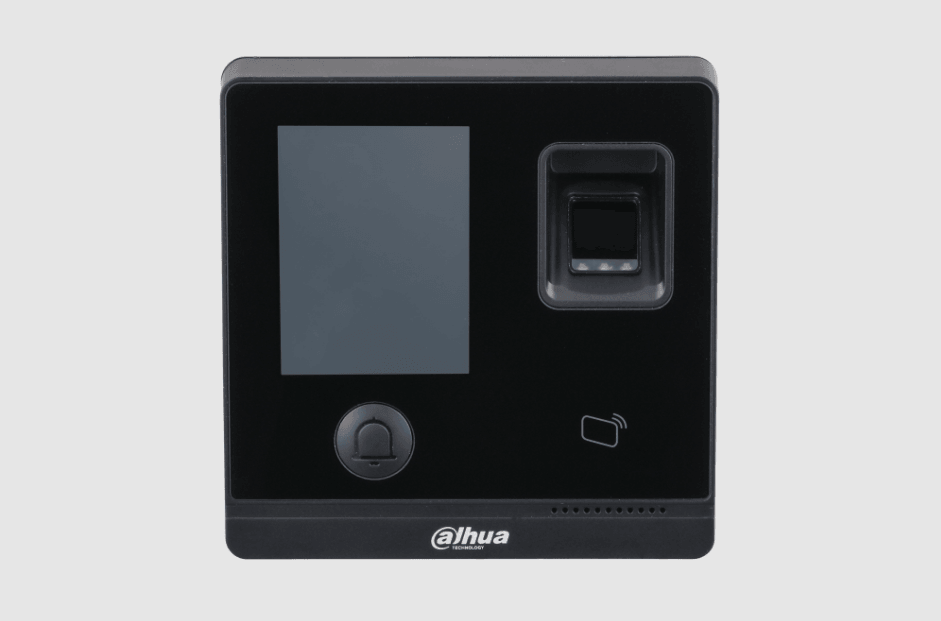

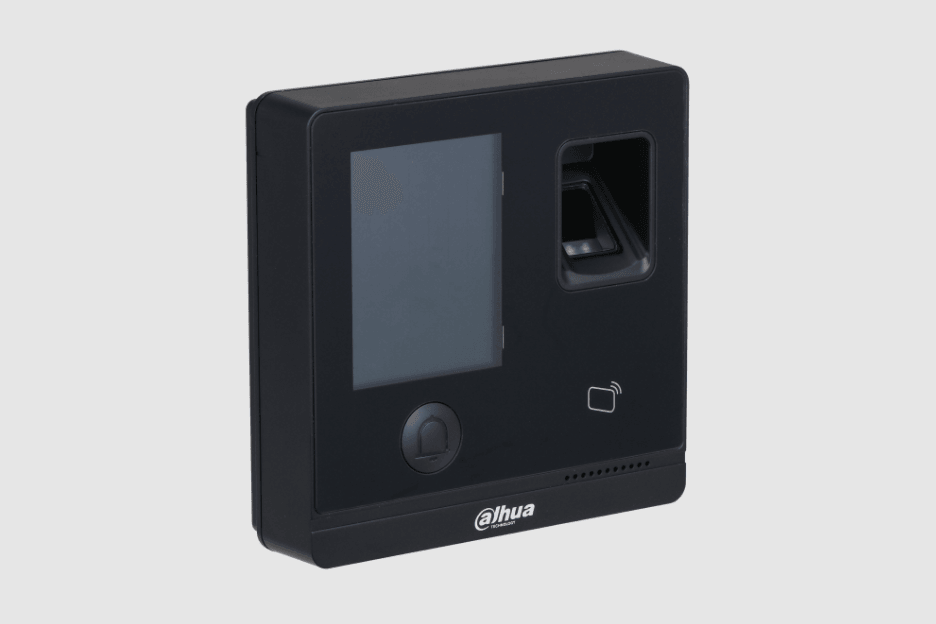

DAHUA ACCESS STANDALONE WITH 2.8"" TOUCH LED
Introducing Dahua Access Standalone, a range of devices that provide secure access control solutions. Designed by Dahua Technology, these devices use multiple methods to authenticate user identities and manage entry to restricted areas.
FEATURES:
· PC+ABS housing material, and glass material for front panel ,applicable for indoor scenario· 2.8 inch LCD touch screen display with resolution of 240×320· Deep learning algorithm makes fingerprint recognition time 1.5 s· Support card, fingerprint, password· Support 30,000 users, 30,000 cards, 3,000 fingerprints, 150,000records· Support OSDP, TCP/IP
SPECS:
System
Main Processor
Embedded processor
Network Protocol
IPv4, TCP, P2P
Button Type
Touch button
OSDP Protocol
Yes (only supported as a host)
Basic
Display
2.8 inch TFT touch screen
Screen Type
Capacitive screen
Resolution
240 (H) × 320 (V)
Voice Prompt
Yes
Buzzer
Housing Material
PC+ABS
Function
Unlock Mode
Card/remote/password/fingerprint
Card Type
IC card
ID card
Card Reading Frequency
13.56MHz
125KHz
Period List
128
Holiday Period
Network Update
First Card Unlock
Remote Verification
Blocklist/Allowlist
Ads Broadcast
Support graphic advertisement play
Peripheral Card Reader
1 RS-485, 1 Wiegand
Group Combination
Web Configuration on PC
Web Configuration on Mobile
Wi-Fi
Performance
Card Reading Distance
1 cm–3 cm (0.03 ft–0.10 ft)
Fingerprint Sensor Type
Optical fingerprint
Fingerprint Verification Mode
1:N, 1:1
Fingerprint Comparison Time
1.5 s
Capacity
User
30,000
Fingerprint
3,000
Card
Password
Record
150,000
Port
RS-485
1
Wiegand
1 (input or output)
USB
1 USB2.0 port
Network
One 10/100 Mbps self-adaptive network port
Alarm Input
Alarm Output
Alarm Linkage
Unlock Button
Door Status Detection
Lock Control
Alarm
Anti-passback
Tamper
Duress
Door Sensor Timeout
Intrusion
Illegal Card Exceeding Threshold
Duress Fingerprint
General
Power Supply
DC 12V 1A
Power Consumption
≤ 4.0W (standby), ≤ 6.0W (working)
Dimensions (H×W×D)
114.5 mm × 114.5 mm × 32.5 mm
(4.51”× 4.51”× 1.28”)
Packing Dimensions (H×W×D)
Packing box: 187 mm ×164 mm ×72 mm
(7.36"× 6.46"× 2.83")Protective box: 585 mm×390 mm×360 mm
(23.03"× 15.35"× 14.17")
Operating Temperature
-10°C to +45°C (14°F to 113°F)
Operating Humidity
5%RH-90%RH (no condensation)
Operating Environment
Indoor
Gross Weight
415.0 g (0.91 lb)
Installation
Surface mount, flush mount, 86 case mount
Certifications
CE, FCC
