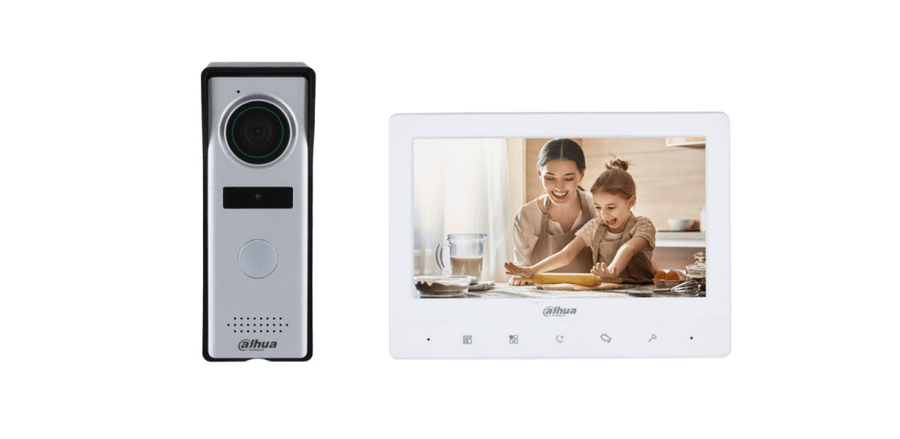

DAHUA 7"" VIDEO INTERCOM KIT 1
Experience the convenience and security of the Dahua KTA02, a 7" video intercom kit that lets you visually and audibly communicate with visitors at your doorstep before you even open the door.
This advanced kit features a 7" touchscreen indoor monitor and a doorbell camera equipped with a 1.3 megapixel CMOS sensor, providing you with a wide 130 degree viewing angle and even night vision for low light scenarios. Trust Dahua to keep your home safe and connected.
FEATURES:
7" TFT screen
Video intercom function: Unlock, voice call, video call, volume adjustment
System Capacity:2 door stations + 3 indoor monitors
Multiple bell sounds
Supports digital wide dynamic range (DWDR)
SPECS:
Basic
|
Display
|
7.0" TFT
|
Screen Resolution
|
1024 × 600
|
Status Indicator
|
1 indicator light Green: Power on
|
Function
|
Communication Mode
|
Analog
|
Performance
|
Casing
|
PC + ABS
|
General
|
Color
|
White
|
Power Supply
|
DC 12V/1A
|
Power Adapter
|
Included
|
Installation
|
Surface mount
|
Certifications
|
CE/FCC
|
Accessory
|
Bracket (included)
|
Dimensions
|
133.90 mm × 182.70 mm × 17.70 mm
(5.27" × 7.19" × 0.70")
|
Operating Temperature
|
-10°C to +55°C (+14°F to +131°F)
|
Operating Humidity
|
10%RH–95%RH
|
Power Consumption
|
≤ 2W (standby) ≤ 5W (working)
|
Net Weight
|
0.25 kg (0.55 lb)
|
Gross Weight
|
0.48 kg (1.05 lb)
|
VTO1000J
|
Button Type
|
Mechanical
|
Basic
|
Camera
|
1.3MP CMOS
|
Field of View
|
Horizontal: 70° Vertical: 40°
|
WDR
|
DWDR
|
Illuminator Type
|
Auto IR
|
Day/Night
|
ICR auto switch
|
Audio Input
|
1 channel to the microphone; pickup distance 0.5 m
|
Audio Output
|
1 channel to the speaker
|
Status Indicator
|
1 indicator light Green: Power on
|
Function
|
Communication Mode
|
Analog
|
Unlock Mode
|
Local unlock
|
Performance
|
Casing
|
PC + ABS
|
Port
|
Exit Button
|
1
|
Door Status Detection
|
1
|
General
|
Color
|
Silver
|
Power Supply
|
Powered by indoor monitor
|
Installation
|
Surface mount
|
Certifications
|
CE/FCC
|
Accessory
|
Rain cover (included)
|
Dimensions
|
131.45 mm × 46.00 mm × 33.80 mm
(5.18" × 1.81" × 1.33")
|
Protection Grade
|
IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
|
Operating Temperature
|
-30°C to +60°C (-22°F to +140°F)
|
Operating Humidity
|
10%RH–95%RH
|
Power Consumption
|
≤ 1W (standby) ≤ 3W (working)
|
Net Weight
|
0.18 kg (0.40 lb)
|
Gross Weight
|
0.38 kg (0.84 lb)
|
