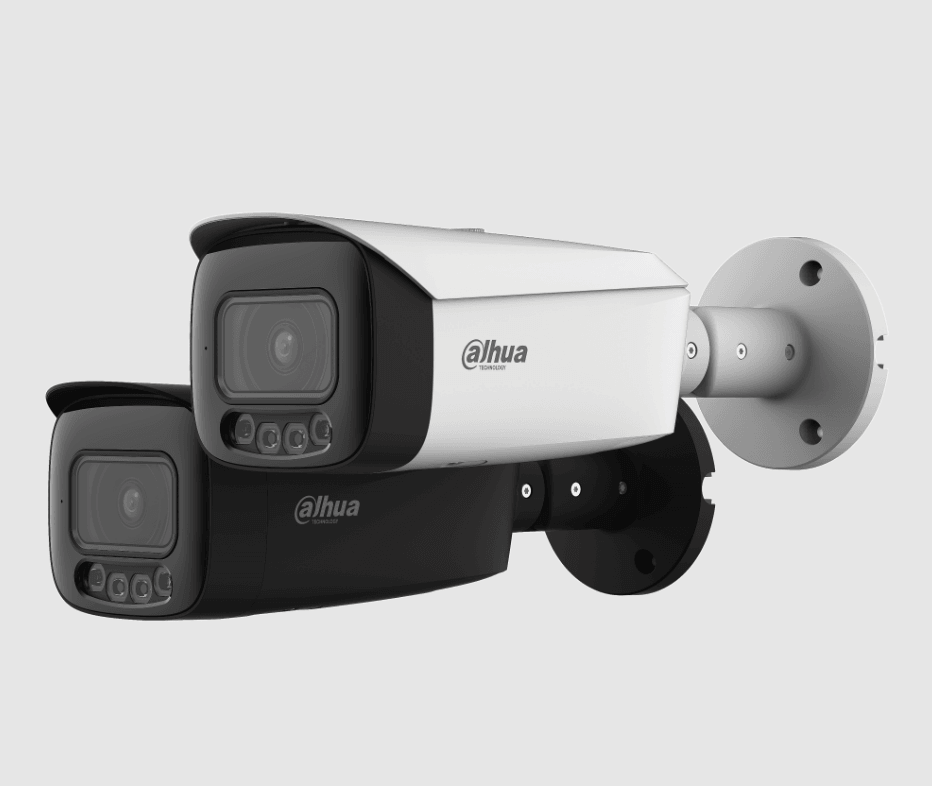

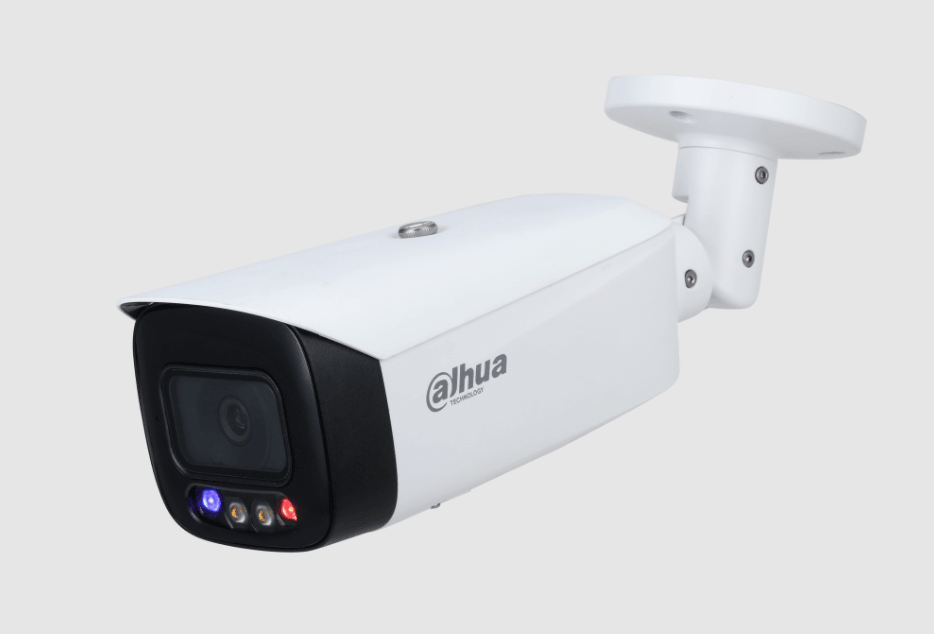

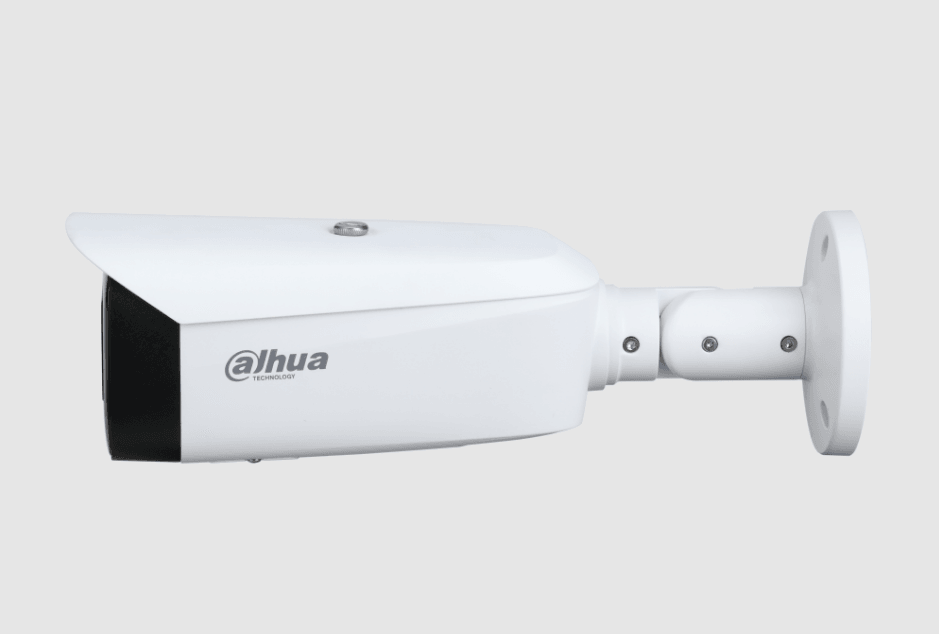

DAHUA 5MP WIZSENSE IR IP BULLET CAMERA 6MM
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
With advanced deep learning algorithm, Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection
and smart motion detection. In addition, with full-color technology, it
provides a better image effect in the condition of low illuminance.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color
technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can
capture more available light, and display more colorful image details.
Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports light
alarm and voice alarm when perimeter event occurs, to realize the
deterrence and effective intervention. The camera is built in multiple
voices for selection, and supports customized voice importing.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage,
which improve its security defense and data protection, and prevent
malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
FEATURES:
· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP
(2688 × 1520) @25/30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in warm illuminator, and the max. illumination distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage
detection.
· Supports sound and light alarm linkage. When an alarm is triggered,
the camera links sound alarm and light flashing.
· Supports one-tap disarming. You can disarm the events of alarm
output, sending email, audio, and light in the configured period.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD
card, built-in Mic and speaker
· 12V DC/PoE power supply
· IP67 protection
· SMD Plus
· Red and blue flashlight alarm
instable voltage.
SPECS:
-
|
Camera
|
|
Image Sensor
|
1/2.7”5Megapixel progressive CMOS
|
|
Max. Resolution
|
2592 (H) × 1944 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
512 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100,000 s
|
|
Min. Illumination
|
0.003 Lux @ F1.0
|
|
S/N Ratio
|
> 56 dB
|
|
Illumination Distance
|
40 m (131.2 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (Warm light)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F1.0
|
|
Field of View
|
2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101°
6 mm: Horizontal 53° × Vertical 40° × Diagonal 66°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)
6 mm: 4.5 m (14.8 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8 mm
|
67.4 m (221.1 ft)
|
27 m
(88.6 ft)
|
13.5 m (44.3 ft)
|
6.7 m
(22.0 ft)
|
|
3.6 mm
|
80.0 m (262.5 ft)
|
32.0 m (105.0 ft)
|
16.0 m
(52.5 ft)
|
8.0 m
(26.2 ft)
|
|
6 mm
|
120.0 m (393.7 ft)
|
48.0 m (157.5 ft)
|
24.0 m
(78.7 ft)
|
12.0 m
(39.4 ft)
|
|
Professional, intelligent
|
|
IVS (Perimeter Protection)
|
Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
|
|
Intelligent Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+/Smart H.264+
|
|
Video Frame Rate
|
Main stream: 2592 × 1944 @1-20 fps/
2688 × 1520 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
Third stream: 1920 × 1080 @1-25/30 fps
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
|
|
Day/Night
|
Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
Scene Self-adaptation (SSA)
|
Yes
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas)
|
|
Region of Interest (RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support with 2592×1944 resolution and lower)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
PCM; G.711a; G.711Mu; G.726; G.723
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Interoperability
|
ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
|
|
User/Host
|
20 (Total bandwidth: 80 M)
|
|
Storage
|
FTP; SFTP; Micro SD card (support max. 256 G); NAS
|
|
Browser
|
IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certification
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
|
|
Port
|
|
Audio Input
|
1 channel (RCA port)
|
|
Audio Output
|
1 channel (RCA port)
|
|
Alarm Input
|
1 channel in: 5mA 3V–5V DC
|
|
Alarm Output
|
1 channel out: 300mA 12V DC
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
Basic power consumption: 2W (12V DC); 2.6W (PoE)
Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flash): 7.5W (12V DC); 8.8W (PoE)
|
|
Environment
|
|
Operating Conditions
|
–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
|
|
Storage Conditions
|
–40°C to +60°C (–40°F to +140°F)
|
|
Protection Grade
|
IP67
|
|
Structure
|
|
Casing
|
Metal + plastic
|
|
Dimensions
|
288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H)
|
|
Net Weight
|
1.0 kg (2.2 lb)
|
|
Gross Weight
|
1.23 kg (2.7 lb)
|
