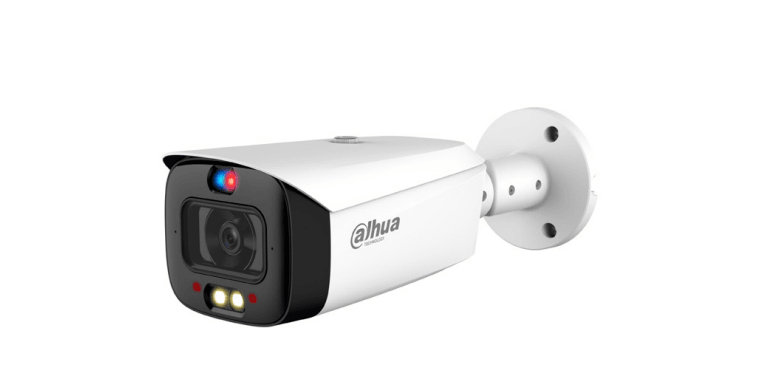

DAHUA 5MP WIZSENSE IR IP BULLET CAMERA 2.8MM
Dahua siren and light active deterrence network camera supports the
light alarm and voice alarm when perimeter event occurs, to realize the
deterrence and effective intervention. The camera is built in multiple
voices for selection, and supports customized voice importing.
Dahua Smart Dual Illuminators technology adopts smart algorithm to
detect targets. Usually, the IR illuminator is on at night; when the target
appears in the monitoring area, the warm light is on, and the camera
records the full-color video and information of key events. That is, the
camera links snapshot and video with full-color image. When the target
is out of the monitoring area, the warm light is off and the IR illuminator
is on, which reduces light pollution efficiently.
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Dahua One-tap Disarming function, which is convenient and easy for
operation, is the switch for event linkage. Customers can close and
recover event linkage through mobile App, which meets multi-scenarios
needs.
Dahua network cameras employ a series of security technologies,
including security authentication and authorization, access control
protocols, trusted protection, encrypted transmission and encrypted
storage. These technologies improve the camera's defense against
external cyber threats and prevent malicious programs from
compromising the device.
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
in stable voltage.
- 5MP, Smart Illumination, TIOC IP camera
- Lens: 3.6mm
- Outputs max. 5MP (2592 x 1944) @20 fps, and supports 4MP (2688 x 1520) @25/30 fps
- Built-in warm illuminator, and the max. illumination distance: 40 m
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection
- Supports sound and light alarm linkage.
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
- Built-in Mic and speaker
- 12V DC/ PoE power supply
- IP67 protection
- SMD 3.0
- Red and blue flashlight alarm
Image Sensor 1/2.7" CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 512 MBScanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
2 (warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 66.0 m
(216.54 ft)
26.4 m
( 86.61 ft)
13.2 m
(43.31 ft)
6.6 m
(21.65 ft)
3.6 mm 78.0 m
(255.91 ft)
31.2 m
( 102.36 ft)
15.6 m
(51.18 ft
7.8 m
(25.59 ft)
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported
by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520
@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1
fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each
stream; for multiple streams, the values will be subjected
to the total encoding capacity.
Stream Capability 3 streams
Resolution
5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M
(2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720);
D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional
custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; scene
changing; audio detection; voltage detection; external
alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5 VDC
Alarm Output 1 channel out: 300mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on):
7.9 W (12 VDC); 9.7 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal + plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H)
Net Weight 1.0 kg (2.20 lb)
Gross Weight 1.23 kg (2.71 lb)
