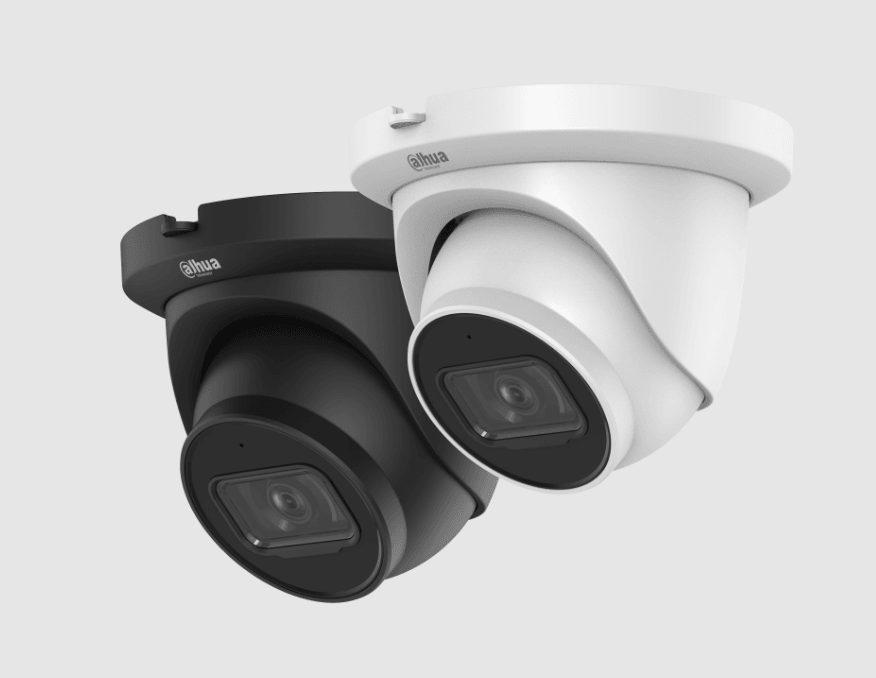

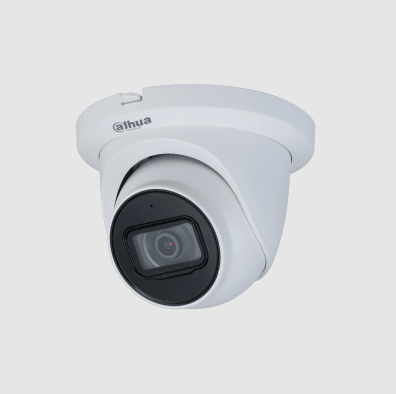

DAHUA 4MP WIZSENSE IR IP EYEBALL CAMERA 2.8MM
Presented by Dahua Technology, Wiz Sense is a collection of cutting-edge AI technology and solutions utilizing a powerful AI chip and sophisticated deep learning algorithms.
With precise detection of humans and vehicles, it empowers users to swiftly respond to specific targets. Built on top of Dahua's innovative technologies, Wiz Sense offers intelligent, user-friendly, and all-encompassing products and solutions.
Harness the power of advanced deep learning technology with the Dahua WizSense 3 Series network camera. Experience intelligent features such as perimeter protection and smart motion detection. Plus, with starlight technology, this camera delivers superior image quality even in low light conditions.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are
largely reduced.
Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
FEATURES:
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs max. 4MP (2688 × 1520) @30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire (support the classification and
accurate detection of vehicle and human)
· Abnormality detection: Motion detection, video tampering, scene
changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/POE power supply
· IP67 protection
· SMD Plus
SPECS:
|
Camera
|
|
Image Sensor
|
1/3” 4Megapixel progressive CMOS
|
|
Max. Resolution
|
2688 (H) ×1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
512 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.005 Lux@F1.6 (Color, 30IRE)
0.0005 Lux@F1.6 (B/W, 30IRE)
0 Lux (Illuminator on)
|
|
S/N Ratio
|
> 56 dB
|
|
Illumination Distance
|
50 m (164.0 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
2 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm; 3.6 mm; 6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100°
6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
56.0 m
(183.7 ft)
|
22.4 m
(73.5 ft)
|
11.2 m
(36.8 ft)
|
5.6 m
(18.4 ft)
|
|
3.6mm
|
80.0 m
(262.5 ft)
|
32.0 m
(105.0 ft)
|
16.0 m
(52.5 ft)
|
8.0 m
(26.3 ft)
|
|
6mm
|
120.0 m (393.7 ft)
|
48.0 m
(157.5 ft)
|
24.0 m
(78.7 ft)
|
12.0 m
(39.4 ft)
|
|
Professional, Intelligent
|
|
Perimeter Protection
|
Tripwire; intrusion (Recognition of human and vehicle)
|
|
Intelligent Search
|
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264H; H.264B; MJPEG(only supported
by sub stream)
|
|
Smart Codec
|
Smart H.265+/ Smart H.264+
|
|
Video Frame Rate
|
Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
|
|
Stream Capability
|
3 streams
|
|
Resolution
|
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D DNR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Audio
|
|
Built-in MIC
|
Yes
|
|
Audio Compression
|
G.711a; G.711Mu; G726
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Interoperability
|
ONVIF(Profile S/Profile G/ProfileT); CGI; P2P; Milestone; Genetec
|
|
Scene Self-adaptation (SSA)
|
Yes
|
|
User/Host
|
20 (Total bandwidth: 64M)
|
|
Storage
|
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
|
|
Browser
|
IE: IE8, IE9, IE11
Chrome
Firefox
|
|
Management Software
|
Smart PSS, DSS, DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
<7.7W
|
|
Environment
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/ less than 95%
|
|
Storage Conditions
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection Grade
|
IP67
|
|
Structure
|
|
Casing
|
Inner core: Metal
Cover: Metal
Decoration ring: Plastic
|
|
Dimensions
|
99.1 mm × Φ121.9 mm (3.9" × Φ4.8")
|
|
Net Weight
|
480 g (1.05 lb)
|
|
Gross Weight
|
660 g (1.45 lb)
|
