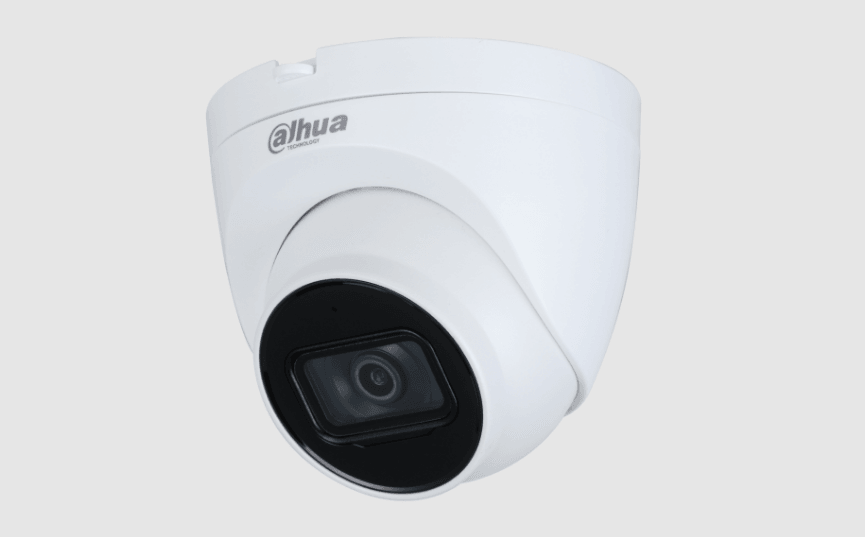

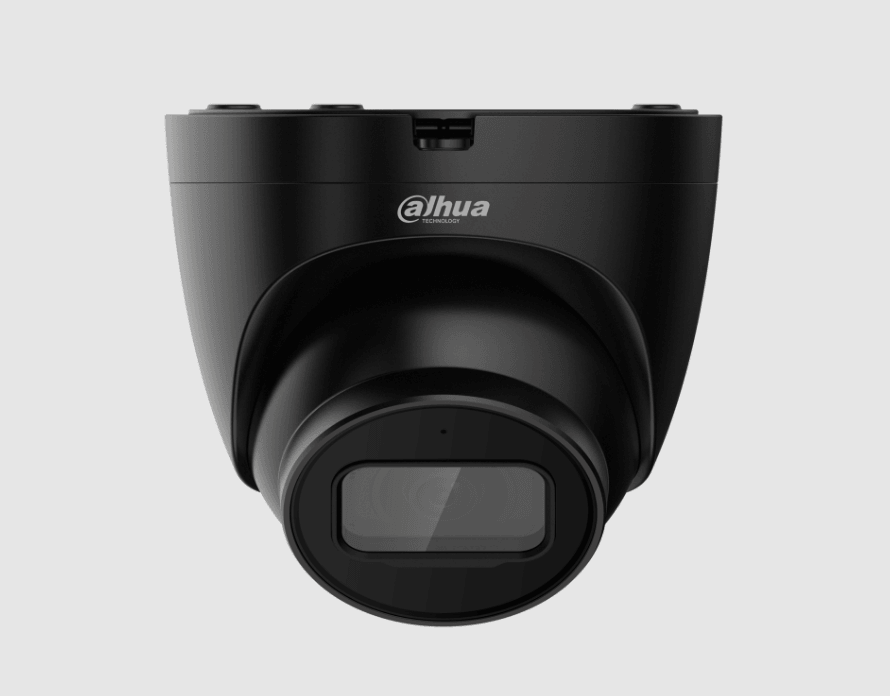

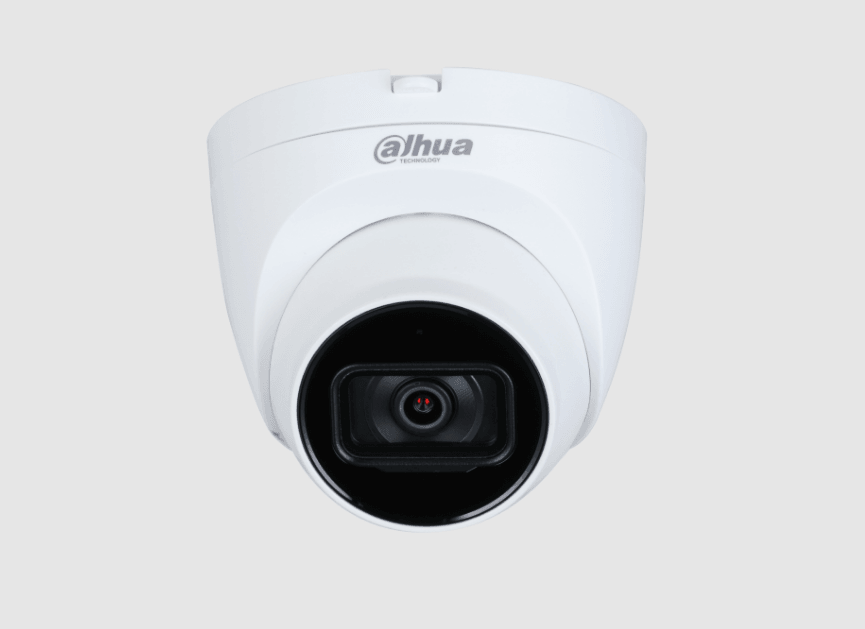

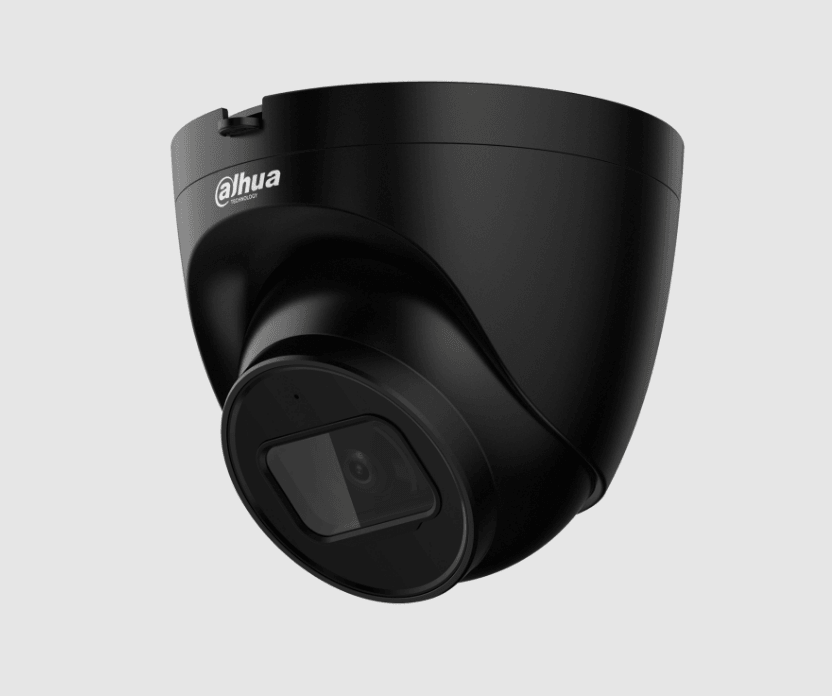

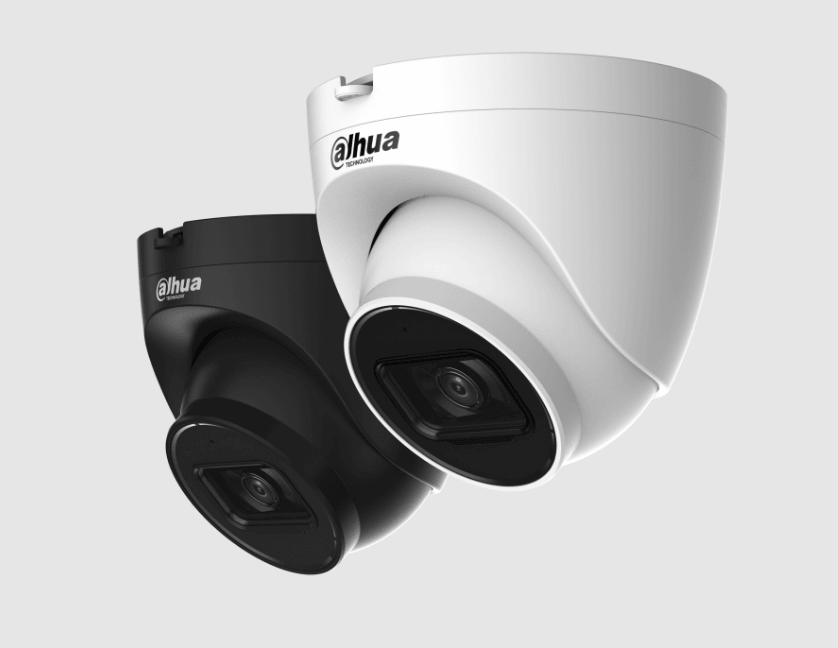

DAHUA 4MP LITE IR IP EYEBALL CAMERA 3.6MM
Dahua Lite series network cameras boast advanced H.265 encoding technology, providing powerful video encoding capabilities that save bandwidth and storage space. This cutting-edge camera features starlight technology for vibrant color imaging in low light conditions.
It also supports SD card storage and is equipped with dust-proof, waterproof, and vandal-proof features, meeting the IP67 standards (available on select models).
Smart H.265+ & Smart H.264+Adopting advanced algorithm of auto stream control according to theenvironment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducingthe cost of storage and transmission.WDRWith advanced Wide Dynamic Range (WDR) technology, Dahua networkcamera provides clear details in the environment of strong brightnesscontrast. The bright and dark area can get clear video even in highbrightness environment or with backlight shadow.StarlightWith advanced image processing technology and optical technology,Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments oflow illuminance.
IVSWith advanced video algorithm, Dahua IVS technology supportsintelligent functions, such as tripwire and intrusion.Cyber SecurityDahua network camera is equipped with a series of key securitytechnologies, such as security authentication and authorization, accesscontrol, trusted protection, encrypted transmission, and encryptedstorage, which improve its security defense and data protection, andprevent malicious programs from invading the device.Protection (IP67, wide voltage)IP67: The camera passes a series of strict test on dust and soak. It hasdust-proof function, and the enclosure can works normal after soakingin 1 m deep water for 30 minutes.Wide voltage: The camera allows ±30% input voltage tolerance (widevoltage range), and it is widely applied to outdoor environment withinstable voltage.
FEATURES:
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition· Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP(2688 × 1520) @ 20 fps· H.265 coding, high compression ration, low bit rate· Built-in IR LED, max IR distance: 30 m· ROI, SMART H.264+/H.265+, flexible coding, applicable to variousbandwidth and storage environments· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes· Intelligent detection: Intrusion, tripwire· Abnormality detection: Motion detection, video tampering,no SD card,SD card full, SD card error, network disconnected, IP conflict, illegalaccess, voltage detection· Max. 256 GB SD card and built-in Mic· 12V DC/POE power supply· IP67 protection
SPECS:
Camera
Image Sensor
1/3” 4Megapixel progressive CMOS
Max. Resolution
2688 (H) × 1520 (V)
ROM
128 MB
RAM
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.008 Lux @ F1.6
S/N Ratio
>56 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm3.6 mm
Max. Aperture
F1.6F1.6
Field of View
2.8 mm:Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm :Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 0.9 m (2.95 ft)3.6 mm: 1.6 m (3.61 ft)
DORI Distance
Detect
Observe
Recognize
Identify
2.8 mm
56 m (183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(18.37 ft)
3.6 mm
80 m (262.47 ft)
32.0 m (104.99 ft)
16.0 m
(52.49 ft)
8.0 m
(26.25 ft)
Smart event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG(only supported
by sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability
2 streams
Resolution
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Noise Reduction
3D NR
Motion Detection
Disable/Enable (4 areas, rectangle)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror
Privacy Masking
4 areas
Audio
Built-in MIC
Audio Compression
G.711A; G.711Mu; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network
RJ-45 (10/100 Base-T)
SDK and API
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20
Storage
FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser
IEGoogleFirefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply
12V DC/PoE
Power Consumption
Basic power consumption: 2.1W (12V DC), 2.5W (POE)
Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE)
Environment
Operating Temperature
-40°C to +60°C (-40°F to +140°F)
Operating Humidity
≤95%
Storage Temperature
Storage Humidity
Protection
IP67
Structure
Casing
Metal + Plastic
Dimensions
100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Net Weight
0.39 kg (0.86 lb)
Gross Weight
0.52 kg (1.15 lb)
