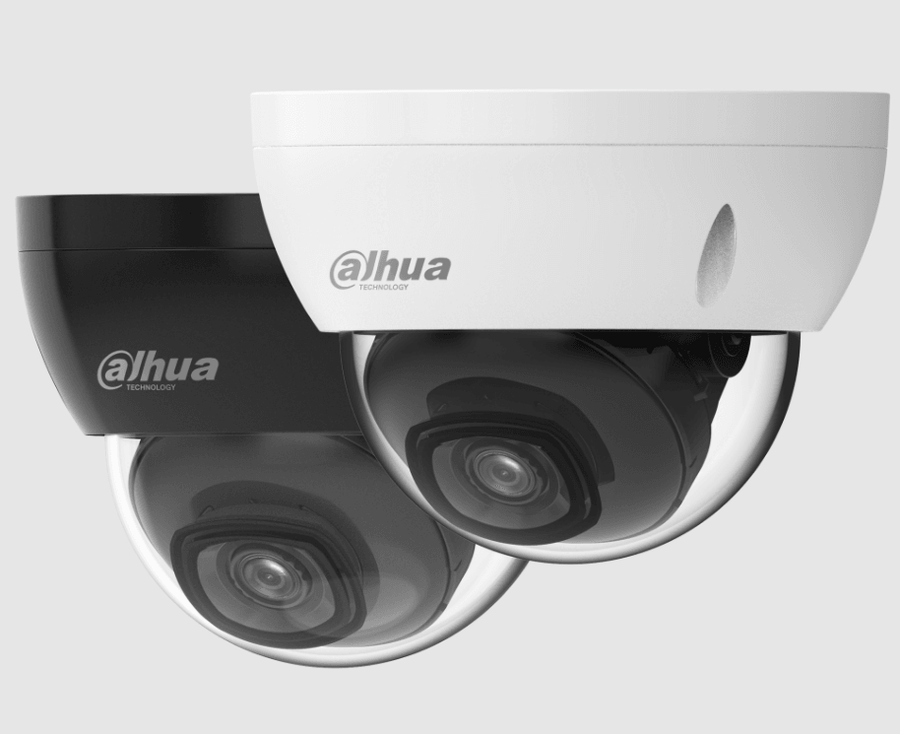

DAHUA 4MP LITE IR IP DOME CAMERA 3.6MM
This Dahua Lite series network camera utilizes upgraded H.265 encoding technology for more efficient video encoding, resulting in saved bandwidth and storage space.
Additionally, it features the latest starlight technology for superior color image display in low light conditions. It also includes SD card storage, dust-proof, waterproof, and vandal-proof functions, meeting standards of IP67 and IK10 (available on select models).
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.
Starlight
With advanced image processing technology and optical technology,
Dahua Starlight technology can provide clear colorful video in
the environment of low illuminance. It widely applies to various
environments of low illuminance.
IVS
With advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 m (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
FEATURES:
· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 ×
1520) @ 20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal ac-
cess, voltage detection
· Supports max. 256GB Micro SD card
· 12V DC/PoE power supply
· IP67, IK10 protection
SPECS:
|
Camera
|
|
Image Sensor
|
1/3” 4Megapixel progressive CMOS
|
|
Max. Resolution
|
2688 (H) × 1520 (V)
|
|
ROM
|
128 MB
|
|
RAM
|
128 MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual 1/3 s–1/100000 s
|
|
Min. Illumination
|
0.008 Lux @ F1.6
|
|
S/N Ratio
|
>56 dB
|
|
Illumination Distance
|
30 m (98.43 ft)
|
|
Illuminator On/Off Control
|
Auto/Manual
|
|
Illuminator Number
|
3 (IR LED)
|
|
Pan/Tilt/Rotation Range
|
Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
|
|
Lens
|
|
Lens Type
|
Fixed-focal
|
|
Mount Type
|
M12
|
|
Focal Length
|
2.8 mm
3.6 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm:
Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm:
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°
|
|
Iris Type
|
Fixed
|
|
Close Focus Distance
|
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
2.8mm
|
56 m
(183.73 ft)
|
22.4 m
(73.49 ft)
|
11.2 m
(36.75 ft)
|
5.6 m
(19.37 ft)
|
|
3.6mm
|
80 m
(262.47 ft)
|
32 m
(104.99 ft)
|
16 m
(52.49 ft)
|
8 m
(26.25 ft)
|
|
Smart Event
|
|
IVS
|
Tripwire; intrusion
|
|
Video
|
|
Video Compression
|
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
|
|
Smart Codec
|
Smart H.265+/ Smart H.264+
|
|
Video Frame Rate
|
Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
|
|
Stream Capability
|
2 streams
|
|
Resolution
|
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
BLC
|
Yes
|
|
HLC
|
Yes
|
|
WDR
|
120 dB
|
|
White Balance
|
Auto/natural/street lamp/outdoor/manual/regional custom
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
3D NR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Region of Interest(RoI)
|
Yes (4 areas)
|
|
Smart Illumination
|
Yes
|
|
Image Rotation
|
0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)
|
|
Mirror
|
Yes
|
|
Privacy Masking
|
4 areas
|
|
Alarm
|
|
Alarm Event
|
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception
|
|
Network
|
|
Network
|
RJ-45 (10/100 Base-T)
|
|
SDK and API
|
Yes
|
|
Cyber Security
|
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
|
|
Protocol
|
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
|
|
Interoperability
|
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
|
|
User/Host
|
20
|
|
Storage
|
FTP; Micro SD card (support max. 256 G); NAS; SFTP
|
|
Browser
|
IE
Chrome
Firefox
|
|
Management Software
|
Smart PSS; DSS; DMSS
|
|
Mobile Phone
|
IOS; Android
|
|
Certification
|
|
Certifications
|
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
|
Power
|
|
Power Supply
|
12V DC/PoE (802.3af)
|
|
Power Consumption
|
< 5.2W
|
|
Environment
|
|
Operating Conditions
|
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
|
|
Storage Temperature
|
-40°C to +60°C (-40°F to +140°F)
|
|
Protection
|
IP67; IK10
|
|
Structure
|
|
Casing
|
Metal
|
|
Dimensions
|
81 mm × Φ109.9 mm (3.19" × Φ4.33")
|
|
Net Weight
|
0.350 kg (0.77 lb)
|
|
Gross Weight
|
0.491 kg (1.08 lb)
|
