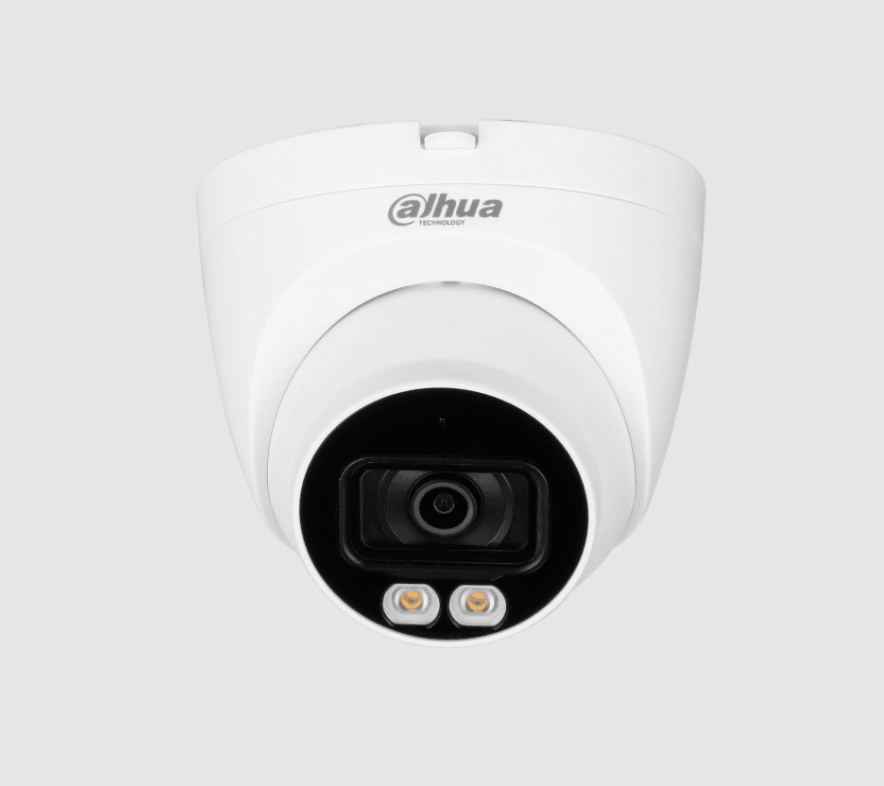

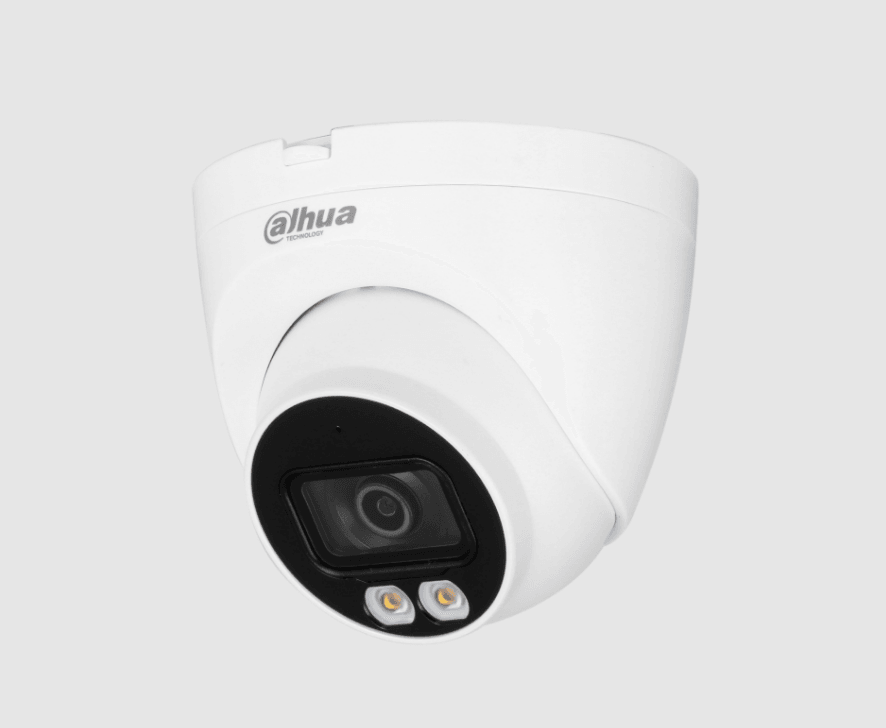

DAHUA 4MP LITE IP EYEBALL CAMERA 2.8MM
The Dahua Lite series network camera has been upgraded with advanced H.265 encoding technology, allowing for efficient video encoding that greatly reduces bandwidth and storage usage.
This cutting-edge camera also features starlight technology, producing stunning color images even in low light conditions. With SD card storage, dust-proof, waterproof, and vandal-proof capabilities, this camera meets the high standards of IP67 (available on select models).
Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smartencoding technology realizes the higher encoding efficiency than H.265and H.264, provides high-quality video, and reduces the cost of storageand transmission.
Full-colorWith high-performance sensor and large aperture lens, Dahua Full-colortechnology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera cancapture more available light, and display more colorful image details.WDRWith advanced Wide Dynamic Range (WDR) technology, Dahua networkcamera provides clear details in the environment of strong brightnesscontrast. The bright and dark area can get clear video even in highbrightness environment or with backlight shadow.
IVSWith advanced video algorithm, Dahua IVS technology supportsintelligent functions, such as tripwire and intrusion.Cyber SecurityDahua network camera is equipped with a series of key securitytechnologies, such as security authentication and authorization, accesscontrol, trusted protection, encrypted transmission, and encryptedstorage, which improve its security defense and data protection, andprevent malicious programs from invading the device.Protection (IP67, wide voltage)IP67: The camera passes a series of strict test on dust and soak. It hasdust-proof function, and the enclosure can works normal after soakingin 1 m deep water for 30 minutes.Wide voltage: The camera allows ±30% (for some power supplies)input voltage tolerance (wide voltage range), and it is widely applied tooutdoor environment with instable voltage.
FEATURES:
· 4MP, 1/3" CMOS image sensor, low illuminance, high image definition· Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP(2688 × 1520) @ 20 fps· H.265 codec, high compression rate, ultra-low bit rate· Built-in warm lights, max. illumination distance: 30 m· ROI, SMART H.264+/H.265+, flexible coding, applicable to variousbandwidth and storage environments· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes· Intelligent detection: Intrusion, tripwire· Abnormality detection: Motion detection, video tampering, no SDcard, SD card full, SD card error, network disconnection, IPconflict, illegal access, voltage detection· Supports max. 256 GB Micro SD card and built-in Mic· 12V DC/PoE power supply· IP67 protection
SPECS:
Camera
Image Sensor
1/3” 4Megapixel progressive CMOS
Max. Resolution
2688 (H) × 1520 (V)
ROM
128 MB
RAM
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination
0.004 Lux@F1.0
S/N Ratio
>56 dB
Illumination Distance
30 m (98.4 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
2.8 mm: F1.0
3.6 mm: F1.0
Field of View
2.8 mm: Horizontal 96° × Vertical 51° × Diagonal 115°
3.6 mm: Horizontal 81° × Vertical 44° × Diagonal 97°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 1.3 m (4.3 ft)
3.6 mm: 1.8 m (5.9 ft)
DORI Distance
Detect
Observe
Recognize
Identify
2.8mm
56.0 m
(183.7 ft)
22.4 m
(73.5 ft)
11.2 m
(36.7 ft)
5.6 m
(17.1 ft)
3.6mm
72.0 m
(236.2 ft)
28.8 m
(94.5 ft)
14.4 m
(47.2 ft)
7.2 m
(23.6 ft)
Smart event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)
Stream Capability
2 streams
Resolution
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps
Day/Night
Color/B/W
BLC
Yes
HLC
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.)
Mirror
Privacy Masking
4 areas
Audio
Built-in MIC
Audio Compression
G.711A; G.711Mu; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
RJ-45 (10/100 Base-T)
SDK and API
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20 (Total bandwidth: 72 M.)
Storage
FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
<7.4 W
Environment
Operating Conditions
–40 °C to +60 °C (–40 °F to +140 °F)/less than ≤ 95% RH
Storage Temperature
–40 °C to +60°C (–40 °F to +140 °F)
Protection Grade
IP67
Structure
Casing
Inner core: metal; cover: plastic ( pedestal: plastic )
Dimensions
100.9 mm × Φ109.9 mm (4.0" × Φ4.3")
Net Weight
0.365 kg (0.8 lb)
Gross Weight
0.527 kg (1.2 lb)
