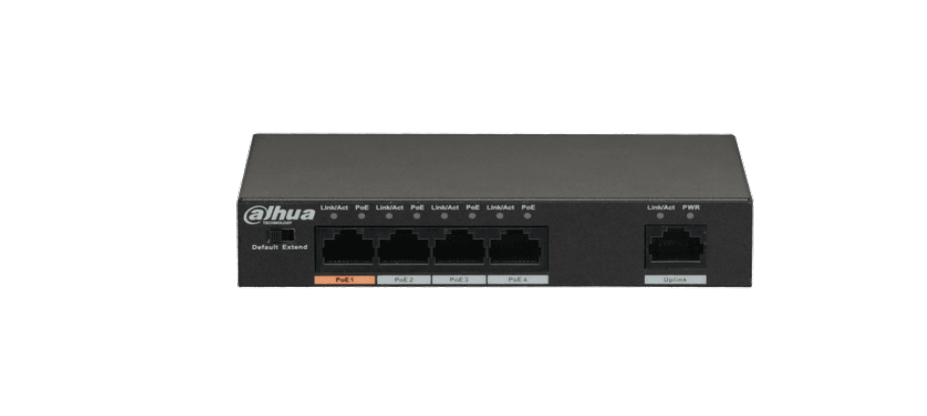

DAHUA 4 PORT 10/100MBPS ETHERNET POE SWITCH - 60W

DAHUA 4 PORT 10/100MBPS ETHERNET POE SWITCH - 60W

The DH-PFS3005-4ET-60 switch allows for efficient and powerful networking with its layer two fast ethernet capabilities. It boasts four 10/100Mbps PoE ports and an additional 100 Mbps uplink port for easy connectivity.

With the ability to support PoE transmission up to 250 meters, it's perfect for seamless monitoring with up to four IP cameras at a bit rate of less than 4Mbps each. Experience the power and reliability of this switch for yourself!

FEATURES:

• Layer two commercial switch
• Supports PoE power management
• Supports wall-mount installation
• Supports anti-theft lock hole
• MAC auto learning and aging, MAC address capacity is 1K
• Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
• RJ45 port supports 10/100Mbps self-adaptation
• Supports 250 meters long distance PoE transmission
• Conforms to IEEE802.3af and IEEE802.3at power supply
• standard. Port 1 supports Hi-PoE 60W power supply

SPECIFICATIONS:

• Model DH-PFS3005-4ET-60
• Ethernet Port 1*10/100 Base-T
• 4*10/100 Base-T (PoE power supply)
• PoE Power Consumption Port1≤60W, Port2-4≤30W, Total≤60W
• PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• PoE Power Management Support
• PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
• Switching Capacity 1Gbps
• Packet Forwarding Rate 744Kpps
• Packet Buffer Memory 448Kb
• MAC Table Size 1K
• Flow Control Enable
• Application Humidity 5%~95%
• Power DC48~57V power adapter
• Lightning Protection Common Mode 2KV
• Differential Mode 1KV
• ESD Protection Air Discharge 8KV
• Contact Discharge 6KV
• Working Temperature -10°C~55°C
• Weight 290g
• Dimension(W×D×H) 130mm×85mm×26mm
