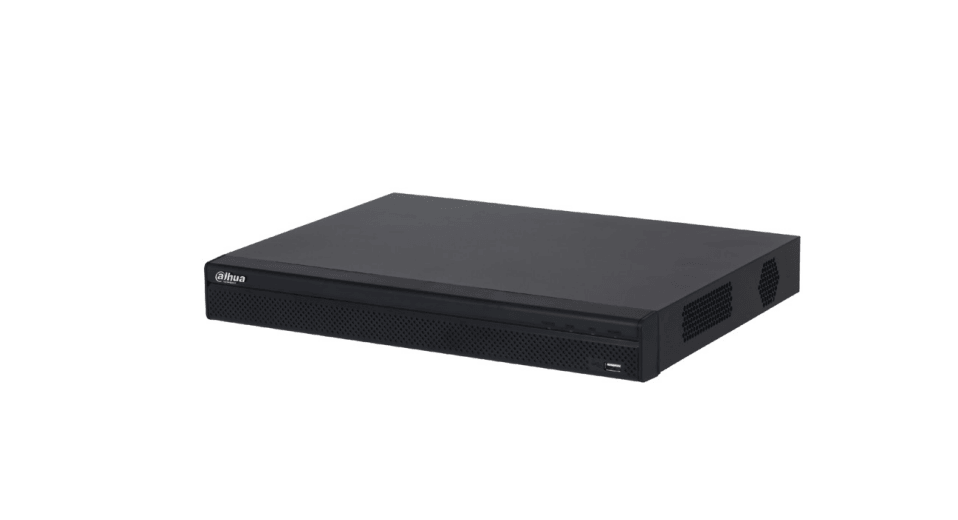

DAHUA 32CH 4K NVR
DAHUA 32CH 4K NVR is an affordable, yet powerful, addition to any surveillance system. Its 4K and H.265 encoding technology ensures excellent performance and image quality, making it perfect for applications that require high levels of detail.
This versatile NVR can function as edge storage, central storage, or backup storage, and can be easily managed and controlled remotely. With its user-friendly design and compatibility with various third-party devices, it is ideal for public safety, transportation, education, and financial institutions. The NVR also supports multi-user access and is compatible with popular ONVIF protocols, allowing for seamless integration with IP cameras.
Perimeter Protection by Camera
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Face Detection by Camera
Face detection is to detect if there is any human face appearing in the
video. This technology adopts a deep learning algorithm to support face
detection, tracking, optimization and capturing, and then output the
best face snapshot.
SMD Plus by Camera
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
People Counting by Camera
With deep learning algorithm, Dahua People Counting technology
can track and process moving human body targets to realize the
accurate statistics of enter No., leave No., and In Area No. Working with
management platform, it outputs yearly/monthly/weekly/daily reports
to meet your requirements.
Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart
codec technology realizes the higher encoding efficiency than H.265 and
H.264, provides high-quality video, and reduces the cost of storage and
transmission.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It
makes surveillance easy and simple, allowing you to remotely access
back-end devices, view live video, receive event push notifications, and
search for recorded videos from an iPhone, iPad, or Android phone at
anytime from virtually anywhere.
FEATURES:
New 4.0 user interface, Security baseline 2.1
· H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
· Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive
decoding
· Supports mainstream cameras of ONVIF and RTSP protocols
· P2P remote surveillance, video play on mobile device
· VGA/HDMI simultaneous video output, maximum resolution of HDMI
is 4K
· AI by Camera: Face detection, perimeter protection, IVS, people
counting, heat map, and SMD
· Supports remote configuration and management of IPC, such as set
ting parameters, getting information, and upgrading IPC of the same
model in batches
SPECIFICATIONS:
|
System
|
|
Main Processor
|
Industrial-grade embedded processor
|
|
OS
|
Embedded Linux
|
|
Operation Interface
|
Web/operating in local GUI
|
|
Perimeter Protection by Camera
|
|
Performance
|
8 channels
|
|
AI Search
|
Search for pictures by channel, time and event type
|
|
Face Detection by Camera
|
|
Performance
|
4 channels
|
|
Face Attributes
|
6 attributes: Gender, age, glasses, expression, mouth mask, and beard
|
|
AI Search
|
Search for pictures by channel, time and face attributes
|
|
SMD Plus by Camera
|
|
Performance
|
12 channels
|
|
AI Search
|
Search by target classification (human, vehicle)
|
|
Video
|
|
Access Channel
|
32
|
|
Network Bandwidth
|
Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps
|
|
Resolution
|
8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
|
|
Decoding Capability
|
8 × 1080p@30 fps
|
|
Video Output
|
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
|
|
Multi-screen Display
|
1 , 4, 8, 9, 16, 25, 32 views
|
|
Third-party Camera Access
|
ONVIF; RTSP
|
|
Compression
|
|
Video
|
Smart H.265/H.265/Smart H.264/H.264/MJPEG
|
|
Audio
|
PCM/G711A/G711U/G726/AAC
|
|
Network
|
|
Network Protocol
|
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
|
|
Mobile Phone Access
|
Android; iOS
|
|
Interoperability
|
ONVIF(profile T/S/G); CGI; SDK
|
|
Browser
|
Chrome; IE9 or later; firefox
|
|
Record Playback
|
|
Multi-channel Playback
|
Up to 16 channels for playback
|
|
Record Mode
|
Manual record; alarm recording; SMD recording; smart recording
|
|
Storage
|
Local HDD; network
|
|
Backup
|
USB storage device
|
|
Playback Function
|
1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
|
|
Storage
|
|
Disk Group
|
Yes
|
|
Alarm
|
|
General Alarm
|
Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
|
|
Anomaly Alarm
|
Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
|
|
Intelligent Alarm
|
Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
|
|
Alarm Linkage
|
Recording, snapshot, local external alarm output, audio, buzzer, log, preset, and email
|
|
External Port
|
|
Audio Input
|
1 × RCA input
|
|
Audio Output
|
1 × RCA output
|
|
HDD
|
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
|
|
Alarm Input
|
4
|
|
Alarm Output
|
2
|
|
USB
|
2 (1 × front USB2.0; 1 × back USB2.0)
|
|
HDMI
|
1 (supports up to 4K resolution output)
|
|
VGA
|
1
|
|
Network
|
1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
|
|
General Parameter
|
|
Power Supply
|
12 V DC, 4A
|
|
Power Consumption
|
< 5.6 W (HDD not included, idling)
|
|
Net Weight
|
1.5 kg (3.31 lb)
|
|
Gross Weight
|
2.6 kg (5.73 lb)
|
|
Product Dimensions
|
375.0 mm × 282.9 mm x 53.0 mm (14.76" × 11.14" × 2.09") (W × L × H)
|
|
Package Dimensions
|
433 mm × 140 mm × 363 mm (17.05" × 5.51" × 14.29") (W × L × H)
|
|
Operating Conditions
|
–10 °C to +55 °C (+10 °F to +131 °F)
|
|
Storage Conditions
|
0 °C to +40 °C (32 °F to 104 °F)
|
|
Operating Humidity
|
10℅~93℅
|
|
Storage Humidity
|
30%~85%
|
|
Operating Altitude
|
3000 m (9842.52 ft)
|
|
Installation
|
Desktop/Rack mount
|
|
Certifications
|
CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
|
