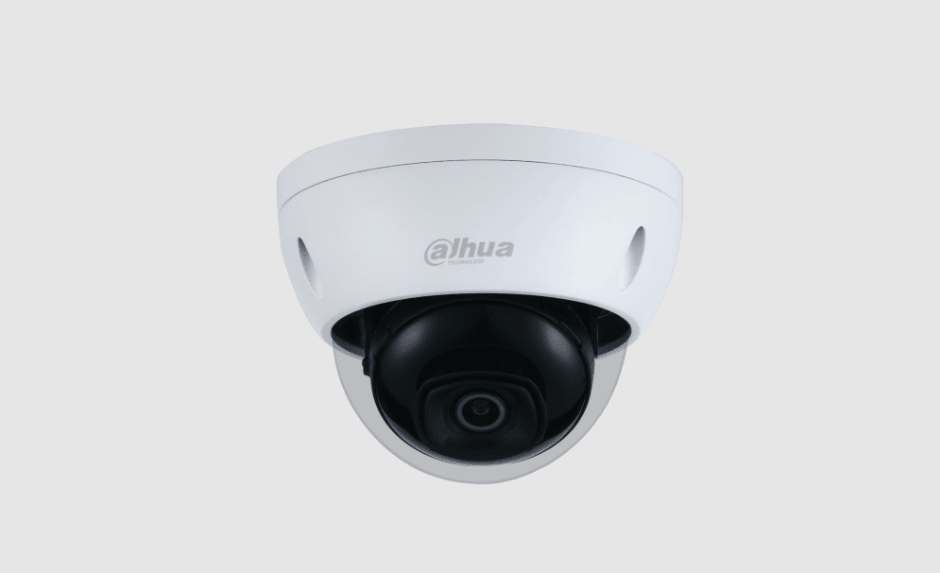

DAHUA 2MP LITE IR IP DOME CAMERA 3.6MM
This Dahua Lite network camera utilizes advanced H.265 encoding technology to efficiently encode videos, conserving bandwidth and storage space. With the latest starlight technology, it can capture high-quality color images in low light conditions. Additionally, it has a built-in SD card for storage, as well as dust-proof, waterproof, and vandal-proof features, conforming to IP67 and IK10 standards (available on select models).
Smart H.265+ & Smart H.264+With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.StarlightWith advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.IVSWith advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.Cyber SecurityDahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, IK10, Wide Voltage)IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
FEATURES:
SPECS:
Camera
Image Sensor
1/2.8" CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
128 MB
RAM
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 Lux@F1.6 (Color, 30 IRE)0.0005 Lux@F1.6 (B/W, 30 IRE)0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
30 m (98.43 ft) (IR)
Illuminator On/Off Control
Auto; manual
Illuminator Number
3 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–355°Tilt: 0°–65°Rotation: 0°–355°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
2.8 mm: F1.63.6 mm: F1.6
Field of View
2.8 mm: Horizontal: 108°; Vertical: 56°; Diagonal: 128°3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.6 m (1.97 ft)3.6 mm: 1.3 m (4.27 ft)
DORI Distance
Detect
Observe
Recognize
Identify
2.8 mm
38.6 m (126.64 ft)
15.4 m (50.52 ft)
7.7 m
(25.26 ft)
3.9 m
(12.80 ft)
3.6 mm
58.9 m (193.24 ft)
23.6 m (77.43 ft)
11.8 m (38.71 ft)
5.9 m
(19.36 ft)
Smart Event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream:1920 × 1080@1–25/30 fpsSub stream:704 × 576@1–25 fps704 × 480@1–30 fps*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
2 streams
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror
Privacy Masking
4 areas
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host
20 (Total bandwidth: 48 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IEChromeFirefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
IOS; Android
Certification
Certifications
CE-LVD: EN 62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply
12 V DC/PoE (802.3af)
Power Consumption
Basic: 1.8 W (12 V DC); 2.5 W (PoE)Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 4.6 W (12 V DC); 5.4 W (PoE)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
≤ 95%
Storage Temperature
Protection
IP67; IK10
Structure
Casing
Metal
Product Dimensions
81 mm × Φ109.9 mm (3.2"×Φ4.3")
Net Weight
0.35 kg (0.8 lb)
Gross Weight
0.49 kg (1.1 lb)
