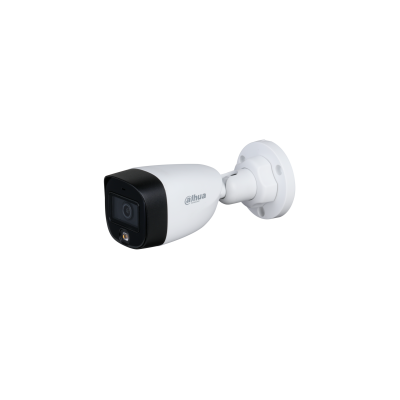

The Dahua HAC‑HFW1209CP‑LED is a **2 MP Full‑Colour Starlight HDCVI bullet camera** designed for reliable, high‑definition analogue video surveillance in residential, commercial and industrial settings. It delivers 1080p colour imaging with a fixed‑focal lens and integrated LED illumination up to 20 m, ensuring vibrant colour video even in low‑light conditions. This camera supports multiple video formats, making it compatible with a wide range of Dahua HDCVI and hybrid DVR systems. Its robust, weatherproof design and straightforward installation make it suitable for both indoor and outdoor use while protecting critical areas 24 hours a day.
Key Features
- Full‑colour Starlight imaging provides continuous colour video in low‑light environments without relying solely on infrared, improving object and detail identification.
- 20 m LED illumination ensures effective colour surveillance at night and in dark areas, with auto or manual control of lighting.
- Multi‑format output (HDCVI/CVBS/AHD/TVI) enables broad compatibility with Dahua recorders and most DVR systems.
- Durable weatherproof housing rated to IP67 protects against dust and moisture for outdoor reliability.
- Fixed lens options (2.8 mm or 3.6 mm) provide wide or standard fields of view to suit different monitoring needs.
Technical Specifications
-
Image Sensor: 1/2.8″ CMOS, 2 MP effective pixels (1920 × 1080).
-
Video Resolution & Frame Rate: Up to 1080p at 30 fps with progressive scan.
-
Minimum Illumination: 0.01 Lux/F1.6; 0 Lux with LED on.
-
Illumination Distance: Integrated LED up to 20 m (65.61 ft).
-
Lens: Fixed‑focal, 2.8 mm or 3.6 mm options with M12 mount.
-
Video Output Formats: Switchable HDCVI / CVBS / AHD / TVI via one BNC port.
-
OSD Menu: Multi‑language on supported DVRs.
-
Environmental Protection: IP67 dust/water resistance.
-
Power Supply: 12 V DC ±30 %.
-
Operating Conditions: −40 °C to +60 °C, ≤ 95 % RH.
Applications & Intended Use
The Dahua HAC‑HFW1209CP‑LED is designed for comprehensive day/night monitoring in environments such as home perimeters, entrances, driveways, car parks, retail spaces, warehouses and other areas requiring continuous, detailed colour surveillance. Its full‑colour imaging and durable housing cater to both new installations and upgrades of existing coaxial systems, offering clear identification of people and objects under varied lighting conditions.
Why This Product Is a Trusted Choice
As part of Dahua’s established HDCVI Lite series, the HAC‑HFW1209CP‑LED combines solid performance with broad format compatibility, letting installers integrate it easily with legacy and current DVR platforms. Its robust IP67 build ensures long‑term outdoor reliability, and the full‑colour starlight technology provides continuous, rich colour imaging in low light — a significant advantage over traditional infrared‑only cameras for accurate scene interpretation. Official Dahua technical standards and product tooling support ensure consistency in performance and documentation.
