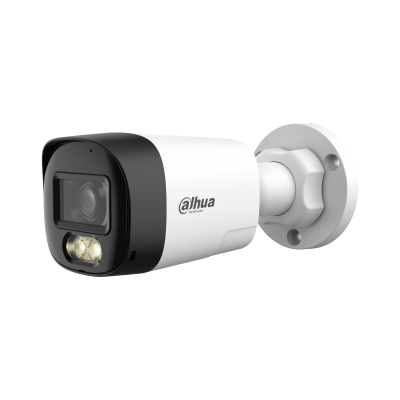

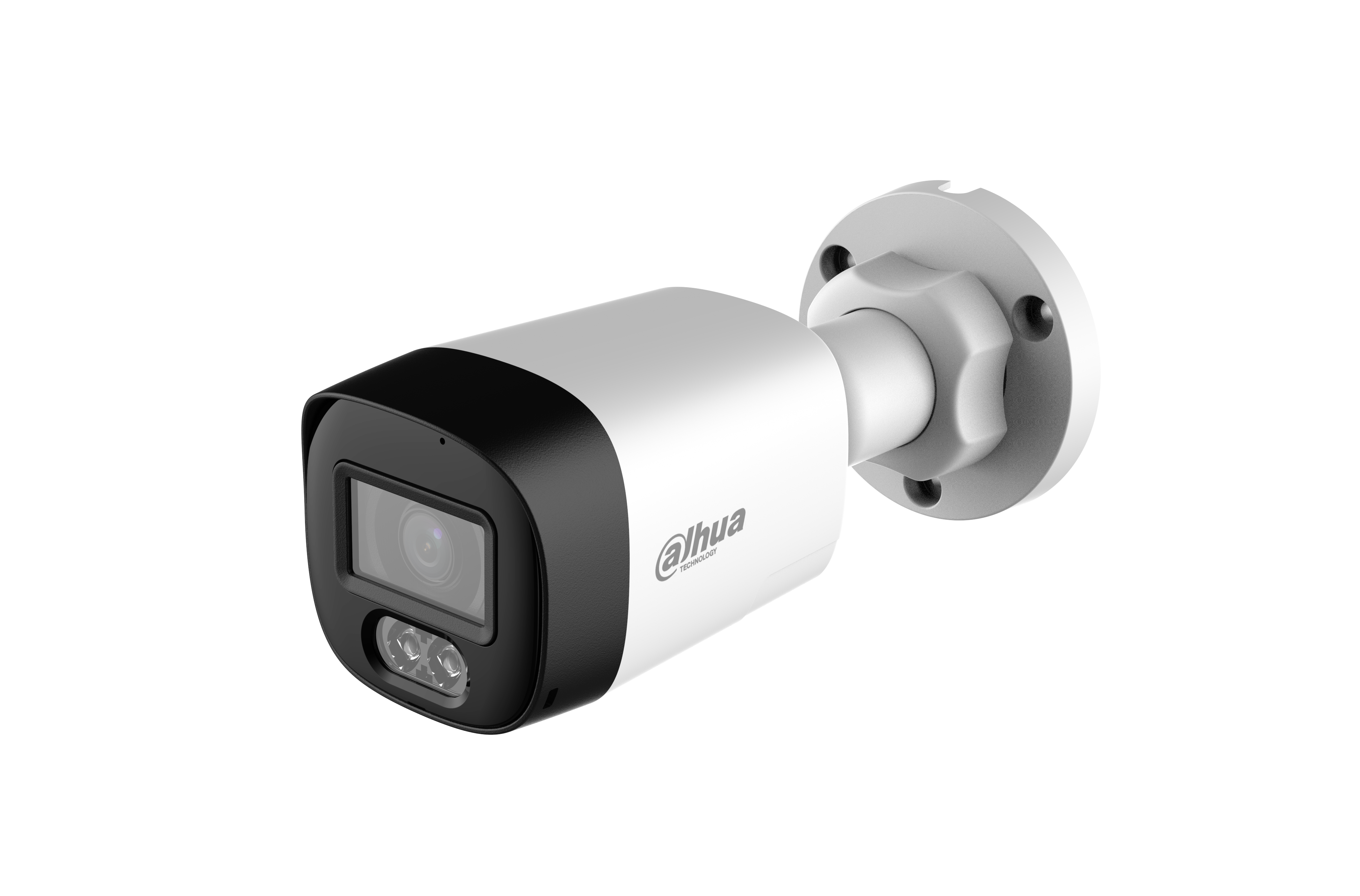

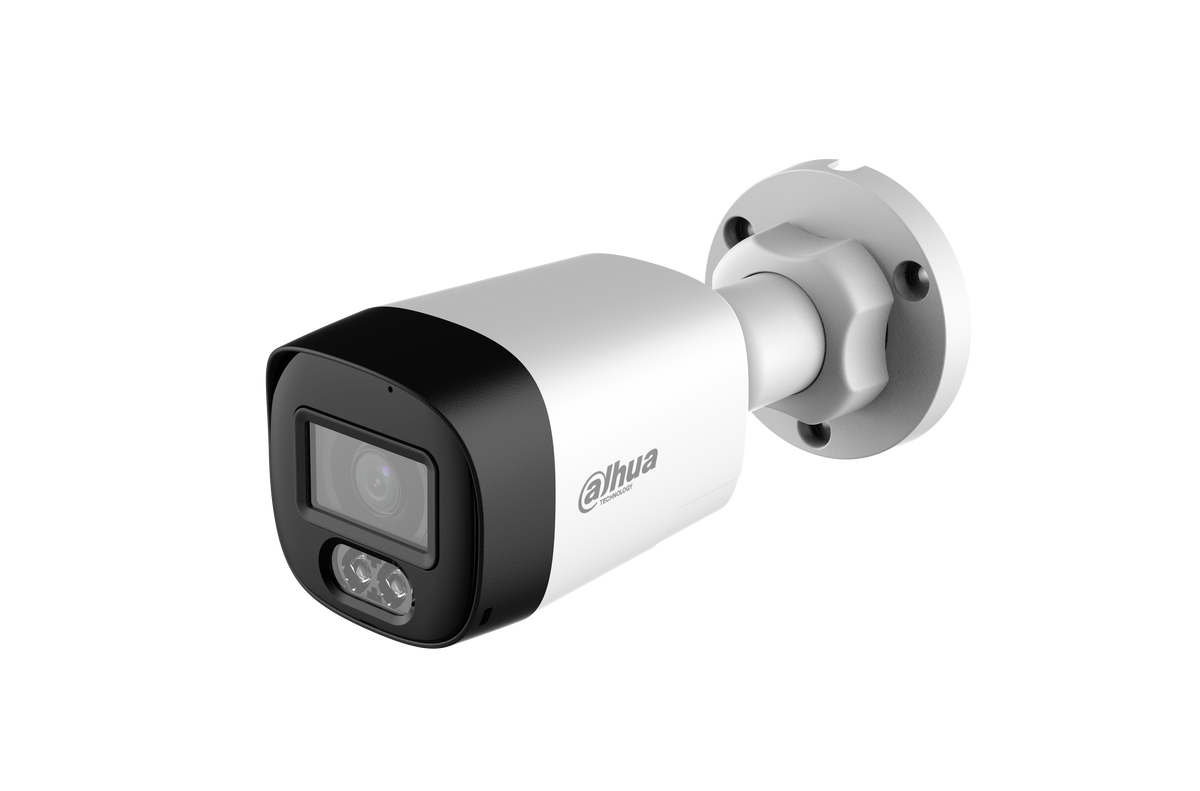

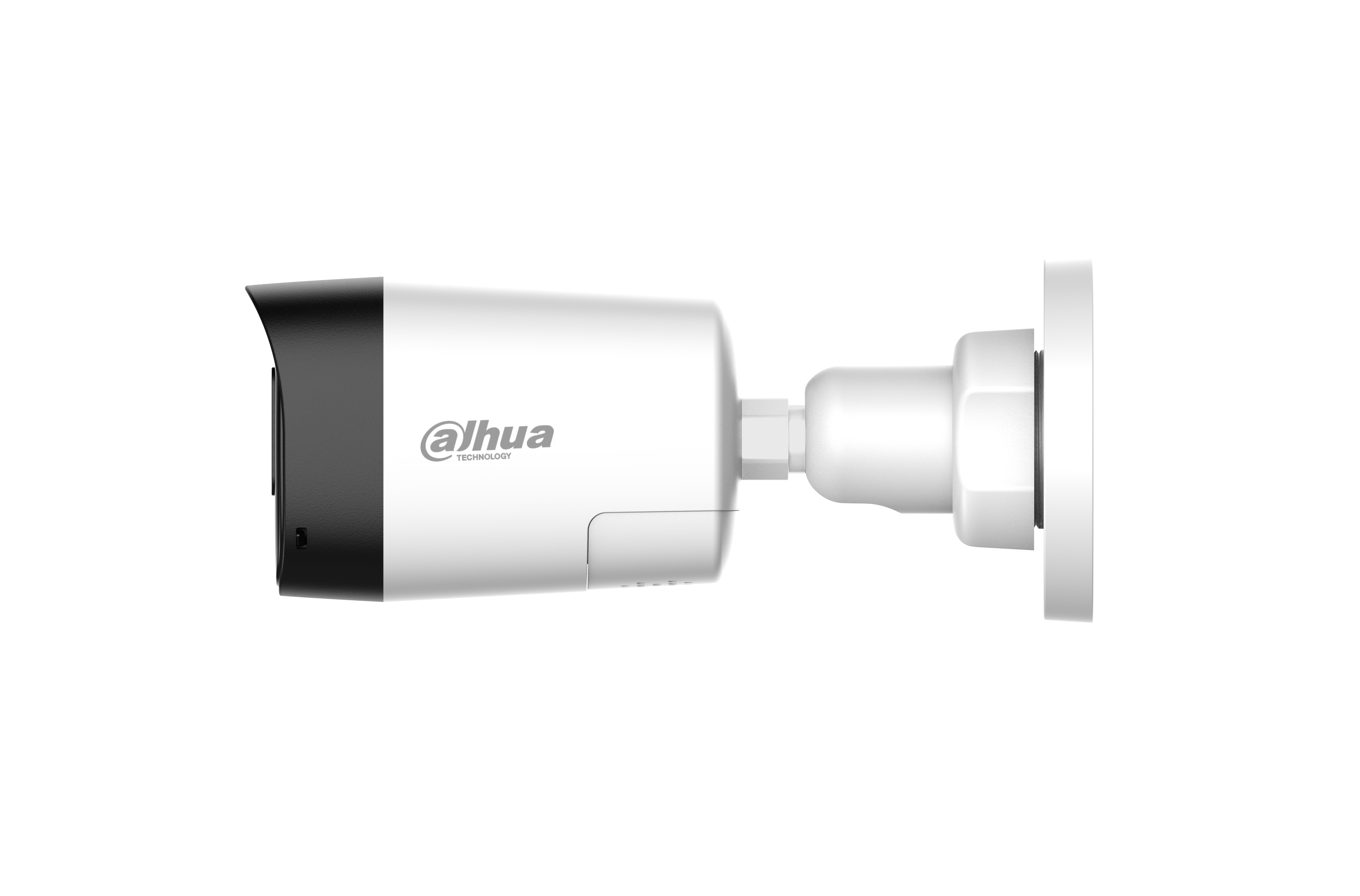

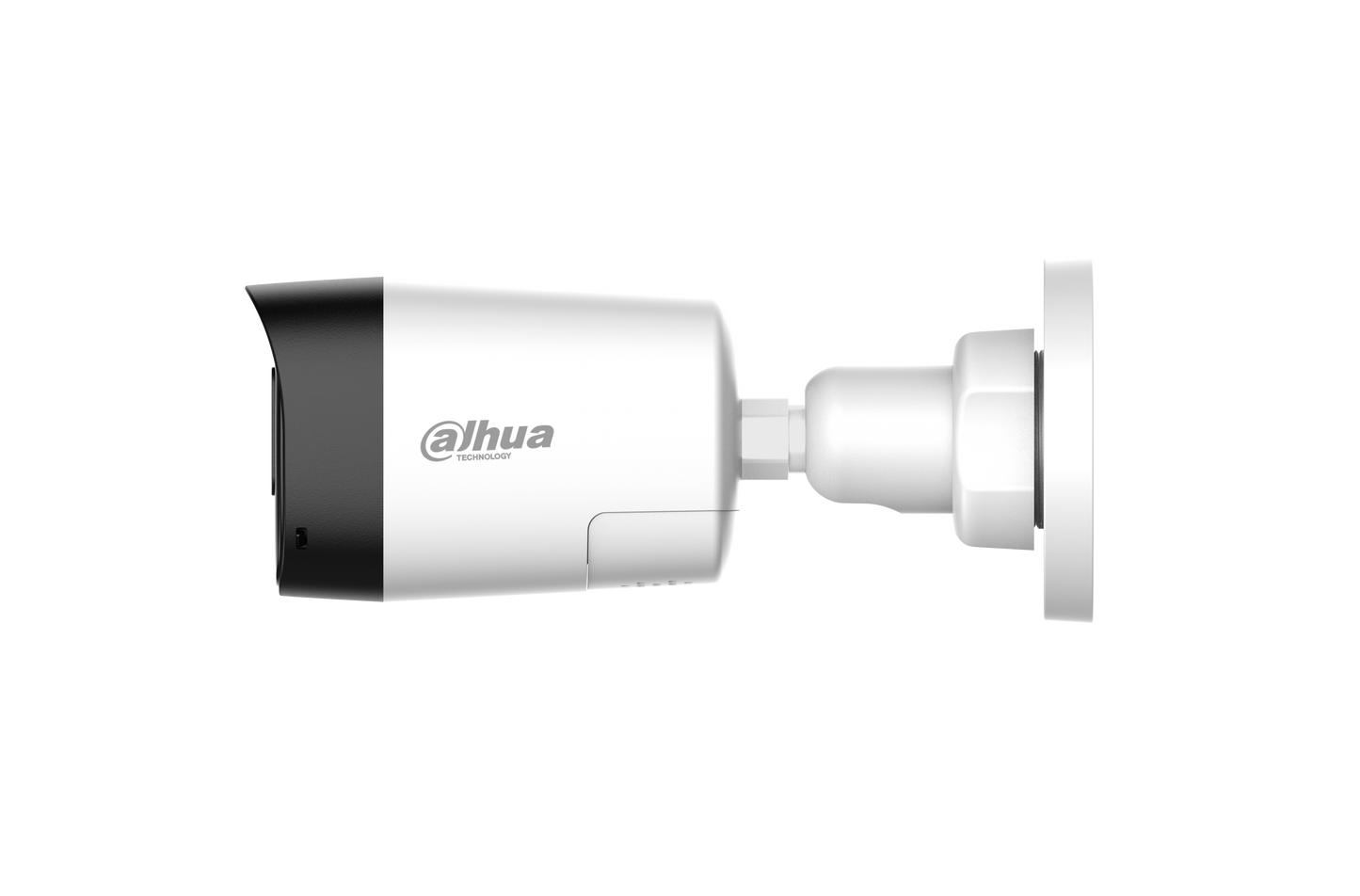

The Dahua 2MP 30m Two-Way Audio 2.8mm Bullet Camera delivers reliable 1080p surveillance with intelligent lighting, two-way audio, and a wide-angle 2.8mm lens. Designed for outdoor security applications, the camera combines clear imaging with Smart Dual Light technology, providing up to 30 metres of illumination for improved visibility in low-light and nighttime conditions.
Built-in microphone and speaker technology enables two-way talk, allowing users to communicate through the camera. The camera supports CVI, TVI, AHD, and CVBS video formats, with convenient signal selection through its DIP switch. Its quick-install structure and IP67-rated housing make it suitable for a wide range of indoor and outdoor installations.
Key Features
-
2MP Full HD Imaging – Captures video at 1920 × 1080 resolution for clear surveillance footage.
-
2.8mm Wide-Angle Lens – Provides a 111.3° horizontal field of view for broad area coverage.
-
Smart Dual Light – Combines IR and white LED illumination with multiple lighting modes.
-
30m Illumination Distance – Provides extended visibility in low-light and nighttime conditions.
-
Two-Way Talk – Built-in microphone and high-power speaker enable two-way communication.
-
Smart Light+ – Advanced LED processing helps provide clearer details when supplementary lighting is required.
-
DWDR – Helps improve image detail in scenes with strong backlighting.
-
3D Noise Reduction – Reduces image noise for clearer video.
-
Super Adapt – Helps maintain image quality across changing lighting conditions.
-
Multiple Video Formats – Supports CVI, TVI, AHD, and CVBS.
-
DIP Switch Signal Selection – Allows convenient selection of the required video output format.
-
IP67 Protection – Provides protection against dust and water for outdoor installations.
-
Flexible Mounting – Supports wall, ceiling, and vertical pole mounting.
Camera Specifications
-
Image Sensor: 2MP CMOS
-
Maximum Resolution: 1920 × 1080
-
Scanning System: Progressive
-
Minimum Illumination: 0.01 Lux @ F2.0 (Colour, 30 IRE)
-
Minimum Illumination: 0.001 Lux @ F2.0 (B/W, 30 IRE)
-
Minimum Illumination: 0 Lux with illuminator enabled
-
S/N Ratio: >65dB
-
Illumination Distance: Up to 30m
-
Illuminator: 2 × Multi-Core Light Illuminators
-
Illuminator Control: Auto / Manual
Lens Specifications
-
Lens Type: Fixed-Focal
-
Focal Length: 2.8mm
-
Lens Mount: M12
-
Maximum Aperture: F2.0
-
Horizontal Field of View: 111.3°
-
Vertical Field of View: 60.8°
-
Diagonal Field of View: 134.2°
-
Close Focus Distance: 0.5m
DORI Distance
-
Detect: 40.6m
-
Observe: 16.2m
-
Recognize: 8.1m
-
Identify: 4.1m
Video Specifications
-
Video Resolution: 1080p (1920 × 1080) / 960H
-
Frame Rate: 1080p @ 25fps PAL / 30fps NTSC
-
Video Output: CVI / TVI / AHD / CVBS
-
Day/Night: Auto (ICR) / Colour / B/W
-
WDR: DWDR
-
Backlight Compensation: BLC / HLC / WDR / HLC-Pro
-
Noise Reduction: 3D NR
-
White Balance: Auto
-
Gain Control: Manual / Auto
-
Mirror: Yes
Audio & Two-Way Talk
-
Built-in Microphone: Yes, up to 8m
-
Speaker: Yes, up to 8m
-
Two-Way Talk: Yes
-
Camera Audio: CVI / TVI
-
Audio Pick-Up Distance: Up to 8m
Connections & Power
-
Video Output: 1 × BNC
-
Video Signal Selection: DIP Switch
-
Power Supply: 12V DC (±30%)
-
Maximum Power Consumption: 6.6W
Construction & Environmental Specifications
-
Casing Material: Plastic
-
Protection Rating: IP67
-
Operating Temperature: -40°C to +60°C
-
Operating Humidity: <95% RH, non-condensing
-
Storage Temperature: -40°C to +60°C
-
Anti-Corrosion Level: Basic Protection
-
Mounting: Wall / Ceiling / Vertical Pole
Dimensions & Weight
-
Dimensions: 161.6 × 69.7 × 70.0mm
-
Net Weight: 0.20kg
-
Gross Weight: 0.29kg
The Dahua 2MP 30m Two-Way Audio 2.8mm Bullet Camera is a versatile surveillance solution combining 1080p video, wide-angle coverage, Smart Dual Light illumination, two-way audio, and IP67-rated outdoor protection for dependable day-and-night monitoring.
