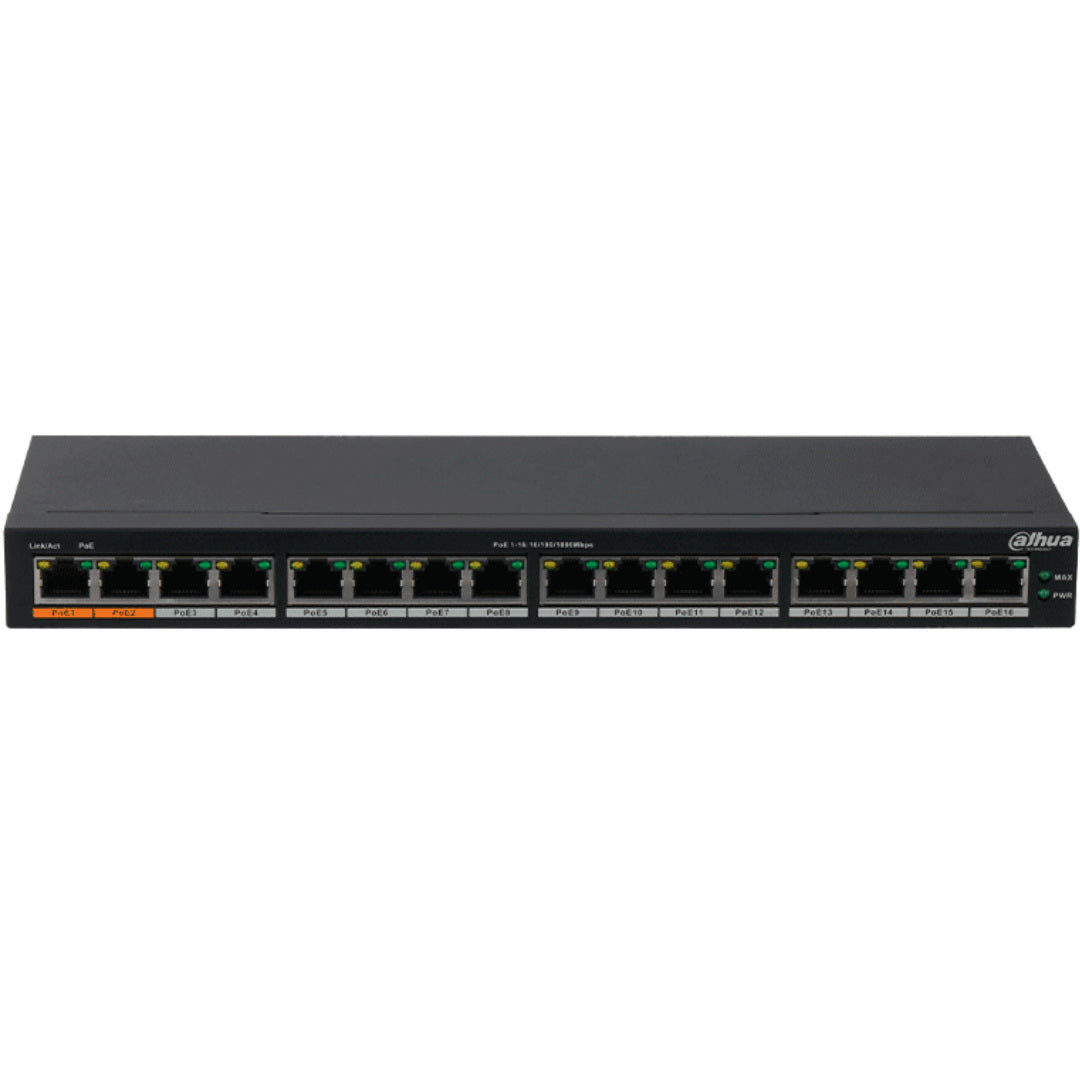

Dahua PFS3016-16GT-190 16-Port Gigabit Unmanaged PoE Switch
Efficient, powerful and plug-and-play PoE switching for CCTV and IP-camera networks. The Dahua PFS3016-16GT-190 is a high-performance, full-gigabit unmanaged PoE switch with 16 RJ-45 ports supporting IEEE 802.3af/at and Hi-PoE, a generous 190 W PoE budget and broad operating temperature range (-10 °C to +55 °C). Ideal for South African installers and homeowners seeking reliable CCTV network infrastructure, it offers straightforward deployment and robust performance for multi-camera setups.
Why this switch stands out for home and business surveillance
-
Plug-and-play simplicity: No complex setup required — power your IP cameras and go.
-
High PoE budget: Up to 190 W total PoE budget, with Port 1-2 supporting up to 60 W each, and Ports 3-16 up to 30 W each — ideal for larger cameras or PTZs.
-
All-gigabit ports: Full 1 Gbps RJ-45 ports ensure your network backbone doesn’t bottleneck.
-
Wide-range temperature rating: Designed to work reliably in tough environments from -10 °C to +55 °C — great for exposed installations in South Africa.
-
Heavy-duty build and protection: ESD, thunder and surge protection built in — safeguarding your system against power irregularities and outdoor cabling risks.
Key Specifications & Features
| Model |
PFS3016-16GT-190 |
| Ports |
16 × RJ-45 10/100/1000 Base-T (PoE supported) |
| Switching capacity |
32 Gbps |
| Packet forwarding rate |
23.808 Mpps |
| PoE standard |
IEEE 802.3af, IEEE 802.3at, Hi-PoE |
| PoE budget |
≤ 190 W total; Port 1-2 ≤ 60 W each; Port 3-16 ≤ 30 W each |
| Operating temperature |
-10 °C to +55 °C (14 °F to +131 °F) |
| Dimensions |
285 mm × 104.6 mm × 28 mm |
| Power consumption |
Idle 18 W; Full-load 190 W |
| Environmental protection |
ESD Air discharge: 8 kV; Contact discharge: 6 kV; Thunder proof common mode: 4 kV; differential mode: 2 kV |
Typical installations & tips
-
Residential CCTV installations: Power multiple garden and outdoor IP-cameras from one switch, run long cable entries, and manage with ease.
-
Small business or retail sites: Ideal for shop floor camera coverage, storeroom monitoring, and office roof-top cameras — all on one full-gigabit switch.
-
Installation recommendations: Mount the switch in a ventilated, surge-protected cabinet. Label each PoE port (e.g., “Front Gate Cam”, “Warehouse Rear”) for quicker servicing. Consider using a UPS or power-conditioning device if your area experiences load-shedding or voltage irregularities.
Frequently Asked Questions
Can this switch power high-wattage IP cameras or PTZs?
Yes — Ports 1-2 support up to 60 W each and Ports 3-16 up to 30 W each under the Hi-PoE standard, making it suitable for more power-demanding cameras.
Does this switch need configuration?
No — it is an unmanaged switch, so the unit is plug-and-play. Just connect cameras, patch cables and power and you’re set. :contentReference[oaicite:16]{index=16}
Is full-gigabit necessary for CCTV?
Yes — full-gigabit ports ensure that high-resolution IP-cameras (4K and above) and multi-camera hubs won’t be slowed down by network bottlenecks. This switch gives you head-room for growth.
Ready to upgrade your surveillance network? Add the Dahua PFS3016-16GT-190 to your cart now and give your installation the power, reliability and simplicity it deserves.
