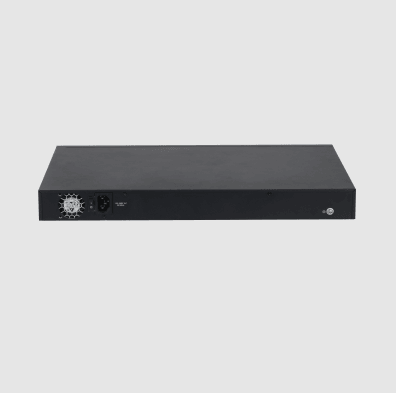

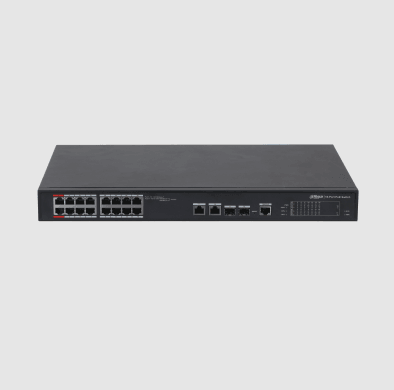

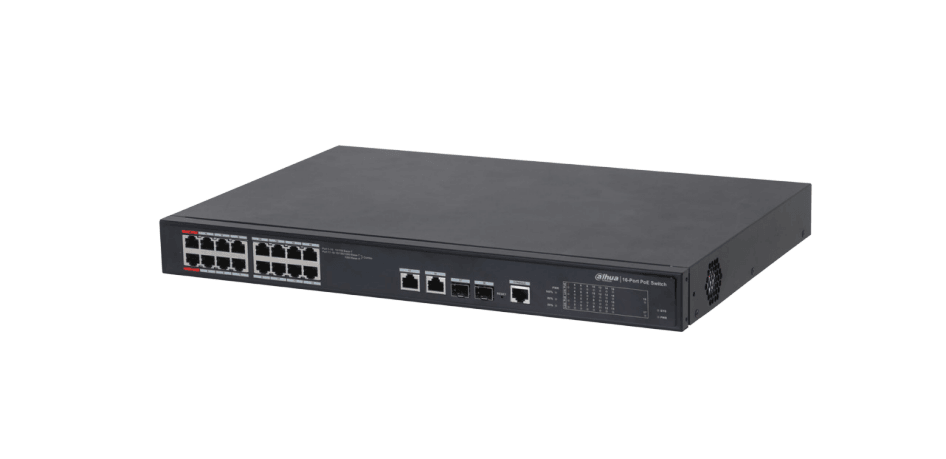

DAHUA 16 PORT 16FE POE+2GE SWITCH
DH-PFS4218-16ET-190 is a top-of-the-line managed PoE switch, delivering 16 high-speed 100 Mbps PoE ports and 2 gigabit uplink combo ports.
With a full load capacity of 240W, this product boasts an all-metal design that ensures optimal heat dissipation and low power consumption, making it suitable for use in extreme temperatures ranging from –10°C to +55°C. In addition, it boasts advanced network management capabilities, including CLI, iLinksView, web, and SNMP-based software, providing comprehensive control and monitoring options.
Uplink Combo Port
Two of the uplink ports support a self-adaptive 10/100/1000 Mbps RJ45 port or a 1000 Mbps optical port.
Intelligent PoE
The switch features intelligent PoE power consumption management
to help keep the power and data flowing, even when the switch
experiences a power fault. Intelligent PoE monitors the power
consumption of the connected devices, and in the event of large power
fluctuations, the switch shuts down one port at a time rather than
shutting down all ports. Unlike typical switches that shut down all ports
as once, this switch shuts down the highest number port first, then the
is below the PoE budget. Green PoE can power on and power off
according to time strategy. It can also realize PoE legacy support.
BT 90W
The red port supports the IEEE802.3bt and the Hi-PoE standards. The
maximum power consumption is 90W
PoE Watchdog
The switch employs an innovative PoE watchdog function that
automatically detects a network port failure and restarts network
communication on the port. This functionality avoids manual
maintenance and network restarts, saving time and reducing costs.
Long Distance PoE
Long-distance PoE transmission extends the maximum transmission
distance to 250 m (from 100 m), but reduces transmission speed to a
maximum of 10 Mbps (from 1000 Mbps)
Various Operating Environments
The switch is designed to operate in severe environments and in
temperatures ranging from –10°C to +55°C (14°F to 131°F). The switch
includes a professional-grade surge protection circuit that offers 4
kV (common mode) and 2 kV (differential mode) all-port lightning
protection. This protection reduces damage to the network from a
lightning storm. The switch meets the Class B EMC standard and is
suitable for residential, commercial, and light-industrial applications.
FEATURES:
• Intelligent PoE
• Red port supports 90W IEEE802.3bt
• Web management with friendly interface and easy operation
• 250 m long distance PoE transmission
• PoE watchdog
• Plug and play
SPECIFICATIONS:
|
Performance
|
|
Layer
|
Layer 2
|
|
Managed
|
Yes
|
|
Switching Capacity
|
8.8 Gbps
|
|
Packet Forwarding Rate
|
5.36 Mpps
|
|
Packet Buffer Memory
|
2.75 Mbit
|
|
MAC Table Size
|
4K
|
|
Communication Standard
|
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;
IEEE 802.3z
|
|
Hardware Feature
|
|
Standard Power Supply
|
Yes
|
|
PoE
|
Yes
|
|
Ethernet Port
|
16
|
|
Optical Port
|
2
|
|
Ethernet Port Rate
|
100 Mbps
|
|
Optical Port Rate
|
1 Gbps
|
|
Number of Business Card Slots
|
Port 1-16: 16 × RJ-45 10 M/100 M (PoE)
Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 17-18: 2 × SFP 1000 M (uplink) (combo)
|
|
Debugging
|
Console × 1
|
|
Power Supply
|
100V–240V AC
|
|
Operating Temperature
|
–10 °C to +55 ° (14 °F to 131 °F)
|
|
Operating Humidity
|
10% RH–90% RH
|
|
Power Consumption
|
Idling: 10W
Full load: 190W
|
|
PoE
|
|
PoE Standard
|
IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
|
|
PoE Budget
|
Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 190W
|
|
PoE Pin Assignment
|
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
|
|
PoE Management
|
Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support
|
|
Long Distance PoE Transmission
|
250 m long-distance power supply
|
|
Function
|
|
Spanning Tree Protocol
|
IEEE 802.1d (STP); 802.1w (RSTP)
|
|
VLAN
|
IEEE802.1q Standard VLAN
|
|
Flow Control
|
Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
|
|
Link Aggregation
|
Static; LACP
|
|
Port Mirroring
|
One-to-one; multiple-to-one
|
|
Multicast
|
GMP snooping based on port
|
|
DHCP
|
DHCP client
|
|
Security
|
Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
|
|
QoS
|
High and low priority
WRR
802.1P
DSCP
Priority based on protocol
|
|
General
|
|
ESD
|
Air discharge: 8kV
Contact discharge: 6kV
|
|
Thunder-proof
|
Common mode: 4kV
Differential mode: 2kV
|
|
Dimensions
|
440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)
|
|
Packaging Dimensions
|
Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)
|
|
Transmission Performance:
|
|
Switch power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
|
|
Cable(m)
|
Load Capacity(W)
|
Bandwidth(Mbps)
|
|
IEEE802.3bt 90 W
|
|
100
|
71.3
|
100
|
|
150
|
62
|
10
|
|
200
|
51
|
10
|
|
250
|
40
|
10
|
|
Hi-PoE 60 W
|
|
100
|
53
|
100
|
|
150
|
50
|
10
|
|
200
|
47
|
10
|
|
250
|
37
|
10
|
|
IEEE802.3at 30 W
|
|
100
|
25.5
|
100
|
|
150
|
25.5
|
10
|
|
200
|
25.5
|
10
|
|
250
|
25.5
|
10
|
