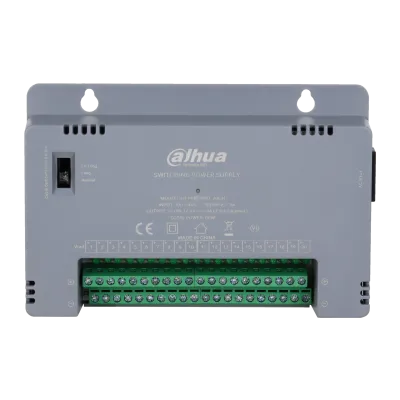

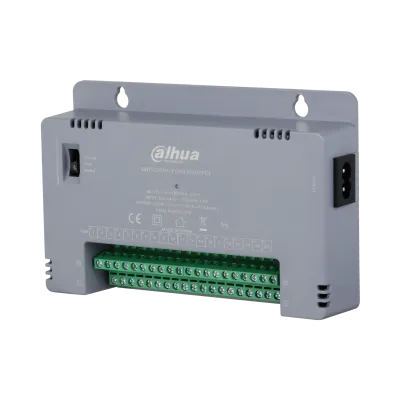

PFM344D-20CH-EN – Switching Power Supply (20-Channel Power Supply) in South Africa

The PFM344D-20CH-EN Switching Power Supply is a high-performance multi-channel power solution designed to supply power to multiple devices simultaneously. With 20 output channels and adjustable voltage levels, this power supply offers flexibility and reliability for surveillance systems and security installations.

Engineered with overcurrent, overvoltage, and short-circuit protection, the PFM344D-20CH-EN ensures stable and safe operation for connected devices. Its wall-mount installation design allows easy and space-efficient setup, making it an excellent choice for professional security environments.

Why Choose the PFM344D-20CH-EN Switching Power Supply?

• 20 Output Channels – Power multiple devices at the same time

• Adjustable Output Voltage – Three levels (12V, 13.5V, 15V) for device compatibility

• Overcurrent & Short-Circuit Protection – Enhanced safety and reliability

• Surge Protection – Common mode: ±4 kV | Differential mode: ±2 kV

• V-0 Fireproof Rating – Improved safety and durability

• Wall Mount Installation – Space-saving and easy setup

• High Efficiency – ≥88% efficiency for stable power delivery

• CE Certified – Compliance with international safety standards

Function & Performance

• Input Voltage: 100 VAC – 240 VAC

• Output Voltage Options:

  • Normal: 12 VDC

  • Long: 13.5 VDC

  • Ex-Long: 15 VDC

• Rated Output Current:

  • Normal: 5A

  • Long: 4.5A

  • Ex-Long: 4A

• Rated Power: 60W total (12W per channel)

• Idle Power Consumption: ≤0.21W

• Efficiency: ≥88%

Protection Features

• Overcurrent Protection

• Overvoltage Protection

• Short-Circuit Protection

• Surge Protection:

  • Common Mode: ±4 kV

  • Differential Mode: ±2 kV

• Static Protection:

  • Air Discharge: ±8 kV

  • Contact Discharge: ±6 kV

Ports & Connectivity

• Input Port: 2-core female C8 socket (European standard cable)

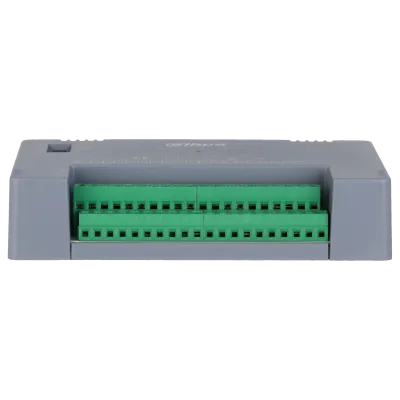

• Output: 20-channel terminal output

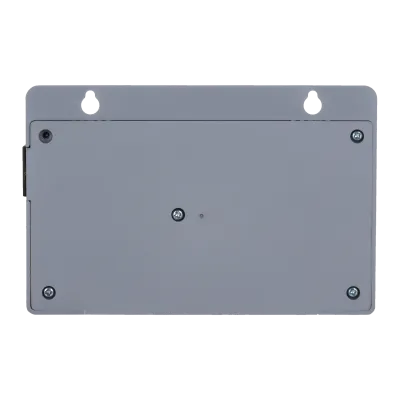

Structure & Installation

• Installation Type: Wall mount

• Dimensions: 158.0 × 104.0 × 34 mm

• Weight: 0.31 kg

• Color: Gray

• Input Cable Length: 1000 mm

Environmental Specifications

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -40°C to +80°C

• Operating Humidity: 10% – 90%

• Storage Humidity: 5% – 95%

Certifications

• CE Certified

Perfect for South African Security Installations
The PFM344D-20CH-EN Switching Power Supply is ideal for CCTV systems and multi-device security setups. Its stable power distribution, safety features, and adjustable voltage output make it a reliable solution for professional installations.

Order your PFM344D-20CH-EN Switching Power Supply today and ensure stable and efficient power distribution for your security system — fast delivery available across South Africa.
