DAHUA 11 PORT UNMANAGED GIGABIT POE SWITCH

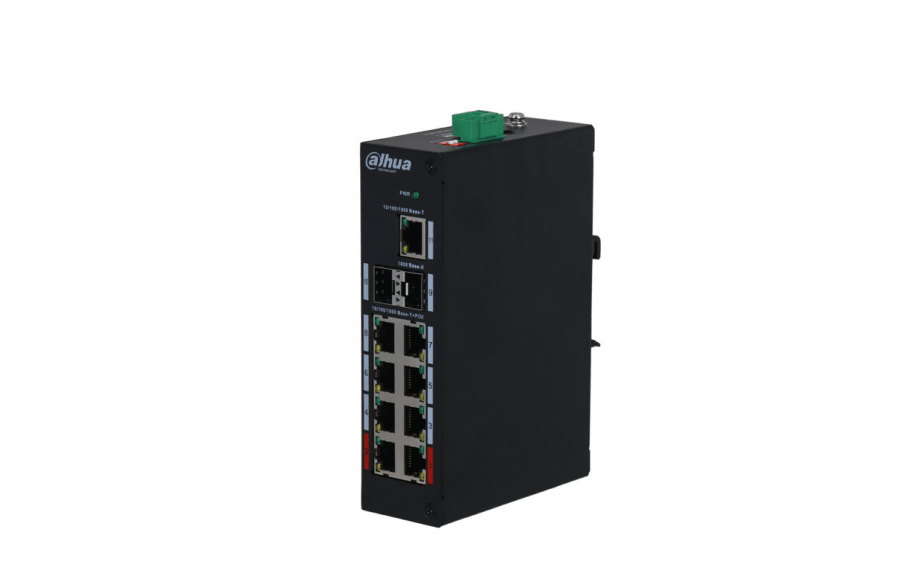

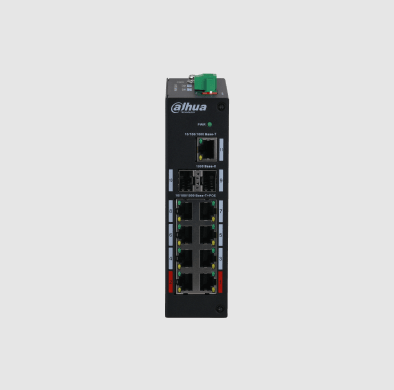

Elevate your network with the powerful DH-PFS3211-8GT-120 unmanaged Hardened PoE Switch. It boasts 8× 10/100/1000 Mbps PoE Ports for seamless connectivity, 2 × 1000 Mbps uplink SFPs for high-speed transmission, and 1 × 10/100/1000 Mbps Ethernet uplink port.

With two transmission modes and support for IEEE802.3bt and Hi-PoE standards, this switch offers maximum power consumption of 120W.

Plus, the PoE watchdog feature eliminates the need for manual maintenance and device restart, making network management more efficient and cost-effective. Trust in DAHUA for all your network needs.

Intelligent PoE

Optimize power usage and constantly monitor power distribution to prioritize critical ports and prevent disruptions due to fluctuating power levels. Compatible with ultra-wide power supplies and able to adjust to variable power demands.

BT 90W

Power up with the red ports supporting IEEE802.3af, IEEE802.3at, IEEE802.3bt, and Hi-PoE standards. Each port has a maximum output power consumption rate of 90W, perfect for high-powered devices.

PoE Watchdog

The DAHUA 11 PORT UNMANAGED GIGABIT POE SWITCH features an innovative PoE Watchdog that can be easily activated through dialing or using the WEB page switch.

This advanced technology allows the switch to automatically detect port status and restart failed ports, ensuring seamless connection in case of IPC connection issues. With its intelligent operation and maintenance management capabilities, this switch truly minimizes manual maintenance costs.

Long Distance PoE

Unlock long-range transmission capabilities for PoE ports by dialing or enabling the WEB interface. Expand transmission distance to 250m, satisfying the need for reliable wired transmission with a reduced bandwidth of 10 Mbps.

8-pin Assignment PoE Power Supply

Enhance the compatibility with IPC and reduce cable loss while increasing loading capacity through simultaneous power supply to 8-pin, with positive lines at 1/2/4/5 and negative lines at 3/6/7/8. Power is supplied to both signal and idle lines for maximum efficiency.

SPECIFICATIONS:

Hardware Feature

Ethernet Port

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)

Port 9-10: 2 × SFP 1000 Mbps (uplink)

Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE Power Consumption

Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W

Power Consumption

Idling: 5 W

Full load: 120 W

Standard

IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE 802.3ab

PoE

PoE Protocol

IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt

Power Supply Pin

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

33 Gbps

Packet Forwarding Rate

16.37 Mpps

Packet Buffer Memory

1.75 Mbit

Flow Control

Enable by default

Working Temperature

–30 °C to +65 °C (-22°F to +149°F)

Application Humidity

5%~95% (RH)

General

Power Input

48 V - 57 V DC

Lighting Protection

Common mode 4 kV

Differential mode 2 kV

ESD Protection

Air discharge 8 kV

Contact discharge 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.67 kg (1.48 lb)

Dimension

150mm × 110mm × 42mm (5.91" × 4.33" × 1.65")

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	1000
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	1000
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	1000
150	25.5	10
200	25.5	10
250	25.5	10
