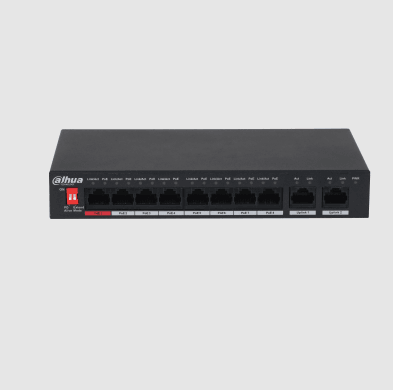

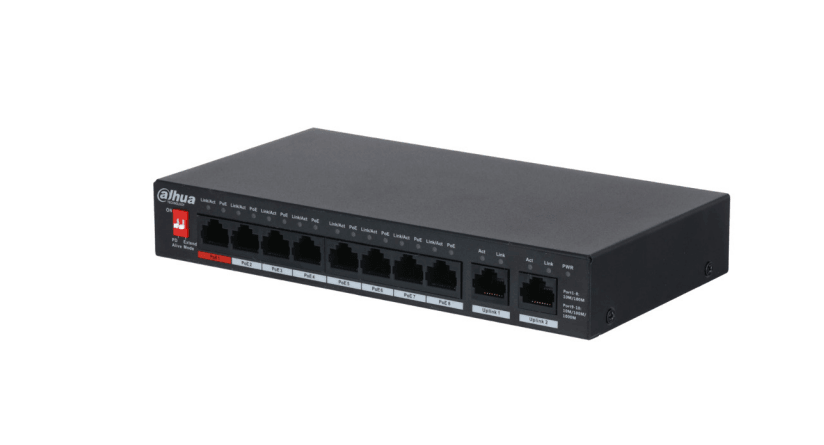

DAHUA 10 PORT UNMANAGED POE SWITCH -8 PORT DESKTOP

DAHUA 10 PORT UNMANAGED POE SWITCH - 8 PORT DESKTOP

 - Transform your network with the DAHUA 10 PORT UNMANAGED POE SWITCH - 8       PORT DESKTOP!

Experience the power and versatility of the DAHUA 10 PORT UNMANAGED POE SWITCH - 8 PORT DESKTOP, equipped with 8 × 10/100 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports.

With its unique transmission modes, including Extend Mode On/Off and support for IEEE802.3bt and Hi-PoE standards, this switch is perfect for intelligent management and cost savings.

Plus, with a maximum power consumption of only 90W and the added convenience of a PoE watchdog, manual maintenance and device restarts will become a thing of the past.

- INTELLIGENT POE

Use a strategic approach for managing PoE power consumption and prioritize important ports. In the event of exceeding the system's set threshold value, power down ports starting from the largest port number.

Implement smart detection to avoid outages. The ultra-wide power range ensures stable power supply and can handle IPC power consumption changes in harsh environments.

 - BT 90W

 - POE WATCHDOG

Adopt the PoE watchdog function to avoid manually maintenance and
device restart, which can realize the intelligent management and reduce
the cost.

 - LONG DISTANCE POE

Breaking the IEEE 100 m transmission limit, the device supports 250 m
long distance PoE transmission with a more flexible networking.

 - 8-PIN ASSIGNMENT POE POWER SUPPLY

The Eight-PIN Ethernet port supports power supply, to enhance frontend and rear-end compatibility.
Reduce cable loss and promote loading capacity

SPECIFICATIONS:

Hardware

• Data Transmission Port Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
• Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
• Power Supply 48 V - 57 V DC
• Operating Temperature –10 °C to +55 °C (+14°F to +131°F)
• Operating Humidity 5% – 95% (RH)
• Storage Temperature –20 °C to +70 °C (–4°F to +158°F)
• Storage Humidity 5% – 95% (RH)
• Power Consumption Idling: 3 W
• Full load: 96 W

Performance

• Capacity 5.60 Gbps
• Packet Forwarding Rate 4.17 Mpps
• Packet Buffer Memory 4 Mbit
• MAC Table Size 8K
• Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE

• PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
• PoE Power Port 1 ≤ 90 W, Port 2-8 ≤30 W, total ≤ 96 W
• Power Consumption
• Management Yes
• PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance PoE 250 m long distance PoE transmission
• PoE Watchdog Yes

General

• Statics Protection Air discharge: 8 kV
• Contact discharge: 6 kV
• Thunder-proof Common mode: 4 kV
• Differential mode: 2 kV
• Net Weight 0.50 kg (1.10 lb)
• Gross Weight 1.32 kg (2.91 lb)

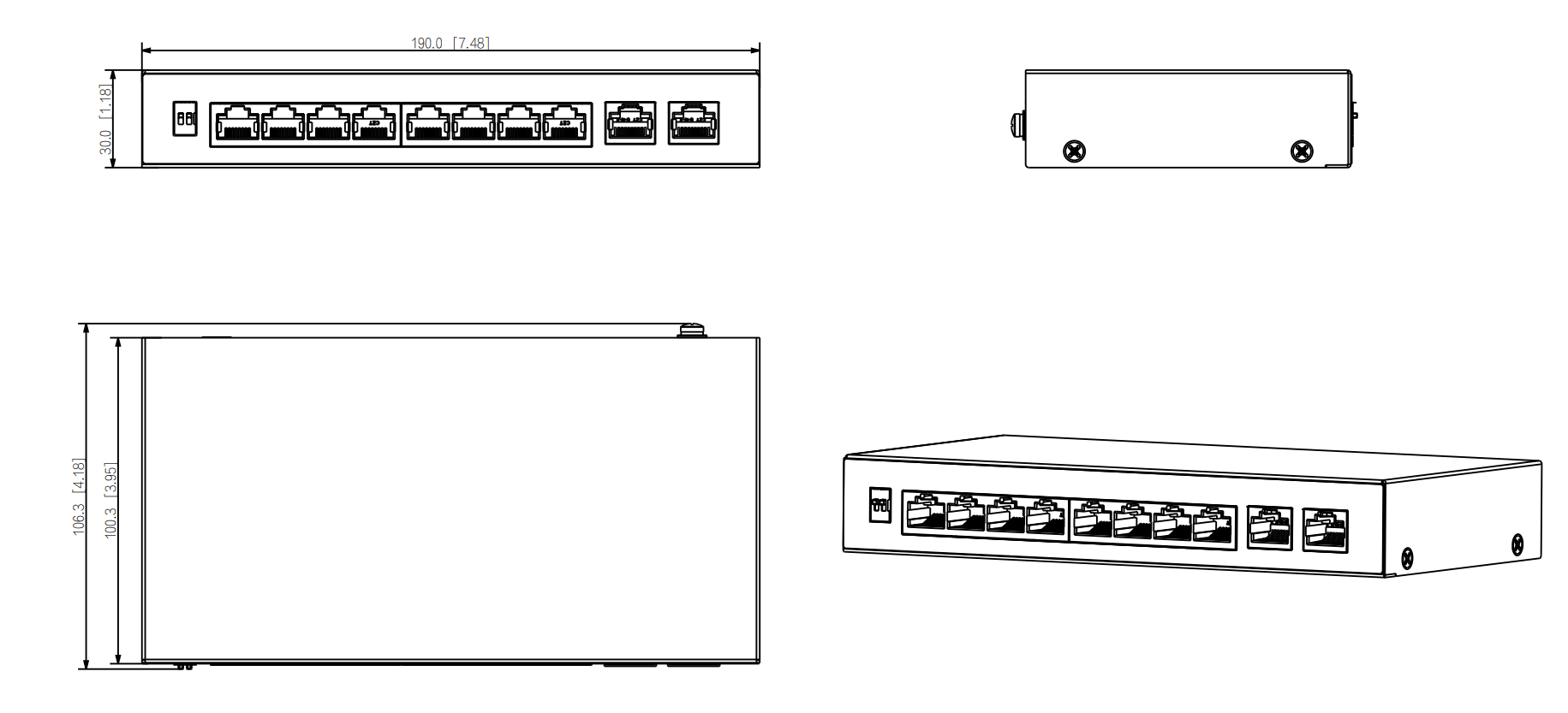

• Product Dimensions 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
