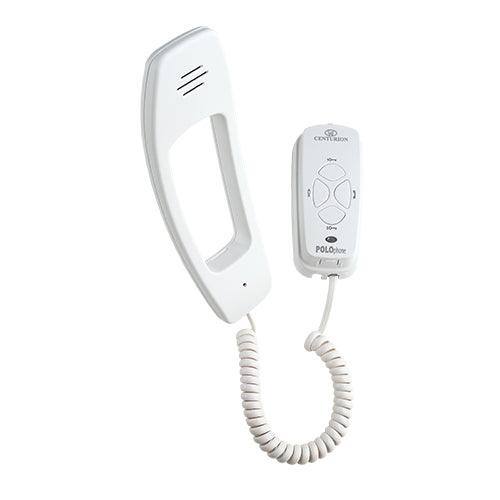

CENTURION POLOPHONE HANDSET

R 670.00
Unit price  per
history

Guaranteed safe & secure checkout

MAIN FEATURES:
  • Only two wires for a simple, quick and easy installation.
  • Expandable up to five components with a maximum of two Entry Panels.
  • Each panel fitted with two Call Buttons.
  • Single or dual call button Modes of Operation.
  • Intercommunication between two groups of Handsets.
  • Award-winning style Handset.
  • Each handset incorporates:
     Gate release for each Entry Panel.
     Auxiliary control button.
     Intercommunication Call Button.
     Gate status LED.
  • 12V DC operation with optional battery backup.
  • Built-in lightning protection.
  • To maximise the security of the installation an optional POLOswitch1 may be fitted



POLOPHONE TECHNICAL DATA:
Input Voltage : 1 12V – 14V DC supplied at anyone of the components 1

Current Draw : Quiescent – 150mA ±60mA for a One-to-One kit maximum
– 200mA

Speech Volume : Adjustable at each Entry Panel and handset

Wiring : Two common wires polarised for speech, call and lock release

Ring tone : Electronic while button is depressed with separate tones when calling from each Entry Panel in a system or between groups of handsets

Wiring Distance : Refer to thickness chart in the Manual

Gate/Door Release : Potential-free normally-open contact

Handset Auxiliary Contact : Requires separate wiring via two-wire bus

Operating Temperature : -20°C to +50°C

Humidity : 0 – 90% (non-condensing)

Degree of Protection : IP55

Handset Length: 70mm x Width: 47mm x Height: 211mm

Entry Panel Length: 70mm x Width: 40mm x Height: 150mm

[*]If the 12V DC gate motor supply dips when the motor starts up and the intercom is being used at the same time, the speech quality might be affected.



Whats Included in the box?

1 x Centurion Polophone Handset
1 x Manual
