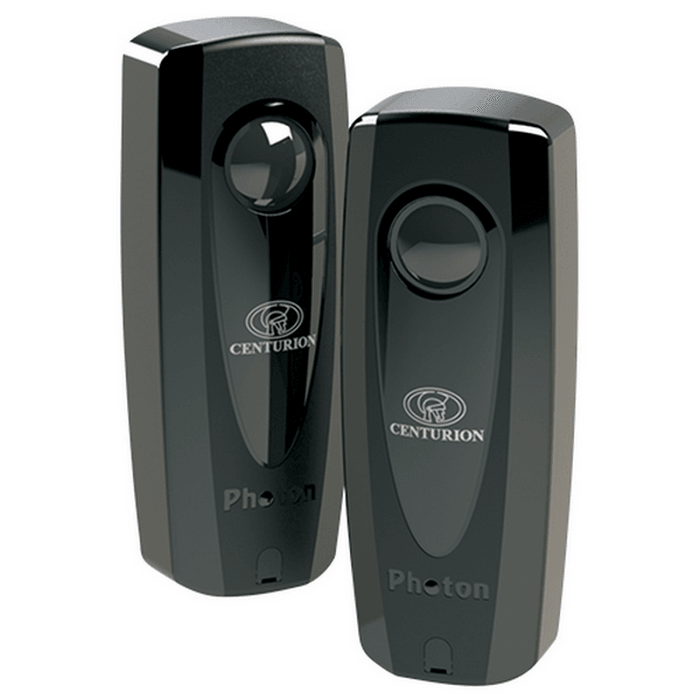

Transmitter is wireless and battery-operated saving time and money.

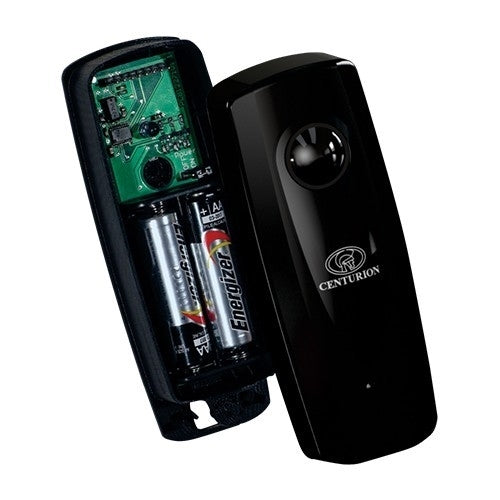

Two year battery life using two AA Alkline batteries (included).

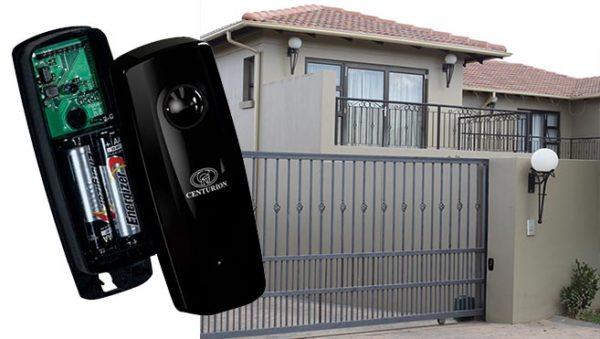

Ten meter operating range ideal for almost any entrance gate.
Fully ant-proof and weather-resistant enclosure for greater reliability.
Transmitter provides audible feedback for easy setup and battery-low indication.
Low power consumption throughout the system for greater efficiency.
Installer Mode with audible feedback makes alignment a dream.
Elegant slimline construction only 50mm wide.
Compatible with Intruder-detection Alarms for enhanced perimeter security3.

	DESCRIPTION
Power Supply Transmitter	2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product
Receiver	12 - 24V AC 12 - 30V DC
Receiver Power Consumption	30mA @ 12V DC
Transmitter Battery Life	Minimum 2 years
Battery Low Indication	Audible Beep
Specified Operating Distance	10m
Alignment	Automatic 1m @ 10m (circular area - assumes parallel surface)

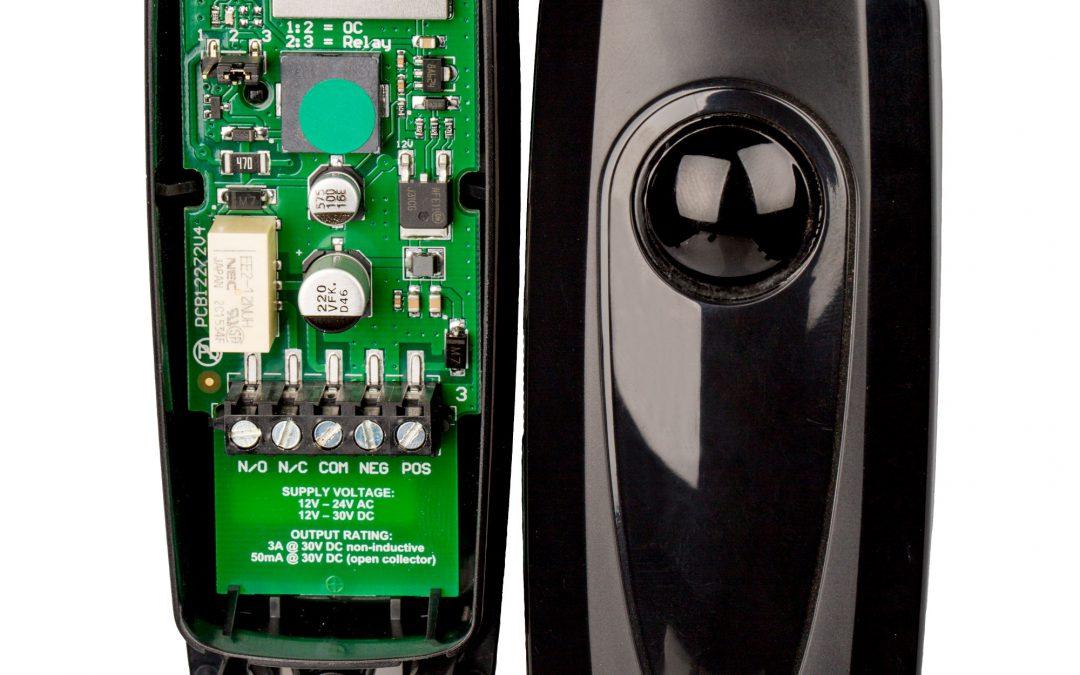

Output Contact	Fail-safe, N/C and N/O, potential free contact
Output Contact Rating	3A @ 30V DC Non-inductive
Operating Temperature	-15C - +65C
Operating Humidity	0 - 90 Non-condensing
Housing Material	0 - 90 Non-condensing
Degree of Protection	IP54
