COST-EFFECTIVE DETECTION FOR AUTOMATIC GATES.
i5 – SAFETY DEVICE

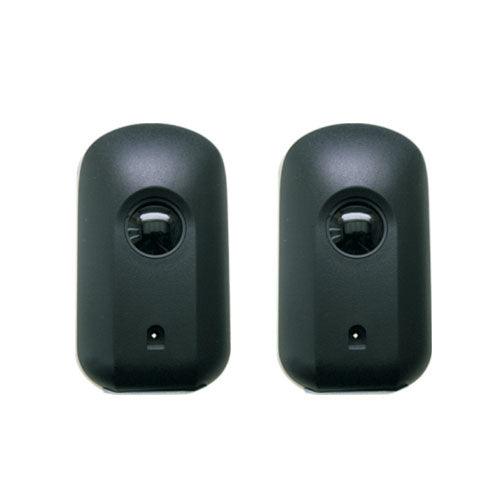

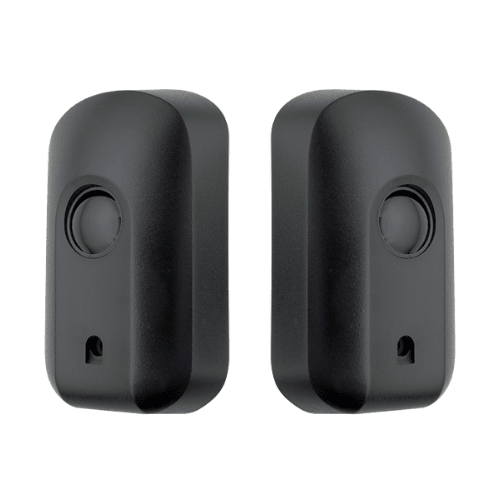

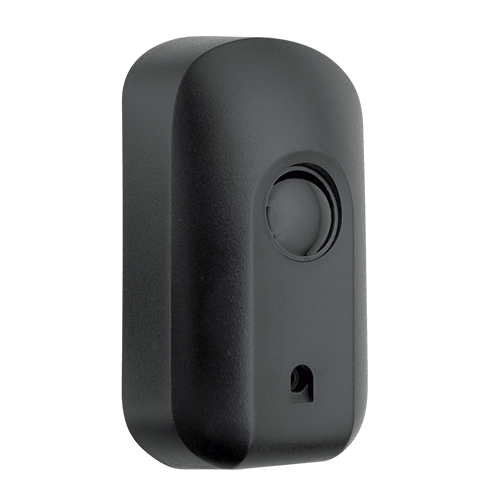

i5 infrared beams from CENTURION are simple to align, extremely reliable and boasts an operating range of up to 40m. It can be used on gates, garage doors, and even for simple perimeter protection.
MAIN FEATURES:
- Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
- Highly cost-effective detection solution.
- Easy commissioning thanks to LED indicators.
- 40 metre range – suitable for even the widest of entrances.
- Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
- Wide input voltage range.
I5 INFRARED GATE SAFETY BEAMS TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Power Supply | 12 - 24V DC/AC |
| Power Consumption Transmitter | 21mA |
| Receiver | 43mA @ 12V |
| Maximum Distance | 40m |
| Alignment | Automatic - 9m² @ 10m (parallel - circular area) |
| Output Contact Rating | 5A @ 220V AC (non-inductive) |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 0% - 90% (non-condensing) |
| Degree of Protection | IP54 |
COST-EFFECTIVE DETECTION FOR AUTOMATIC GATES.
i5 – SAFETY DEVICE
i5 infrared beams from CENTURION are simple to align, extremely reliable and boasts an operating range of up to 40m. It can be used on gates, garage doors, and even for simple perimeter protection.
MAIN FEATURES:
- Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
- Highly cost-effective detection solution.
- Easy commissioning thanks to LED indicators.
- 40 metre range – suitable for even the widest of entrances.
- Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
- Wide input voltage range.
I5 INFRARED GATE SAFETY BEAMS TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Power Supply | 12 - 24V DC/AC |
| Power Consumption Transmitter | 21mA |
| Receiver | 43mA @ 12V |
| Maximum Distance | 40m |
| Alignment | Automatic - 9m² @ 10m (parallel - circular area) |
| Output Contact Rating | 5A @ 220V AC (non-inductive) |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 0% - 90% (non-condensing) |
| Degree of Protection | IP54 |
