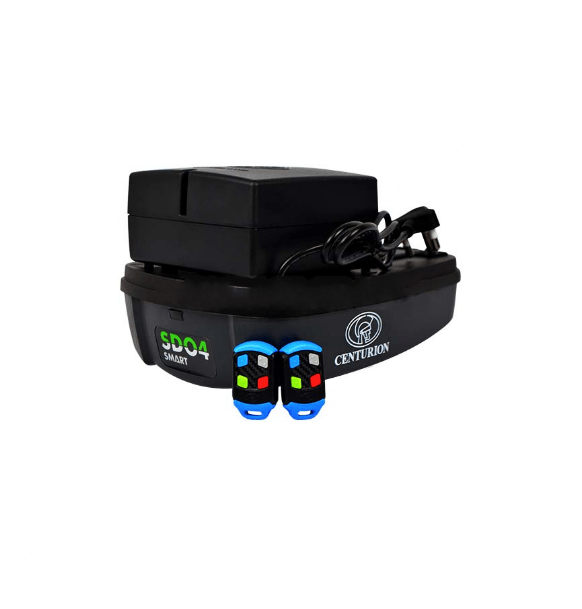

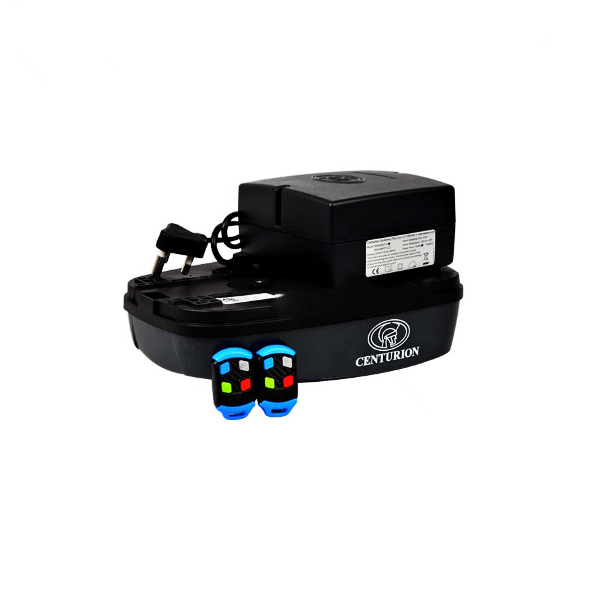

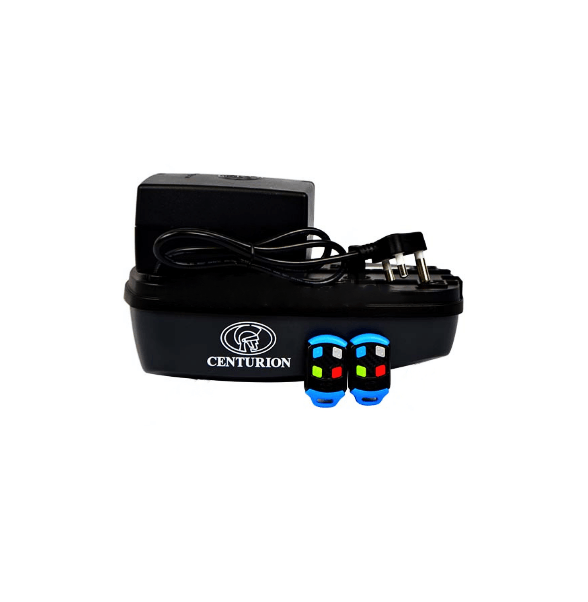

CENTURION GDO SDO4 SMART T10 TIP-UP KIT

R 3,274.00
Unit price  per
history

Safe & Secure Payment Options

CENTURION GDO SDO4 SMART T10 TIP-UP KIT

Explore state-of-the-art functionality with the SDO4 SMART T10 TIP-UP KIT for your garage door. This advanced kit features a mechanical design for quiet operation, long-lasting battery for uninterrupted convenience, and innovative SMART technology for seamless setup.

FEATURES:

  • Connecting you to convenience with smartphone integration
  • Redefining the installation experience with the easiest and most intuitive electronic and mechanical commissioning of any garage motor in the SDO4’s class
  • Always-on reliability
  • Advanced safety and obstruction-detection technology for more peace of mind
  • Adjustable speed on tip-up doors
  • Compatible with Photon SMART wireless beams – easier and more cost-effective than ever before to fit safety beams
  • The ultimate in flexibility with programmable IOs
  • App-based management of remote controls
  • Industry-leading security features including tamper detection and intelligent door status monitoring

SPECS:

Input Voltage

230V AC +/-10% @ 50/60Hz

Motor Voltage

24V DC

Motor power

supply - rated

80W DC

Motor supply

Battery supply 2 x 3.4Ah 12V DC

Maximum door width

6.5 meters

Maximum door area

12 Square meters

Maximum push/pull force

40 kgf

Maximum lifting capacity

1000N

Operations in standby mode

Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries

Maximum operator travel speed3

9m/min

Door travel adjustment

Physical end-stops (Automatic limit set)

Safety obstruction force system

Built-in menu

Light

LED 2W

Autoclose2

Menu Selectable

Infrared safety beams

Menu Selectable (Optional but recommended)

Onboard receiver type

Code-hopping single channel

Receiver code storage capacity

20x 4-Button Transmitters

Receiver frequency

433.92Mhz

Degree of protection

IPX0 (For interior use only)
