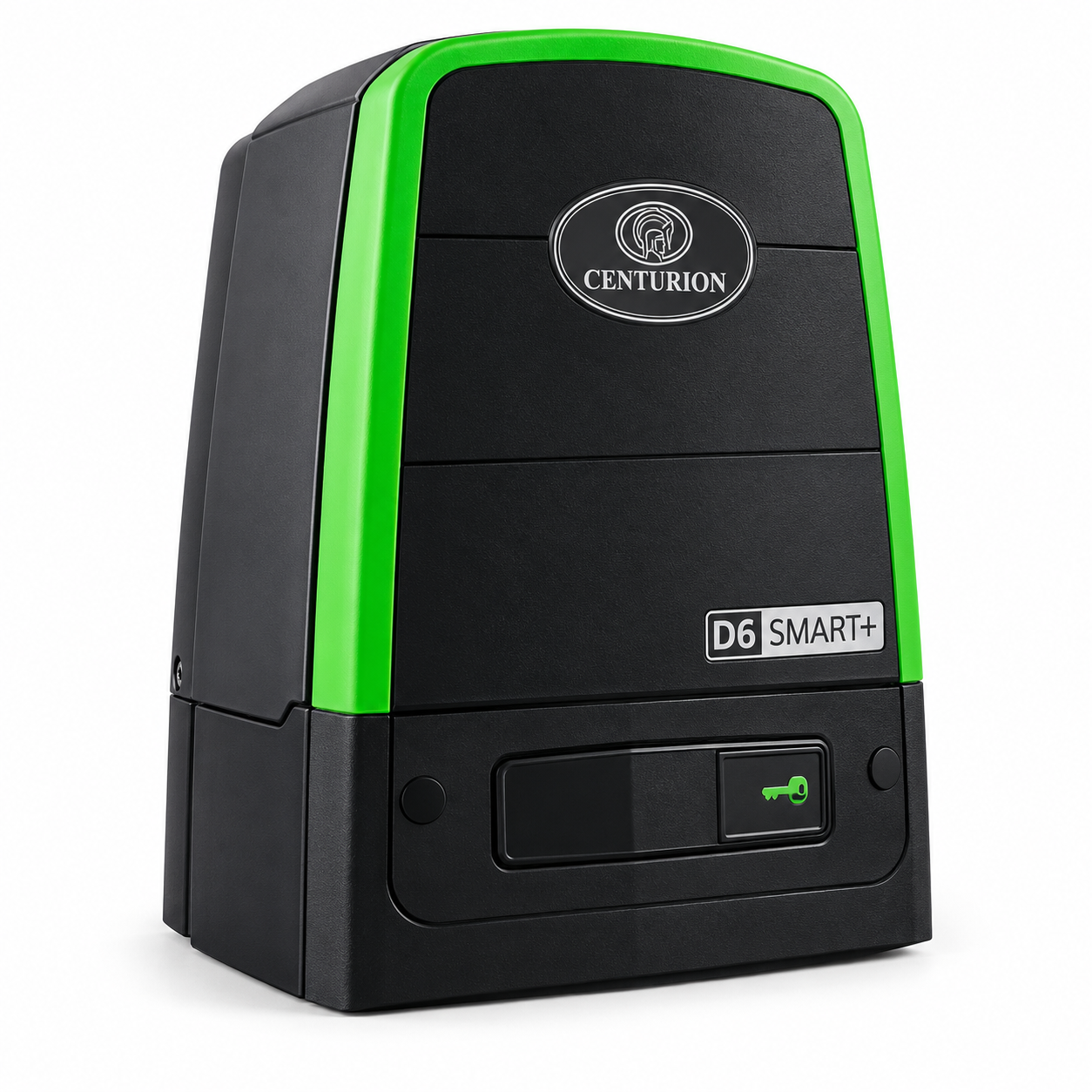

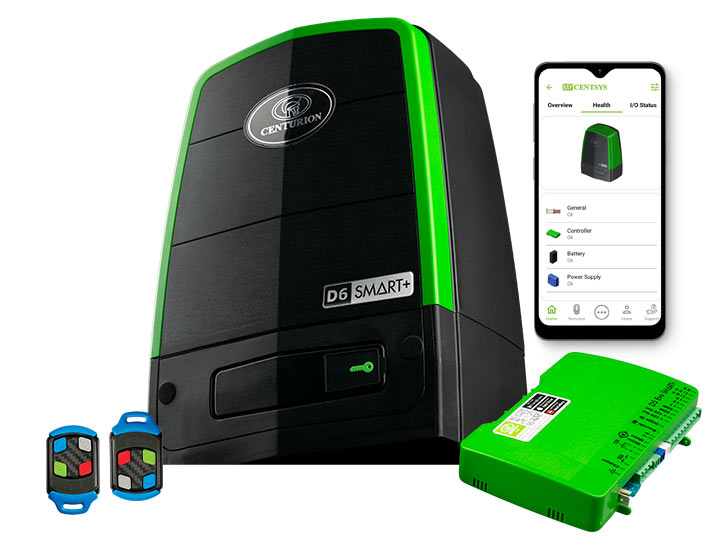

CENTURION D6 SMART MOTOR + 2X4 BUTTON REMOTE
Experience the ultimate convenience in centurion gate motor and control with CENTURION D6 SMART MOTOR + 2X4 BUTTON REMOTE.
As the market leader in access automation for over 30 years, they have crafted a solution that includes intelligent reporting and effortless mobile-based setup and operation. With easy access at your fingertips, the D6 SMART will revolutionize the way you manage your gate.
- PLEASE NOTE THAT THE ANTI-THEFT BRACKET IS SOLD SEPARATELY.
WHAT'S INCLUDED:
- 1X CENTURION D6 SMART MOTOR
- 2X 4 BUTTON CENTURION REMOTE
- 1X BASE PLATE
FEATURES:
- Onboard multi channel NOVA receiver with 1500 button memory
- Wireless and effortless – easy setup and configuration from your smartphone
- 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
- New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
- Vibration sensor that can be connected to a third party device to notify you in the event that the gate motor is being tampered with
- Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
- Improved position control system incorporating hall effect technology – highly resistant to interference
- Individually-configurable inputs and outputs
- Convenient and intuitive single-action manual release
SPECS:
Input voltage (1) |
90V - 240V AC +/-10% @ 50Hz |
Current consumption (Mains) |
200mA |
Battery charger current output |
1.3A |
Maximum number of operations per day |
150 |
Duty cycle - Mains present (2, 3) |
50% |
Motor voltage |
24V DC |
Motor power supply (5) |
Battery-driven (Standard Capacity - 2x12V) |
Current consumption (motor at rated load) |
13A |
Input / Output sink currents (Max accessory current draw) |
|
I/O 1-4 |
100mA (12/24V) |
I/O 5 and 6 |
3A (12/24V) 10sec Pulse |
Motor push force - starting |
30kgf |
Motor push force - rated |
17kgf |
Gate mass - maximum |
600Kg |
Gate length - maximum |
100m |
Gate speed (varies with load) (4) |
35m/min @ 17kgf |
Manual Override |
Lockable with key release |
Operations in standby with 2 x 7Ah (28W) battery |
|
Half day (5, 6) |
209 (Power Saving)/ 102 (Normal) |
Full day (5, 6) |
183 (Power Saving)/ 79 (Normal) |
Collision Sensing |
Electronic |
Operating temperature range |
-15°C to +50°C |
On-board receiver type |
Code-hopping multichannel receiver with selective add and delete |
Receiver code storage capacity (7) |
1500 Remotes |
Receiver frequency |
433.92MHz |
Degree of protection |
IP55 |
Mass of unit packed (with standard kit, but excl. rack and battery) |
9.1kg |
Packaging dimensions (with standard kit, but excl. rack and battery) |
325mm wide x 244mm deep x 445mm high |
Need to add a remote? Browse our Remotes collection
