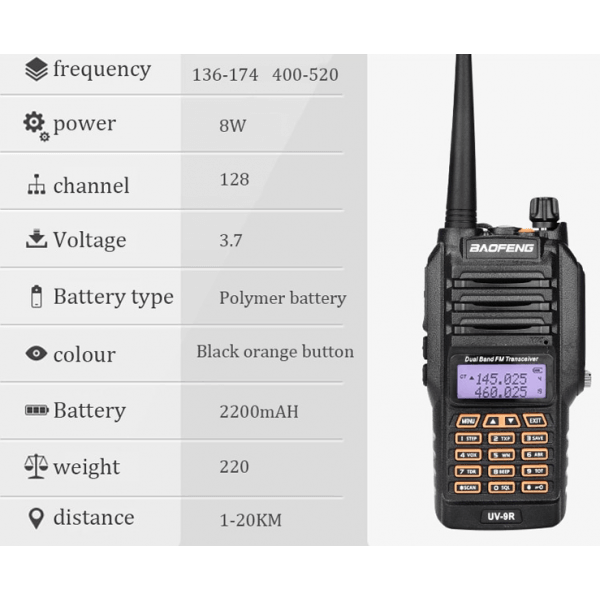

Overview:
Brand Name : Boafeng
Battery : 5000 mAh, 7.4V, 13,3 W.h (model BL-9)
Origin : CN / PRC (China)
Is_Display : Yes
Ingress protection rating : IP68
Walkie Talkie Type : Portable
Operational range : 10km- 50km
Output Power(w) : ≤10W
Certification : CE, complies w/ MIL-STD-810C/D/E
Model Number : BaoFeng UV-9R
Frequency Range : 136- 174 MHz (VHF) & 400 - 520 Mhz (UHF)

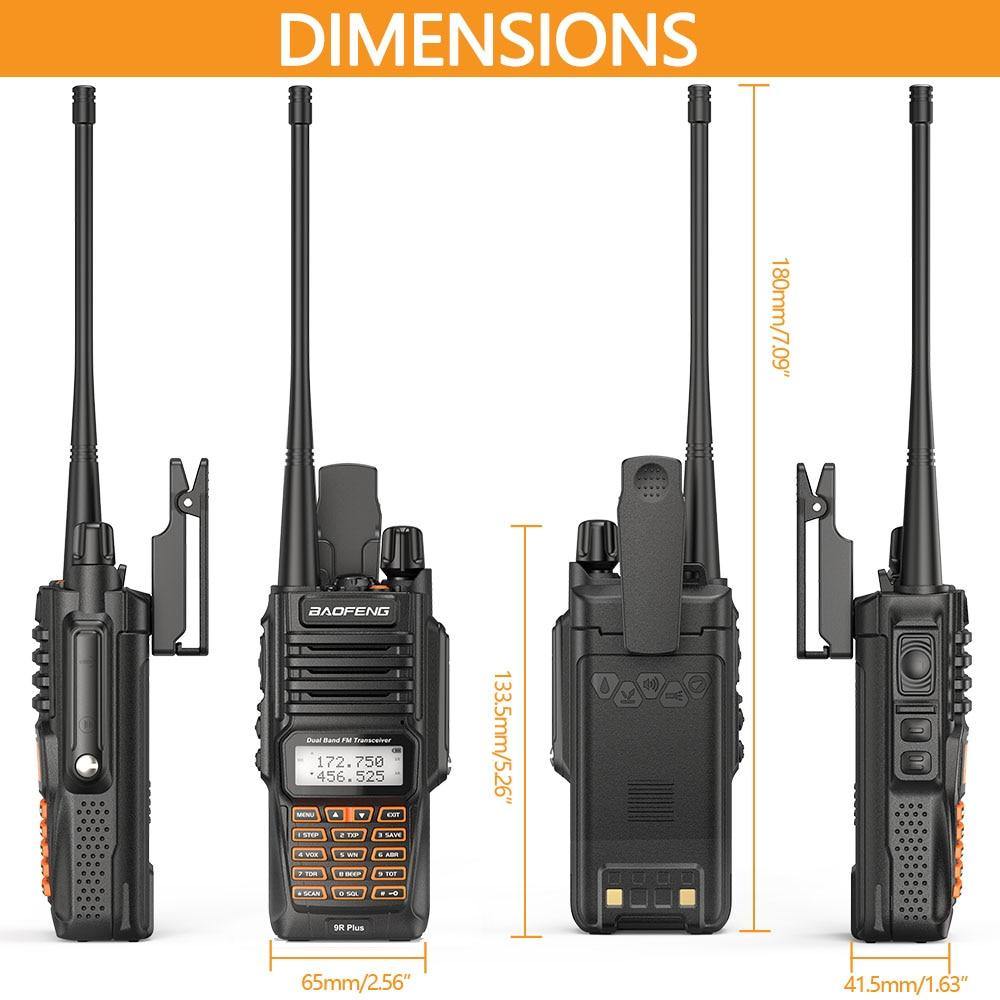

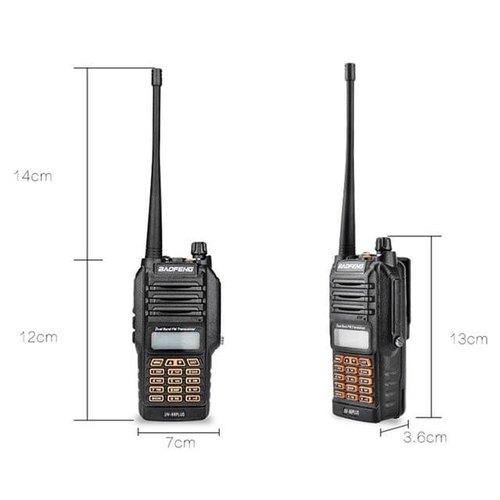

Dimensions : 120x53x35mm (without antenna)
Storage Channel : 128

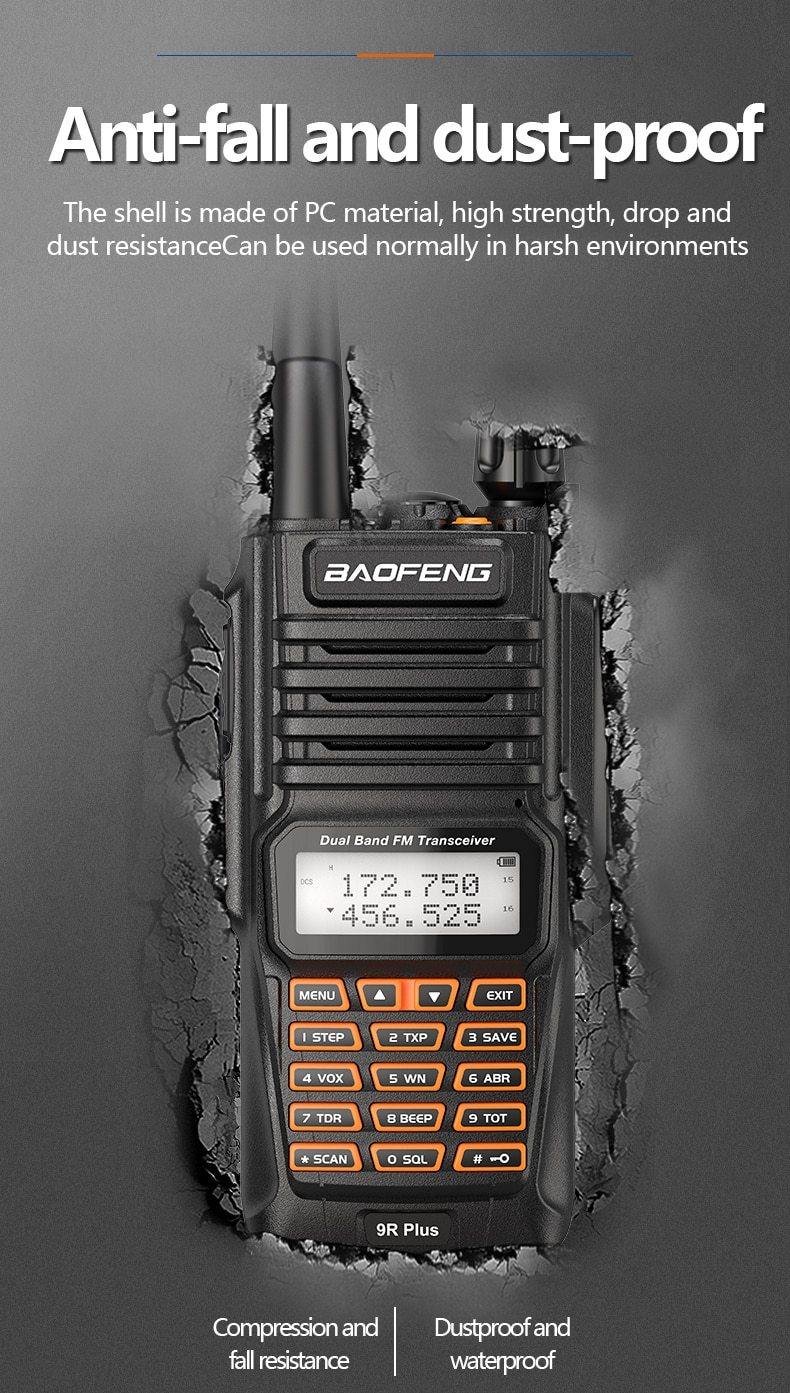

Material : Robust Polycarbonate (PC)
Antenna Impedance :50 Û
Operating Temperature : -30c- +60
FEATURES :

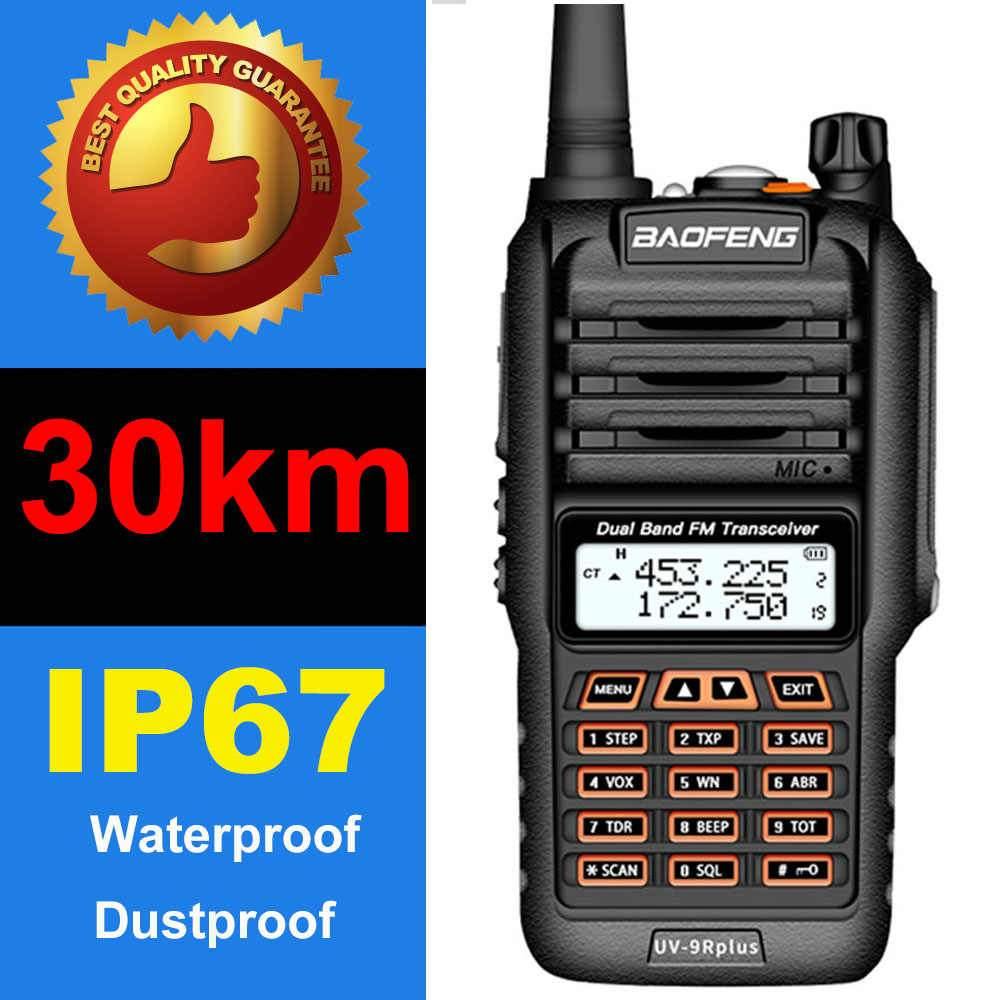

- IP67 waterproof and dustproof (Not diving)
- Relay Forwarding Confirmed
- Dual Band, Dual Display and Dual Standby
- High and Low Power Switchover
- Battery Saving
- VOX Function
- Wide/narrow Band Selection
- Auto-Back Light
- Dual-Band Standby
- 1Time-Out Timer (TOT)
- 150 CTCSS AND 104 DCS Codes
- Voice Prompt
- ANI Code
- PC or Manual Program
- DTMF Code
- PTT-ID
- AUTO Keypad Lock
- Busy Channel Lock Function
- Low Battery Warning
- Emergency Alarms
- Priory Scanning Function
- U/V Cross Band

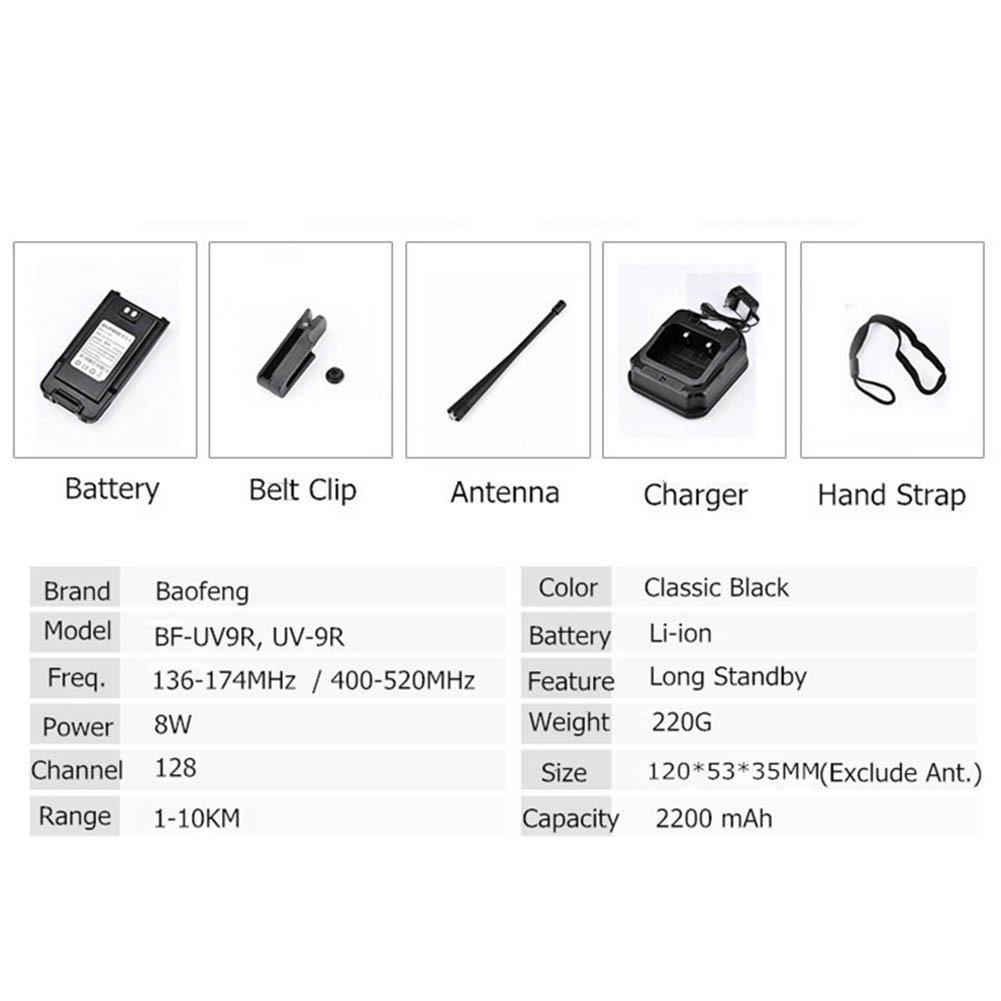

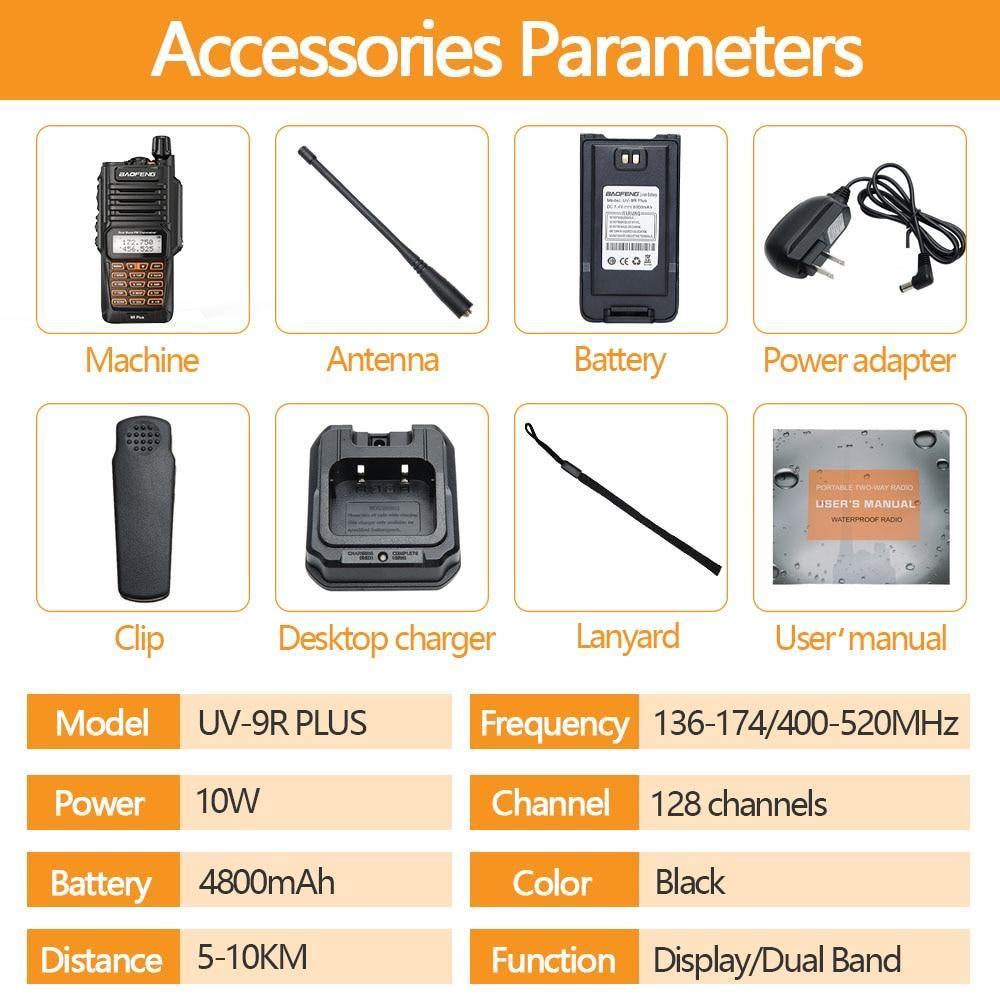

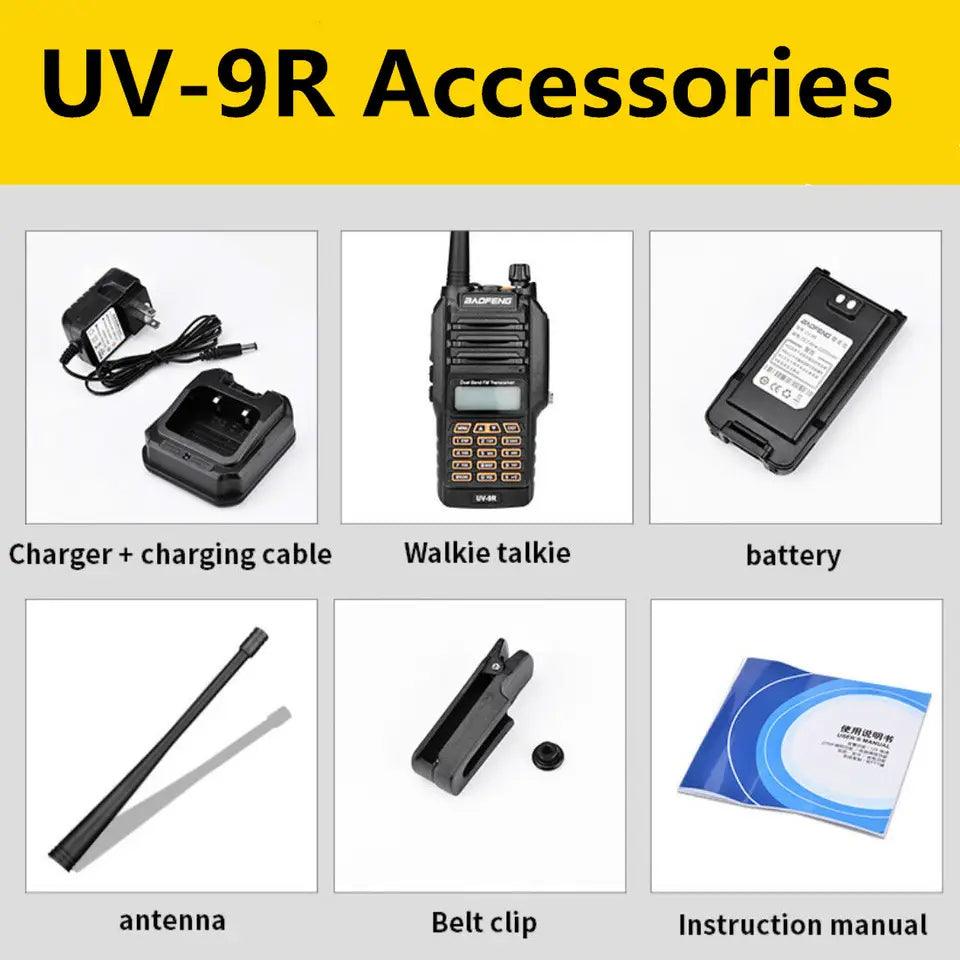

1x Baofeng UV9R ERA DUALBAND RADIO 136-174MHz+400-520MHz
1x Dualband Antenna

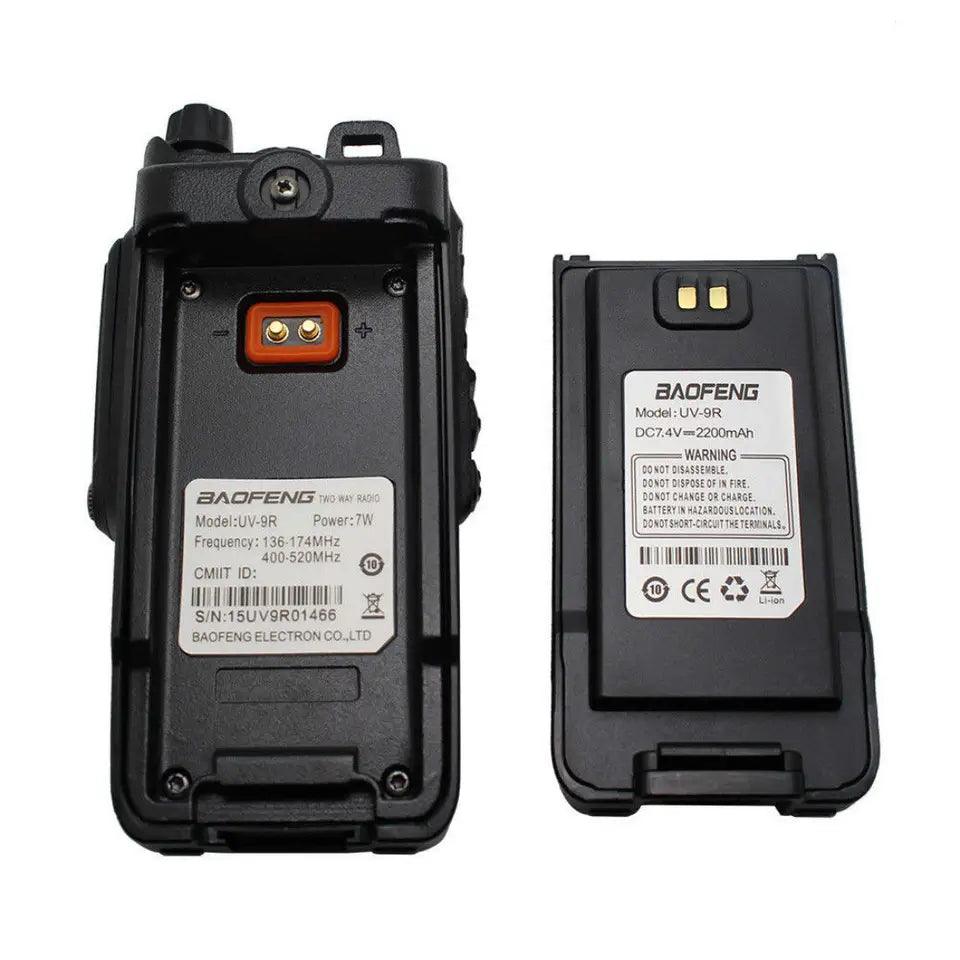

1x 5000 mAh Li-ion Battery
1x Charger with Adaptor

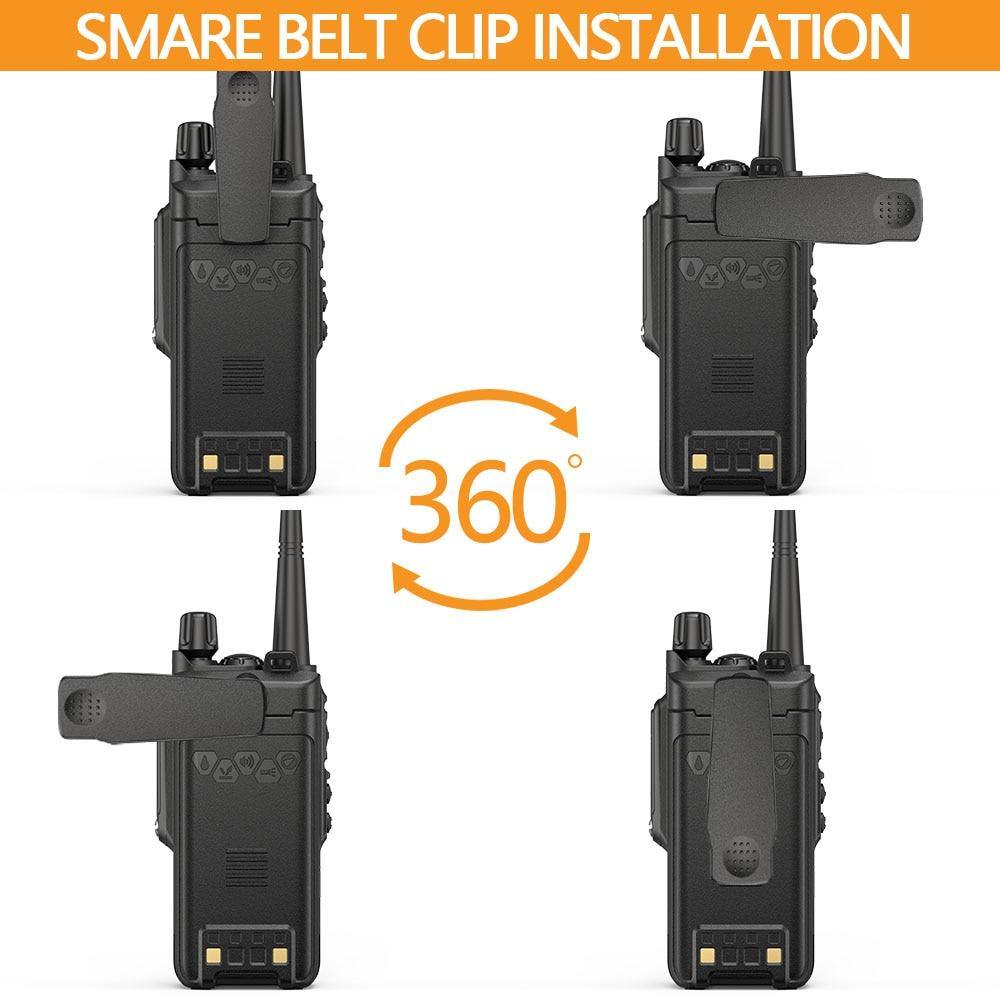

1x 360 rotating Bellt clip
1x English user manual
1x short lanyard.
Baofeng UV 9R
|
Frequency Range
|
VHF:136-174MHz UHF400-520MHz
|
Channel Capacity
|
128
|
Channel Spacing
|
25KHz/12.5KHz
|
Antenna Impedance
|
50Ω
|
Microphone Impedance
|
600Ω
|
Operating Voltage
|
7.4V DC±15%
|
Frequency Stability
|
±2.5ppm
|
Battery
|
High capacity (Polymer Li-ion)
|
|
Transmitter(EIA-RS 316B STANDARD)
|
RF Power Output
|
high power
|
Modulation Type
|
FM Radio (65.0MHz-108.0MHz)
|
Modulation Sensitivity
|
<15µV
|
Modulation Distortion
|
≤3%
|
Max Freq Deviation
|
<5KHz
|
Occupied Bandwidth
|
≤16KHz
|
Modulation Feature
|
±3dB
|
Spurious Radiation
|
≤7.5μW
|
Adjacent Channel Power
|
≤-65dB
|
Receiver
|
Sensitivity(12db SINAD)
|
≤0.15μ(12dB S/N)
|
Squelch Sensitivity
|
≤0.1μV
|
Audio Power output
|
1W/16Ω
|
Audio Respond
|
-6
|
Operation Bandwidth
|
>5KHz
|
Co-channel Rejection
|
≥-8dB
|
Blocking
|
≥85dB
|
Adjacent Channel Selectivity
|
≥65dB
|
Standby Current
|
60mA,15mA
|
Spurious Rejection
|
≥60dB
|
Intermodulation Resistance
|
≥60dB
|
