The Avenge-X platform features an externally adjustable regulator, hammer spring AND transfer port to allow for even more tuning possibilities than our entry level Avenger. Whether you are looking to shoot all day off of a single fill, or want to send your projectiles downrange at blazing speeds and energies, the Avenge-X is built to do it all. Even if the modularity doesn’t excite you, the tunability, quality and overall performance of these rifles is sure to get your attention.

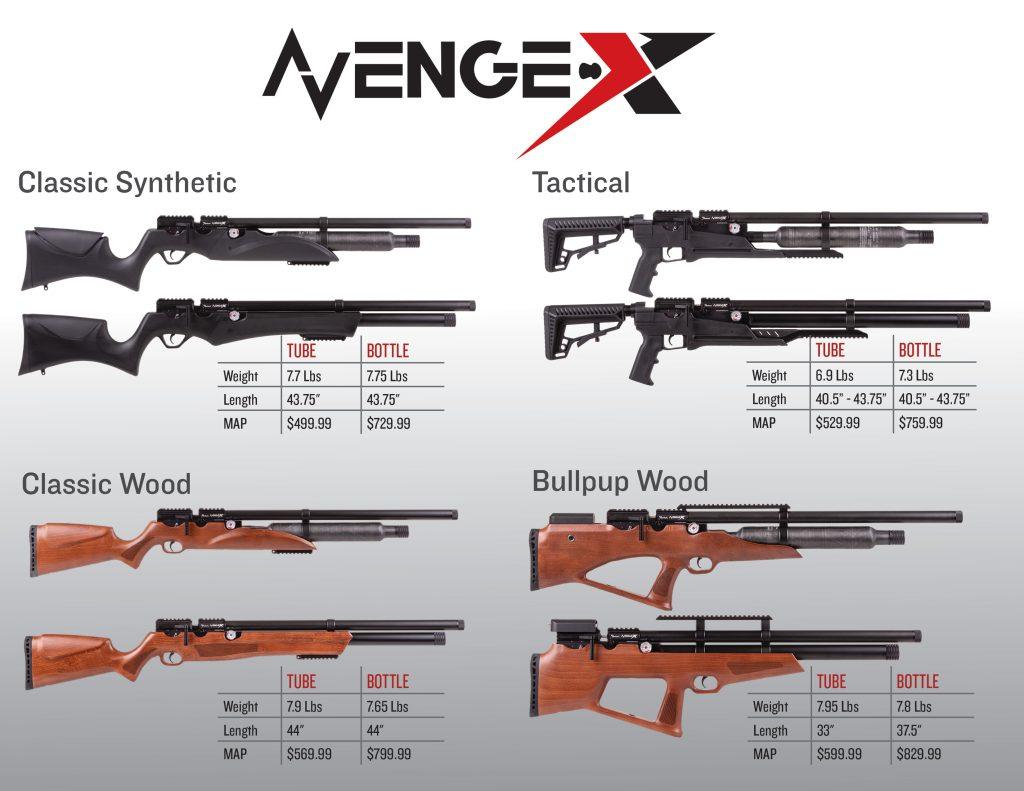

Change the style, caliber and air source as needed, in just minutes!
– Need a classically styled .177 for target shooting and small pests? Done.
– Need a bullpup in .22 to go after squirrels in the woods with? Done.
– Need a tactical .25 to shoot longer distances from the bench? Done.
Features:

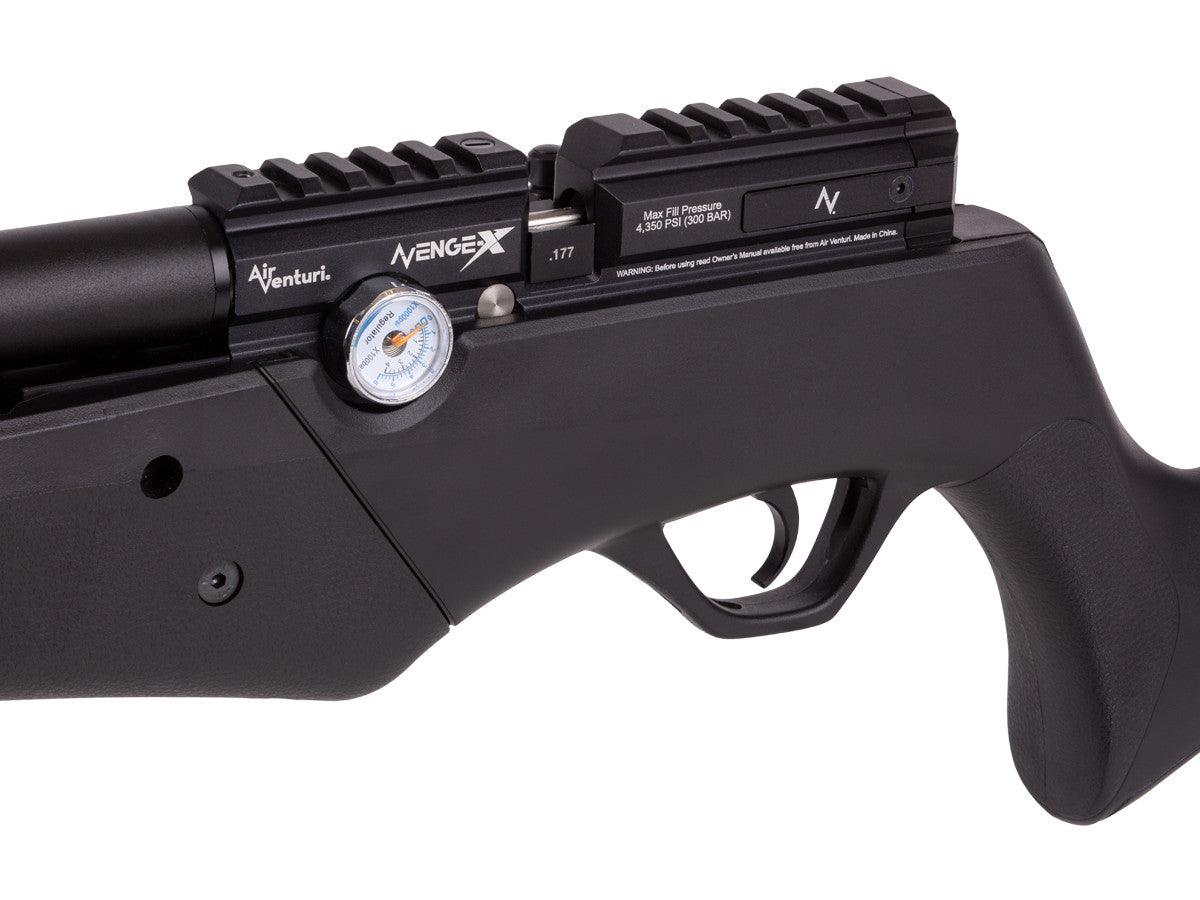

- All aluminium receiver, featuring a split row of Picatinny (MIL SPEC 1913) rails on top.
- There is a short rail section under the bottle as well (fitted to the stock), to chuck your bipod onto or otherwise, whatever other accessories you'd prefer.

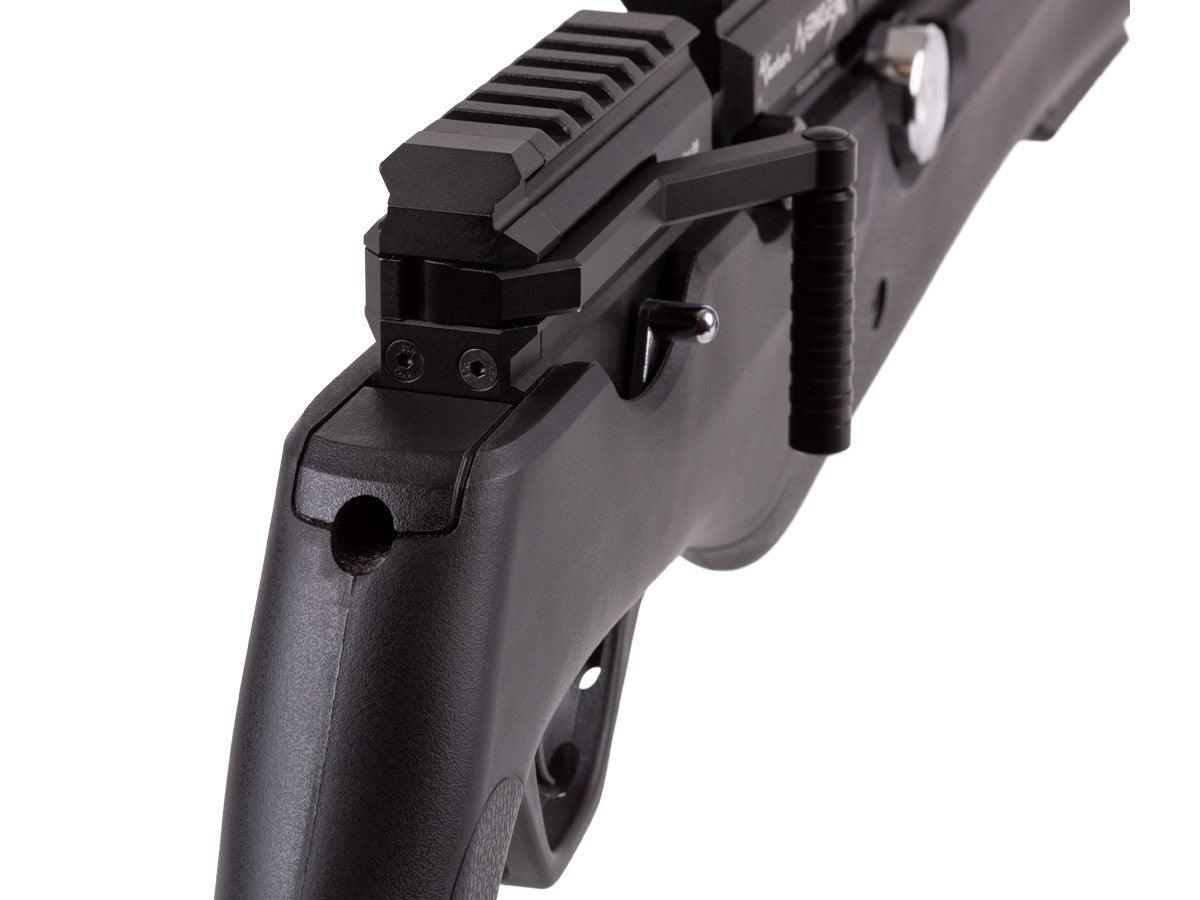

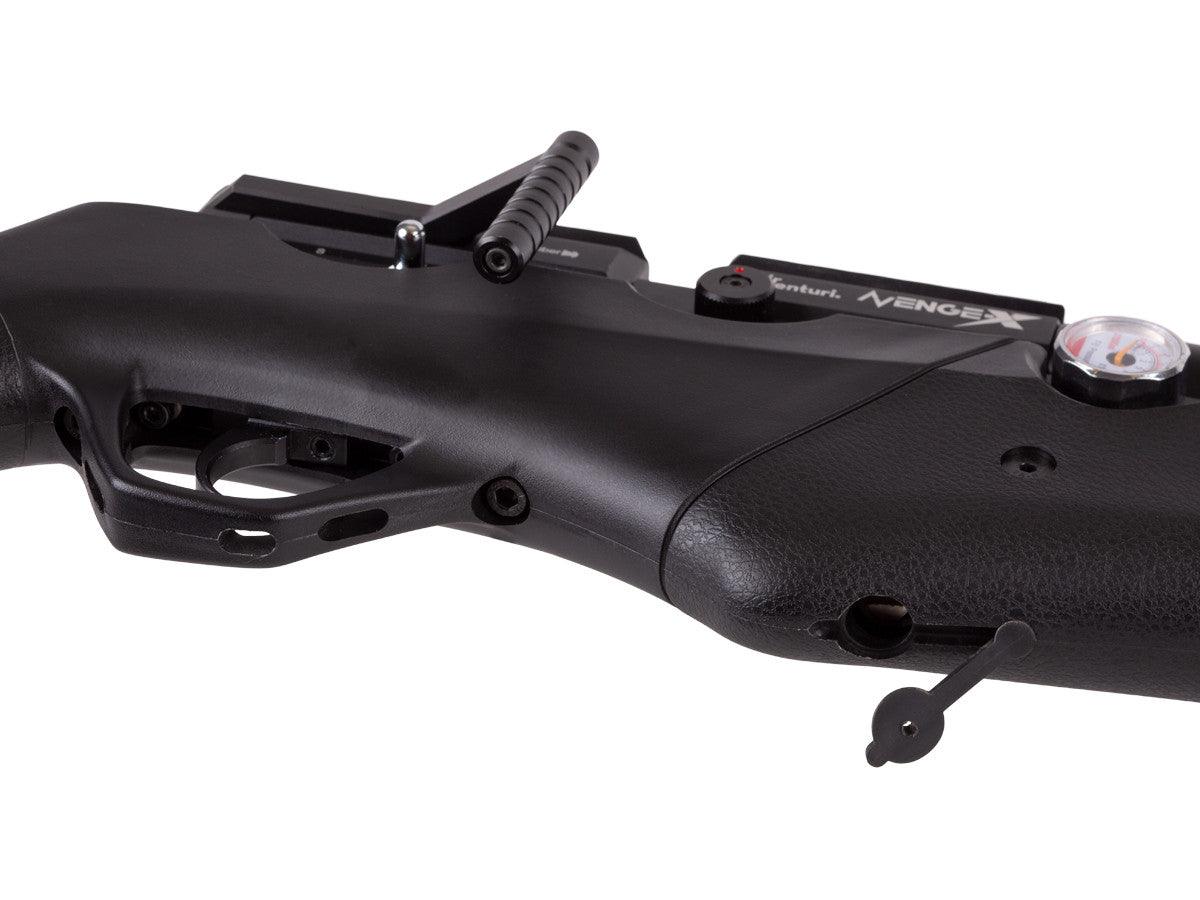

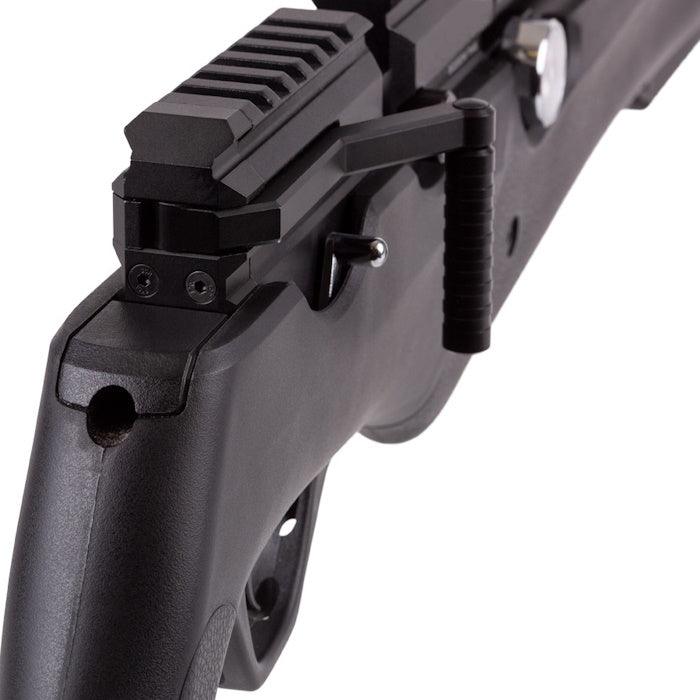

- The cocking lever and its arm is all-metal. This cocking arm actuates in a far more refined manner than the one on the LEVIATHAN.. The finesse here is reminescent of the REXIMEX THRONE. As you may have guessed as well - it is reversible to the other side of the recveiver
- The safety switch is still the old pendelum time, but toggles here more crisp and positively

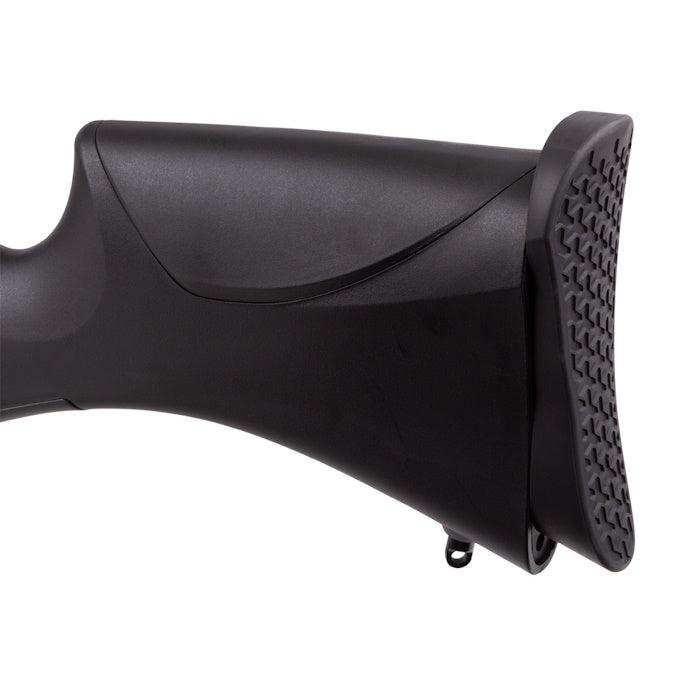

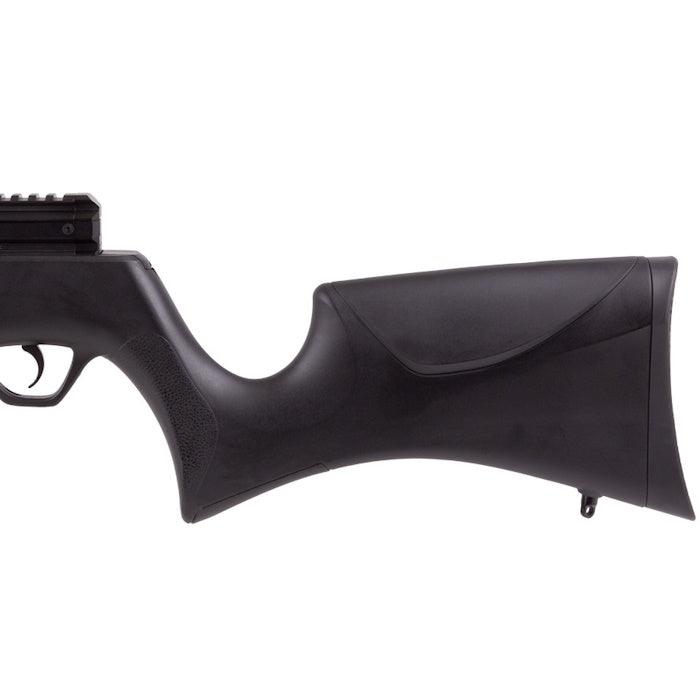

- The stock is solid and fixed - featuring an adjustable buttpad similar to what you had on the BEHEMOTH - a buttpad that can be pulled rearwards, then reset into a limited few vertical positions, for better ergonomy. The stock comb likewise can be reset in its horizontal position via the screw at the base of the buttstock. This said screw is concealed in behind a rubber flipper plug, similar to the one concealing the regulator adjustment screw.

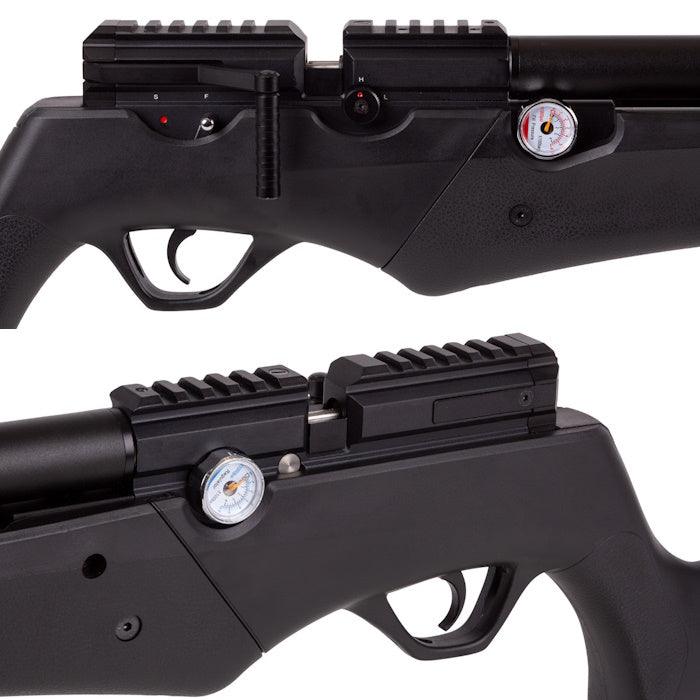

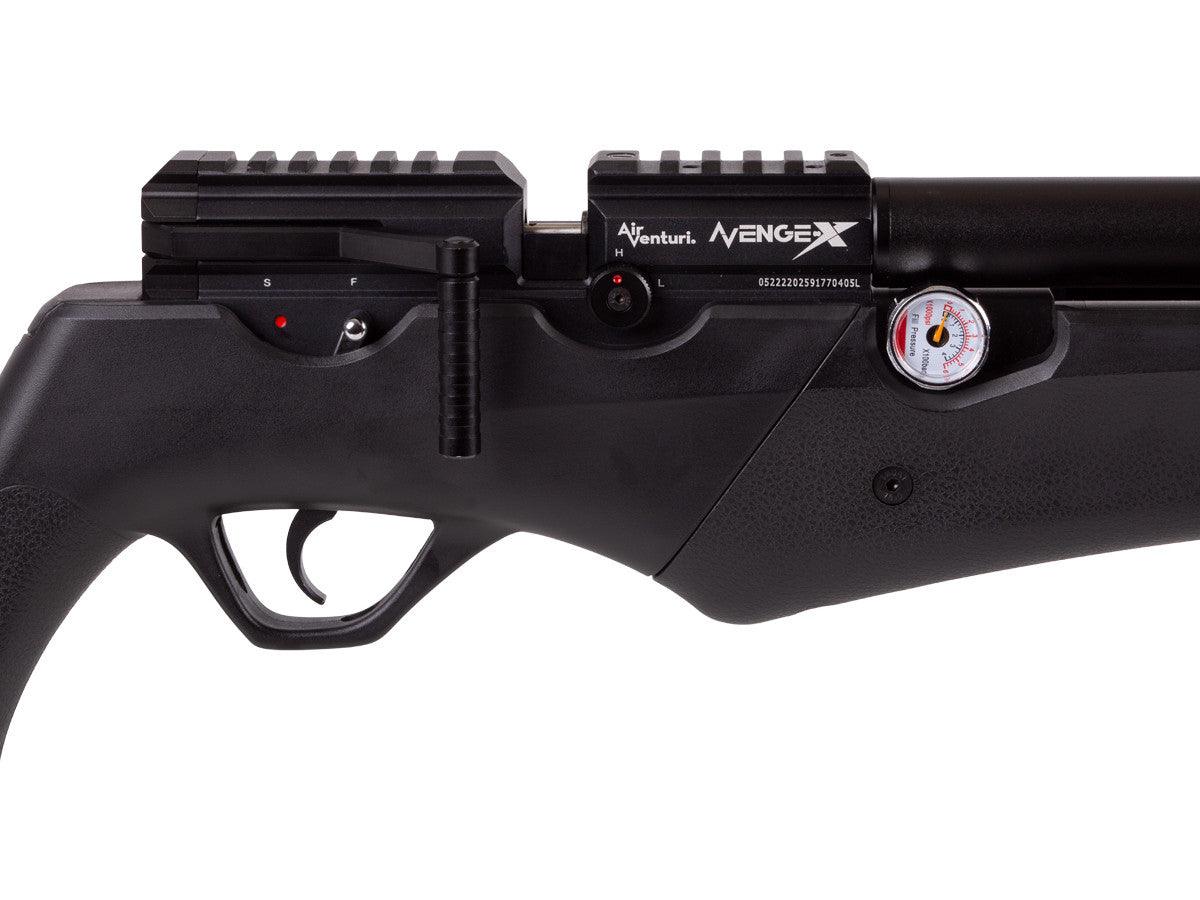

- The guages are positively marked for their designated measuring purposes too - fill pressure, and regulator, respectively. Their dials are colour coded red and blue for emphasis.
- HIGH / LOW power setting adjustment., Presumably, this adjusts the diameter of the transfer port
- Available in .177 .22 .25 interchangeable calibers
- The rifle action itself features a hole through which one can insert the included filling probe to fill. This plug is similar to those found on some HATSAN models, except that here, you have a rubber plug that stuffs the hole. The hole likewise is only one-sided. Alternatively, one can use the male Q/C fitting (w/ the brass filter) on the bottle itself. Should this filling male Q/C adapter not be properly aligned for this purpose, then please rotate the bottle until it is.
- Cocking lever reversible for left hand shooters. Installed RH by default

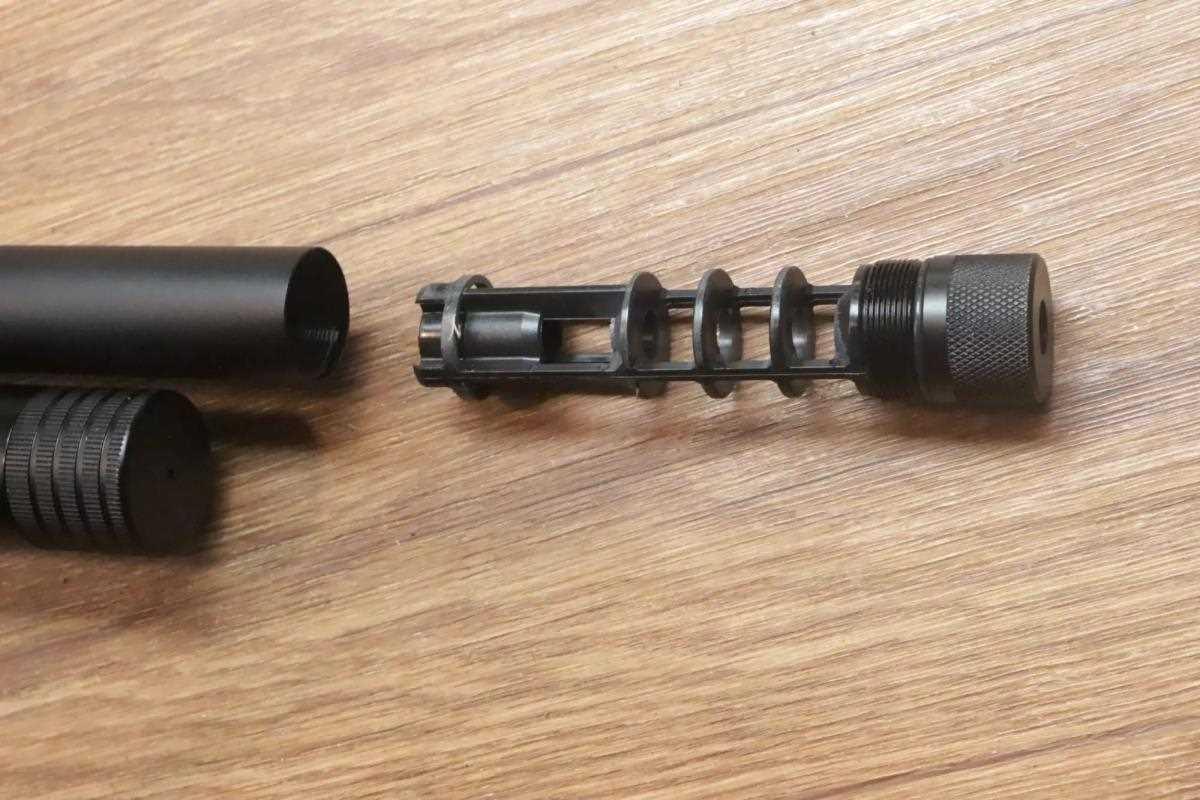

- Shrouded barrel with ½ x 20" UNF bushing at muzzle for threading on an air rifle silencer. Said bushing has its own knurled thread protector cap.
- 500cc Aluminium bottle - 250 BAR FILL PRESSURE. NB. Please note that you can remove the bottle with or without pressure in, meaning the bottle self-contains its fill pressure.
- Regulated - externally adjustable w/ a stainless steel flat-drive screw, similar to the LEVIATHAN. The regualtor here likewise, is stainless steel, not brass, as was the case w/ the LEVIATHAN.
- Hammer spring externally adjustable - Use the included 2.5mm allen key. Threading the screw inward (clockwise) increases the tension on the hammer spring, increasing muzzle velocity. Threading the screw out (counter-clockwise) accomplishes the opposite.

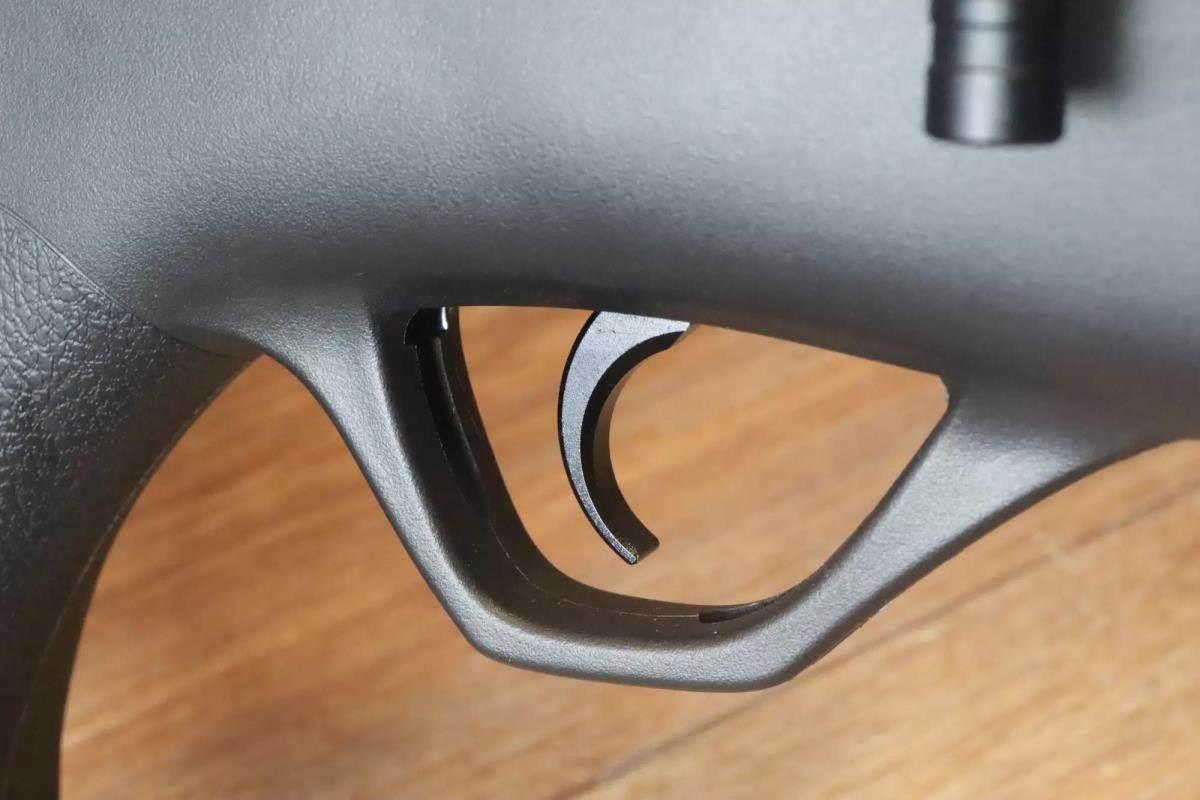

- Trigger is fully 3-point adjustable;
- Trigger Sear Screw: This screw engages the lower sear as the trigger is pulled. Turning this screw clockwise will reduce the amount of engagement required to fire the rifle (making the trigger more sensitive). Turning this screw counter clockwise will increase the amount of engagement required to fire the rifle. DO NOT make large adjustments to this screw. Adjust in small increments and test for proper function before adjusting further. 5)
- Trigger Weight Adjuster: Turn the adjuster screw clockwise to increase trigger pull weight, and counter-clockwise to decrease trigger pull weight.
- Travel Adjuster: Turn the adjuster screw clockwise to reduce the amount of trigger travel (take up), this will visibly move the trigger towards the rear of the trigger guard. Turning the screw counter-clockwise will increase the amount of travel (take up) and visibly move the trigger forward within the trigger guard.
- There is a degass screw on the left face of the rifle.
- a Set of sling loop points are included /factory-fitted on the stock. The frontal one is aluminium and fixed to the tail end of the Picatinny rail. The rear one is fully rotational and appears to be made of some dense polymer material.
MAINTENANCE
- Apply silicone lubricant to the breech o-rings on the bolt probe every 3 months or every 500 shots.
- Apply a thin layer of Moly paste to the bolt probe every 3 months.
- Always store with pressure (at least 1,000 PSI/69 BAR) in the air rifle. Store in a place that is dark. Keep out of high humidity.
- Inspect the barrel o-rings any time you have the barrel out of the action. Apply silicone lubricant to these o-rings before inserting the barrel into the action
- Periodically check that the two slotted screw

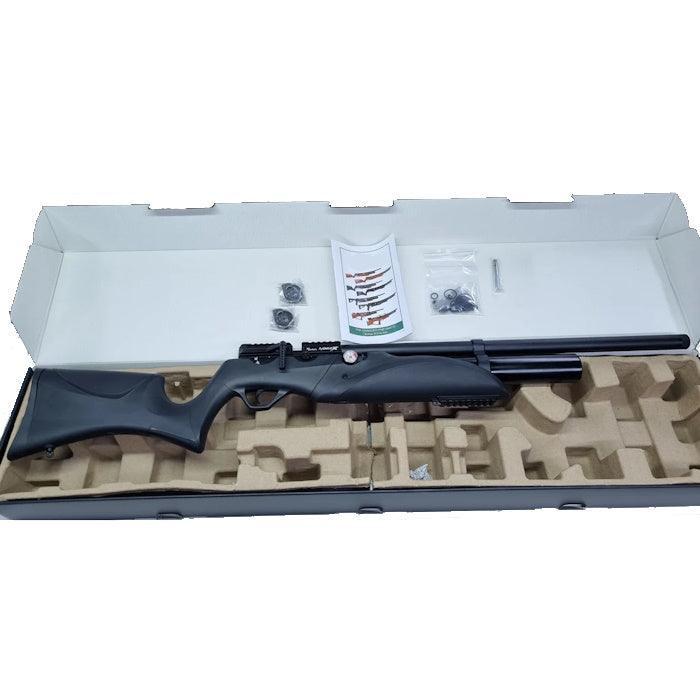

Included in the box, you will receive;
- 1x 10 shot standard capacity magazine, .22 cal
- 16x high capacity magazine, .22 cal
- 1x Single shot loader, .22 cal
- 1x Stainless steel filling probe
- 1x bag of allen keys, nickel plated
- 1x bag of assorted O-rings. Looks like a set of 2x rebuild kits
- 1x English Instruction manual
- No optics / iron sights included
