ANDOWL
SKU:5846
Couldn't load pickup availability
Recently viewed products
WE DELIVER ANYWHERE
2 - 3 WORKING DAY NATIONWIDE DELIVERY
GREAT PRICES
FOUND IT CHEAPER? LET US KNOW
FIVE STAR SERVICE
OUR SUPPORT TEAM IS ONLY A CLICK AWAY
FLEXIBLE PAYMENT OPTIONS
MULTIPLE PAYMENT OPTIONS

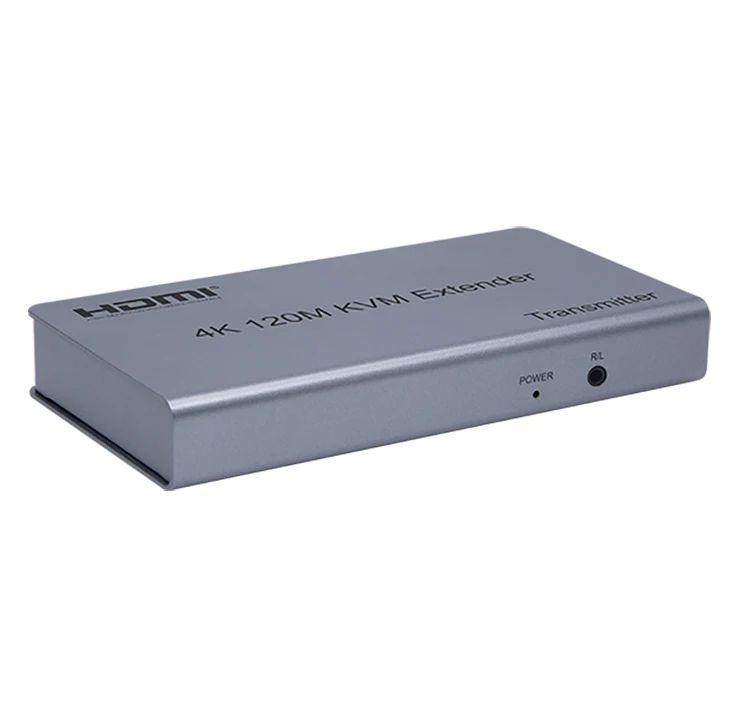

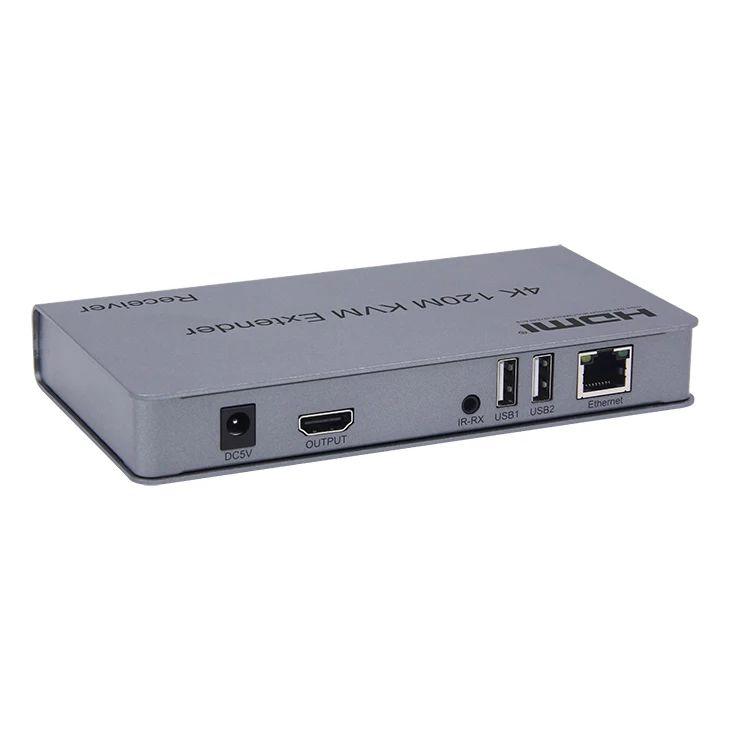

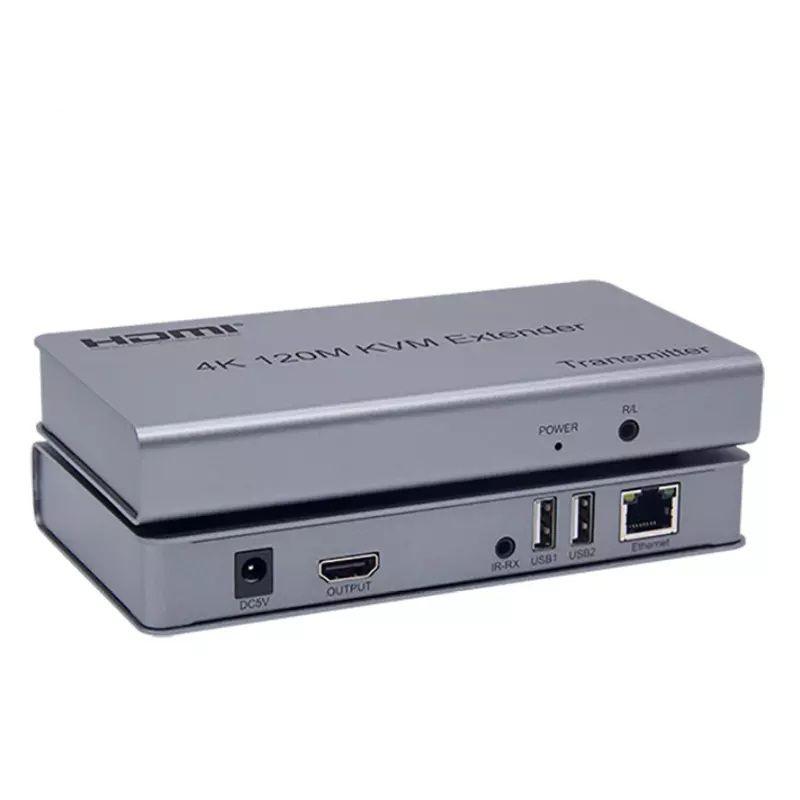

HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch, providing greater flexibility and options when integrating several home theater components.
Features:
* Support HDMI4k 30Hz/HDCP4k 30Hz* Support local loop-out ;* Support 120m long distance transmission:
* Low power consumption, low temperature and high safety;* Both the TX and RX support 3.5MM left and right audio output;* Support IR control;* Support USB mouse and keyboard extension;
Operating and Connecting:
1.Connect one HDMI cable between source device and TX Extender
2.Connect one HDMI cable between sink device and RX Extender
3.Connect Single cat-5e or cat-6(recommended) cables up to 200 meters instead of HDMI cables between TX and RX Extender
4.Connect 5V power supply to the Extender
SPECIFICATIONS: HDES120-KVM
Length of CAT-6 cable between Rx and TX
Up to 120 metres
HDMI Resolutions
480p,720p,1081p,4K
Audio
Sample rate: 32kHZ, 44.1kHZ and 48kHZ
IR remote control
38KHZ; NEC
HDMI
HDMI 4k 30Hz
Max bandwidth
340MHz
Max baud rate
3X3.4Gbps
Input Video signal
0.5~1.5Volts p-p
Output DDC signal
5Volts p-p (TT1L)
Input/Output HDMI1.3 cable distance
<=20m AWG26 HDMI 1.3 standard cable
Power consumption
HDMI Sender: 3W HDMI Receiver: 3W
Power adapter format
Input:AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range
(0 to +45 Centigrade)
Operating Humidity range
10 to 80%RH (No Condensation)
Dimension (L x W x H)
107x105x27.3mm
Weight
499g*2PCS

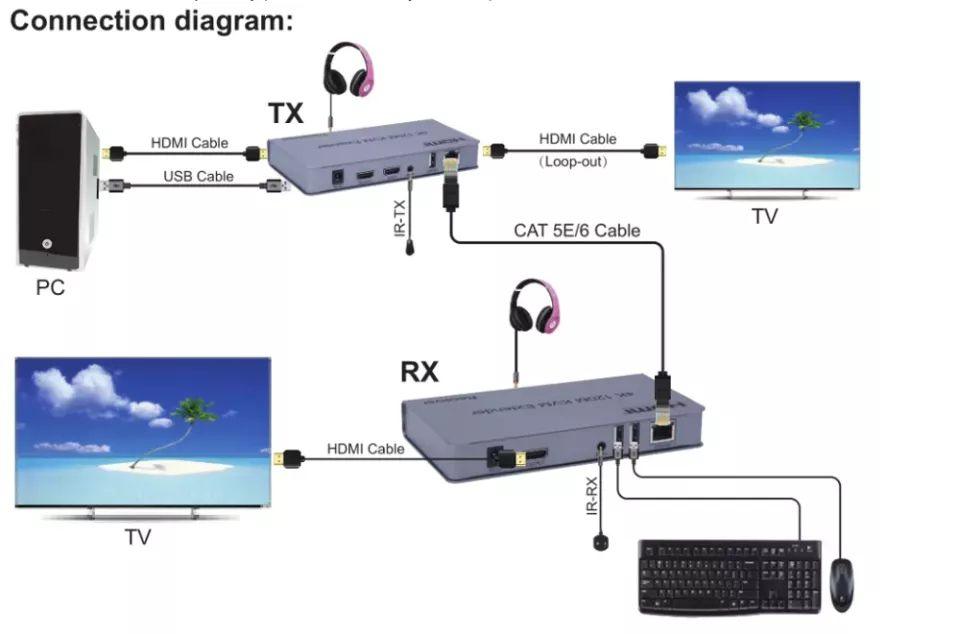

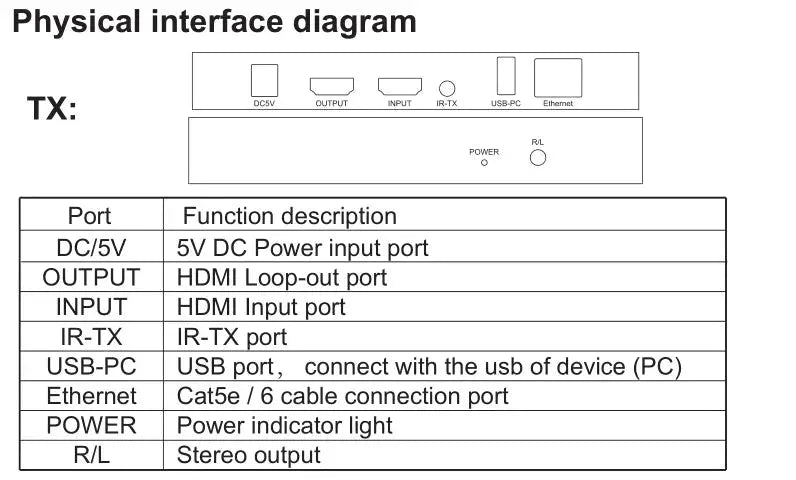

Connecting and Operating:1.Connect one HDMI cable between source device and TX Extender, the max cabledistance is 10 meters.2.Connect one HDMI cable between display device and RX Extender, the max cabledistance is 10 meters.3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables betweenTX and RX Extender, the max cable distance is 120 meters.4.Connect 5V power supply to the TX and RX.5.Plug the mouse and keyboard into the USB port of the receiver, and connect the USBport of the transmitter with the computer if you need the KVM control function.6.LED indicator lightTX LED indicator light: Turn it on, green light; when there is a signal input,the yellow light flashing.RX LED indicator light: Turn it on, green light; when there is a signal input,the yellow light flashing.7.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of thereceiver and transmitter respectively.(Just connect when you need it).
