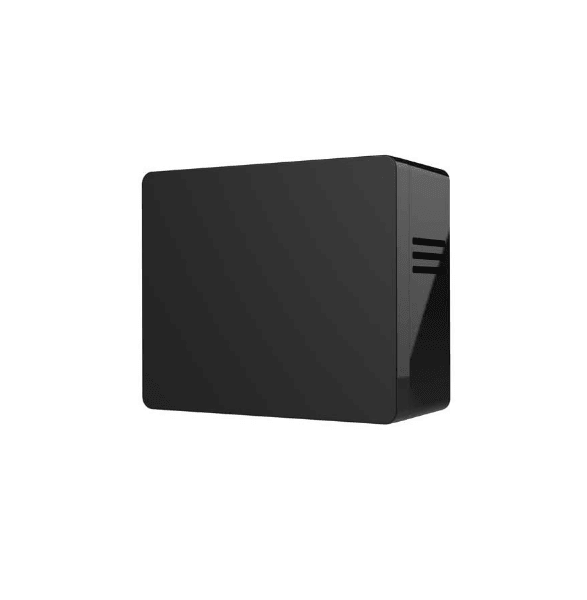

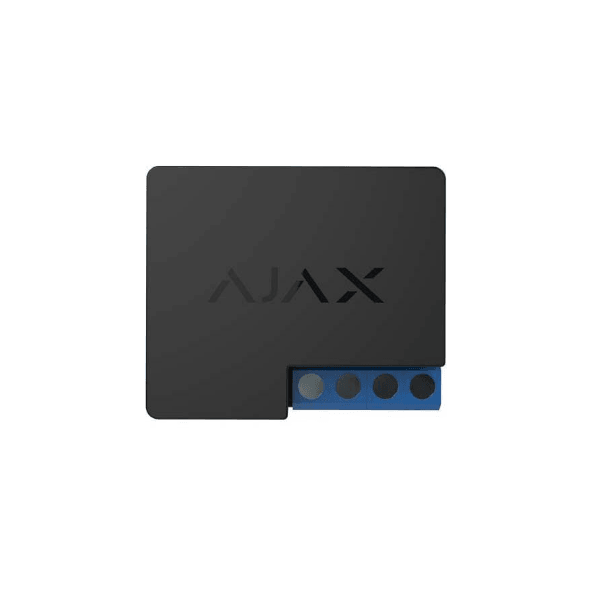

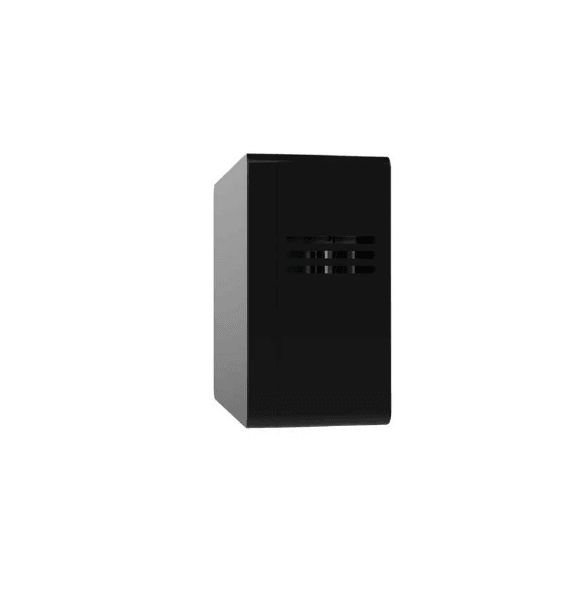

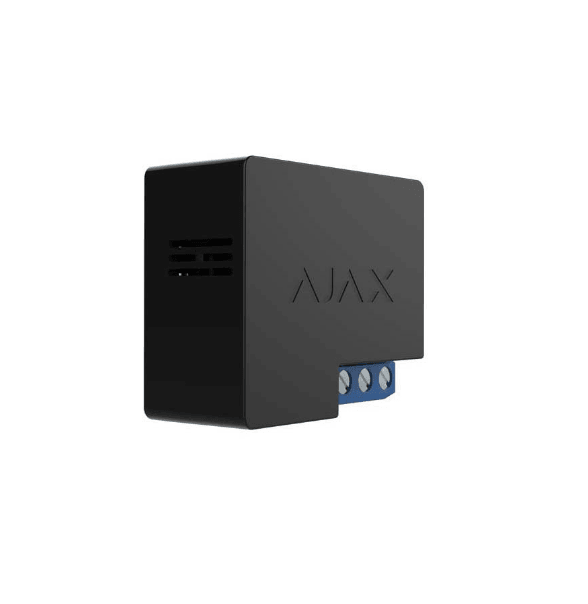

AJAX WALL SWITCH - BLACK
The radio channel controller allows to control domestic appliances remotely. It is used to switch on/off irons, garage gates, water heaters and heat-insulated floors.
With one click in the mobile application, the device switches domestic appliances on and off. The device switches off automatically during overcurrent, voltage surge and overheating. Information on energy consumption is available in the mobile application.
Principle of operationThe device controls the electric power supply by means of relay, which closes and opens the power supplynetwork.FeaturesOperates in 110V and 220V mains. The meter shows the power consumption in real time.Installation and set upIt is installed into a recessed wall plate and connected to the internal power supply network.
Tech specsClassification Radio channel relay unitDevice type WirelessInstallation method Into wall plateCompatibility Operates only with hub Ajax and ReXActuating element RelayRelay service life 200,000 switch-onsVoltage protection For 230 V mains: max — 264 V, min — 161 VFor 110 V mains: max — 126 V, min — 77 VMaximum load current 13 AMaximum current protection Yes (13 A)Maximum temperature protection >65°C in the wall platePermissible power Resistive load at 230 V — up to 3 kWResistive load at 110 V — up to 1.5 kWElectric power meter function AvailableEnergy consumption parameter check Current, voltage, power consumptionAlarm signal delivery time 0.15 sPower supply 110−230 V±10% 50/60 HzOperation modes ● Impulse (firmware version 5.54.1.0 or higher)● BistableContact state(firmware version 5.54.1.0 or higher)● Normally open● Normally closedAdjustable pulse duration(firmware version 5.54.1.0 or higher)0.5 – 255 secJeweller radio technology Communication range with central unit — up to 1,000m in an open spaceTwo-way communication between devicesOperating frequencies — 868.0-868.6 MHzSelf-adjusting RF output power — up to 25 mWBlock encryption based on AES algorithmDetector scanning period — 12−300 sLearn more about Jeweller >Operating temperature range 0°С to +64°СPermissible humidity Up to 75%Protection class of body IP20Anti-sabotage Protection against fraudJamming detectionRemote setting and testing +Dimensions 39 х 33 х 18 mmWeight 30 gCertification CELearn more >Complete set WallSwitchInstallation setUser’s guide
