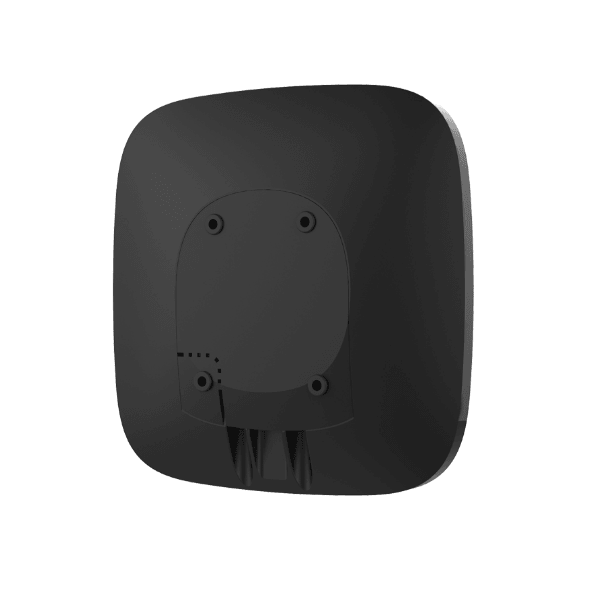

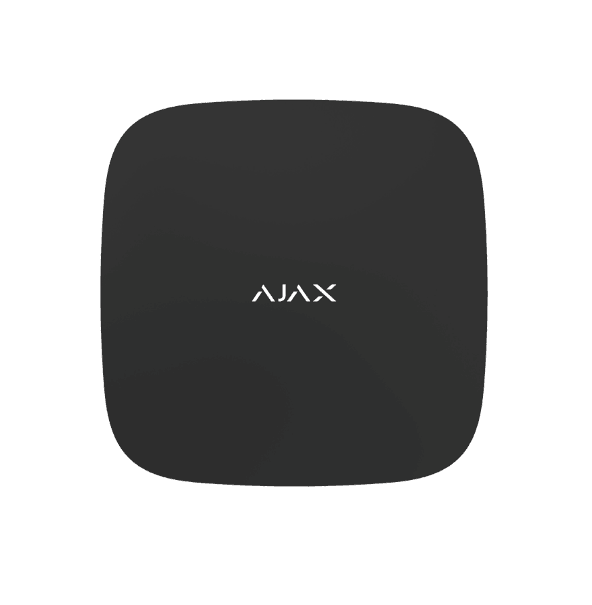

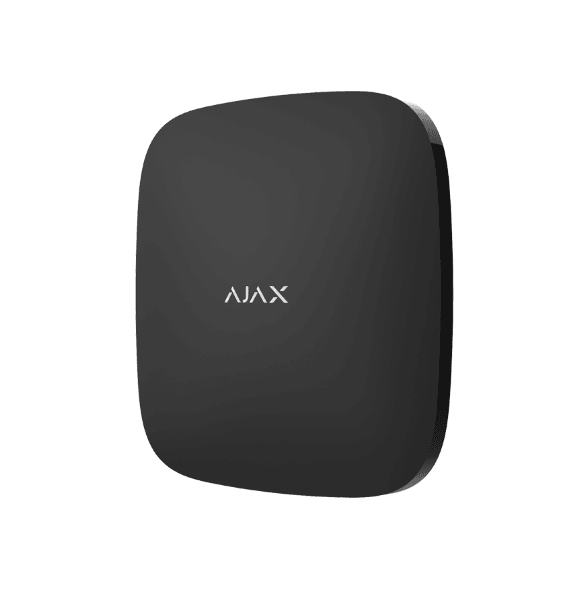

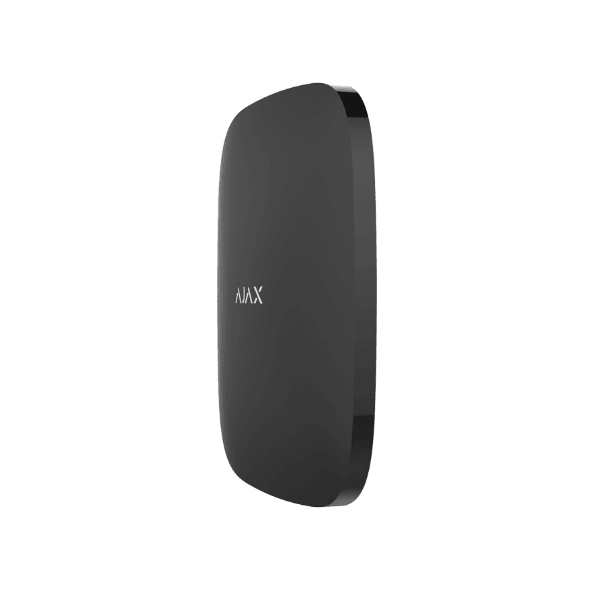

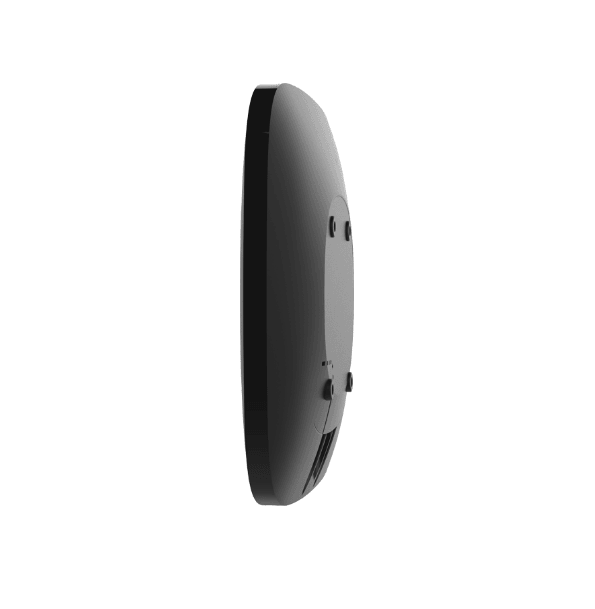

AJAX REX 2 RADIO SIGNAL RANGE EXTENDER- BLACK

More applications of a security system

Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices2
to ReX 2, you will ensure the security and automation of a business center, estate, warehouse complex, or a large production facility. 5 range extenders can operate within the Ajax system to expand the coverage of the radio network up to 35 km3. Events and alarms are transmitted instantly, and the first photo verification snapshot is delivered to a monitoring station and users in just 18 seconds.

More supported devices

• Intrusion detectors with photo verification
• Control devices
• Fire detectors
• Panic buttons
• Leak detectors
• Automation devices
• Sirens
• Integration modules

Verification of alarms with snapshots

ReX 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of shots, helping to evaluate the events at a facility. Visual verification helps to instantly ascertain the situation, saving users from concerns and security companies from unnecessary patrol dispatches.

Privacy first

The detector activates its camera when the security system is armed and the motion is detected. Shots are encrypted at every stage of transmission. While stored on the Ajax Cloud server, no pictures are processed or analyzed. Visual alarm verifications can only be seen by users with access rights to the events feed with push notifications enabled and by employees of the security company if the security system is connected to a
monitoring station.

Guaranteed delivery of alarms and visual alarm verifications

To ensure reliable communications, we have equipped ReX 2 with four antennas and support of two proprietary radio protocols: Jeweller and Wings. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent fraud, and encryption to
protect against data theft.

• Alarm in 0.3 seconds
• The first photo in 18 seconds

Radio communication through steel and concrete

The next major OS Malevich update will allow to cover office centers with underground parking lots, sectional metal hangar's, and warehouse complexes of several large buildings with a single Ajax system. Once the operating system is updated, ReX 2 will be able to connect to a hub both via radio communication and via Ethernet 5 — using the wire as a single or second communication channel.

• Transmission of events and visual alarm verifications via cable
• Encryption of transmitted data
• Automatic change of communication channel in case of break
• Connecting via router

Enhanced security system

ReX 2 integrates detectors into an autonomous group within the system. If for some reason radio communication with the hub is interrupted, ReX 2 will take over: receive an alarm from the detector and activate a siren to draw attention to the incident and deter the burglar.

Ready to resist intruder attacks

ReX 2 is protected from attacks at the software and hardware levels. It runs on the OS Malevich operating system, which is immune to viruses. All data transmitted by the range extender is encrypted. Thanks to the built-in backup battery, a sudden blackout at a facility will not be a problem.

• Up to 38 hours of backup battery life
• Informs about interferences and jamming
• Detects attempts to dismantle and open the enclosure
• Immunity against viruses

Hassle-free installation

ReX 2 connection and configuration process saves the installation engineer time as much as possible. To add a range extender to a system, simply scan a QR-code with the Ajax app and assign it a name and a room. The device is also configured in real time in the app. If necessary, ReX 2 can be disabled or reconfigured without site visits.

• Connection ▸ Connecting via a QR code
• Installation ▸ Installing on the Smart Bracket mounting panel without disassembling the enclosure
• Setup ▸ Setting up in the Ajax app

SPECS:

Classification Radio channel range extender
Device type Wireless
Installation method Indoors
Compatibility Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher
Alarm signal delivery time 0.3 seconds
Maximum connected devices
(in a system with one range
extender)
Hub 2 — up to 99
Hub 2 Plus — up to 199
Number of range extenders
connected to the hub
5
Operating system OS Malevich
Power supply 110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of battery life
Jeweller radio protocol Communication range with the hub — up to 1,700 m in open space
Communication range with detectors —
up to 1,700 m in open space, depending on the detector model
Two-sided connection between devices
Operating frequencies: 868.0–868.6 MHz
Auto-regulated radio signal power: up to 25 mW
Block cipher encryption based on the AES algorithm
Detector ping interval — 12−300 seconds
Frequency hopping
Operating temperature range −10 to +40°C
Operating humidity Up to 75%
Anti-sabotage Fraud protection
Jamming notification
Tamper-resistant
Dimensions 163 x 163 x 36 mm
Weight 330 g
Warranty 24 months from the date of sale
Complete set ReX 2 range extender
SmartBracket mounting panel
Power cable
Installation kit
Quick start guide
