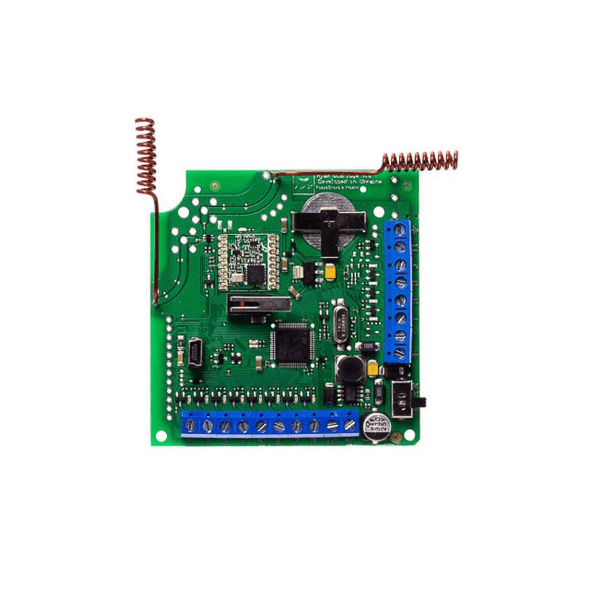

AJAX OC BRIDGE PLUS RECEIVER MODULE
AJAX OC BRIDGE PLUS RECEIVER MODULE
Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Two-way communication
Principle of operation
When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.
Features
The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.
Installation and set up
The device is installed in the body of the wired central unit, in sealed cases or plastic boxes.
SPECS:
Classification Receiver of wireless detectors
Installation method Indoors
Compatibility Wired and hybrid security systems
Number of security areas 8
Number of service areas 4
Loops NO/NC, EOL, 2EOL
Maximum number of detectors 99
Supported devices MotionProtect
MotionProtect Plus
CombiProtect
DoorProtect
FireProtect
FireProtect Plus
LeaksProtect
SpaceControl
GlassProtect
Alarm signal delivery time 0.15 s
Power supply Terminals +/ground
Power supply voltage 8—14 V DC
miniUSB — 5 V (only for set up)
Jeweller radio technology Communication range with detectors — up to 2,000
m in an open space
Two-way communication with detectors
Operating frequencies — 868.0−868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller >
Capability of external antenna connection Yes
Software update feature Yes
Operating temperature range -10°С to +40°С
Permissible humidity Up to 90%
Anti-sabotage Protection against fraud
Jamming detection
Tamper
Setting up and testing Via configurator for PC
Download >
Interface miniUSB
Dimensions 95x92x18 mm
Weight 139 g
Certification CE
