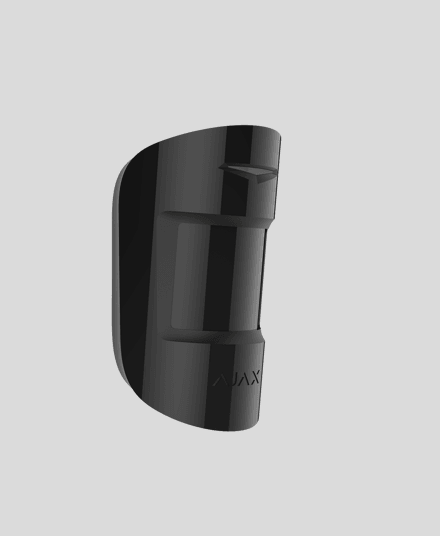

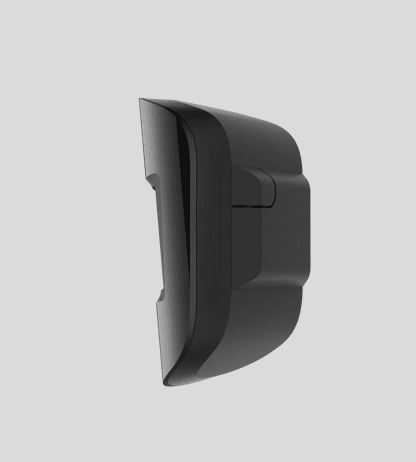

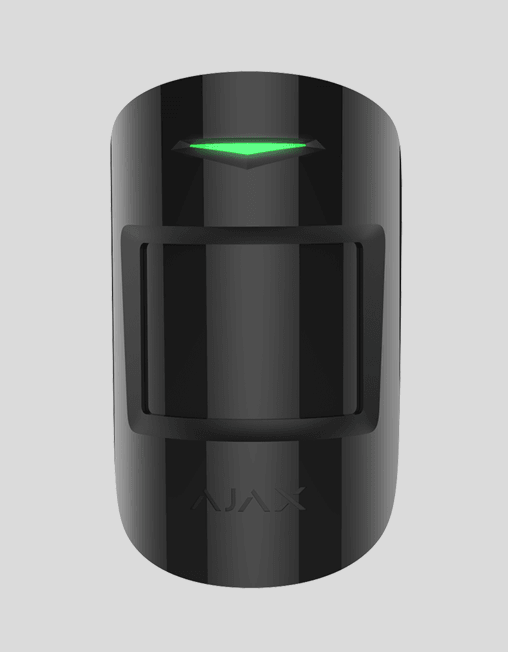

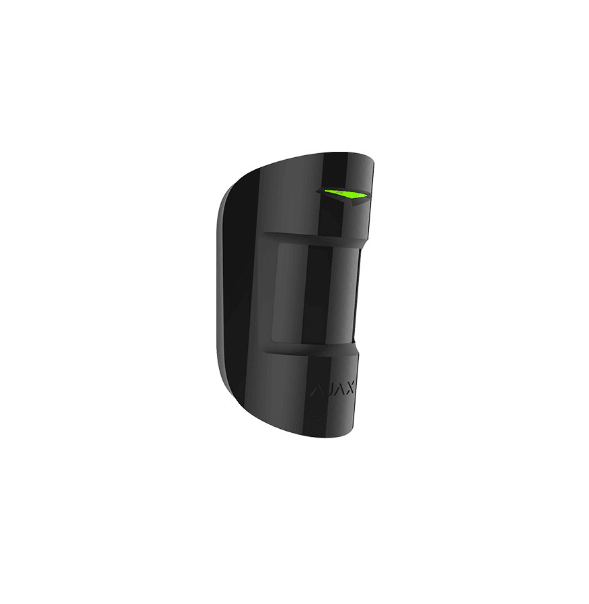

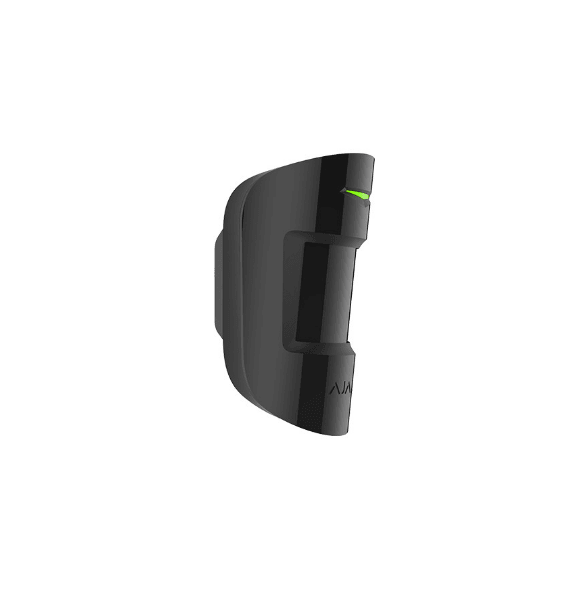

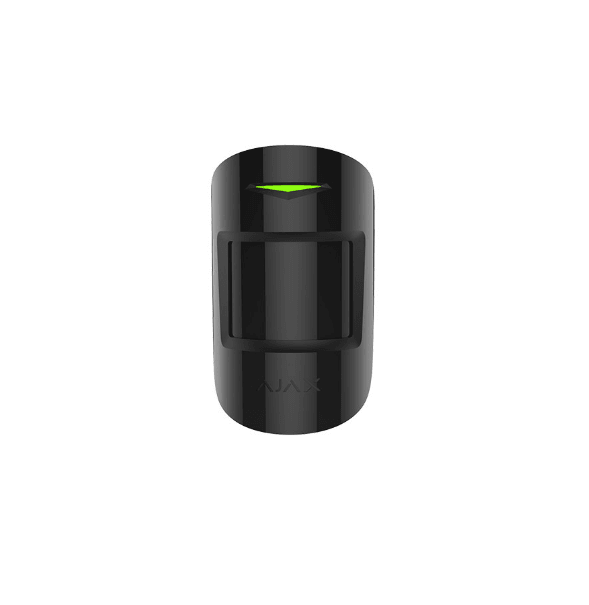

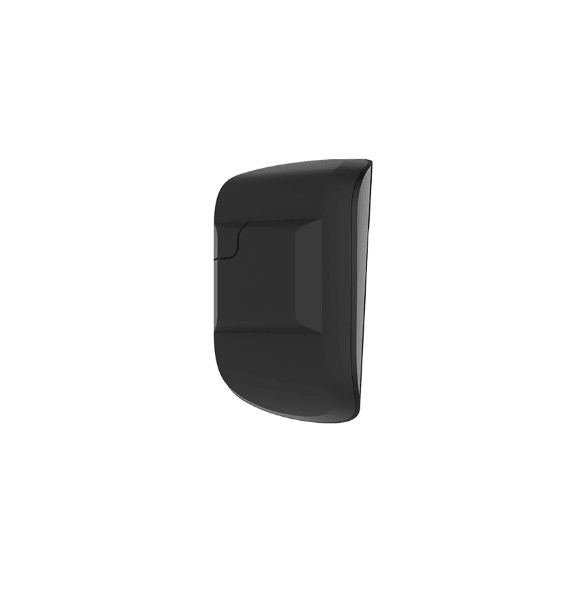

AJAX MOTION PROTECT - BLACK

AJAX MOTION PROTECT - BLACK

MotionProtect Jeweller

• Authentication to prevent forgery
• Jamming detection and communication channels encryption
• Tampering alarm

•
  Security Grade
•
  Compliance
•
  UL Listed

Operates up to 5 years without battery replacement

Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm

Accurately detects motion in heat conditions, even at a temperature of +40°С

Installation and set up

SPECS:

Classification
Electro-optical radio channel security detector
Type of detector
Wireless
Installation method
Indoors
Compatibility
Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Sensing element
PIR sensor
Alarm signal delivery time
0.15 s
Motion detection distance
Up to 12 m
Detection angles
Horizontal — 88.5°
Vertical — 80°
Time for motion detection
From 0.3 to 2 m/s
Sensitivity
Adjustable, 3 levels
Recommended installation height
2.4 m
Pet immunity
Weight — up to 20 kg
Height — up to 50 cm
Power supply
Battery: CR123A battery, 3 V
Battery life
Up to 5 years

Learn more
Jeweller radio technology
Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices

Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Learn more about Jeweller
Temperature sensor
Available
Operating temperature range
From -10°С to +40°С
Permissible humidity
Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing
+
Dimensions
110 × 65 × 50 mm
Weight
86 g
