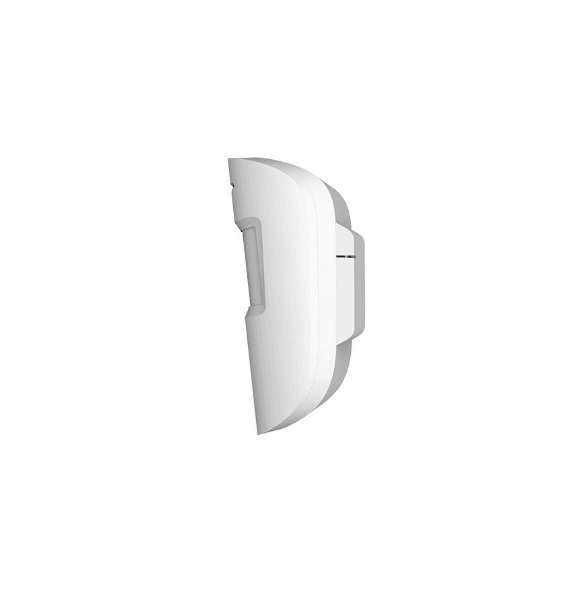

AJAX MOTION CAM PHOD - WHITE

R 3,029.00
Unit price  per
history

Guaranteed safe & secure checkout

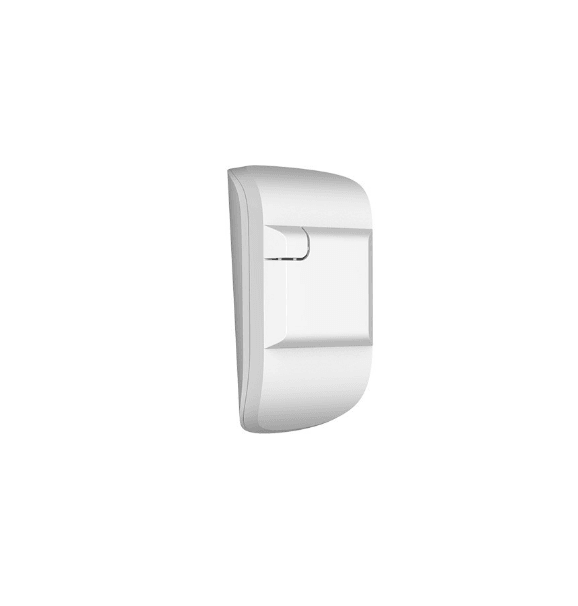

AJAX MOTION CAM PHOD - WHITE

Lightning-fast alarms. Verified.

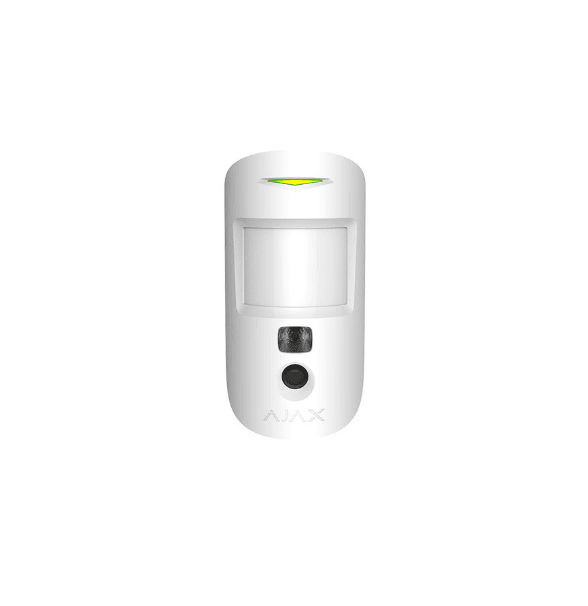

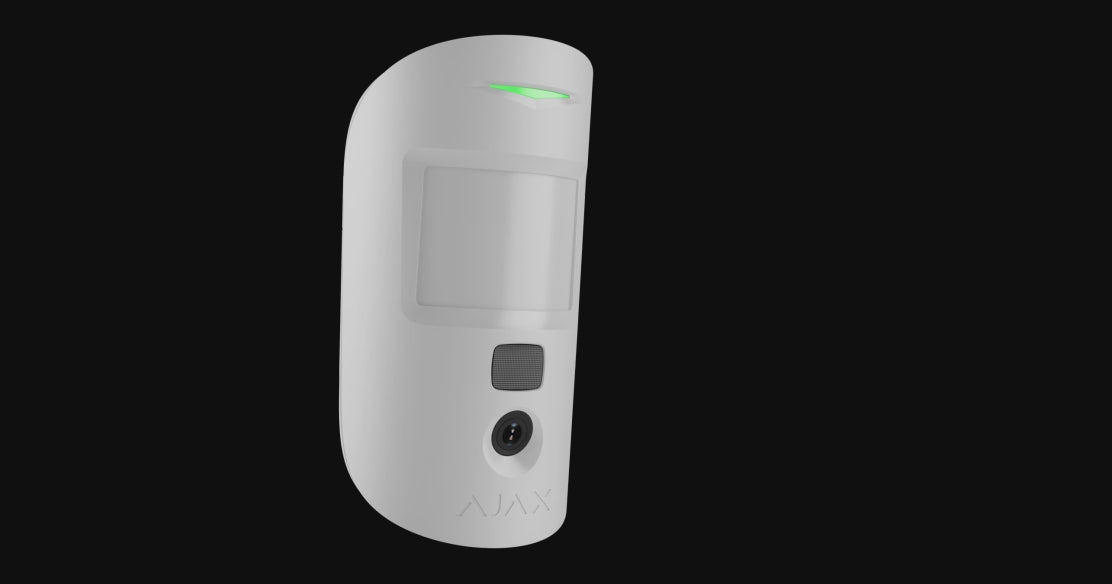

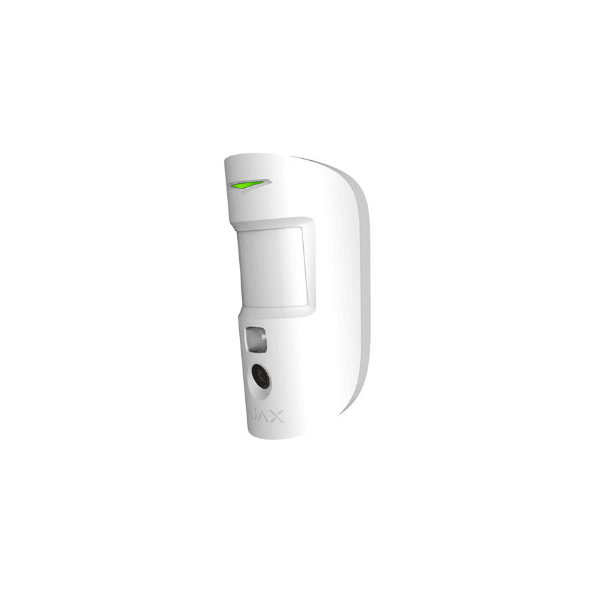

MotionCam (PhOD) Jeweller has a built-in camera that takes photos once the detector is triggered. It needs just 9 seconds to show the actual situation on the scene. With visual evidence available in Ajax apps, the security company can quickly verify the threat and respond accordingly.

Photo verification relieves users of unnecessary anxiety and prevents security companies from false patrol calls. Users can take an on-demand photo with a single tap to monitor their house's state at any time. The detector can also automatically take photos by an alarm of another device in the system and by a specific schedule.


Peace of mind on demand

The detector needs just a few seconds to show the actual situation on the scene and dispel the user's doubts in case of an alarm. It takes a click in the Ajax app to take an on-demand photo. Also, it can automatically take photos by schedule and when another detector in the system is triggered.

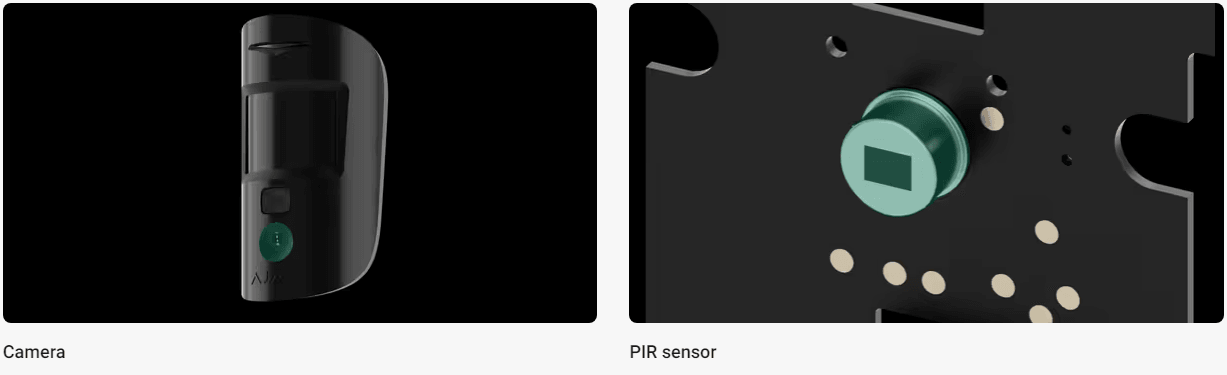

PIR sensor

All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor's superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection.

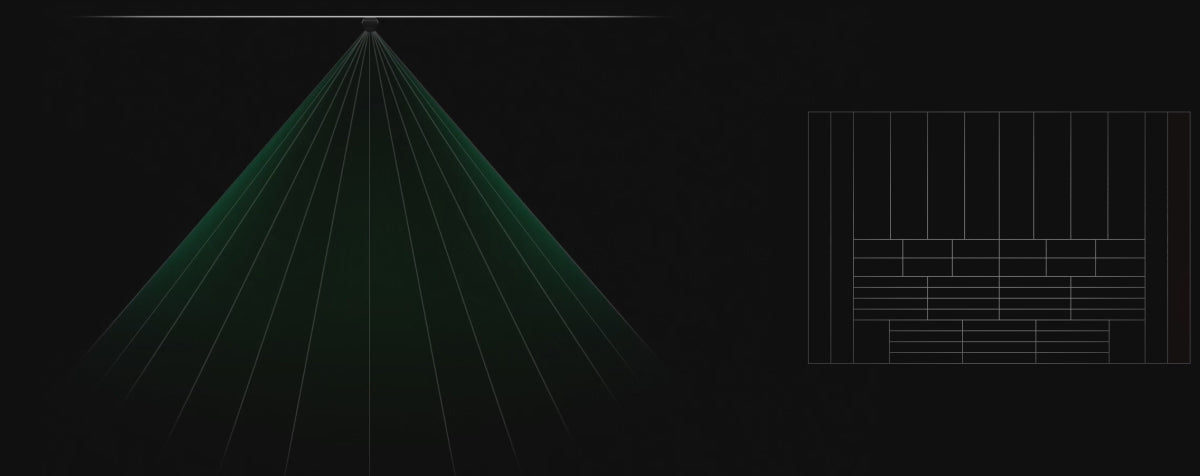

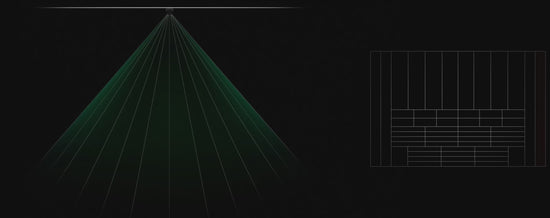

Special lens

The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, animal, and thermal noise. Large lens sections capture radiation at an adult's head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Thermal interferences filter

We processed thousands of thermal patterns caused by humans, animals, and the environment to develop the Smart Detect software algorithm. In armed mode, the detector constantly analyzes the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result — the detector accurately responds to human motion without false alarms.

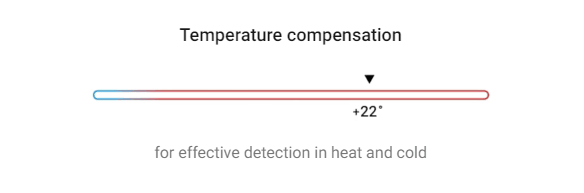

Temperature compensation

Temperature compensation is a software mechanism keeping the thermal diagram contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Sensitivity level

The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. A high sensitivity will raise the alarm in case of any motion in the detection zone.

Professional installation

With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimizing false alarms caused by animals weighing up to 20 kg and below 50 cm in height.

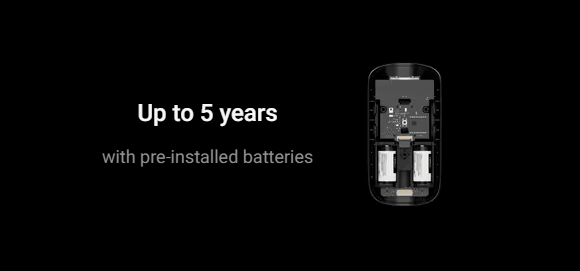

Stable operation with pre-installed batteries

MotionCam (PhOD) Jeweller comes equipped with pre-installed batteries, boasting a remarkable 5-year lifespan. Ajax apps proactively notify both the monitoring company and users of a low battery level a couple of months in advance. The batteries are replaceable, allowing the installer to simply swap them out after five years. Thanks to the batteries, MotionCam (PhOD) Jeweller functions independently of the facility’s power grid.


Up to 5 years of operation from pre-installed batteries


Low battery level warning


Replaceable CR123A batteries

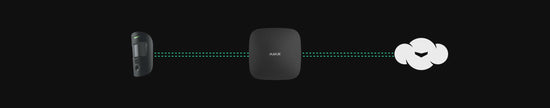

Up to 1,700 m of radio communication2 with a hub or range extender


Encrypted two-way radio communication


Notifications about jamming and connection loss


9 seconds1 to deliver the first photo

Scaled and comprehensive

ReX 2 Jeweller range extender boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. It also assures stable communication through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering multi storey buildings with underground parking and basements.

  • Up to 5 range extenders within one system
  • Ethernet as an alternative communication channel

System supervision

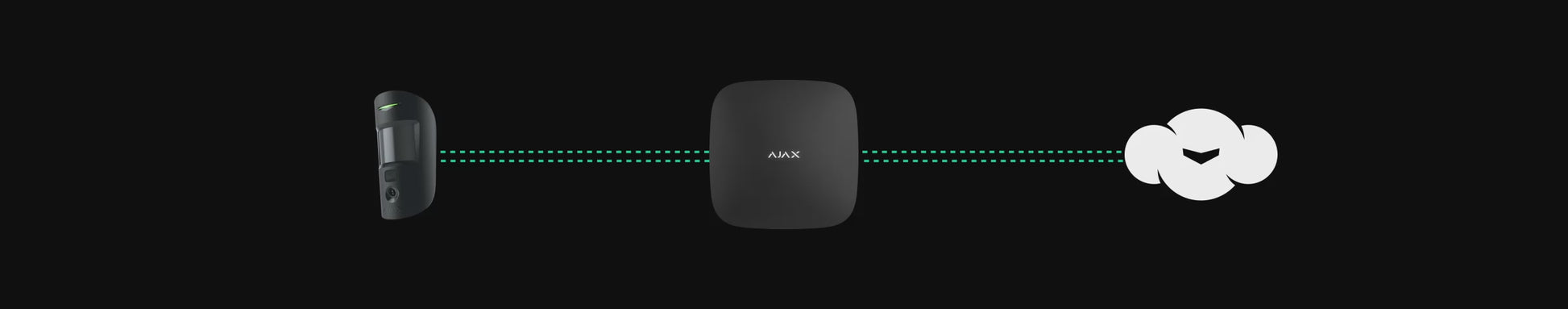

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with status report


Regular polling to display the current device state on apps


Instant maintenance notifications

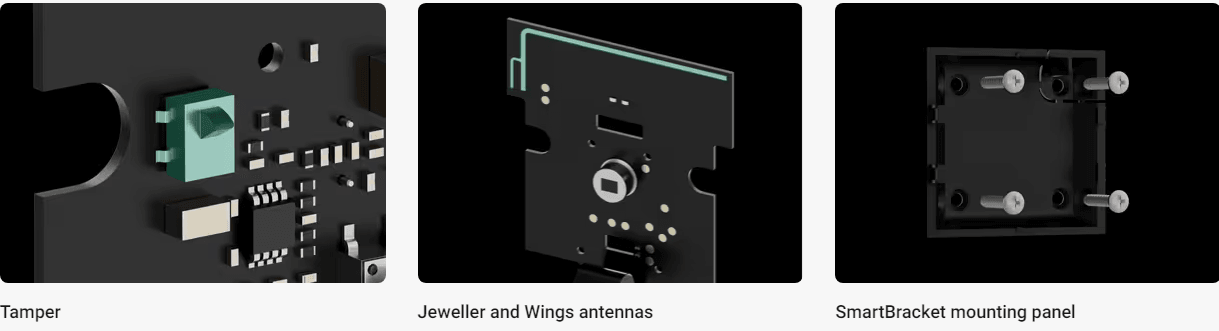

Sabotage-resistant

The enclosure has a tamper button, which notifies the security company and users once the device is dismantled from the mount

All data the system stores and transmits is protected by a block cipher with a dynamic key. Encryption makes it extremely difficult to reprogram the device, replace or steal the data.

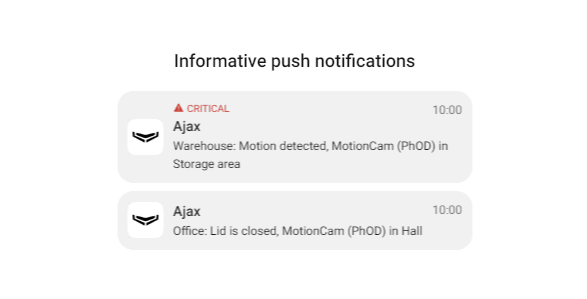

The Ajax system instantly notifies about alarms and events with informative notifications: security companies and users know exactly which device triggered, when and where it happened.

Regular polling

The device regularly exchanges data with the hub. The system controls each device state and reports if there is a malfunction or connection loss

The hub checks the device's unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.

Communication failure detection

The device regularly exchanges data with the hub. With maximum ping interval settings available (3 data packages once in 12 seconds), it takes only 36 seconds to identify communication loss and notify the security company and users about the incident.

Effortless installation and setup

MotionCam (PhOD) is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigure remotely without the need for on-site visits.

SPECS:


Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit alarms and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 1,700 m
Between detector and control panel or range extender in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Data package reloading in case of transmission errors.
  • Photo delivery check.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.

Radio signal range

up to 1,700 m
Between detector and control panel or range extender in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Detection

Sensitive element

1 PIR sensor

Motion detection distance

up to 12 m
When installed at a height of 2.4 m.

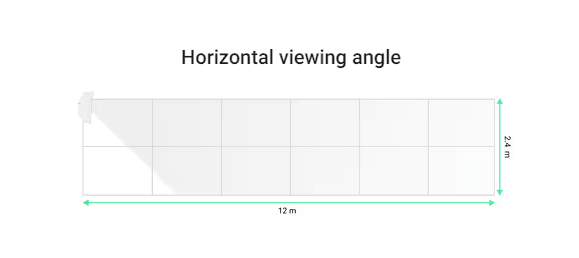

Motion detection angles

horizontal — 88.5°
vertical — 80°

Motion detection speed

from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels
Adjusted by PRO or user with admin rights in the Ajax app.

Pet immunity

weight: up to 20 kg
height: up to 50 cm

False alarm prevention

SmartDetect
Software algorithm.

Temperature compensation

Effective motion detection at temperatures from −10°C to +40°C.

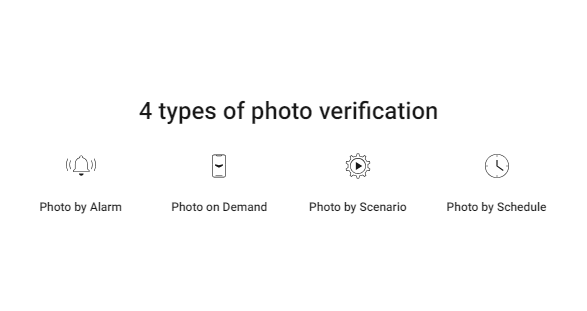

Photo verification

Photo by Alarm

A built-in camera is activated if the detector is armed, and motion is detected.

Photo on Demand

User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

Photo by Scenario

A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

Photo by Schedule

The detector automatically takes photos at a specified time. This feature is available for hubs (except Hub Jeweller) with firmware version OS Malevich 2.19 or higher.

Photo resolution

640 × 480 px
320 × 240 px (by default)
160 × 120 px
Adjusted by PRO or user with admin rights in the Ajax app.

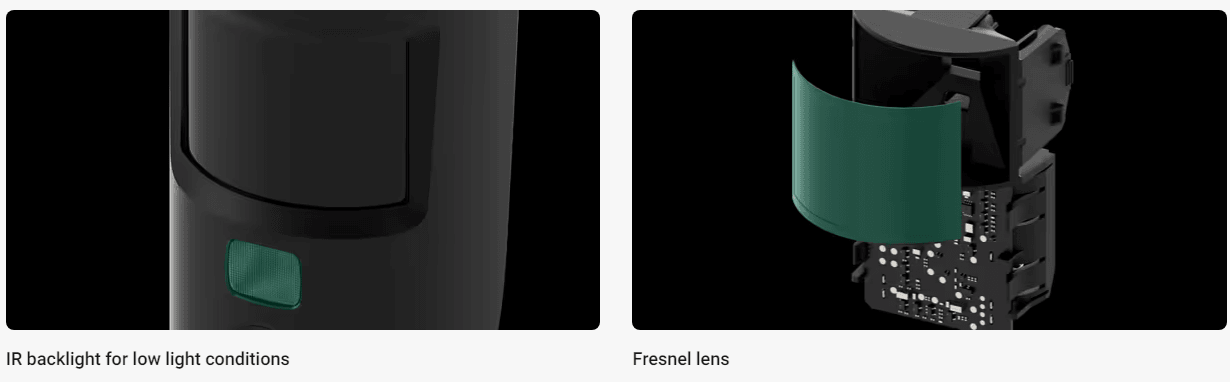

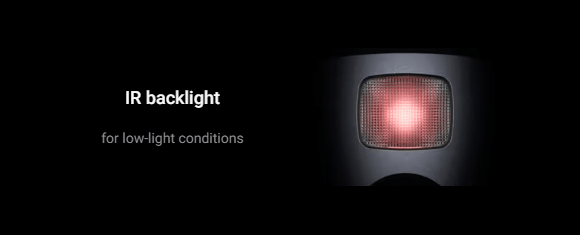

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with resolution of 320 × 240 px or 160 × 120 px
from 1 to 3 images with resolution of 640 × 480 px
Adjusted by PRO or user with admin rights in the Ajax app.

Photo delivery time

up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.

Recommendations

It is recommended to install the detector at a height of 2.4 m.
The device is designed for indoor use only.

Anti-sabotage protection

Tampering alarm

Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

within 36 s
Detection time depends on the Jeweller settings.

Power supply

2 × CR123A battery, 3 V
(pre-installed)

Battery life

up to 4 years
with Photo on demand toggle disabled
up to 3 years
with Photo on demand toggle enabled

Enclosure

Dimensions

135 × 70 × 60 mm

Weight

167 g

Operating temperature range

from −10°C to +40°C

Operating humidity

up to 75%

Protection class

IP50

Colour

Black
White

Complete set

MotionCam (PhOD) Jeweller
Smart Bracket mounting panel
Installation kit
2 × CR123A battery (pre-installed)
Quick Start Guide
