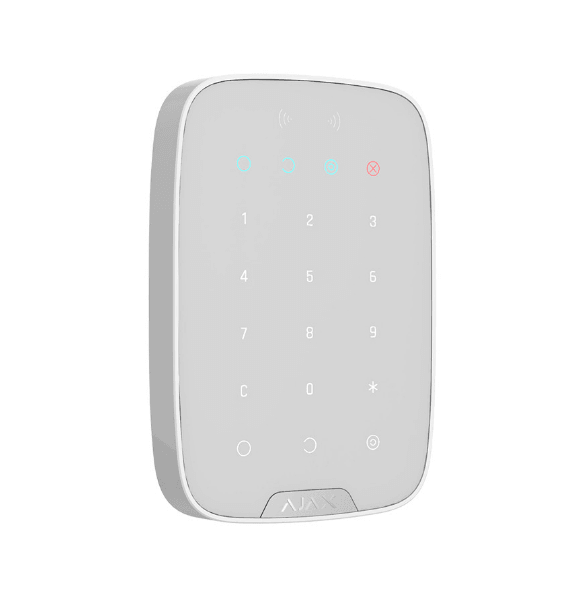

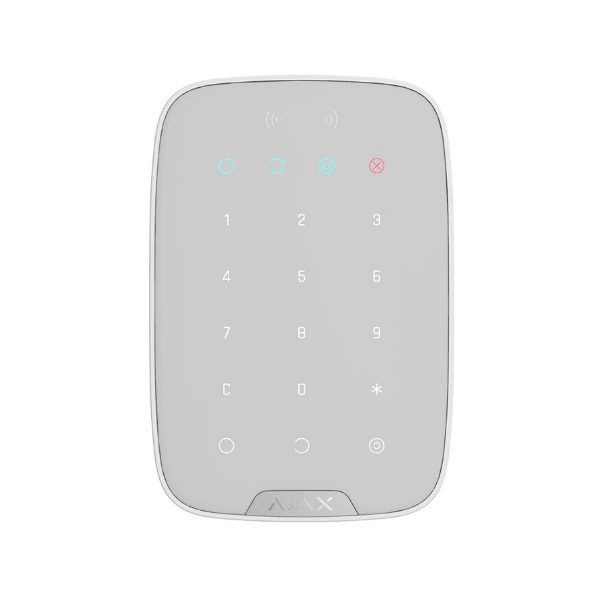

AJAX KEYPAD PLUS - WHITE
Contactless control without reliability compromises
KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob.
- Pass/Tag reader
- Security mode indicators
- Touch–sensitive keypad
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob. DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
More about DESFire advantages
|
CHIP |
EM-MARIN |
MIFARE® Classic® |
MIFARE® DESFire® |
|
USE |
Simple access systems: barriers, intercoms, hotel rooms. |
Combined access systems, where additional information is stored on the chip: fitness clubs, entertainment centers. |
Systems with multi-level access in government, international and military institutions. |
|
ENCRYPTION |
NO |
Crypto-1 stream cipher with a key size of 48 bits. A number of studies have shown the possibility of hacking this cipher with tools that are freely available. |
Triple DES encryption and AES hardware encryption with 128-bit key. It will take several supercomputers and millions of years to hack |
|
MEMORY |
No built-in memory |
Up to 4 KB of built-in memory, which allows you to store data on payment, card expiration date, users. |
Up to 8 KB built-in memory that allows you to store user data and access keys to multiple security systems. |
Outstanding autonomy
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries.
Remote access control
Set up personal passcodes to know who and when disarmed the system: a username is displayed in the notification and in the event log. Pass or Tag can also be assigned to a specific user with defined permissions to control security of specific groups or the entire site. Ajax app allows you to manage access permissions in real time. You can limit, extend, or instantly block access.
- Personal passcodes
- Event log
- Instant blocking of access
Adding users. Fast and easy.
Ajax systems support up to 200 Tags or Passes. When adding them, you do not need to create Ajax accounts for new users, you just need to name a device and define access permissions. This makes it easier to delegate access to the system control to temporary employees or incoming staff.
Security mode indication
Light and sound indication of KeyPad Plus allows controlling the security status without the Ajax app. The volume and brightness of the backlight is adjustable.
Multilevel anti-sabotage system
|
Tamper |
Blocking when guessing a passcode |
Authentication |
Polling intervals |
|
Users and a security company receive a notification when someone removes the keypad from the mount |
Blocking when guessing a passcode Three wrong passcodes' entered in a row block the keypad and trigger an alarm |
If there is an attempt to use an invalid card or key fob, the system activates an alarm |
The system detects the communication loss with the keypad in less than a minute3 |
Silent alarm transmission to a monitoring station
If attackers force to disarm the system Duress code allows you to simulate disarming via KeyPad Plus. The user is not disclosed by sirens, the app and the keypad indication, but the alarm signal is instantly transmitted to a central monitoring station4.
Guaranteed alarm delivery
We have developed the Jeweller radio protocol to ensure the uninterrupted operation of all system devices. The radio protocol uses time frames to synchronize communication of connected devices, authentication to eliminate forgery, and encryption to protect against hacking.
- Two-way communication at a distance of up to 1,700 meters
- 5 ReX radio signal range extenders in a system
- Adjustable ping interval from 12 seconds
Smart security management console
Use scenarios to shift your daily routine to Ajax. When arming, the system turns off the lights, the water and electrical appliances, closes the roller shutters, all in one touch on KeyPad Plus
Effortless installation
KeyPad Plus is connected and configured in Ajax apps. No need to disassemble the enclosure or install batteries. Adding to the system is done via simply scanning a QR code. An installation engineer only needs to test the device, add cards and set up access permissions.
- Keypad type: Capacitive touch keypad
- Installation: Indoor only
- Compatibility: Hub Plus
- Hub 2 (2G)
- Hub 2 (4G)
- Hub 2 Plus
- Hub Hybrid (2G)
- Hub Hybrid (4G) ReX with OS Malevich 2.11 and higher
- Personal passcodes: Yes
- Passcode guessing protection: Yes
- Duress code: Yes
- Contactless access: DESFire EV1 EV2 ISO14443-A (13 56MHz)
- Power supply: Batteries: 4 lithium AA (FR6) Voltage 1.5V
- Battery life: up to 4.5 years

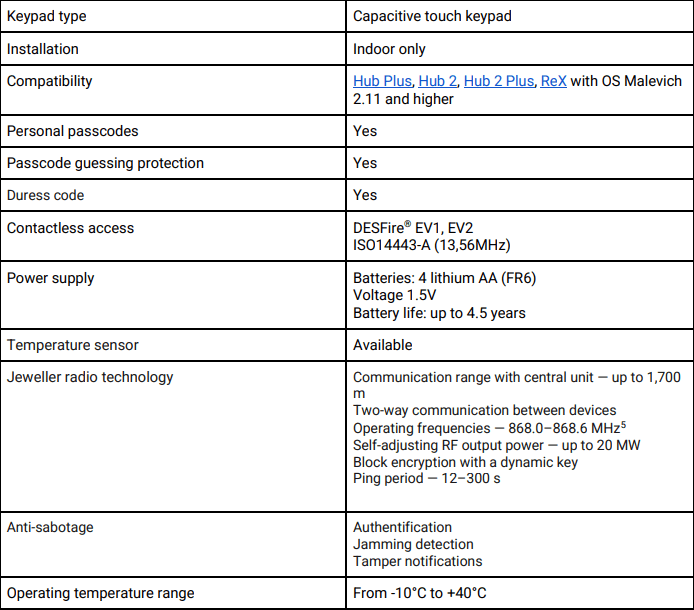

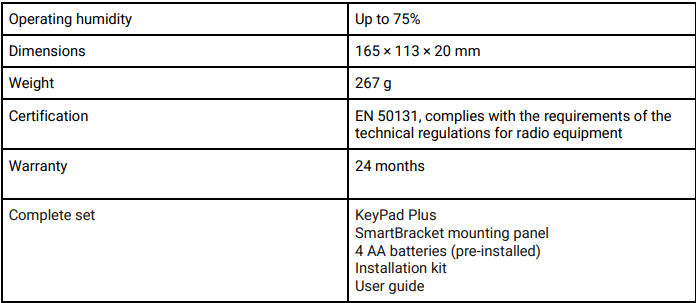

- SPECS ATTACHED BELOW.↓↓↓↓↓
AJAX KEYPAD PLUS - WHITE
Contactless control without reliability compromises
KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob.
- Pass/Tag reader
- Security mode indicators
- Touch–sensitive keypad
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob. DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
More about DESFire advantages
|
CHIP |
EM-MARIN |
MIFARE® Classic® |
MIFARE® DESFire® |
|
USE |
Simple access systems: barriers, intercoms, hotel rooms. |
Combined access systems, where additional information is stored on the chip: fitness clubs, entertainment centers. |
Systems with multi-level access in government, international and military institutions. |
|
ENCRYPTION |
NO |
Crypto-1 stream cipher with a key size of 48 bits. A number of studies have shown the possibility of hacking this cipher with tools that are freely available. |
Triple DES encryption and AES hardware encryption with 128-bit key. It will take several supercomputers and millions of years to hack |
|
MEMORY |
No built-in memory |
Up to 4 KB of built-in memory, which allows you to store data on payment, card expiration date, users. |
Up to 8 KB built-in memory that allows you to store user data and access keys to multiple security systems. |
Outstanding autonomy
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries.
Remote access control
Set up personal passcodes to know who and when disarmed the system: a username is displayed in the notification and in the event log. Pass or Tag can also be assigned to a specific user with defined permissions to control security of specific groups or the entire site. Ajax app allows you to manage access permissions in real time. You can limit, extend, or instantly block access.
- Personal passcodes
- Event log
- Instant blocking of access
Adding users. Fast and easy.
Ajax systems support up to 200 Tags or Passes. When adding them, you do not need to create Ajax accounts for new users, you just need to name a device and define access permissions. This makes it easier to delegate access to the system control to temporary employees or incoming staff.
Security mode indication
Light and sound indication of KeyPad Plus allows controlling the security status without the Ajax app. The volume and brightness of the backlight is adjustable.
Multilevel anti-sabotage system
|
Tamper |
Blocking when guessing a passcode |
Authentication |
Polling intervals |
|
Users and a security company receive a notification when someone removes the keypad from the mount |
Blocking when guessing a passcode Three wrong passcodes' entered in a row block the keypad and trigger an alarm |
If there is an attempt to use an invalid card or key fob, the system activates an alarm |
The system detects the communication loss with the keypad in less than a minute3 |
Silent alarm transmission to a monitoring station
If attackers force to disarm the system Duress code allows you to simulate disarming via KeyPad Plus. The user is not disclosed by sirens, the app and the keypad indication, but the alarm signal is instantly transmitted to a central monitoring station4.
Guaranteed alarm delivery
We have developed the Jeweller radio protocol to ensure the uninterrupted operation of all system devices. The radio protocol uses time frames to synchronize communication of connected devices, authentication to eliminate forgery, and encryption to protect against hacking.
- Two-way communication at a distance of up to 1,700 meters
- 5 ReX radio signal range extenders in a system
- Adjustable ping interval from 12 seconds
Smart security management console
Use scenarios to shift your daily routine to Ajax. When arming, the system turns off the lights, the water and electrical appliances, closes the roller shutters, all in one touch on KeyPad Plus
Effortless installation
KeyPad Plus is connected and configured in Ajax apps. No need to disassemble the enclosure or install batteries. Adding to the system is done via simply scanning a QR code. An installation engineer only needs to test the device, add cards and set up access permissions.
- Keypad type: Capacitive touch keypad
- Installation: Indoor only
- Compatibility: Hub Plus
- Hub 2 (2G)
- Hub 2 (4G)
- Hub 2 Plus
- Hub Hybrid (2G)
- Hub Hybrid (4G) ReX with OS Malevich 2.11 and higher
- Personal passcodes: Yes
- Passcode guessing protection: Yes
- Duress code: Yes
- Contactless access: DESFire EV1 EV2 ISO14443-A (13 56MHz)
- Power supply: Batteries: 4 lithium AA (FR6) Voltage 1.5V
- Battery life: up to 4.5 years
- SPECS ATTACHED BELOW.↓↓↓↓↓
