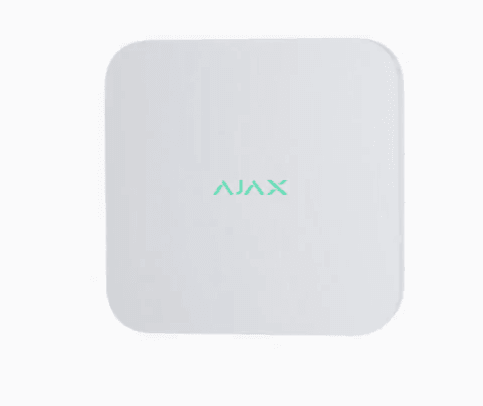

AJAX 8CH NVR - WHITE


AJAX 8CH NVR - WHITE

R 4,633.00
Unit price  per
history

Safe & Secure Payment Options

AJAX 8CH NVR - WHITE

Guiding video to top-tier security

NVR brings the synergy of video surveillance and Ajax systems. Experience unparalleled system response speed, ensuring instant access to video archive, even on the go. Wide compatibility makes almost any IP camera integrated with intrusion protection and automation. NVR carries the legacy of a professional security system trusted by millions of users worldwide.

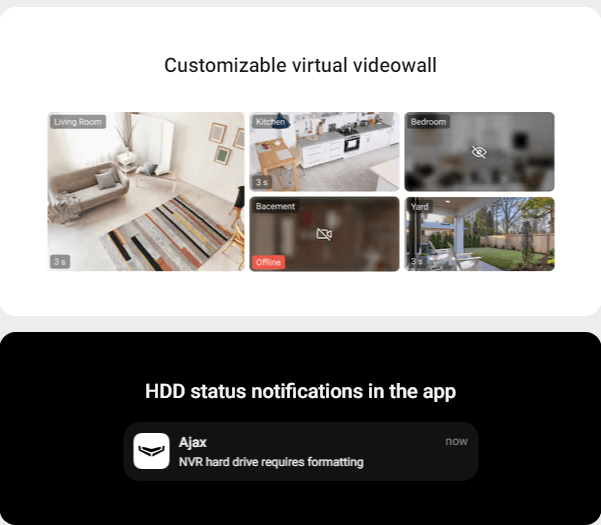

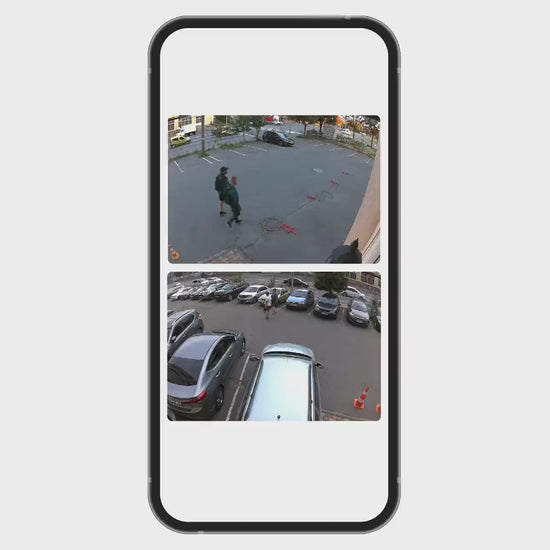

Customizable videowall for simultaneous monitoring

Integrate all your visual data in a streamlined interface. The Videowall tab combines the latest snippets from IP cameras and MotionCam series detectors, offering a comprehensive view of your space. Rearrange tiles according to your preference. The videowall is accessible on both mobile and desktop apps.

Smooth archive search

Effortlessly access the archive by clicking on an event in the notification log, instantly directing you to the precise camera recording at the event's timestamp. Everything is one click away with our advanced features

Gone are the days of sifting through endless recordings or waiting for hours just to find that one significant clip. Experience unparalleled system response speed and smooth control. The lightning-fast interface offers dual streams and instant archive access without the typical wait. Instantly jump to a specific timestamp with one click – no more tedious searching.

Rapid and encrypted data transfer

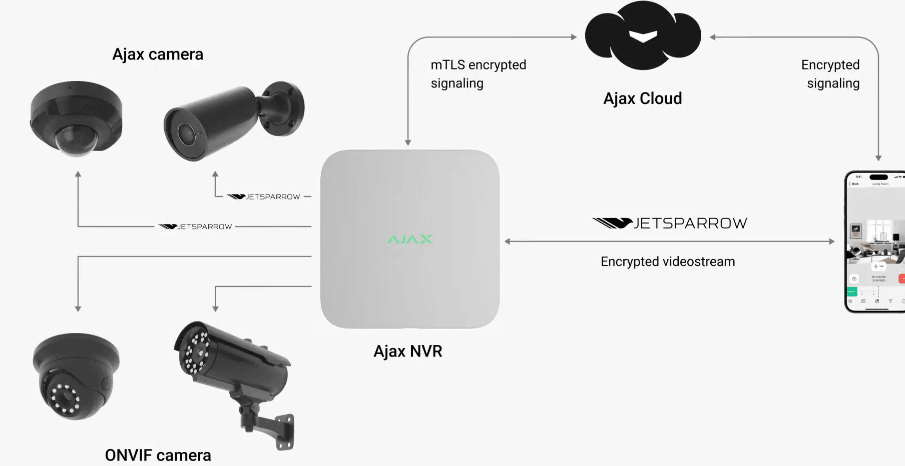

Ajax JetSparrow is the heart and brain of the Ajax video. It is responsible for all the video transmission, storage, and management.

We have developed JetSparrow — our proprietary video transmission technology to deliver an ultra-fast VMS experience. Thanks to this streaming technology, navigating through the local HDD archive feels as smooth as browsing cloud storage. As a result, browsing the archive becomes remarkably efficient, and the live view initiates without any delay.


Peer-to-peer transmission


TLS encryption


High stability

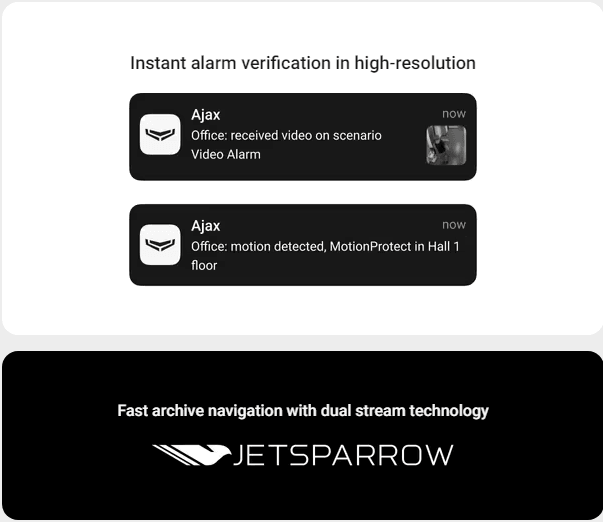

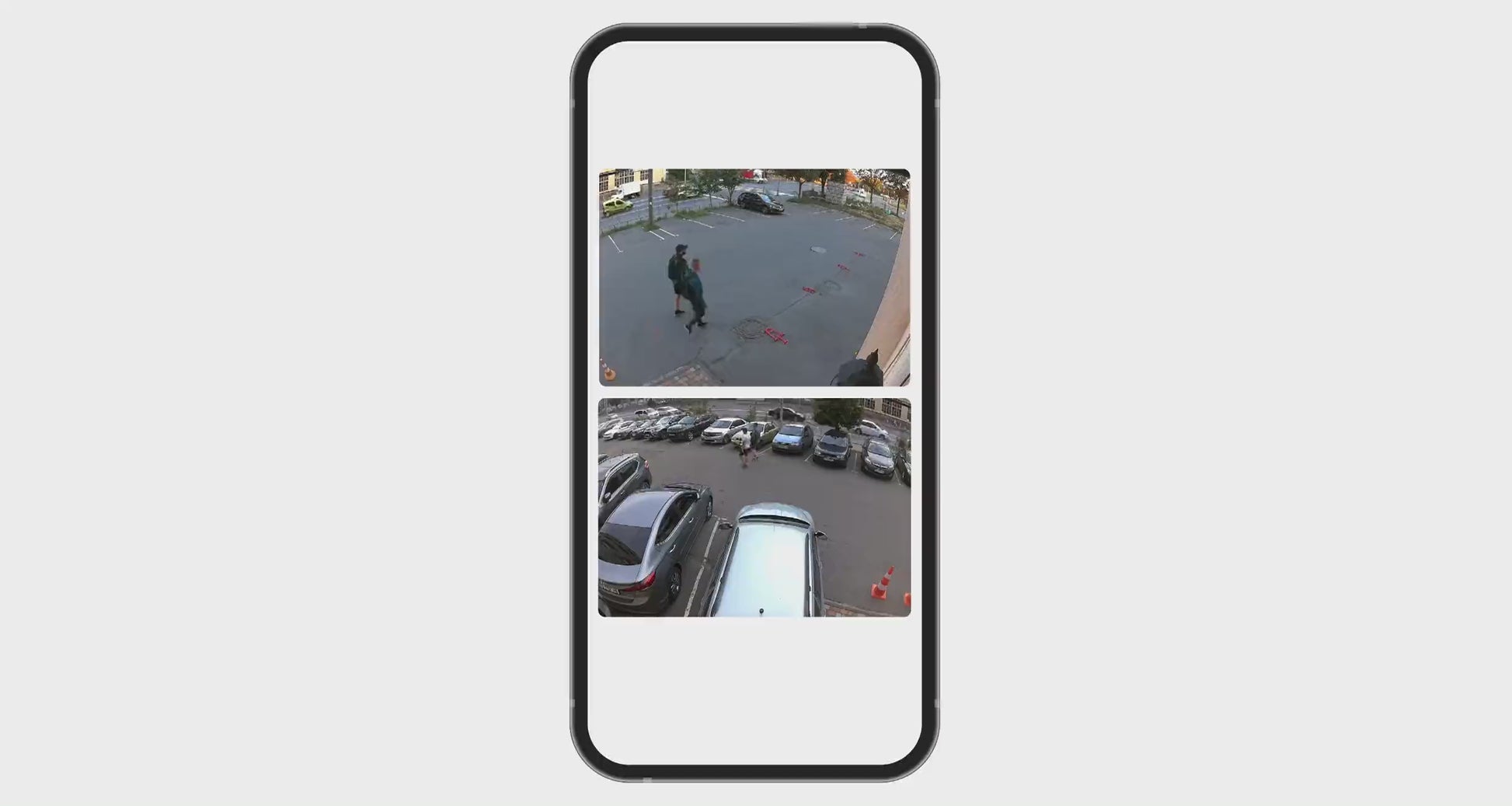

Instant event-to-video alarm verification

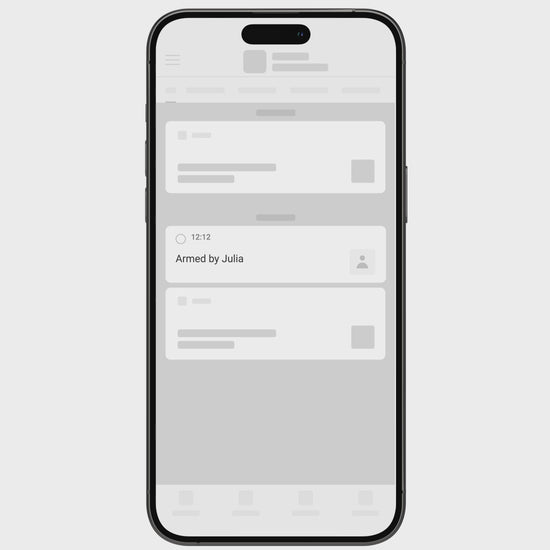

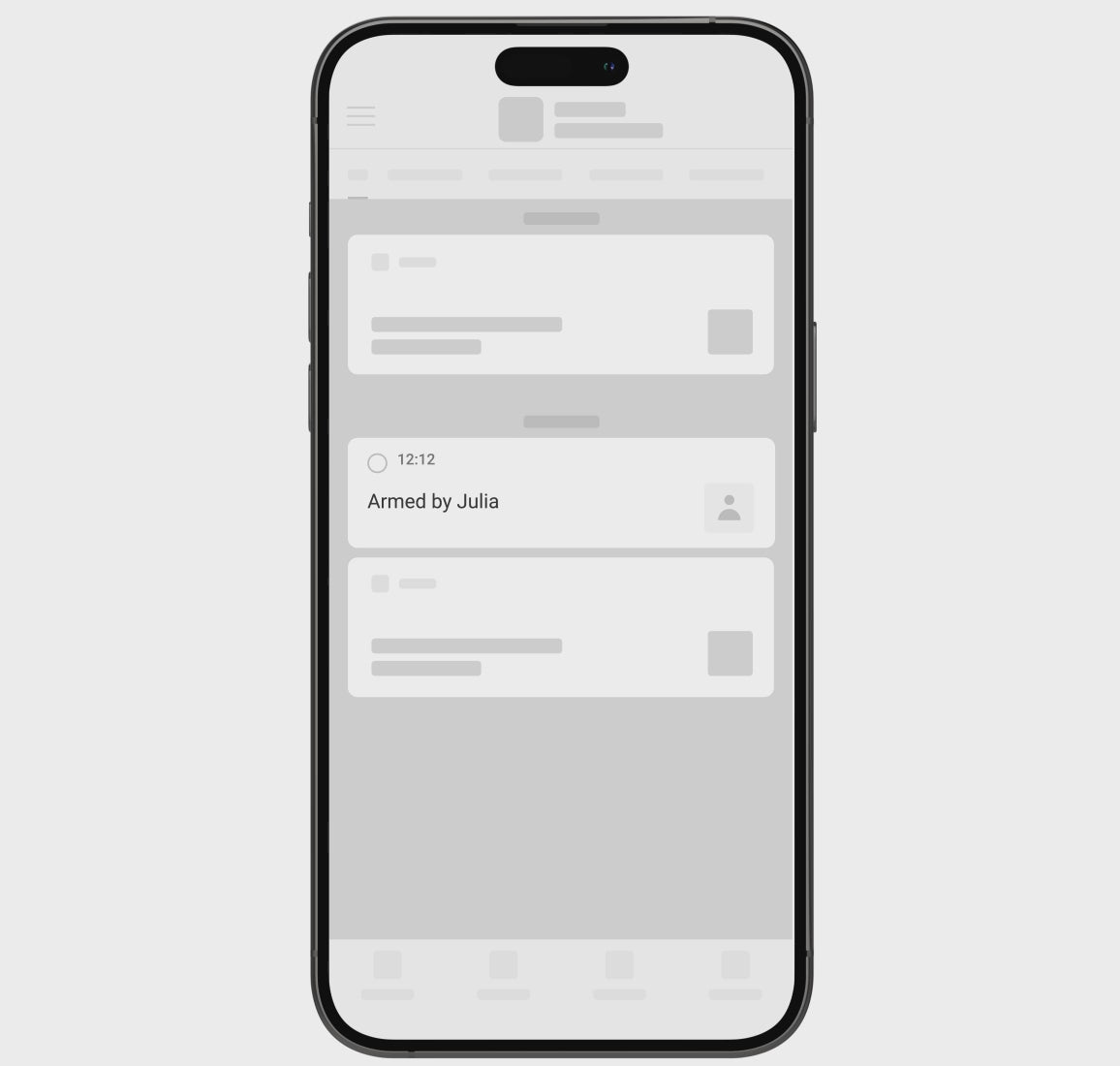

With the app's system notifications, you can easily navigate to the specific camera and view the incident. This makes the app a comprehensive solution for both security and video surveillance.

Set up a scenario in which Ajax detectors activate specific cameras and initiate video recording. Configure the video settings to immediately receive high-resolution visual alarm confirmations.

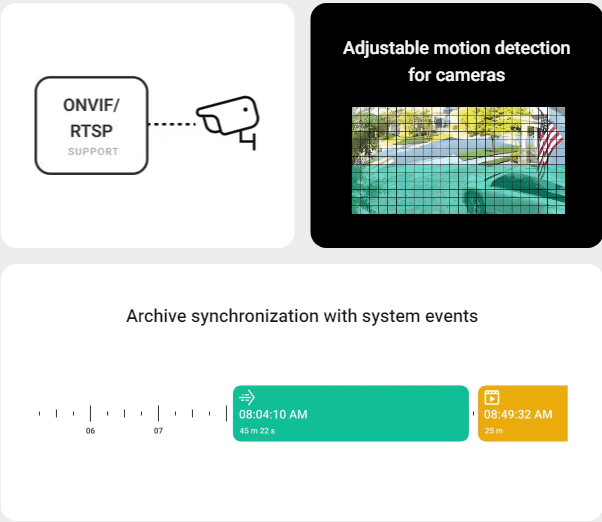

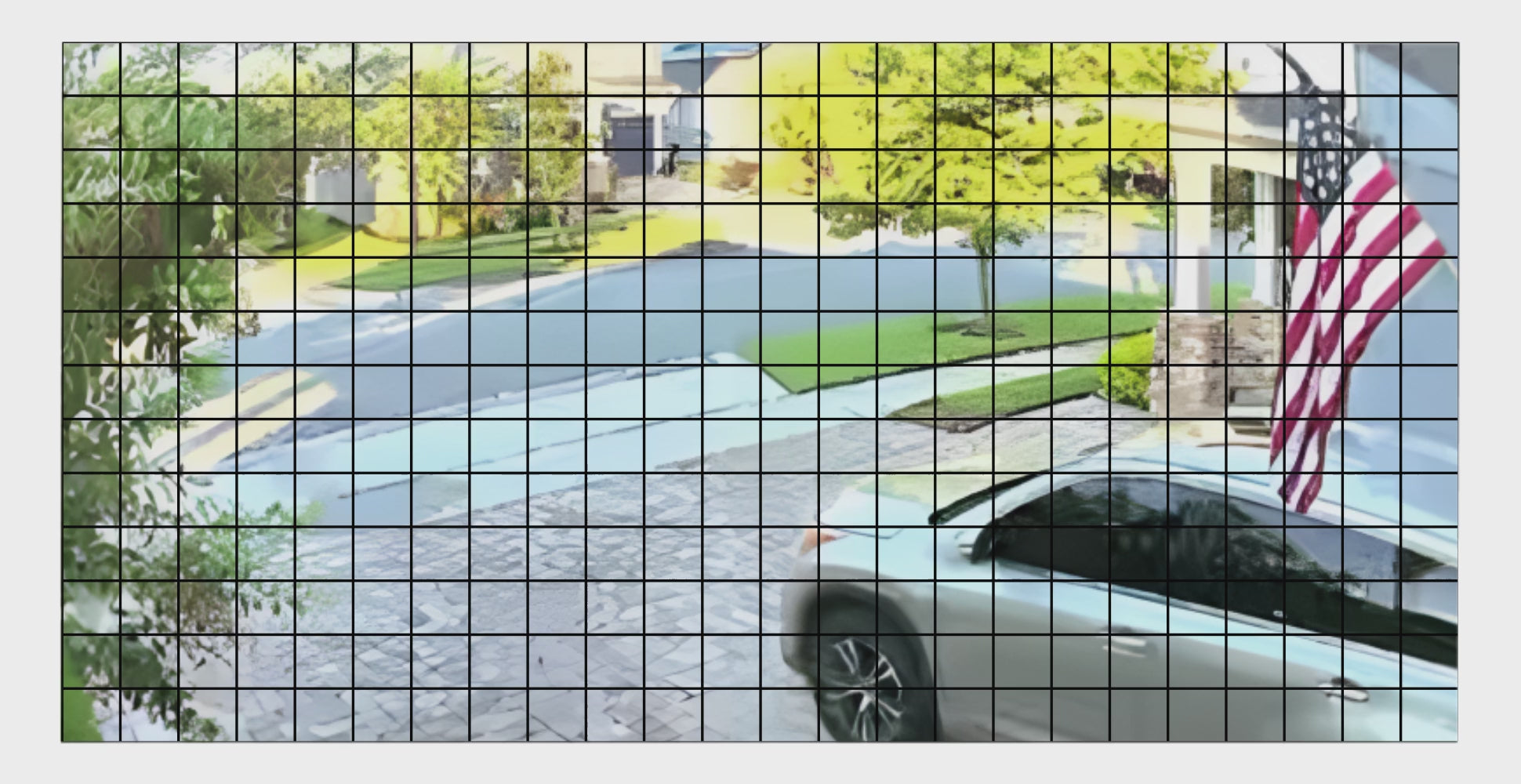

Built-in motion detection

Optimize your video archive by setting up the pixel movement detection feature. Define specific zones to ensure recordings are triggered only when movement occurs in the selected area. This conserves HDD space and streamlines archive navigation.

Hassle-free installation and setup

Connecting your NVR has never been simpler. There's no need to rush to each unit or manually add users. Everything is seamlessly set up through the app, whether you're on-site or accessing remotely. Monitor your system's health, including HDD space remaining, temperature, CPU load, RAM usage, etc.

SPECS:


Videostream

NVR models

8-channel
With up to 4K resolution (25/30 FPS).

IP cameras

  • ONVIF (Profile S/T)
  • RTSP

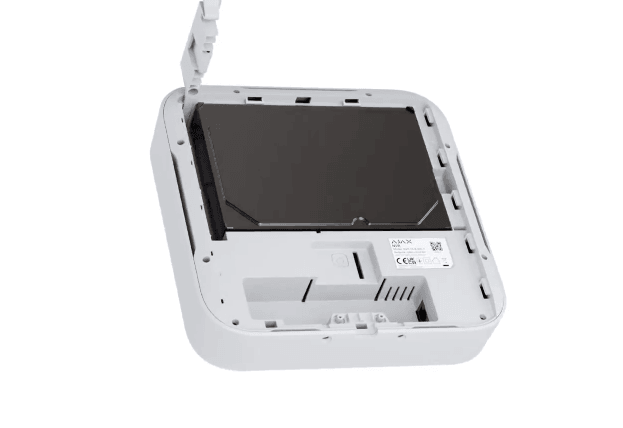

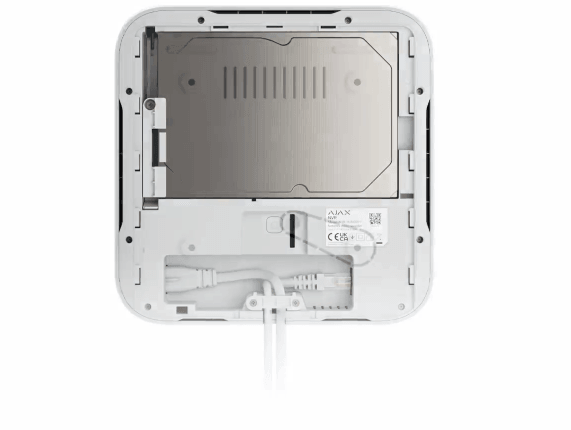

Storage

hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size)
HDD not included.

Decoding formats

H.265
H.264

Bandwidth

up to 100 Mbps

Recommendations

The device operating voltage is 110–240 V~.
NVR is designed for indoor installation only.

Communication channels

Ethernet

up to 100 Mbps

Bluetooth

BLE frequency band: 2.400–2.4835 GHz
To set up an Ethernet connection.

Radio signal power

2.5 mW (100 mW limit)

Key features

Motion detection

NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms.

In-app video management system

  • Videowall that combines images from all connected cameras.
  • Event filters.
  • Timeline with smooth preview.

Visual verification of Ajax alarms

NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording. This results straight in mobile and desktop (monitoring) apps.

Privacy

Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.

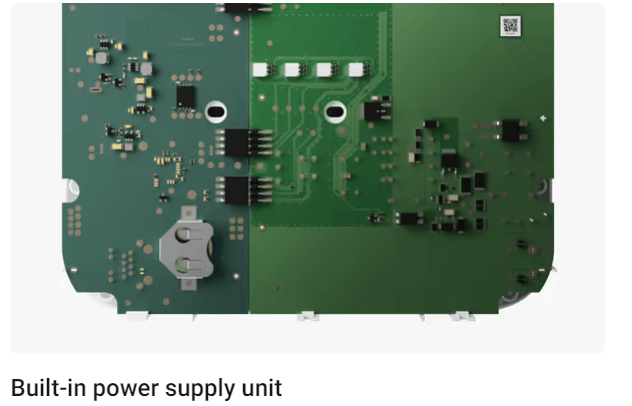

Power supply

Main

110–240 V~, 50/60 Hz, 0.6 A
Up to 24 W of mains power consumption.

Backup

CR2032 battery, 3 V
Only to power the system clock.

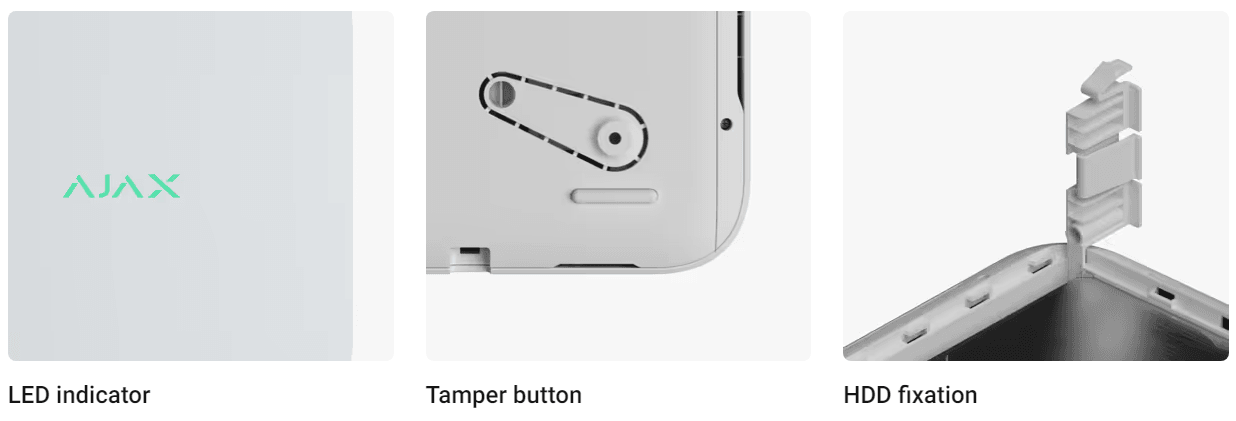

Sabotage protection

Tamper alarm

Notifications about attempts to detach the device from the surface or remove it from the mounting panel.

Enclosure

Dimensions

193 × 193 × 47 mm

Weight

700 g
Without a hard drive.

Operating temperature range

from 0°C to +40°C

Operating humidity

up to 75%

Protection class

IP20

Colours

Black
White

Complete set

NVR

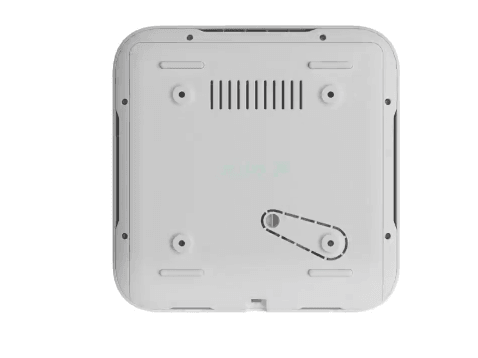

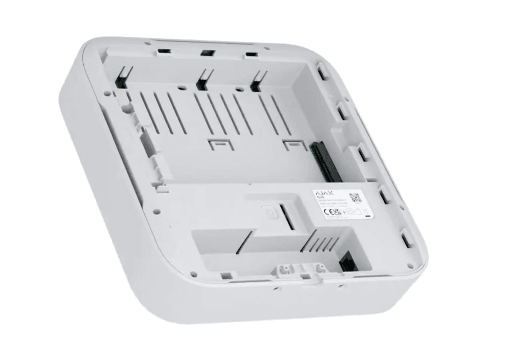

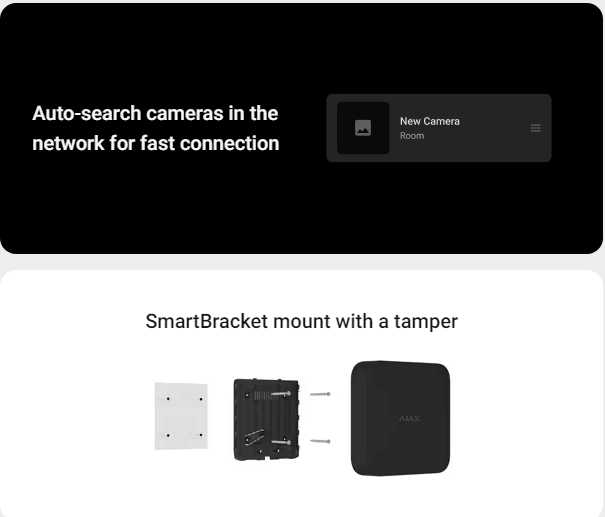

Smart Bracket mounting panel
Power cable
Ethernet cable
Installation kit
Quick start guide
