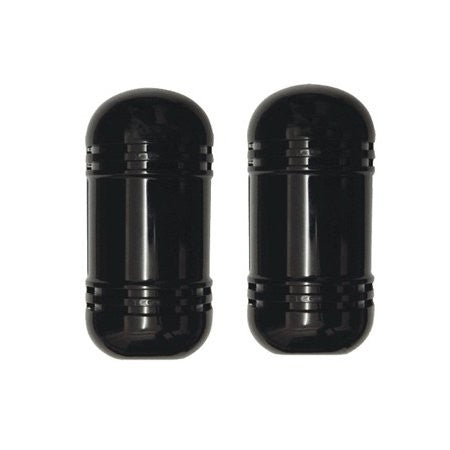

Photo Beams (Invisible Fence) can be used for defense perimeter security, entry alert or as a trigger for an open/close gate system. Solutions for many applications, which require both beams to be broken in order to trigger (NO/NC) an event.
| Model |
� |
ABT-30� |
ABT-60 |
| Protection Distance |
Indoor |
30 m |
60 m |
| Outdoor |
90 m |
180 m |
| Max. Arrival Distance� |
360 m� |
650 m |
| Infrared Beam� |
2 Beams |
| Detection System� |
Simultaneous cut-off of 2 beams |
| Light Source |
�Infrared LED |
| Response Time |
�50-700 m/sec |
| Alarm Signal� |
Form �C� (SPDT) relay contacts� � � � � � � �
Rating: 0.5A max at 30 VAC
|
| � |
�DC |
| Supply Voltage DC� |
10.5 - 28V |
| Current Consumption� |
40 mA Max.� |
55 mA Max.� |
| Temperature Range� |
-25�C - 55�C |
| Dimensions (H X W X D)� |
171 X 82 X 77 mm |
| Tamper Range� |
Form �B� (SPST) relay contacts |
| Optical Axis Adjustable Angle (Horizontal)� |
180� (�90�) |
| Optical Axis Adjustable Angle (Vertical)� |
20� (�10�) |
| Collimator� |
Viewfinder with peep window |
| Measure for Moisture/Frost� |
Sit type cover |
| Other Additional Functions� |
Alignment LED and Monitor Jack |
| Material� |
ABS Plastic |
| Weight� |
300 g (Transmitter & Receiver) |
