ABE 100 DUAL IR DETECTOR BEAM

R 469.00
Unit price  per
history

Guaranteed safe & secure checkout

Point-To-Point Beams

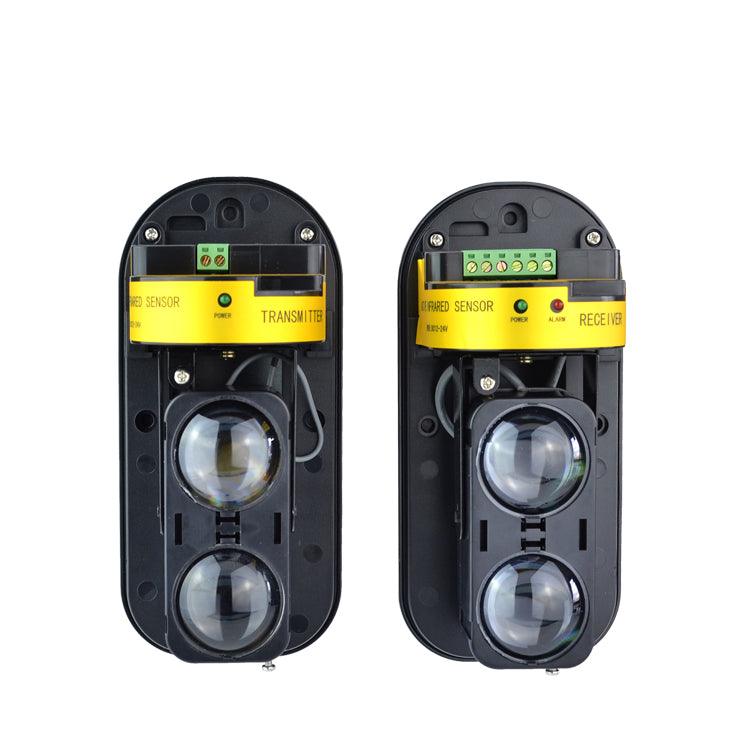

These beams are used in pairs consisting of a transmitter and a receiver - and are either mounted on walls or on brackets outdoors. The transmitter sends an undetectable and continuous pulse of infrared light to the receiver.



Feature:

  • The product is fully sealed with polymer coating and waterproof grade IP55.
  • The integrated sealing structure has the functions of waterproof, dustproof and anti-mite, and is suitable for use in harsh environments.
  • Equipped with smart chip to automatically sense environmental changes, automatically adjust the radio's transmit power according to environmental conditions, effectively extend the life of the launch tube, while reducing power consumption.
  • The maximum warning distance is up to 100m.
  • The surface of the product is treated with painting, which is beautiful and resistant to aging.



Specification:
Model: ABE-100L
Material : ABS
Color : Black
Alarm output: NC and NO contact rating AV/DC 30V, 0.5A
Detection method covers the light at the same time
Warning distance : 100meter / 328ft
Light source: Digital pulse infrared
Induction rate : 50-700ms
Horizontal adjustment axis : 180°± 90°
Vertical adjustment axis: ±10°
Input voltage: DC 12-24V, AC 11-18V
Working current: 100mA
Weight: 723g / 25.5oz

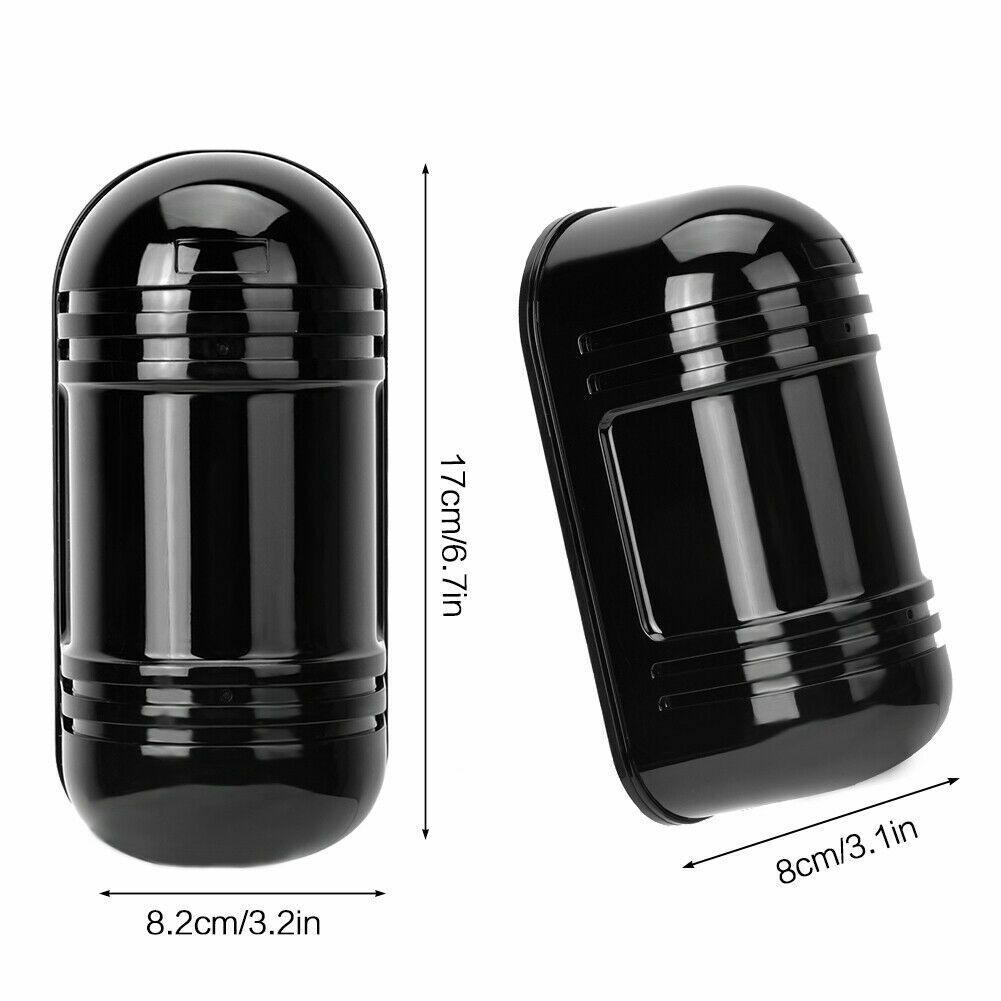

Product dimension: Approx. 17 x 8.2 x 8cm / 6.7 x 3.2 x 3.1in

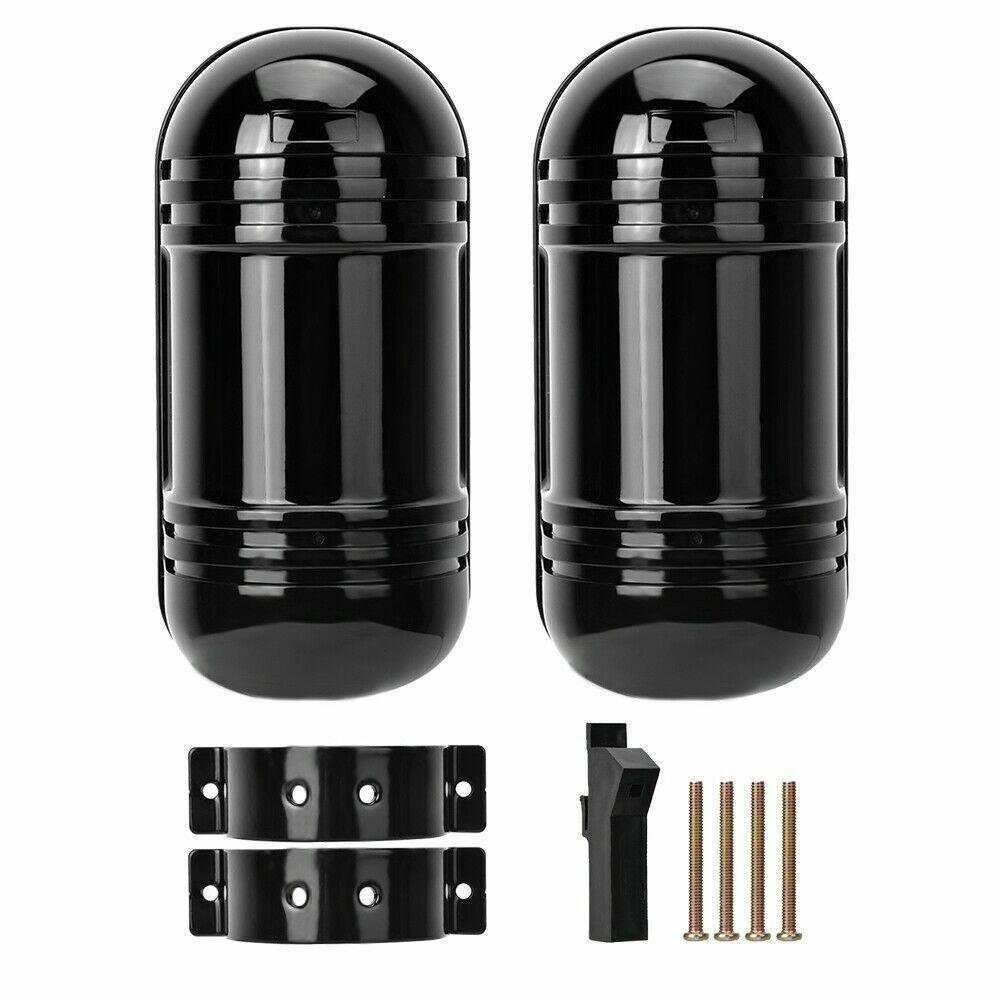

Package list:
1 x Transmitter
1 x Receiver
3 x Bracket
4 x Screw
