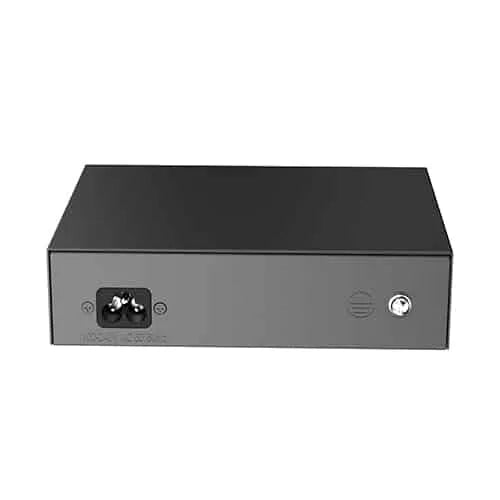

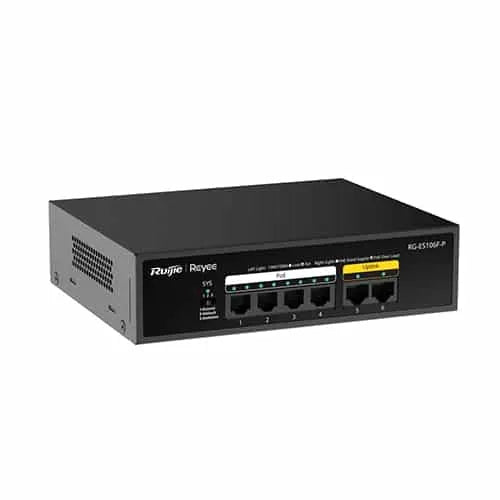

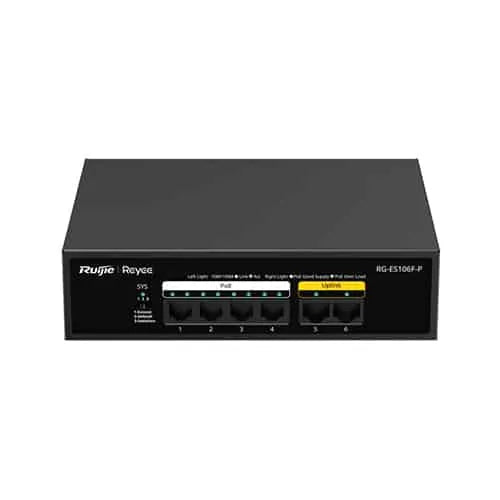

Ruijie Reyee RG‑ES106F‑P 6‑Port 100 Mbps Unmanaged PoE Switch
The Reyee RG‑ES106F‑P is a plug‑and‑play PoE switch ideal for CCTV setups, small offices, or retail environments. With four 802.3af/at PoE+ ports and two additional uplink ports, it provides up to 54 W total PoE power. This fanless switch supports intelligent PoE features and is visible through Ruijie’s cloud platform—perfect for streamlined network expansion without complex configuration.
Key Features & Specifications
Ports: 6 × RJ45 10/100 Mbps (4 PoE+ downlink, 2 uplink)
PoE Power: PoE+ ports (802.3af/at) deliver up to 30 W per port — 54 W total power budget
Performance: 1.2 Gbps switching capacity; 0.89 Mpps packet forwarding rate; MAC table supports 2 000 entries
PoE Management: Features port isolation, watchdog, PoE extension, and surge protection up to 4 kV
Network Visibility: Unmanaged but visible in Ruijie Cloud when paired with a cloud-managed switch
Design: Sturdy metal chassis, fanless operation, auto-sensing ports with MDI/MDIX support
Power & Environment: 100–240 VAC input, <54 W max consumption, operating temp 0–45 °C
Dimensions & Weight: 166 × 132.6 × 43 mm; 0.96 kg (incl. packaging)
What’s in the Box
1 × RG‑ES106F‑P 6‑Port Unmanaged PoE Switch
1 × Power Adapter
1 × Quick Start Guide / User Manual
