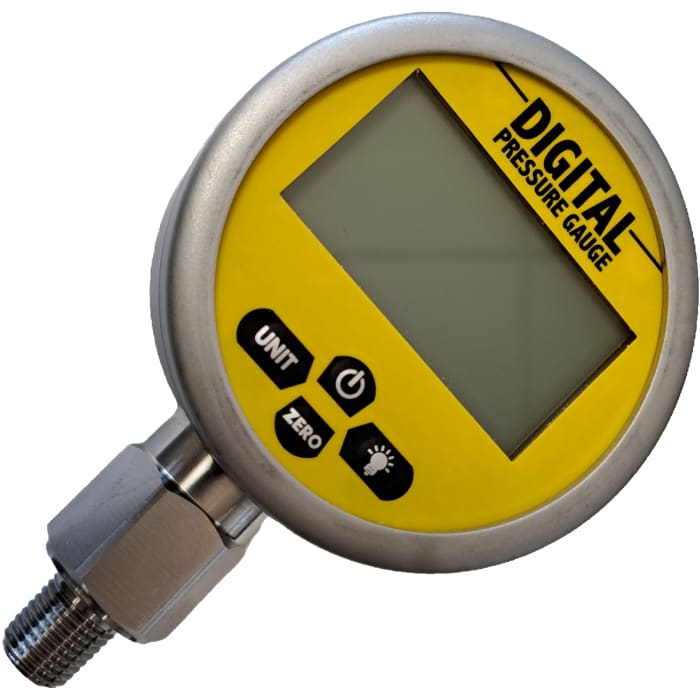

400 BAR Battery-Powered Digital Hydraulic/Air Pressure Gauge – High Accuracy
Precision digital pressure gauge engineered for industrial applications requiring accurate measurement. Features an 80mm diameter display with 1/4" BST fitting for broad compatibility.
Key Features
-
4-digit LCD screen with white backlight
- Peak function and switchable pressure units
- Zero clearing capability
- Anti-EMI design (EN61326 compliant)
- EEPROM data retention
Technical Specifications
-
Pressure Range: 0–400 BAR
-
Pressure Type: Gauge pressure, negative gauge pressure
-
Overload Capacity: 150% of range (<10MPa), 120% of range (>10MPa)
-
Accuracy: ±0.4%FS or ±0.2%FS
-
Long-Term Stability: 0.2%FS per year
Power & Performance
-
Power Supply: 3V (2x AAA batteries) or 24V
-
Battery Life: 8–12 months
-
Sampling Rate: 3 readings per second
Environmental & Construction
-
Temperature Compensation: -20°C to 70°C
-
Thread: M20×1.5 or customized
-
Connector Material: 304 stainless steel
-
Compatible Media: Non-corrosive substances compatible with 304 or 316 stainless steel
